Description
DN | Inch | Inside | Outside | Working- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | bar | psi | bar | mm |
5 | 3/16 | -3 | 4.8 | 13.0 | 103 | 1500 | 412 | 80 |
6.3 | 1/4 | -4 | 6.4 | 14.5 | 86 | 1250 | 344 | 80 |
8 | 5/16 | -5 | 7.9 | 17.0 | 83 | 1205 | 332 | 100 |
10 | 3/8 | -6 | 9.5 | 18.7 | 78 | 1135 | 312 | 100 |
12.5 | 1/2 | -8 | 12.7 | 23.0 | 69 | 1000 | 276 | 125 |
16 | 5/8 | -10 | 15.9 | 26.4 | 60 | 870 | 240 | 140 |
19 | 3/4 | -12 | 19.0 | 30.2 | 52 | 755 | 208 | 150 |
25 | 1 | -16 | 25.4 | 36.5 | 39 | 565 | 156 | 200 |
31.5 | 1-1/4 | -20 | 31.8 | 44.5 | 26 | 380 | 104 | 250 |
38 | 1-1/2 | -24 | 38.1 | 52 | 24 | 350 | 96 | 280 |
51 | 2 | -32 | 50.8 | 66 | 20 | 290 | 80 | 300 |
64 | 2-1/2 | -40 | 63.5 | 79 |
|
|
| |
Features

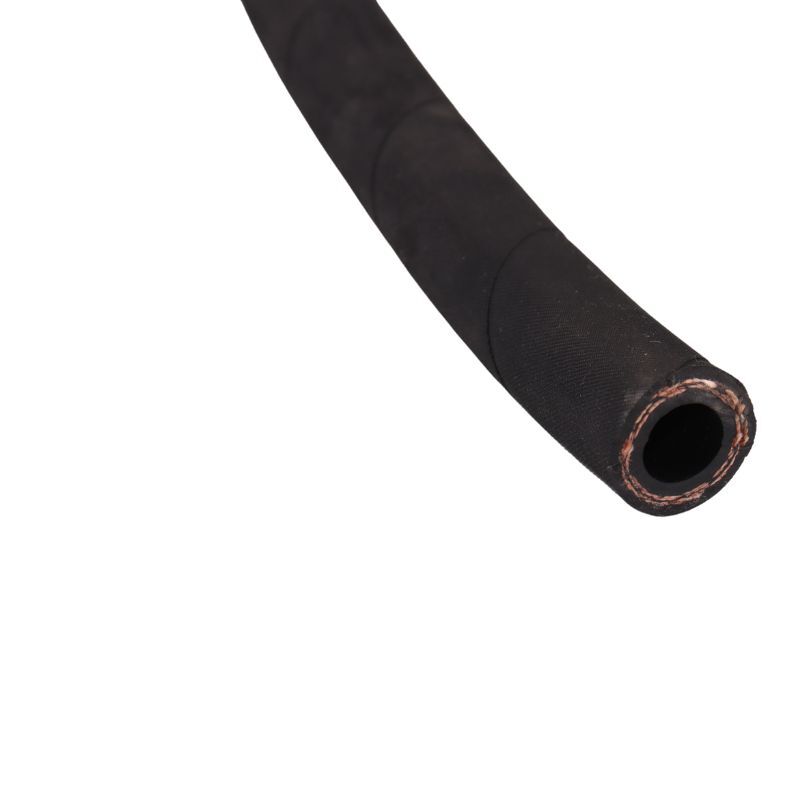

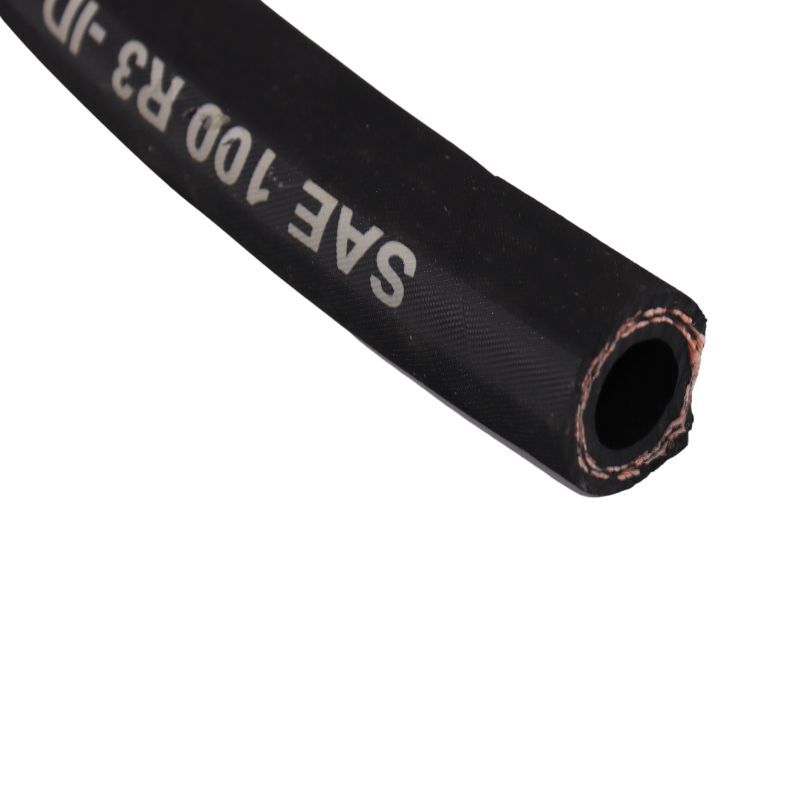

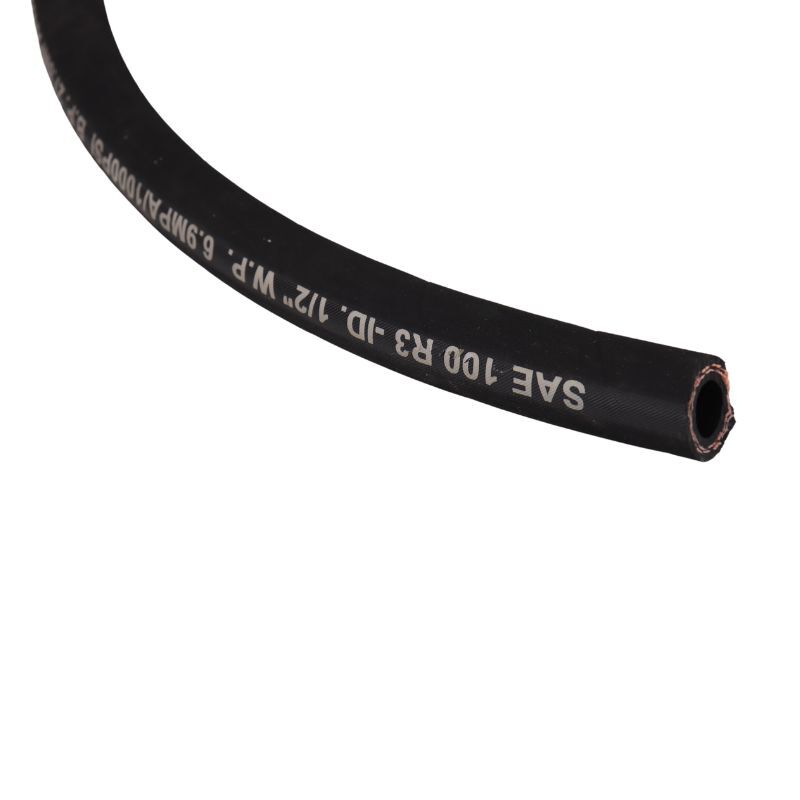

Topa’s SAE 100R3 hydraulic hose meets the international standard SAE J517 – 100 R3, having excellent performance. It also has the advantages of excellent flexibility, having long hose life, and being lighter than comparable rubber hoses. In addition, it also can be used for no-steel wire required equipment, low-pressure equipment, and construction handling equipment. It is suitable for transporting petroleum-based fluids, anti-freeze solutions, and water-based fluids as well.
SAE 100R3 Hydraulic Hose Video
This video shows information about SAE 100R3 hydraulic hose.

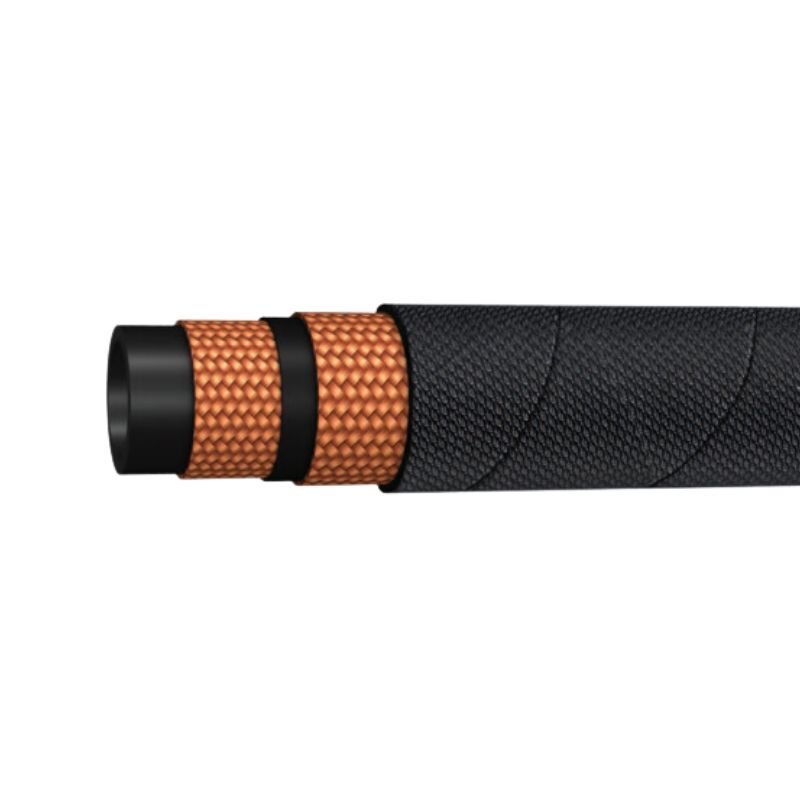

SAE 100R3 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of two high tensile textile wire braids, and an outer cover of abrasion and weather resistant synthetic rubber. Topa’s SAE 100R3 hydraulic hoses with excellent performance to meet most of your needs.
If you have any questions about SAE 100R3 hydraulic hoses, please contact us.
