Description
DN | Inch | Inside | Outside | Working- pressure | Test- pressure | Burst- pressure | Bend Radius | |
mm | inch | mm | mm | bar | psi | bar | bar | mm |
5 | 3/16 | 4.8 | 13.2 | 207 | 3000 | 410 | 820 | 76 |
6.3 | 1/4 | 6.4 | 14.8 | 207 | 3000 | 410 | 820 | 86 |
8 | 5/16 | 7.9 | 17.1 | 155 | 2250 | 310 | 620 | 102 |
10 | 13/32 | 10.3 | 19.5 | 138 | 2000 | 280 | 560 | 117 |
12.5 | 1/2 | 12.7 | 23.4 | 121 | 1750 | 240 | 480 | 140 |
16 | 5/8 | 15.9 | 27.4 | 103 | 1500 | 210 | 420 | 165 |
22 | 7/8 | 22.2 | 31.4 | 55 | 800 | 110 | 220 | 187 |
28 | 1-1/8 | 28.6 | 38.1 | 43 | 625 | 86 | 170 | 229 |
35 | 1-3/8 | 35.0 | 44.4 | 34 | 500 | 70 | 140 | 267 |
45 | 1-13/16 | 46.0 | 56.4 | 24 | 350 | 50 | 100 | 337 |
60 | 2-3/8 | 60.3 | 73.0 | 24 | 350 | 48 | 96 | 610 |
Features

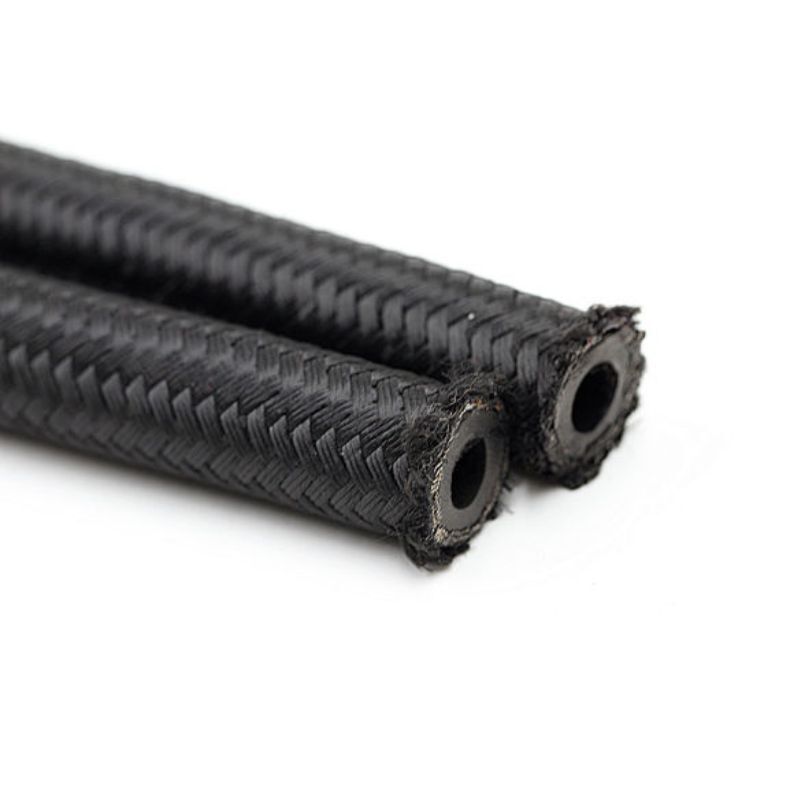

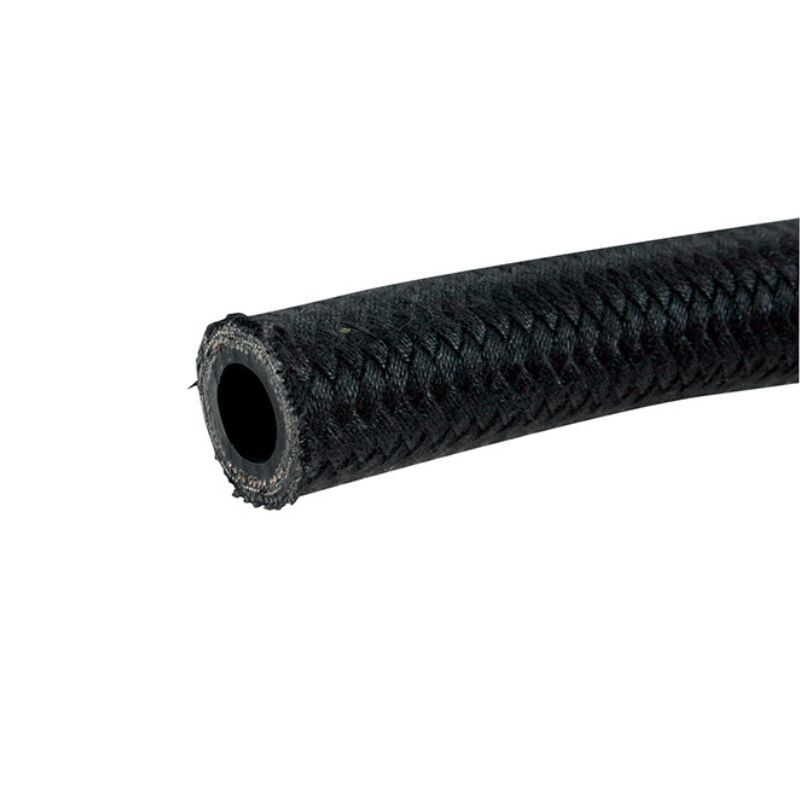

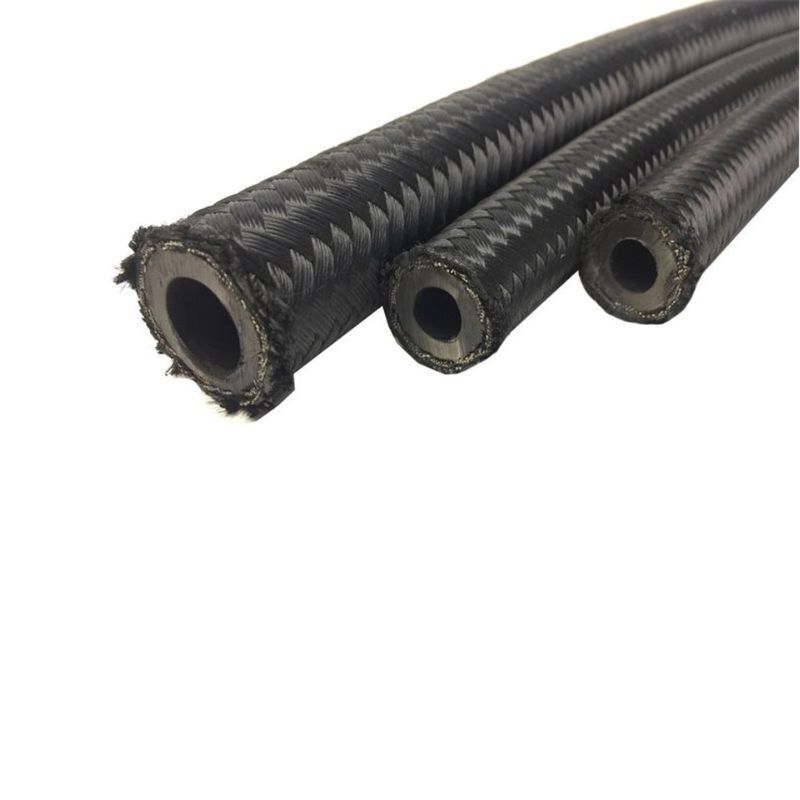

Topa’s SAE 100R5 hydraulic hose meets the international standard SAE J517 – 100 R5, having excellent performance. It also has the advantages of using in varying climates, long hose life, and being lighter than comparable rubber hoses. In addition, it also can be used for railroad equipment, machine tools, and purging operations. It is suitable for transporting petroleum-based fluids, water-based fluids, and air as well.
SAE 100R5 Hydraulic Hose Video
This video shows information about SAE 100R5 hydraulic hose.

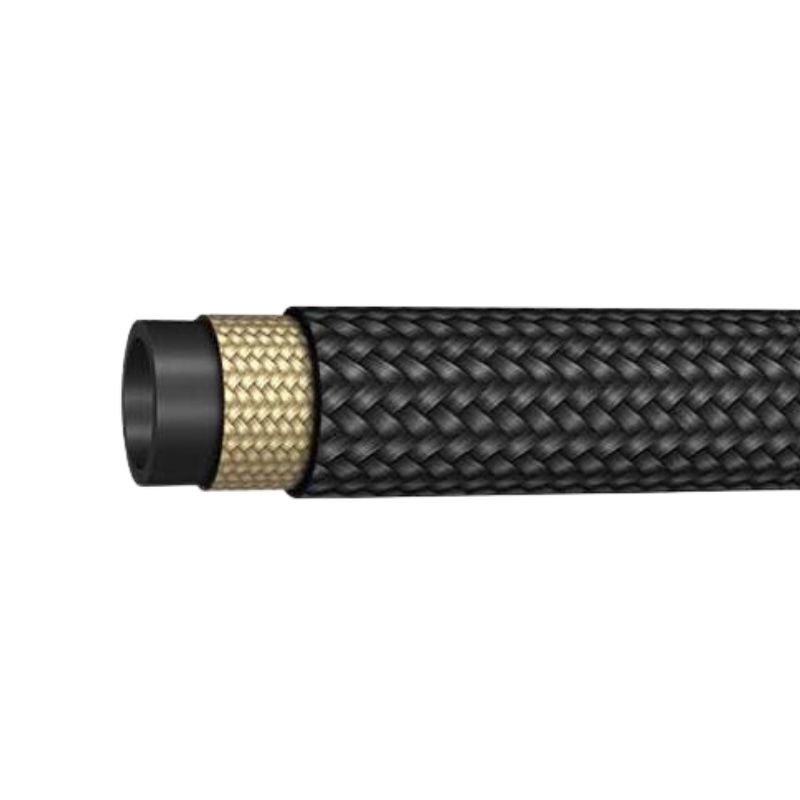

SAE 100R5 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of one high tensile steel wire braid, and an outer cover of impregnated textile braid. Topa’s SAE 100R5 hydraulic hoses with excellent performance to keep your work running smoothly.
If you have any questions about SAE 100R5 hydraulic hoses, please contact us.
