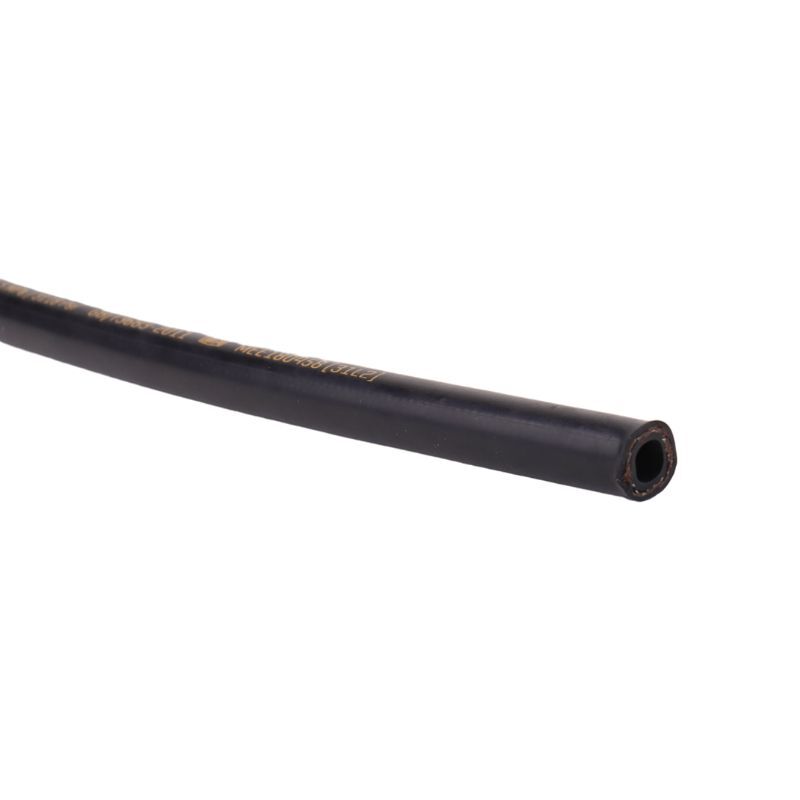

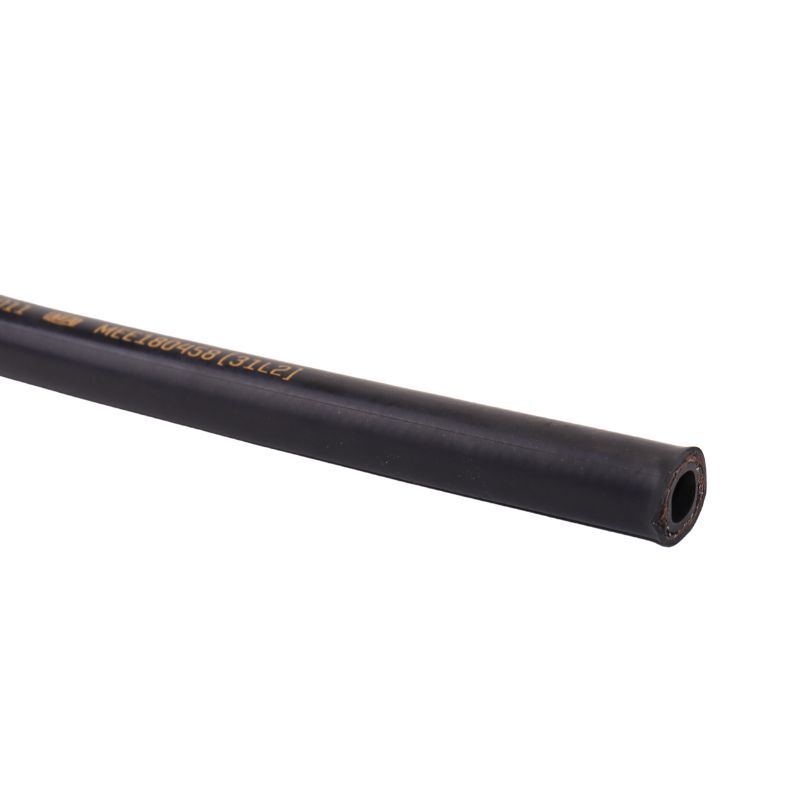

Description
DN | Inch | Inside | Wire | Outside | Working- pressure | Test- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | mm | bar | psi | bar | bar | mm |
5 | 3/16 | -3 | 4.8 | 9.5 | 11.8 | 250 | 3625 | 500 | 1000 | 90 |
6.3 | 1/4 | -4 | 6.4 | 11.1 | 13.4 | 225 | 3270 | 450 | 900 | 100 |
8 | 5/16 | -5 | 7.9 | 12.7 | 15.0 | 215 | 3120 | 430 | 850 | 115 |
10 | 3/8 | -6 | 9.5 | 15.1 | 17.4 | 180 | 2610 | 360 | 720 | 130 |
12.5 | 1/2 | -8 | 12.7 | 18.3 | 20.6 | 160 | 2320 | 320 | 640 | 180 |
16 | 5/8 | -10 | 15.9 | 21.4 | 23.7 | 130 | 1885 | 260 | 520 | 200 |
19 | 3/4 | -12 | 19.0 | 25.4 | 27.7 | 105 | 1525 | 210 | 420 | 240 |
25 | 1 | -16 | 25.4 | 33.3 | 35.6 | 88 | 1280 | 175 | 350 | 300 |
31.5 | 1-1/4 | -20 | 31.8 | 40.5 | 43.5 | 63 | 920 | 125 | 250 | 420 |
38 | 1-1/2 | -24 | 38.1 | 46.8 | 50.6 | 50 | 725 | 100 | 200 | 500 |
51 | 2 | -32 | 50.8 | 60.2 | 64.0 | 40 | 580 | 80 | 160 | 630 |
64 | 2-1/2 | -40 | 63.5 | 70 | 74 | 30 | 435 | 60 | 120 | 770 |
76 | 3 | -48 | 76 | 84 | 88 | 20 | 290 | 40 | 80 | 930 |
90 | 3-1/2 | -56 | 89 | 98 | 102 | 15 | 220 | 30 | 60 | 1100 |
102 | 4 | -64 | 102 | 111 | 115 | 10 | 145 | 20 | 40 | 1250 |

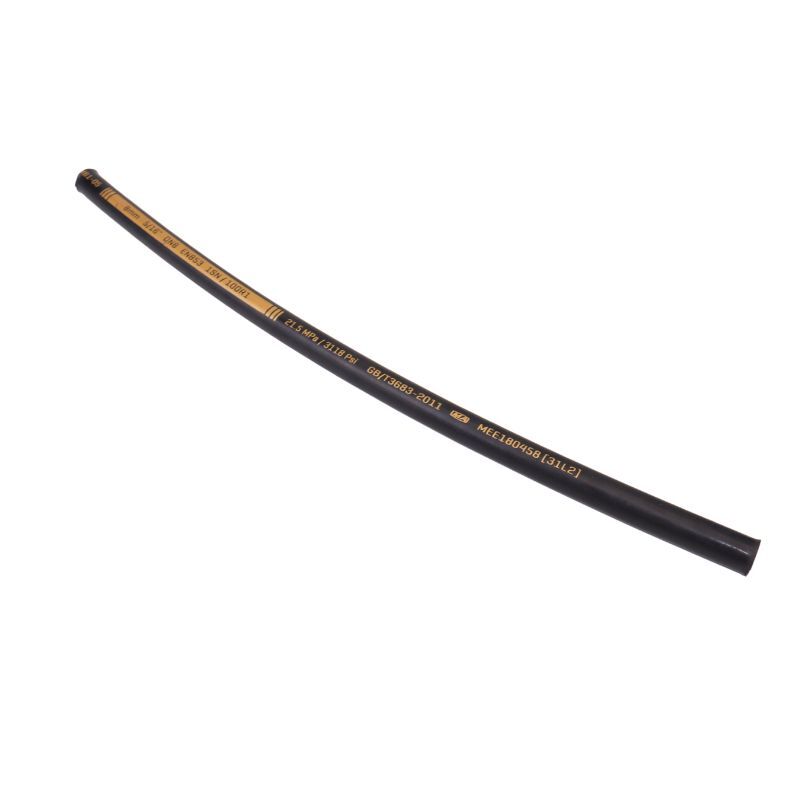

Features
Topa’s SAE 100R1 hydraulic hose meets the international standards SAEJ517-100R1AT, EN853-1SN, and ISO 1436, having excellent performance. It also has the advantages of being easy to assemble, versatile and freight savings, and can be used for cleaning equipment, material handling equipment, and agricultural equipment. It is suitable for transporting petroleum-based fluids, lubricating oils, and water-based fluids, and can be used with the xxxx1-xx-xx Series fitting manufactured by Topa.
SAE 100R1 Hydraulic Hose Video
This video shows information about SAE 100R1 hydraulic hose.

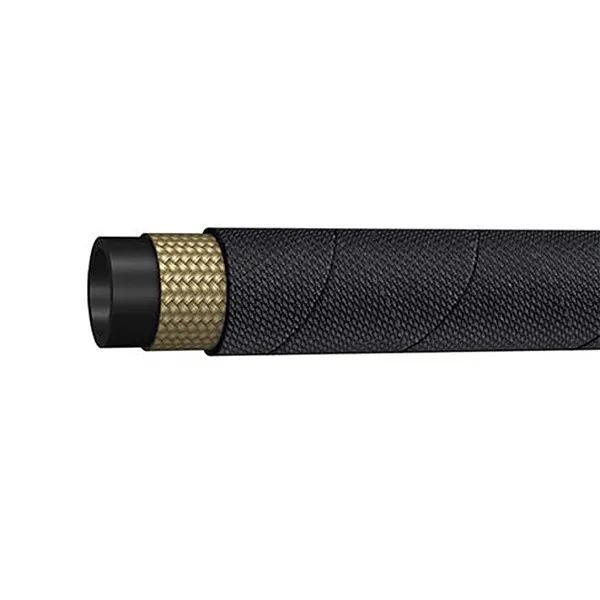

SAE 100R1 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of single wire braid, and an outer cover of abrasion And weather resistant synthetic rubber.Topa can produce SAE 100R1 hydraulic hoses in a wide range of models and sizes to meet all your needs.
If you have any questions about SAE 100R1 hydraulic hoses, please contact us.
