Description

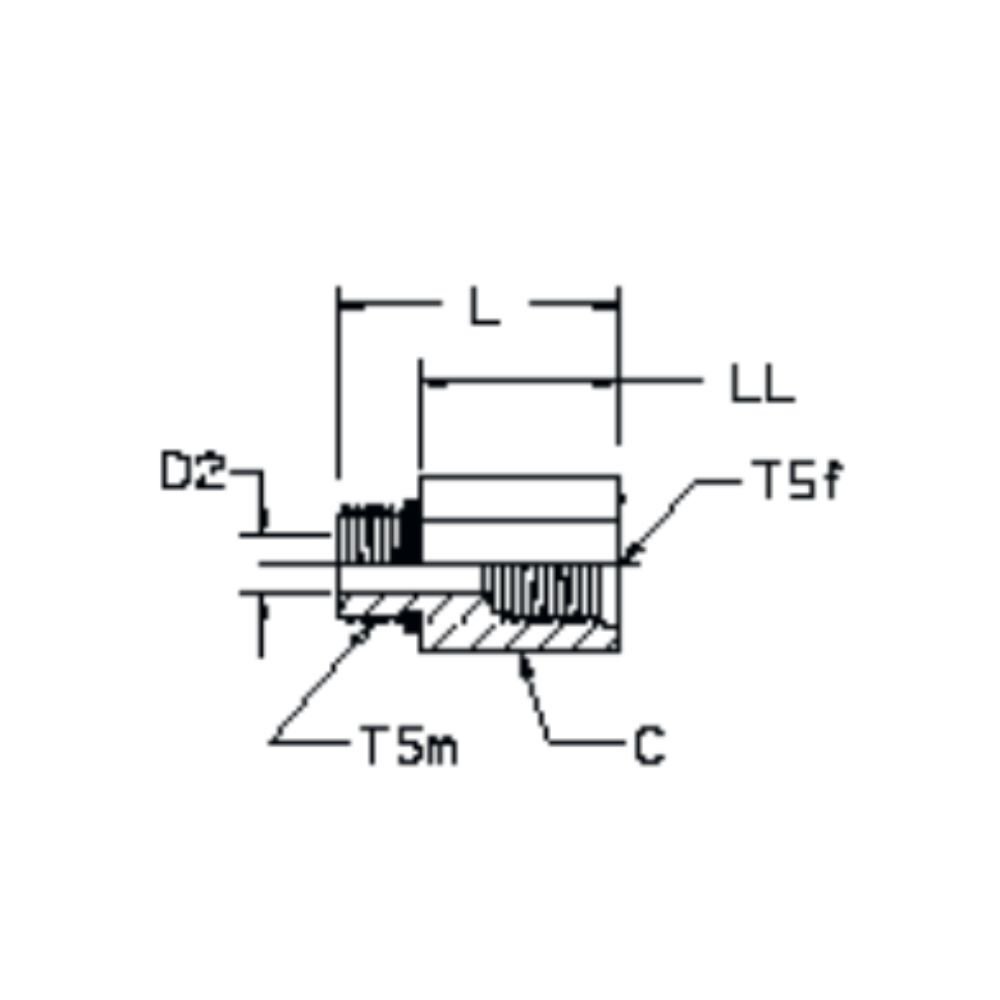

TUBE | T5m | T5f | C | D2 | L1 |
6410-4-4 | 7/16-20 | 7/16-20 | 1 1/16 | 0.172 | 1.08 |
6410-4-6 | 7/16-20 | 9/16-18 | 1 3/16 | 0.172 | 1.16 |
6410-6-4 | 9/16-18 | 7/16-20 | 1 1/16 | 0.297 | 1.03 |
6410-6-8 | 9/16-18 | 3/4-16 | 1 1/16 | 0.297 | 1.38 |
6410-8-6 | 3/4-16 | 9/16-18 | 7/8 | 0.438 | 1.13 |
6410-8-10 | 3/4-16 | 7/8-14 | 1 1/8 | 0.391 | 1.56 |
6410-10-6 | 7/8-14 | 9/16-18 | 1 | 0.484 | 0.81 |
6410-10-8 | 7/8-14 | 3/4-16 | 1 | 0.563 | 1.31 |
6410-10-12 | 7/8-14 | 1 1/16-12 | 1 3/8 | 0.484 | 1.69 |
6410-12-8 | 1 1/16-12 | 3/4-16 | 1 11/4 | 0.625 | 1.00 |
6410-12-10 | 1 1/16-12 | 7/8-14 | 1 11/4 | 0.625 | 1.53 |
6410-12-16 | 1 1/16-12 | 1 5/16-12 | 1 5/8 | 0.625 | 1.88 |
6410-16-8 | 1 5/16-12 | 3/4-16 | 1 1/2 | 0.750 | 1.00 |
6410-16-10 | 1 5/16-12 | 7/8-14 | 1 1/2 | 0.797 | 1.00 |
6410-16-12 | 1 5/16-12 | 1 1/16-12 | 1 1/2 | 0.750 | 1.75 |
6410-16-20 | 1 5/16-12 | 1 5/8-12 | 2 1/8 | 0.875 | 1.97 |
6410-20-6 | 1 5/8-12 | 9/16-18 | 1 7/8 | 1.063 | 1.00 |
6410-20-12 | 1 5/8-12 | 1 1/16-12 | 1 7/8 | 1.063 | 1.00 |
6410-20-16 | 1 5/8-12 | 1 5/16-12 | 1 7/8 | 1.063 | 1.00 |
6410-20-24 | 1 5/8-12 | 1 7/8-12 | 2 1/2 | 1.063 | 1.88 |
6410-24-12 | 1 7/8-12 | 1 1/16-12 | 2 1/8 | 1.250 | 1.00 |
6410-24-16 | 1 7/8-12 | 1 5/16-12 | 2 1/8 | 1.250 | 1.00 |
6410-24-20 | 1 7/8-12 | 1 5/8-12 | 2 1/8 | 1.250 | 1.75 |
6410-32-24 | 2 1/2-12 | 1 7/8-12 | 2 3/4 | 1.780 | 1.00 |

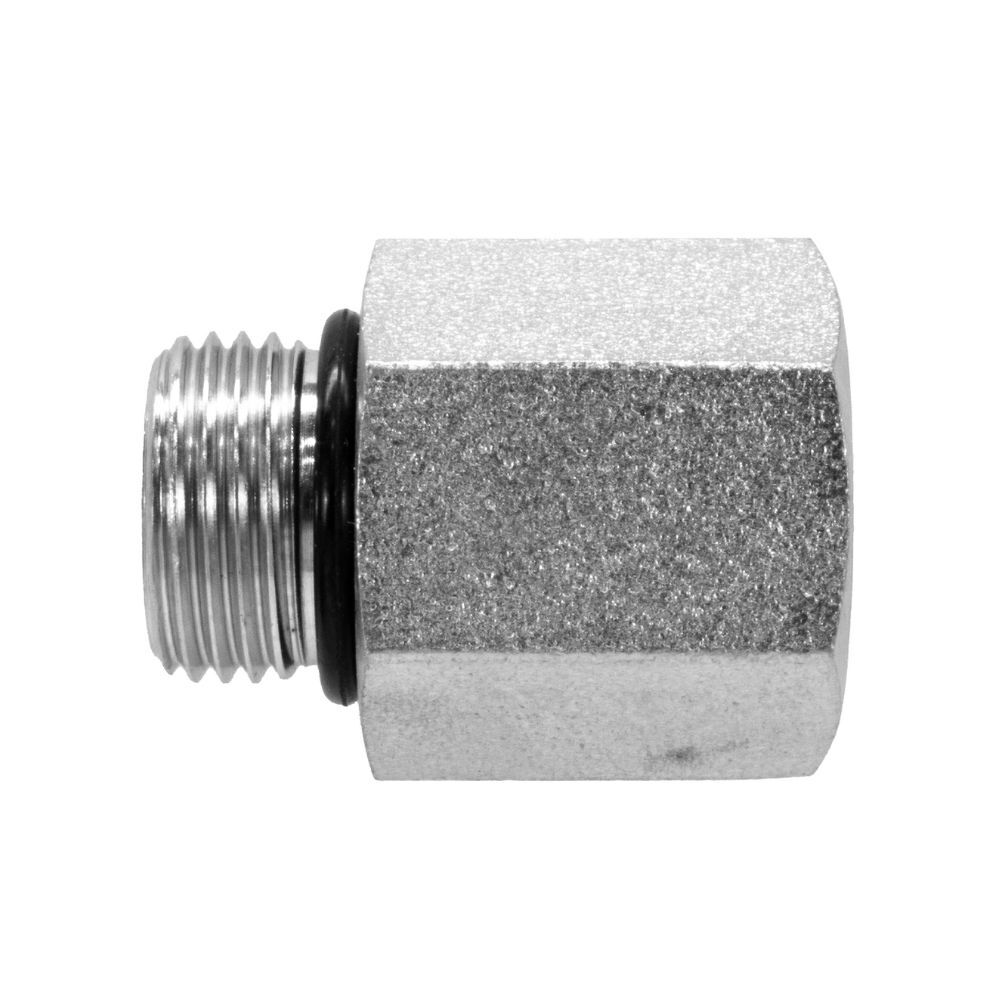

6410 SAE ORB Fitting/Straight Expander/Reducer Video
This video shows information about 6410 SAE ORB fitting.
SAE ORB fittings are commonly used in hydraulic systems across various industries, including automotive, construction, agriculture, and industrial equipment.
