Hydraulic SAE Adapters

Description:

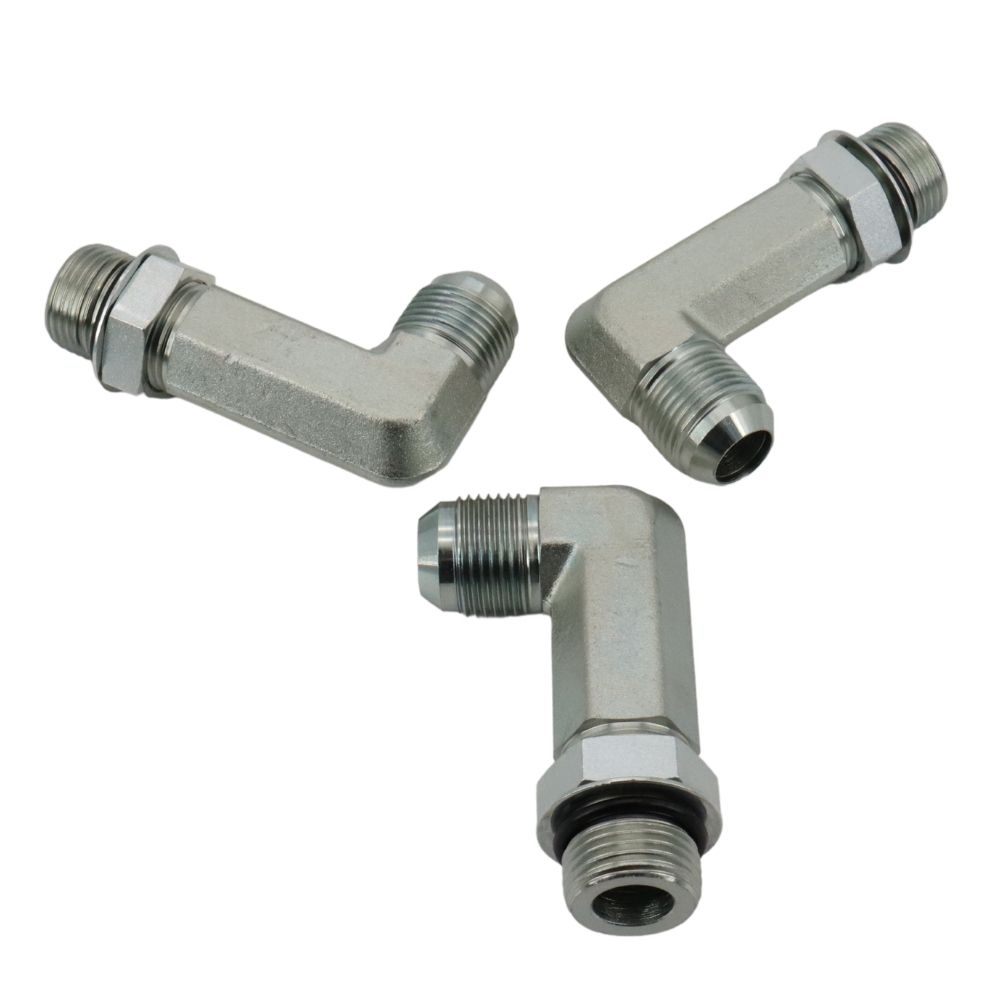

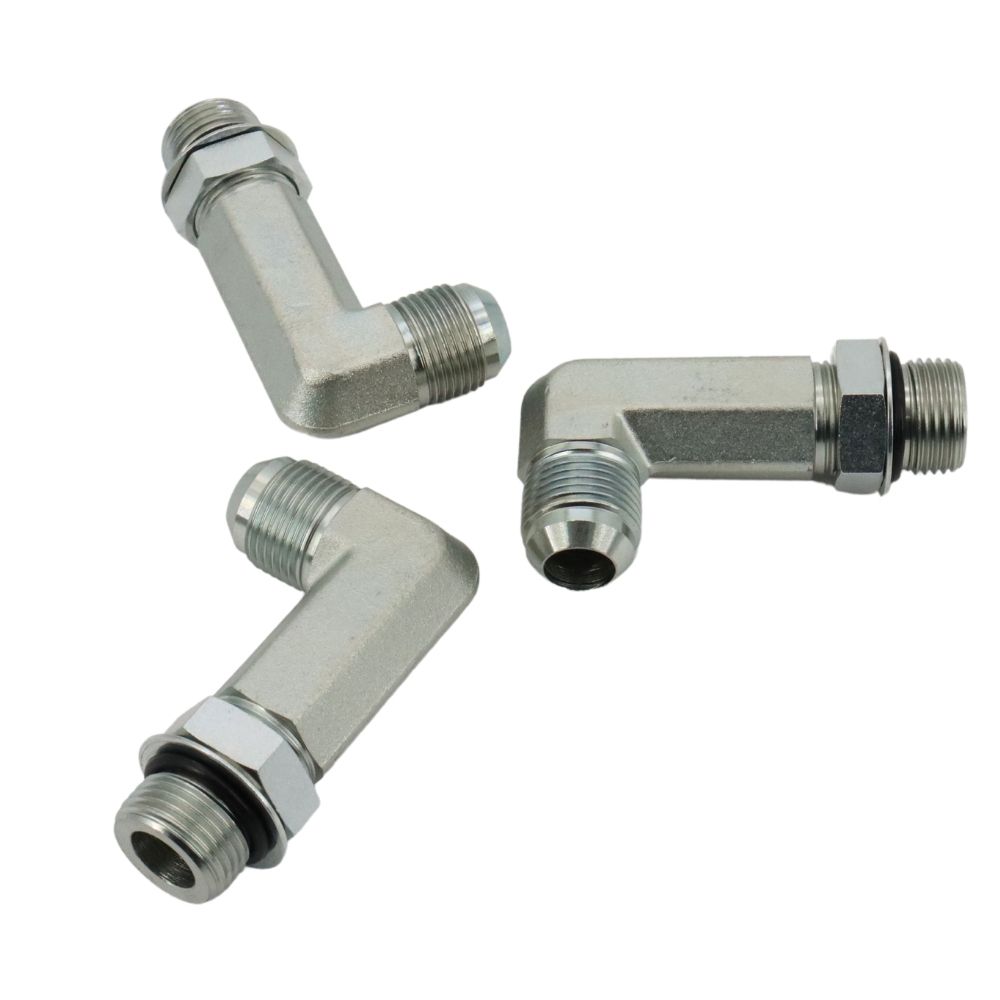

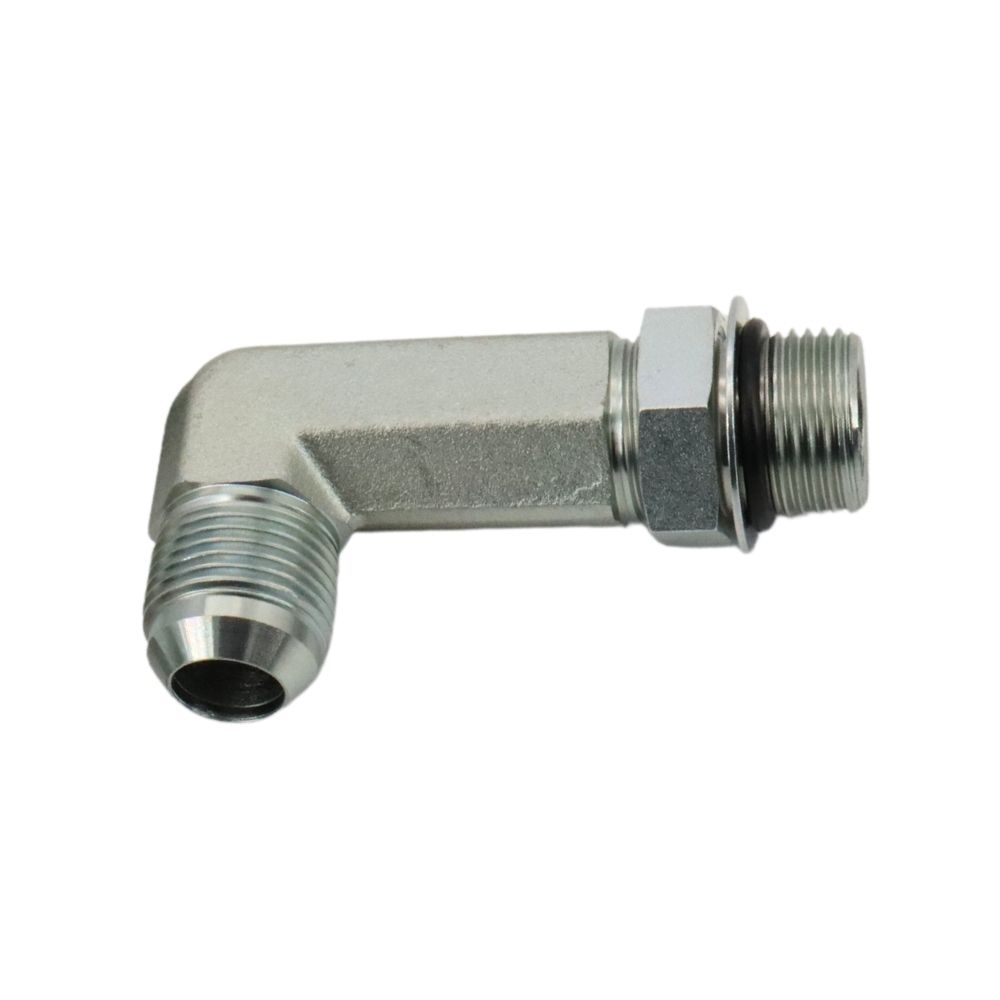

6801LL long 90° elbow SAE JIC to ORB SAE adapter features a male JIC 37-degree flare end and a male SAE ORB straight thread end, with a 90-degree elbow design connecting the two ends.

This unique design enables the SAE fitting to connect pipes or tubes at a right angle in the hydraulic system.

If you have any questions about JIC and sae fittings, please contact us.

Features and Benefits:

• Standardization
• Leak prevention
• Versatility
• Customize

Description

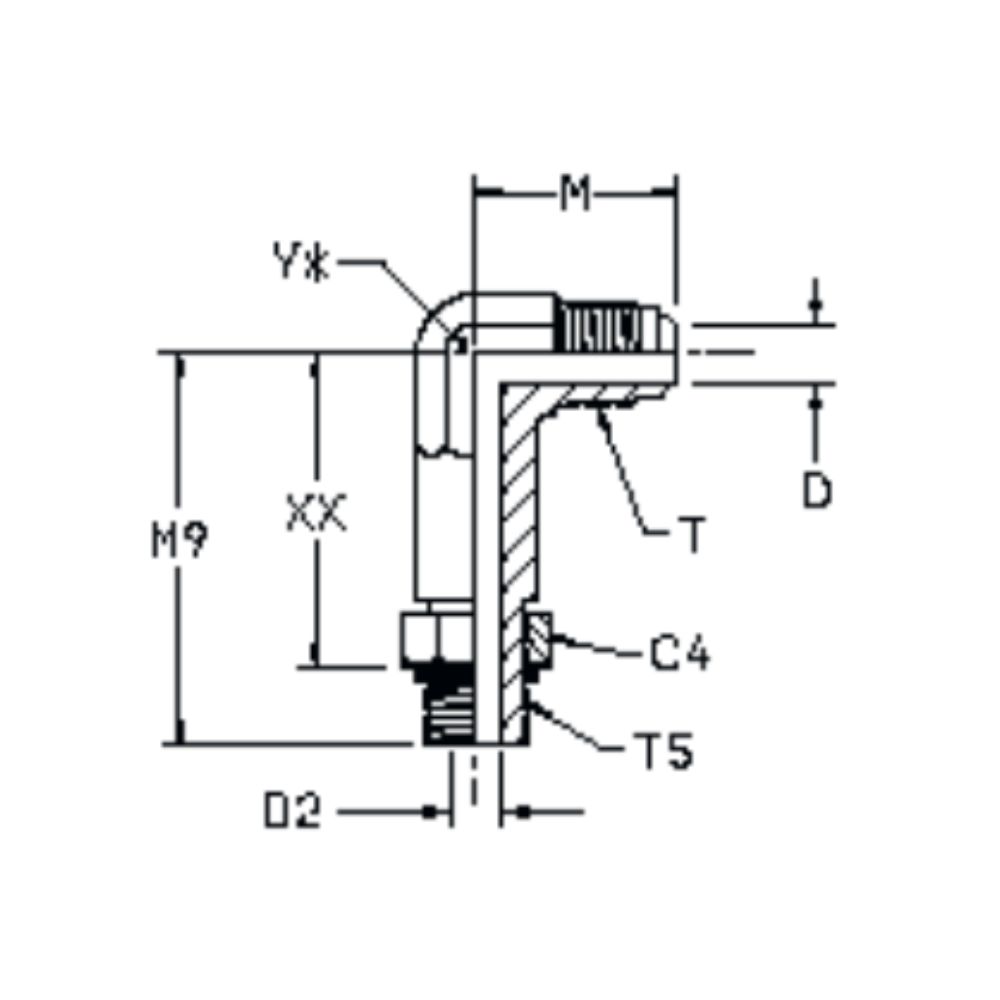

TUBE FITTING PART#	TUBE O.D. (inch)	TUBE END UN/UNF-2A	T5 PORT THD UN/UNF-2A	c4 HEX (inch)	D DRILL (inch)	D2 DRILL (inch)	M (inch)	M9 (inch)	Y (inch)
6801LL-4-4	1/4	7/16-20	7/16-20	9/16	0.172	0.172	1.00	1.73	9/16
6801LL-6-6	3/8	9/16-18	9/16-18	11/16	0.297	0.297	1.06	2.08	9/16
6801LL-8-8	1/2	3/4-16	3/4-16	7/8	0.391	0.391	1.25	2.50	7/8
6801LL-10-10	5/8	7/8-14	1 7/8-14	1	0.484	0.484	1.45	2.89	7/8
6801LL-12-12	3/4	1 1/16-12	1 1/16-12	1 1/4	0.609	0.609	1.66	3.34	1 1/16
6801LL-16-16	1	1 5/16-12	1 5/16-12	1 1/2	0.844	0.844	1.81	3.72	1 5/16

6801LL 90° Elbow Long Hydraulic SAE Adapters Video

This video shows information about 6801LL long hydraulic SAE adapters.

SAE fittings are commonly used in hydraulic fluid systems across various applications, including automotive, construction, agriculture, and industrial equipment.

If you have any questions about SAE flare tube fittings, please contact us.
