6407 Male ORB SAE Hydraulic Fitting China Wholesaler-Topa

SAE Hydraulic Fitting

Description:

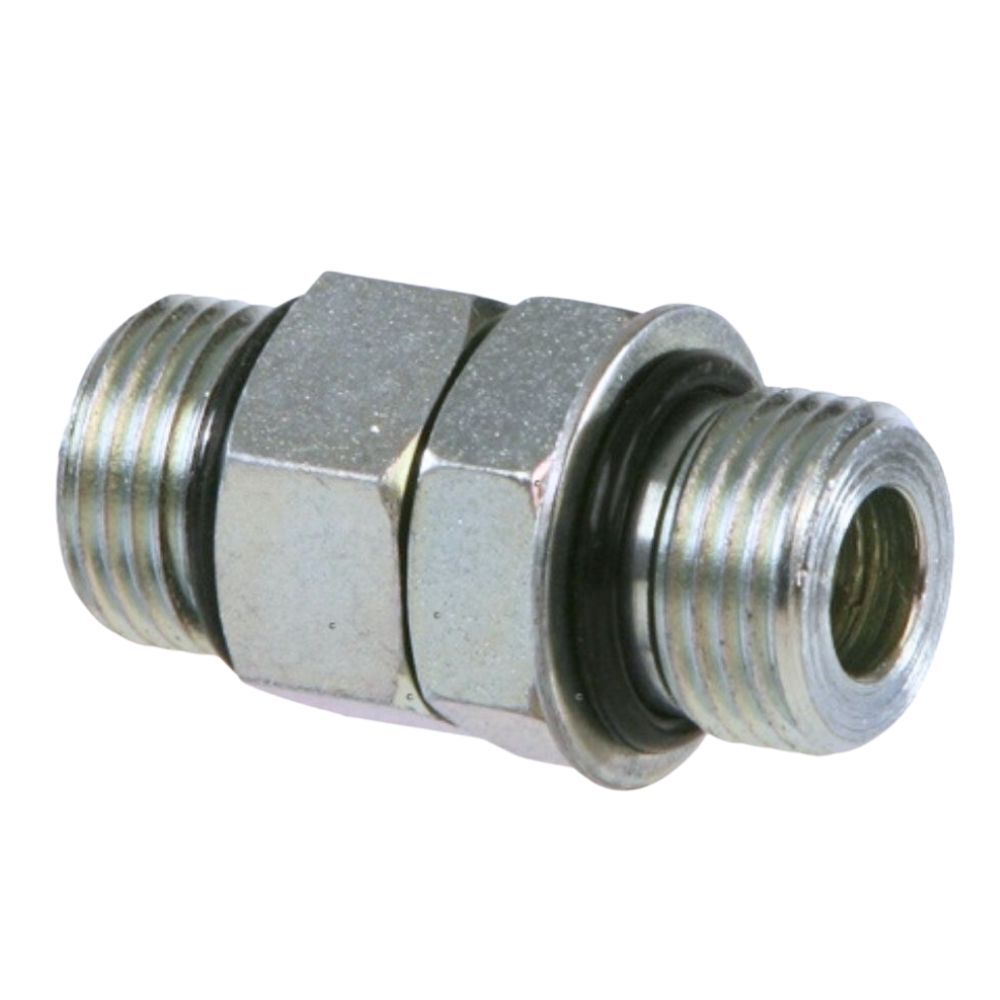

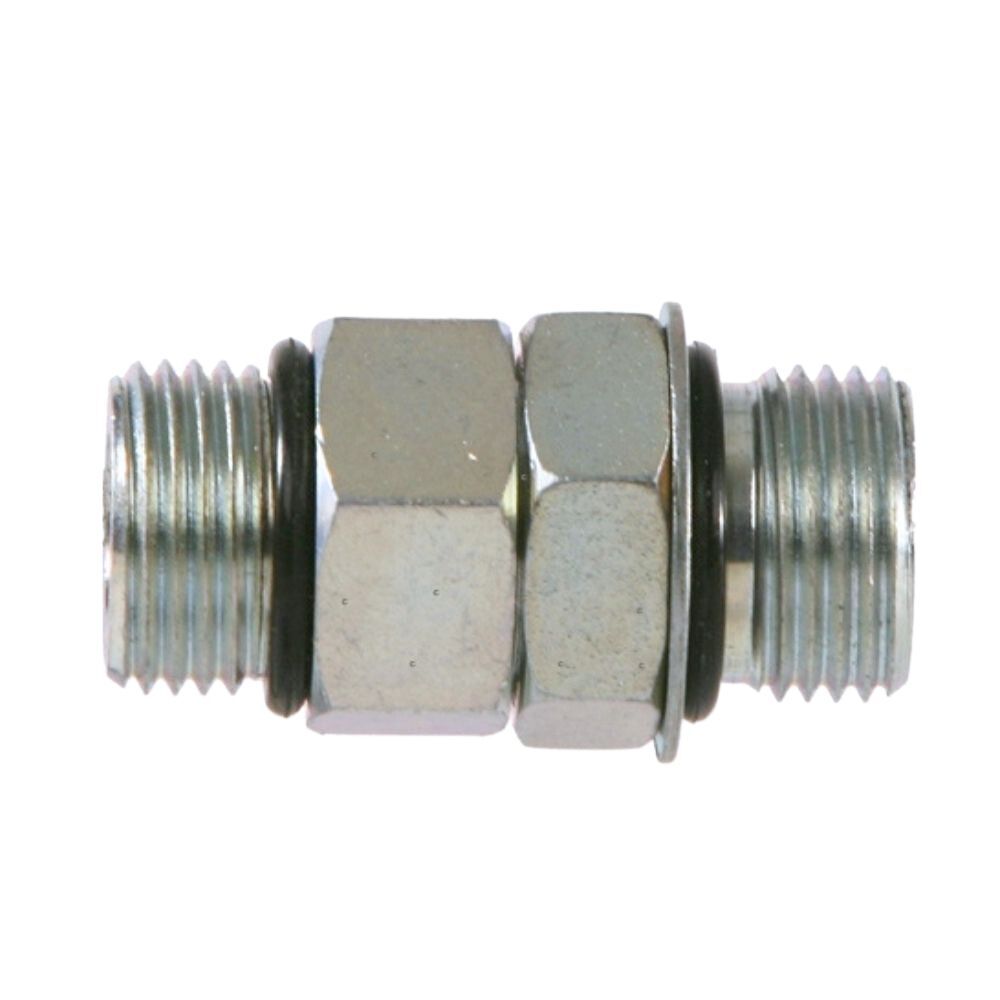

6407 Male SAE ORB hydraulic fitting has two male SAE o-ring boss ends that can create a robust seal that can withstand high pressures and vibrations.

Hydraulic systems require precise sizing, and our SAE ORB fittings are available in a wide range of sizes to suit your specific requirements.

If you have any questions about male SAE fitting, please contact us.

Features and Benefits:

• Standardization
• Leak prevention
• Versatility
• Customize

Description

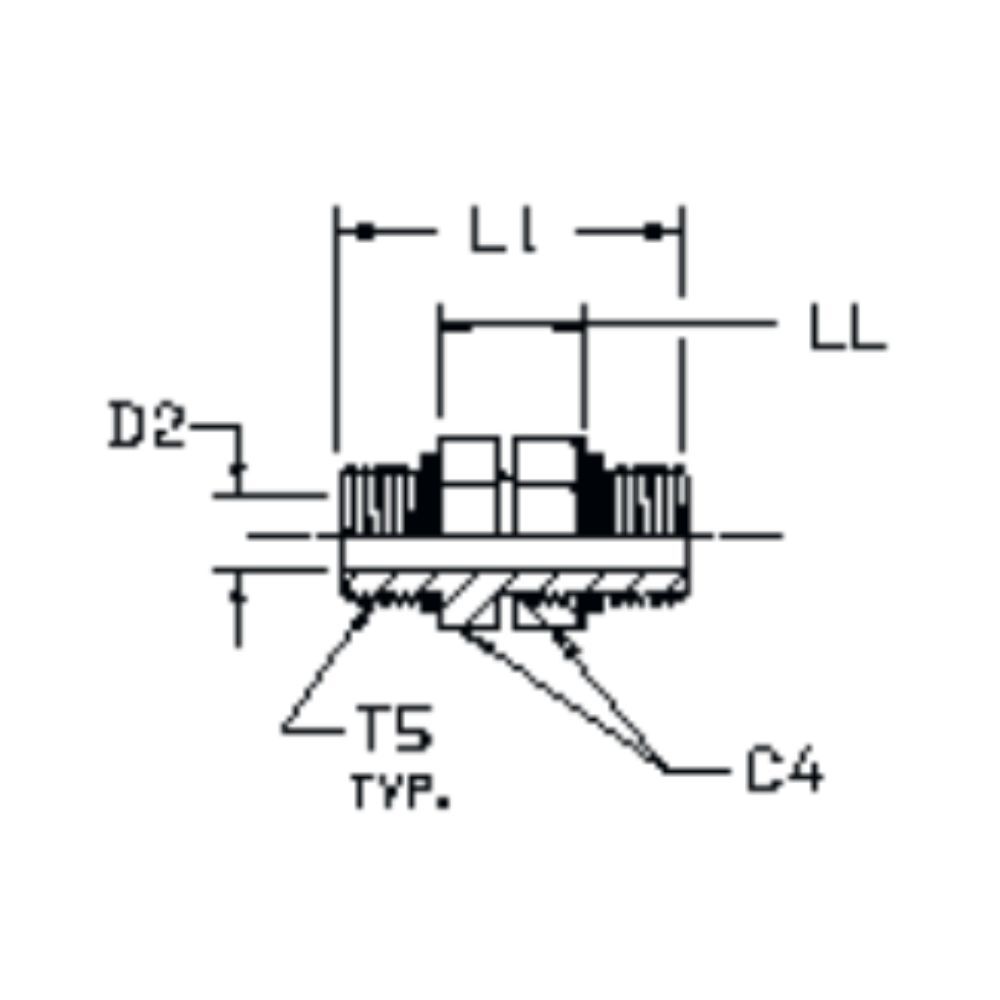

TUBE FITTING PART#	T5 PORT THD UN/UNF-2A	C4 HEX (inch)	D2 DRILL	L1 (inch)
6407-4-4	7/16-20	9/16	0.203	1.22
6407-6-6	9/16-18	11/16	0.297	1.41
6407-8-8	3/4-16	7/8	0.422	1.56
6407-10-10	7/8-14	1	0.484	1.81
6407-12-12	1 1/16-12	1 1/4	0.656	2.13
6407-16-16	1 5/16-12	1 1/2	0.875	2.13
6407-20-20	1 5/8-12	1 7/8	1.078	2.13
6407-24-24	1 7/8-12	2 1/8	1.344	2.13
6407-32-32	2 1/2-12	2 3/4	1.813	2.13

6407 Male ORB SAE Hydraulic Fitting Video

This video shows information about 6407 male SAE ORB fitting.

SAE hydraulic fitting is suitable for a diverse range of applications, from automotive and construction application to agricultural machinery and industrial equipment.

If you have any questions about SAE adapters, please contact us.
