Description

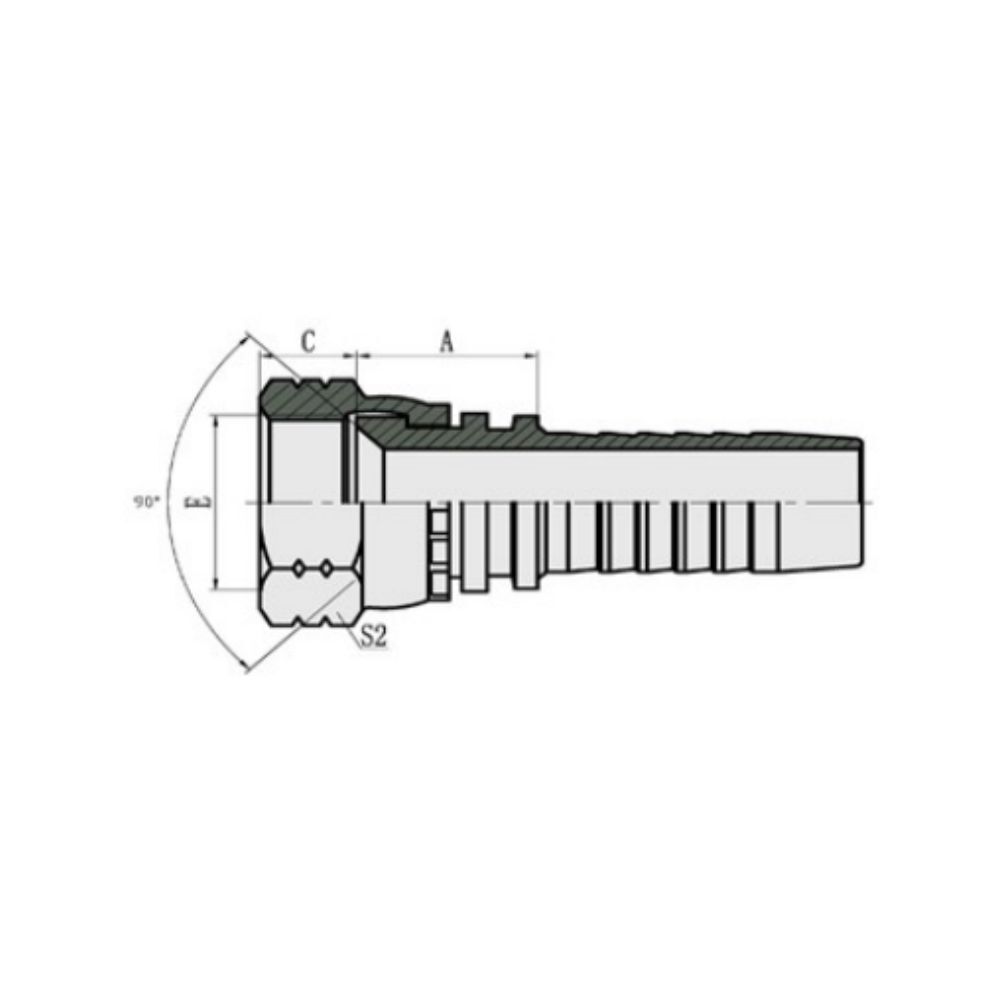

PART NO. | THREADE | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | C | S2 | ||
27811-04-03 | 7/16″*20 | 5 | 03 | 14 | 9 | 15 |
27811-04-04 | 7/16″*20 | 6 | 04 | 15 | 9 | 15 |
27811-05-05 | 1/2″*20 | 8 | 05 | 15.5 | 9.5 | 17 |
27811-06-04 | 5/8″*18 | 6 | 04 | 17 | 11.3 | 22 |
27811-06-05 | 5/8″*18 | 6 | 05 | 17 | 11.3 | 22 |
27811-06-06 | 5/8″*18 | 10 | 06 | 17 | 11.3 | 22 |
27811-08-08 | 3/4″*16 | 12 | 08 | 18 | 11 | 24 |
27811-10-08 | 7/8″*14 | 12 | 08 | 18.5 | 13 | 27 |
27811-10-10 | 7/8″*14 | 16 | 10 | 20 | 13 | 27 |
27811-12-12 | 1.1/16″X14 | 20 | 12 | 21.5 | 14.3 | 32 |
27811 Straight SAE Hose Fittings Video
This video shows information about 27811 SAE hose fittings.
SAE hose fittings are commonly used in hydraulic systems to connect hoses to various components, such as pumps, motors, valves, and cylinders, ensuring a leak-free and reliable fluid transfer.
If you have any questions about SAE adapter fittings, please contact us.
