27891 90° Elbow SAE Hose Fitting China Supplier-Topa

SAE Hose Fitting

Description:

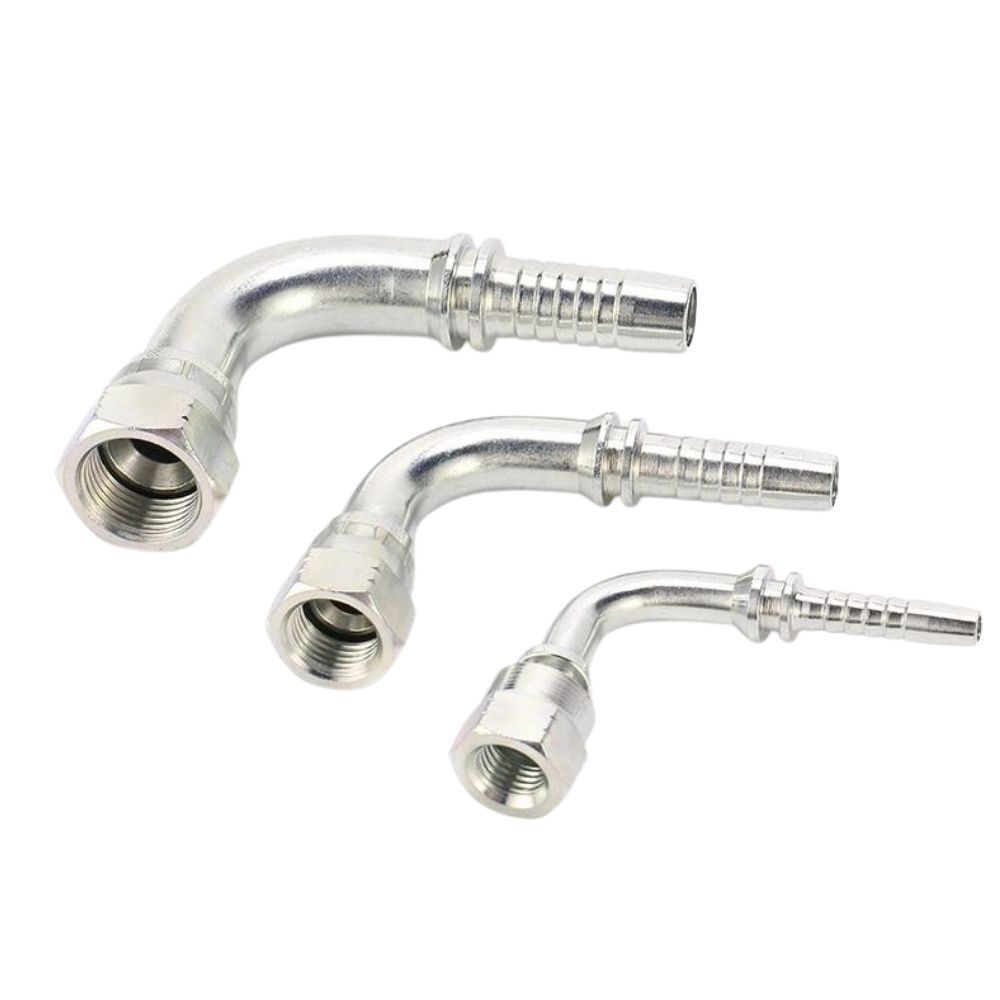

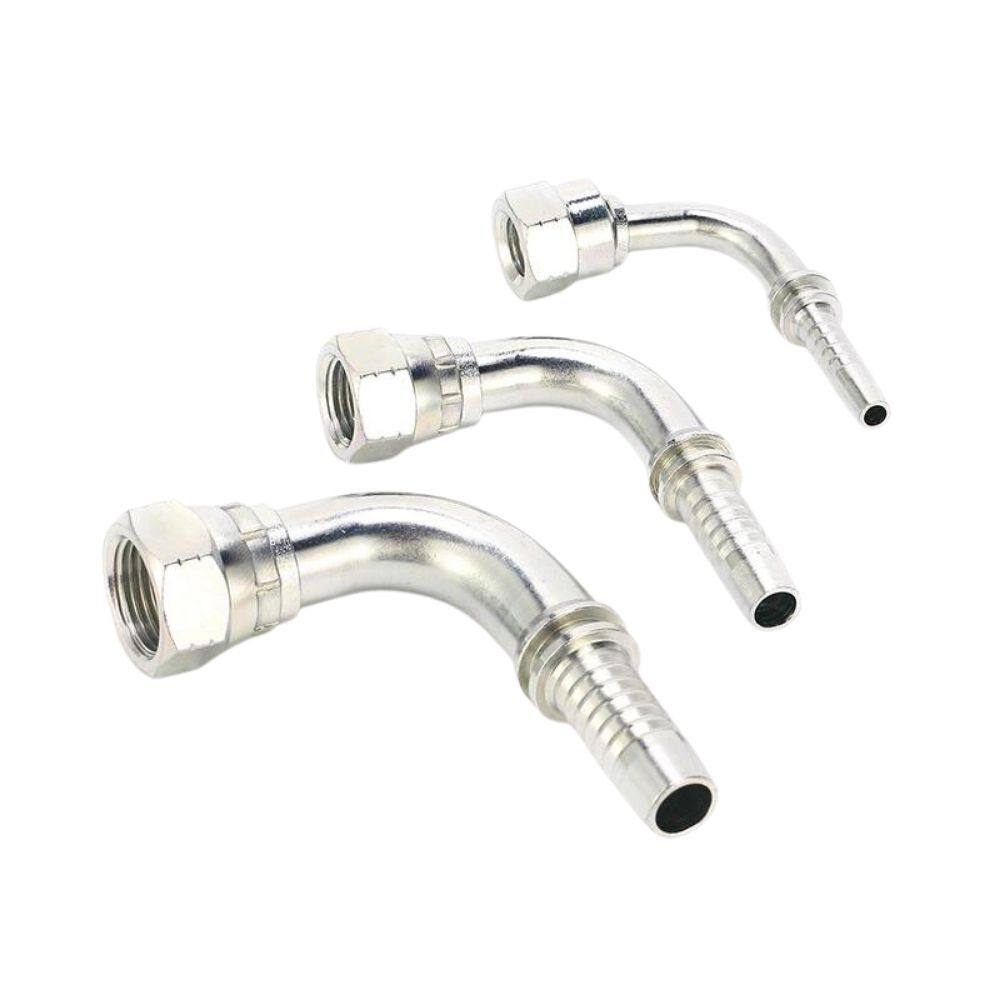

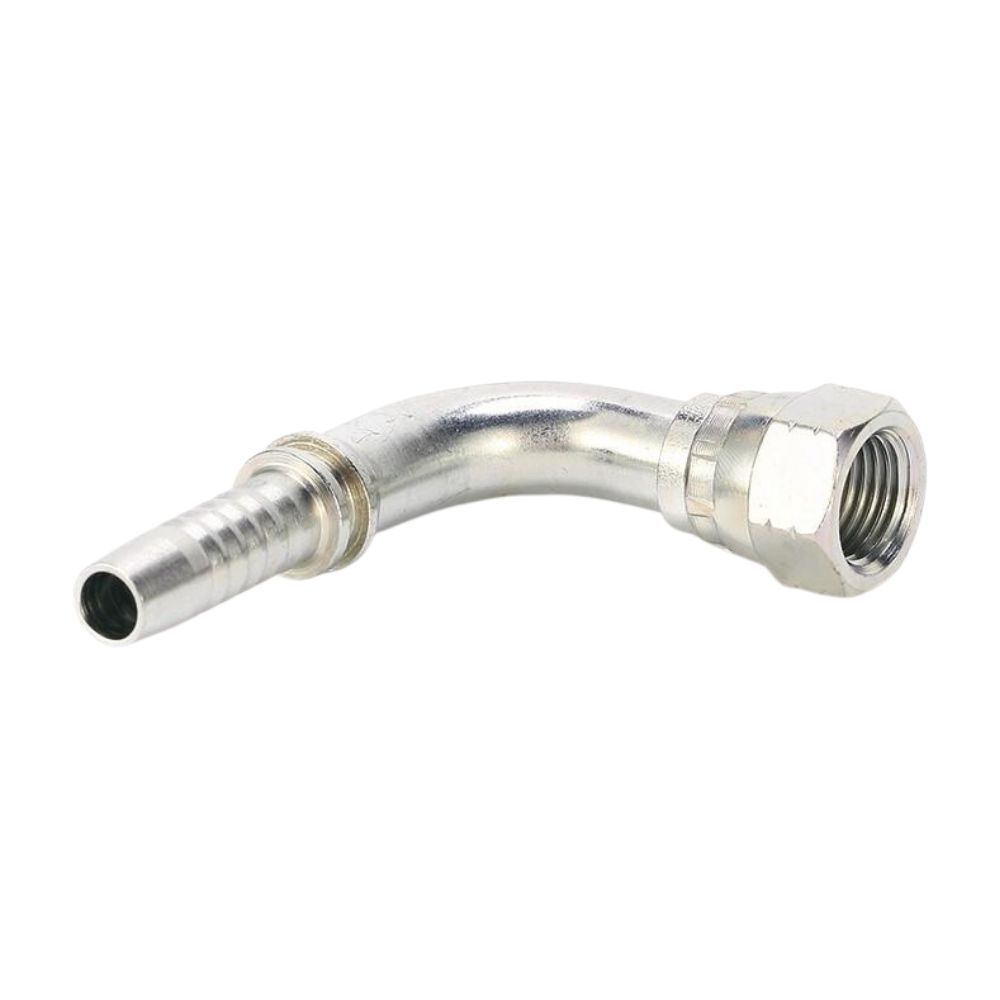

27891 SAE hose fitting is a 90° elbow female 45-degree cone seat hose fitting that can connect with braided hoses.

This fitting provides secure, leak-free connections between hoses and other components in hydraulic circuits.

If you have any questions about sae female fitting, please contact us.

Features and Benefits:

• Standardization
• Leak prevention
• Compatibility
• Customize

Description

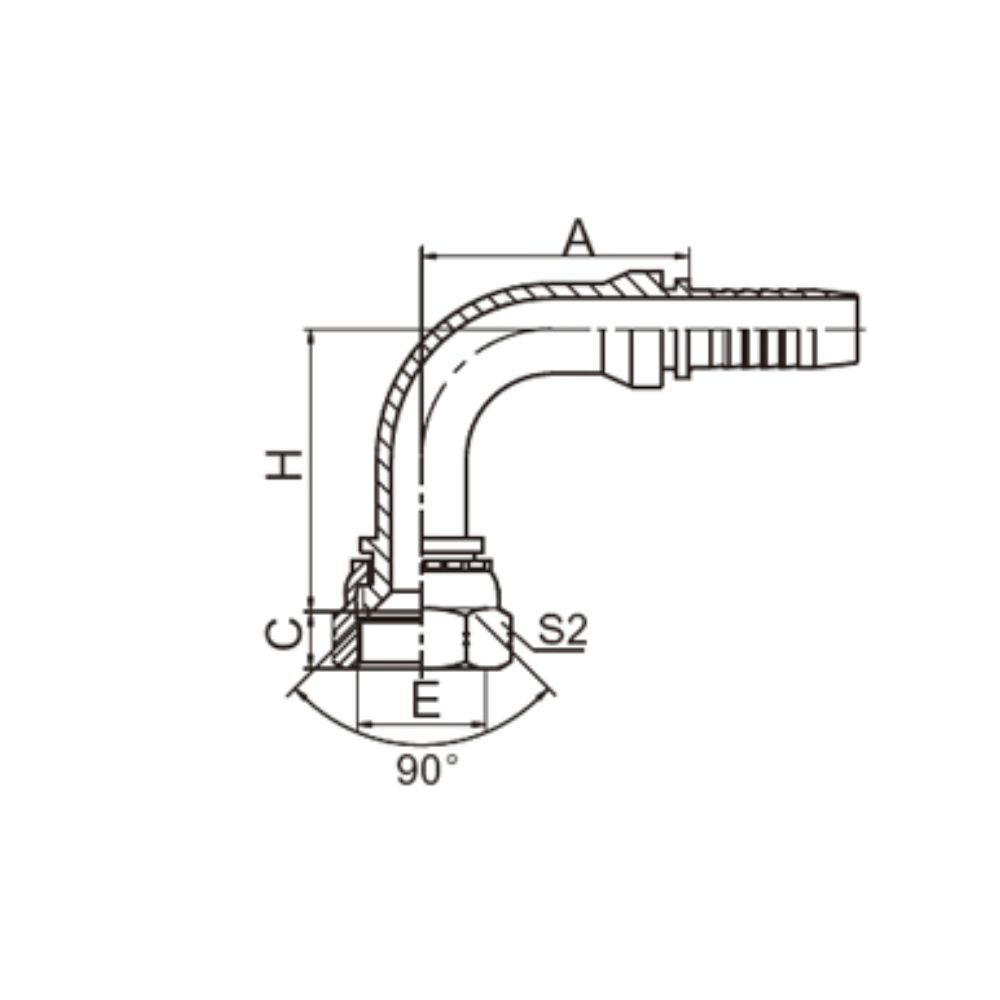

PART NO.	THREADE	HOSE BORE		DIMENSIONS
PART NO.	THREADE	DN	DASH	A	C	H	s2
27891-04-03	7/16″×20	5	03	26.5	9	30.5	15
27891-06-04	5/8″×18	6	04	30	11.3	36	22
27891-06-05	5/8″×18	8	05	33	11.3	39	22
27891-06-06	5/8″X18	10	06	35.3	11.3	41.3	22
27891-10-08	7/8″X14	12	08	41	13	47	27
27891-10-10	7/8″X14	16	10	56.5	13	51.5	27
27891-12-12	1.1/16″X14	20	12	65.5	14.3	63.5	32

27891 90° Elbow SAE Hose Fitting Video

This video shows information about 27891 SAE hose fitting.

SAE hose fittings are commonly used in hydraulic systems to connect hoses to various components, such as pumps, motors, valves, and cylinders, ensuring a leak-free and reliable fluid transfer.

If you have any questions about sae 45 degree fittings, please contact us.
