Description
DN | Inch | Inside | Wire | Outside | Working- pressure | Test- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | mm | bar | psi | bar | bar | mm |
6.3 | 1/4 | -4 | 6.4 | 11.8 | 13.5 | 400 | 5805 | 800 | 1600 | 50 |
8 | 5/16 | -5 | 7.9 | 13.4 | 15.1 | 350 | 5080 | 700 | 1400 | 55 |
10 | 3/8 | -6 | 9.5 | 15.4 | 17.1 | 330 | 4790 | 660 | 1320 | 65 |
12.5 | 1/2 | -8 | 12.7 | 18.7 | 20.4 | 275 | 3990 | 550 | 1100 | 90 |
16 | 5/8 | -10 | 15.9 | 22.4 | 23.8 | 250 | 3625 | 500 | 1000 | 100 |
19 | 3/4 | -12 | 19.0 | 25.8 | 27.6 | 215 | 3120 | 430 | 850 | 120 |
25 | 1 | -16 | 25.4 | 32.3 | 35.0 | 165 | 2395 | 330 | 650 | 150 |
31.5 | 1-1/4 | -20 | 31.8 | 40.6 | 44.3 | 125 | 1815 | 250 | 500 | 210 |
Features
Topa’s SAE 100R16 hydraulic hose has excellent performance. It has the advantages of using less hose, freight savings, and being lightweight. In addition, it also can be used for in-plant hydraulic equipment, mobile equipment, and material handling equipment. It is suitable for super high-pressure hydraulic lines, transporting water-based fluids and petroleum-based hydraulic fluids as well.
SAE 100R16 Hydraulic Hose Video
This video shows information about SAE 100R16 hydraulic hose.

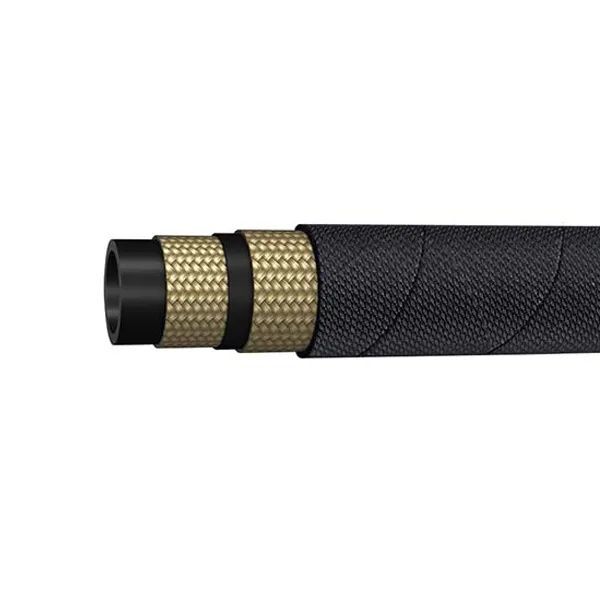

SAE 100R16 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of two high tensile steel wire braids, and an outer cover of abrasion and weather resistant synthetic rubber. Topa’s SAE 100R16 hydraulic hoses with excellent performance to keep your work running smoothly.
If you have any questions about SAE 100R16 hydraulic hoses, please contact us.
