Description
DN | Inch | Inside | Wire | Outside | Working- pressure | Test- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | mm | bar | psi | bar | bar | mm |
10 | 3/8 | -6 | 9.5 | 17.5 | 20.3 | 420 | 6090 | 840 | 1680 | 150 |
12.5 | 1/2 | -8 | 12.7 | 20.7 | 23.8 | 420 | 6090 | 840 | 1680 | 200 |
19 | 3/4 | -12 | 19.0 | 29.2 | 32.2 | 420 | 6090 | 840 | 1680 | 265 |
25 | 1 | -16 | 25.4 | 35.9 | 39.2 | 420 | 6090 | 840 | 1680 | 330 |
31.5 | 1-1/4 | -20 | 31.8 | 46.8 | 49.8 | 420 | 6090 | 840 | 1680 | 445 |
38 | 1-1/2 | -24 | 38.1 | 54.0 | 57.3 | 420 | 6090 | 840 | 1680 | 530 |
Features

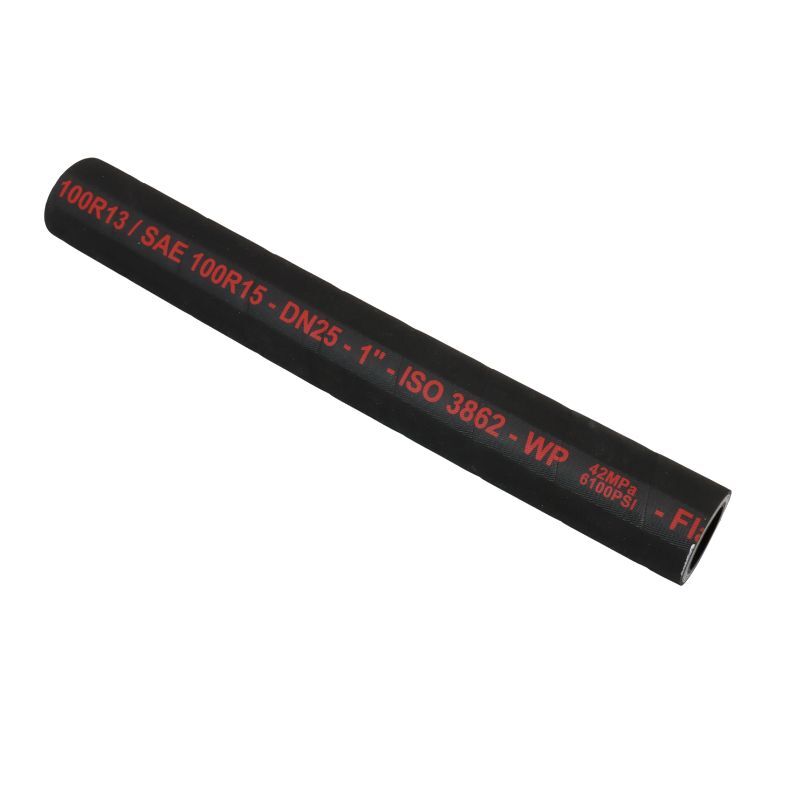

Topa’s SAE 100R15 hydraulic hose meets the international standards SAE J517 -100 R15 and ISO 3862, having excellent performance. It also has the advantages of time savings, equipment cost savings, and ease of assembly. In addition, it also can be used for mining equipment, oil field equipment, and harvesting equipment. It is suitable for super high-pressure hydraulic lines and hydrostatic transmission lines, transporting water-based fluids and synthetic-based hydraulic fluids as well. It can be used with the xxxx3-xx-xx Series fitting manufactured by Topa.
SAE 100R15 Hydraulic Hose Video
This video shows information about SAE 100R15 hydraulic hose.

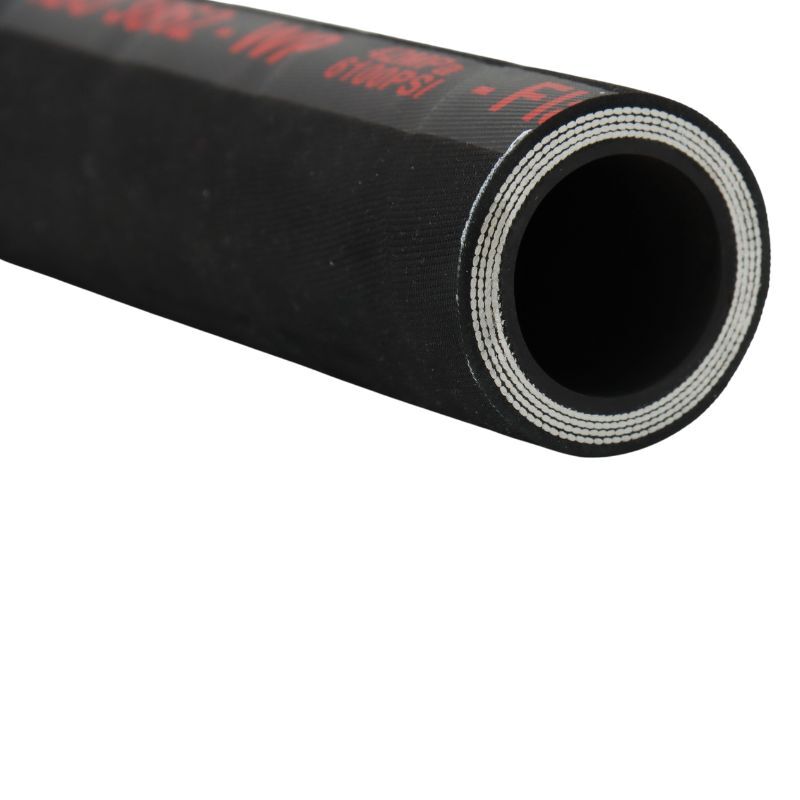

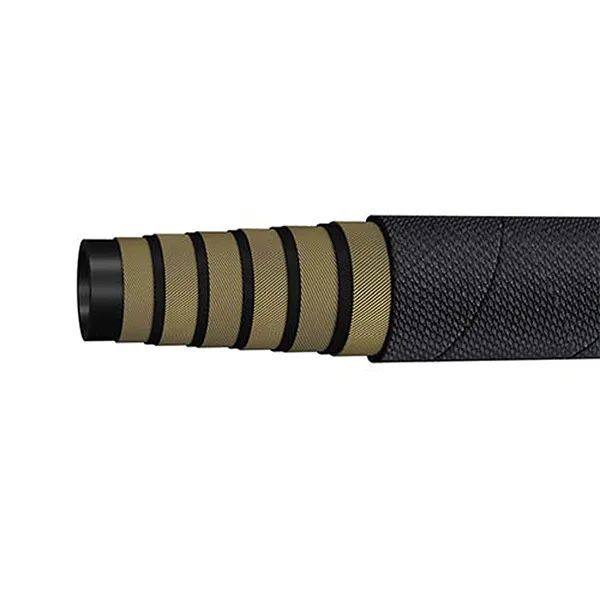

SAE 100R15 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of six high tensile steel wire spiral layers, and an outer cover of abrasion and weather resistant synthetic rubber. Topa can produce SAE 100R15 hydraulic hoses in a wide range of models and sizes to meet all your needs.
If you have any questions about SAE 100R15 hydraulic hoses, please contact us.
