Description
DN | Inch | Inside | Wire | Outside | Working- pressure | Test- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | mm | bar | psi | bar | bar | mm |
6.3 | 1/4 | -4 | 6.4 | 10.8 | 12.5 | 210 | 3050 | 420 | 840 | 50 |
8 | 5/16 | -5 | 7.9 | 12.4 | 14.1 | 210 | 3050 | 420 | 840 | 55 |
10 | 3/8 | -6 | 9.5 | 14.4 | 16.1 | 210 | 3050 | 420 | 840 | 65 |
12.5 | 1/2 | -8 | 12.7 | 17.7 | 19.4 | 210 | 3050 | 420 | 840 | 90 |
16 | 5/8 | -10 | 15.9 | 23.0 | 24.7 | 210 | 3050 | 420 | 840 | 100 |
19 | 3/4 | -12 | 19.0 | 26.4 | 28.4 | 210 | 3050 | 420 | 840 | 120 |
25 | 1 | -16 | 25.4 | 33.5 | 34.9 | 210 | 3050 | 420 | 840 | 150 |
Features

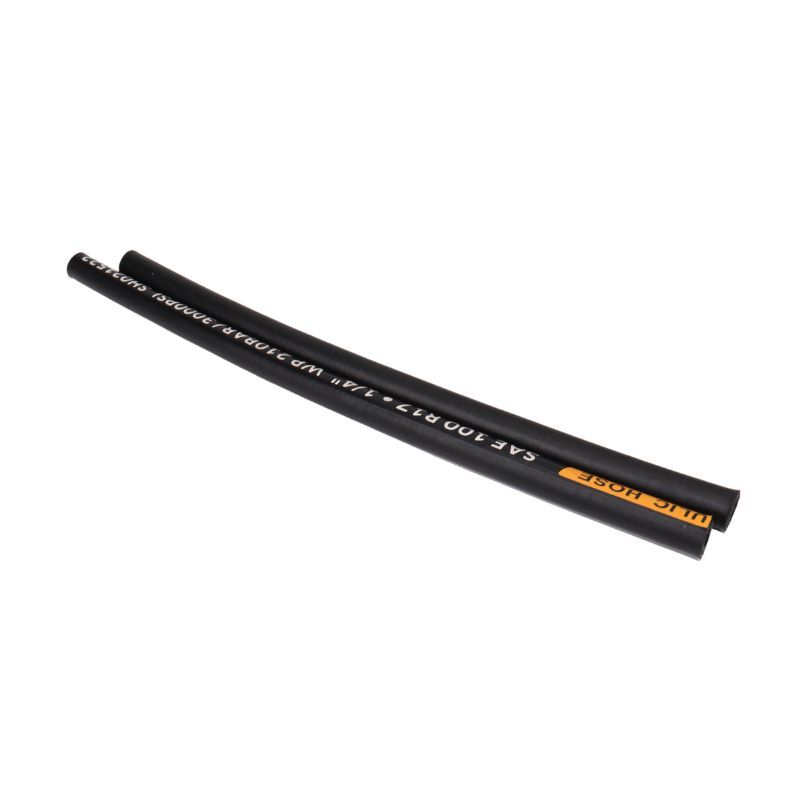

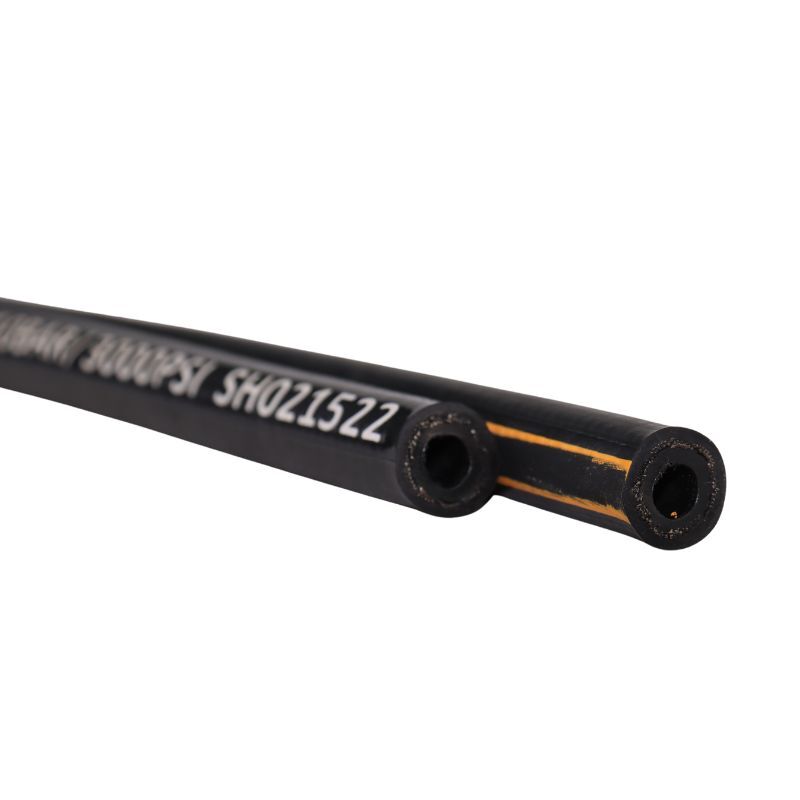

Topa’s SAE 100R17 hydraulic hose meets the international standard SAE J517 – 100 R17, having excellent performance. It also has the advantages of being economical, flexible, and easy to handle. In addition, it also can be used for logging equipment, farm tractors, and in-plant equipment. It is suitable for transporting water-glycol liquids, lubrication oils, and compressed air as well.
SAE 100R17 Hydraulic Hose Video
This video shows information about SAE 100R17 hydraulic hose.

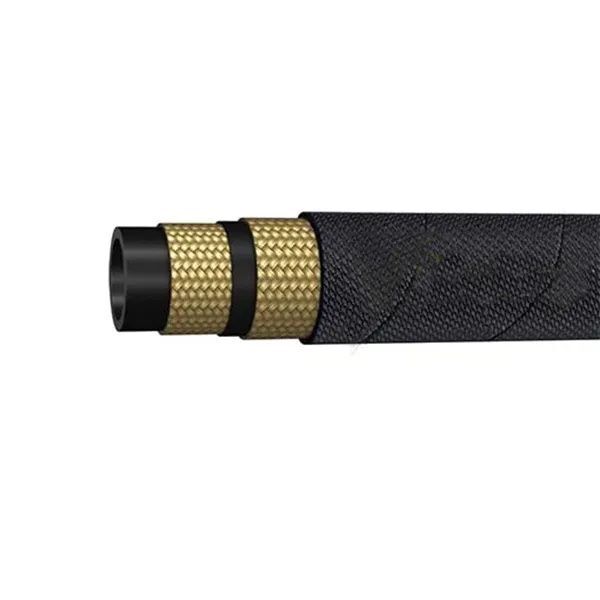

SAE 100R17 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of one/two high tensile steel wire braids, and an outer cover of abrasion and weather resistant synthetic rubber. Topa can produce SAE 100R17 hydraulic hoses in a wide range of models and sizes to meet all your needs.
If you have any questions about SAE 100R17 hydraulic hoses, please contact us.
