Description
DN | Inch | Inside | Wire | Outside | Working- pressure | Test- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | mm | bar | psi | bar | bar | mm |
19 | 3/4 | -12 | 19.0 | 29.2 | 32.2 | 350 | 5075 | 700 | 1400 | 240 |
25 | 1 | -16 | 25.4 | 35.9 | 39.2 | 350 | 5075 | 700 | 1400 | 300 |
31.5 | 1-1/4 | -20 | 31.8 | 46.8 | 49.8 | 350 | 5075 | 700 | 1400 | 420 |
38 | 1-1/2 | -24 | 38.1 | 54.0 | 57.3 | 350 | 5075 | 700 | 1400 | 500 |
51 | 2 | -32 | 50.8 | 68.4 | 71.9 | 350 | 5075 | 700 | 1400 | 630 |
Features
Topa’s SAE 100R13 hydraulic hose meets the international standards SAE J 517 – 100 R13, EN 856 – R13, and ISO 3862, having excellent performance. It also has the advantages of full performance at high temperatures, quick, custom-made field assemblies, and providing simpler, and safer hose assembly. In addition, it also can be used for timber harvesting, agricultural equipment, and oil field equipment. It is suitable for extremely high-pressure hydraulic applications and impulse surge lines, transporting water-glycol liquids,oil-water-emulsions, and compressed air as well. It can be used with the xxxx3-xx-xx Series fitting manufactured by Topa.
SAE 100R13 Hydraulic Hose Video
This video shows information about SAE 100R13 hydraulic hose.

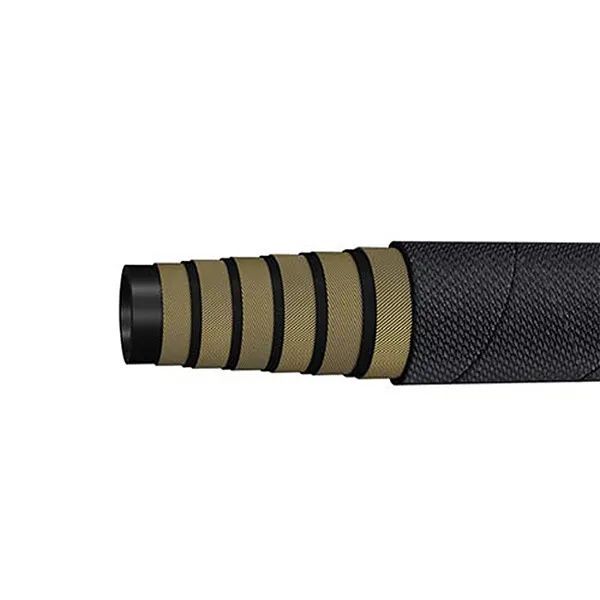

SAE 100R13 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of four/six high tensile steel wire spiral layers, and an outer cover of abrasion and weather resistant synthetic rubber. Topa can produce SAE 100R13 hydraulic hoses in a wide range of models and sizes to meet all your needs.
If you have any questions about SAE 100R13 hydraulic hoses, please contact us.
