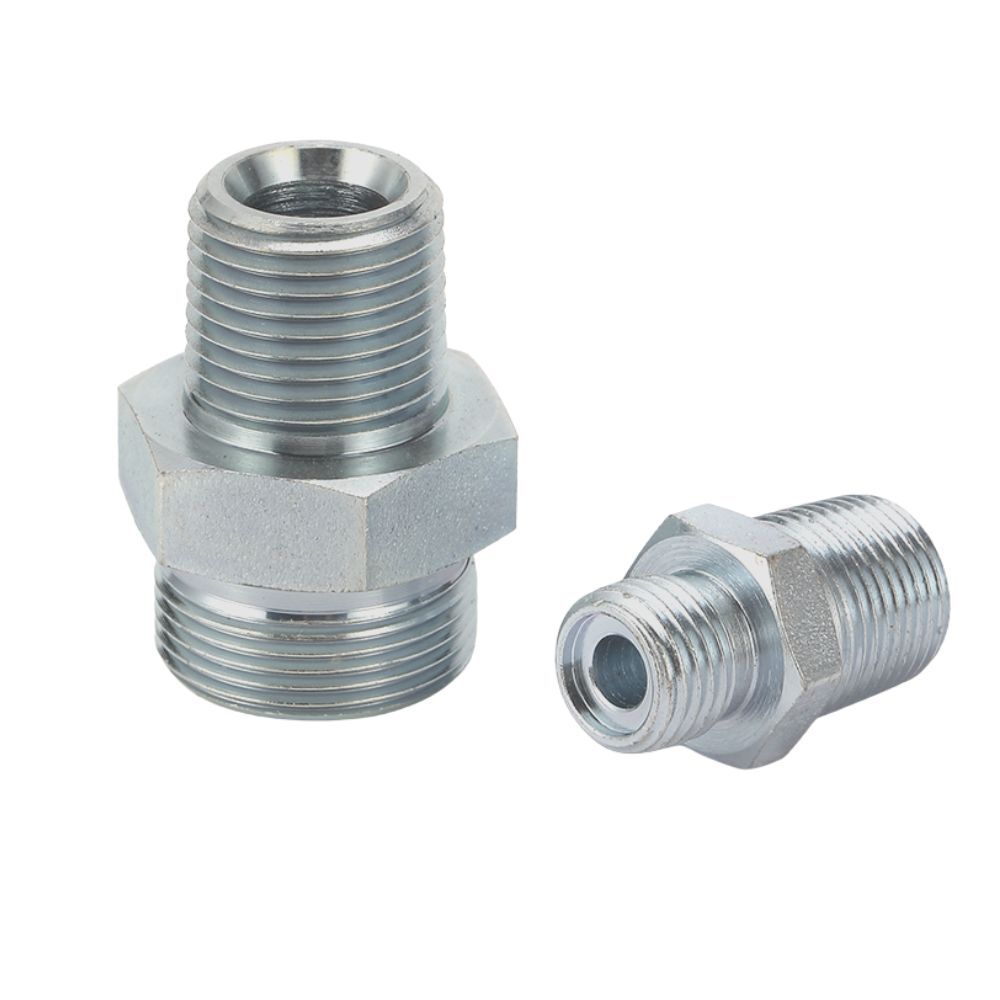

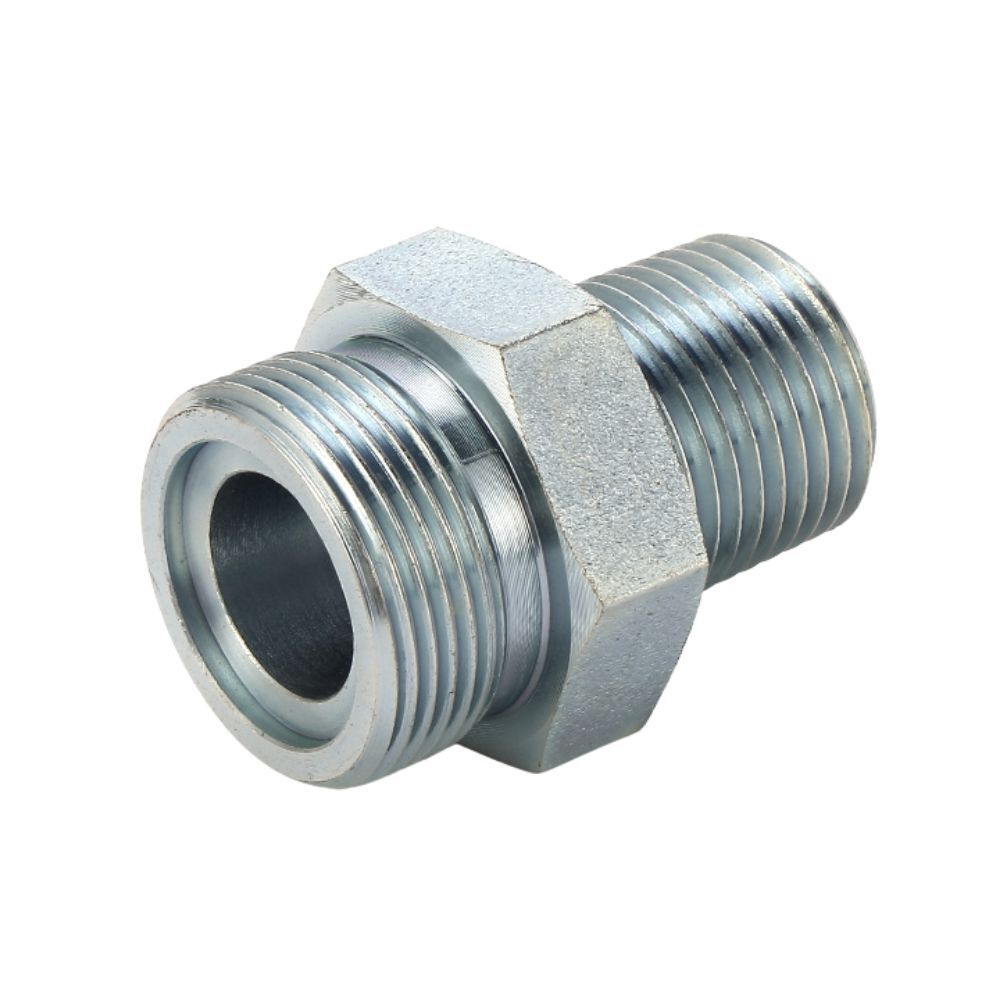

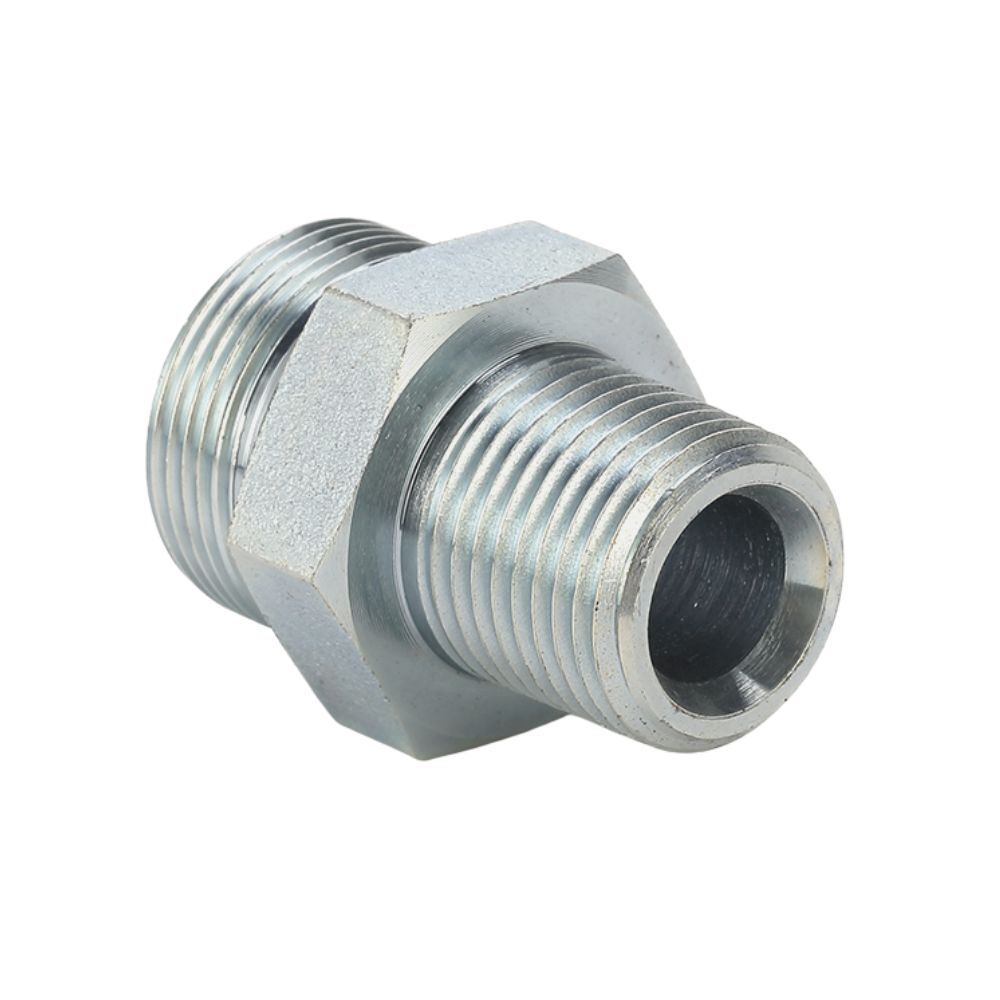

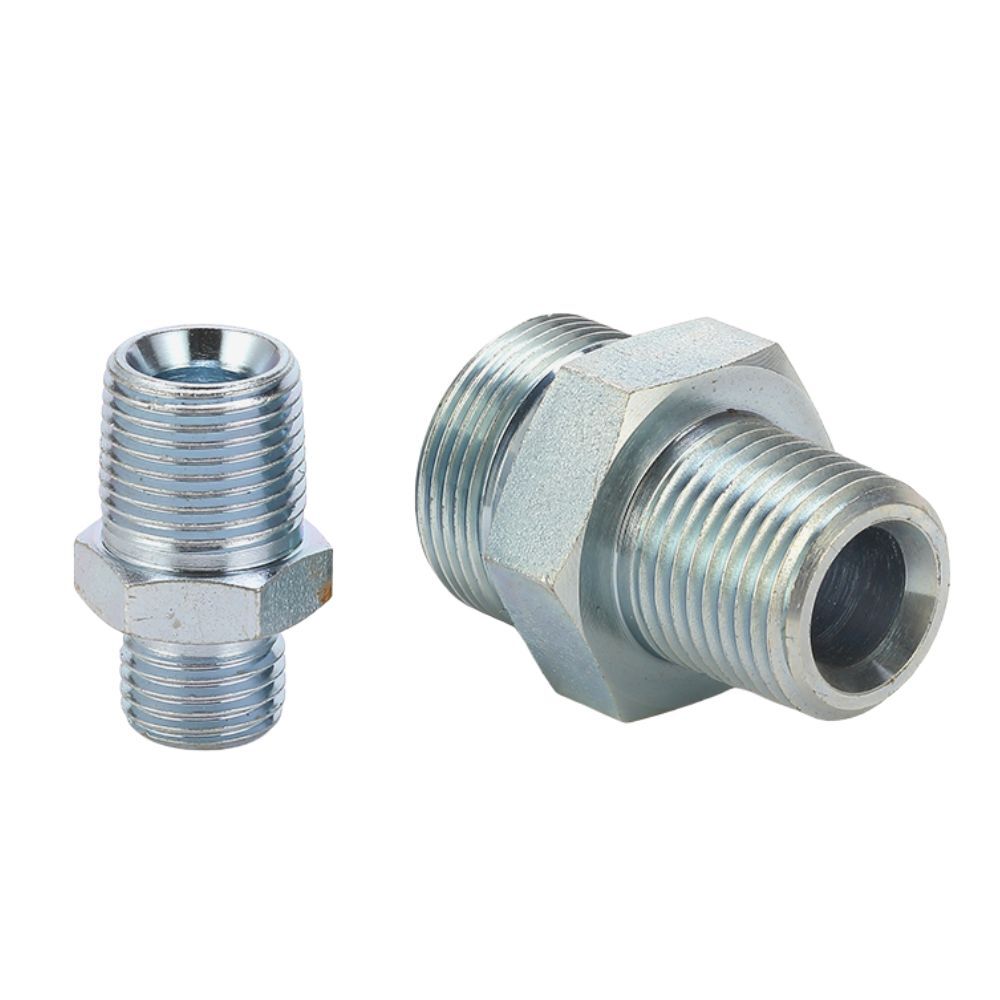

Description

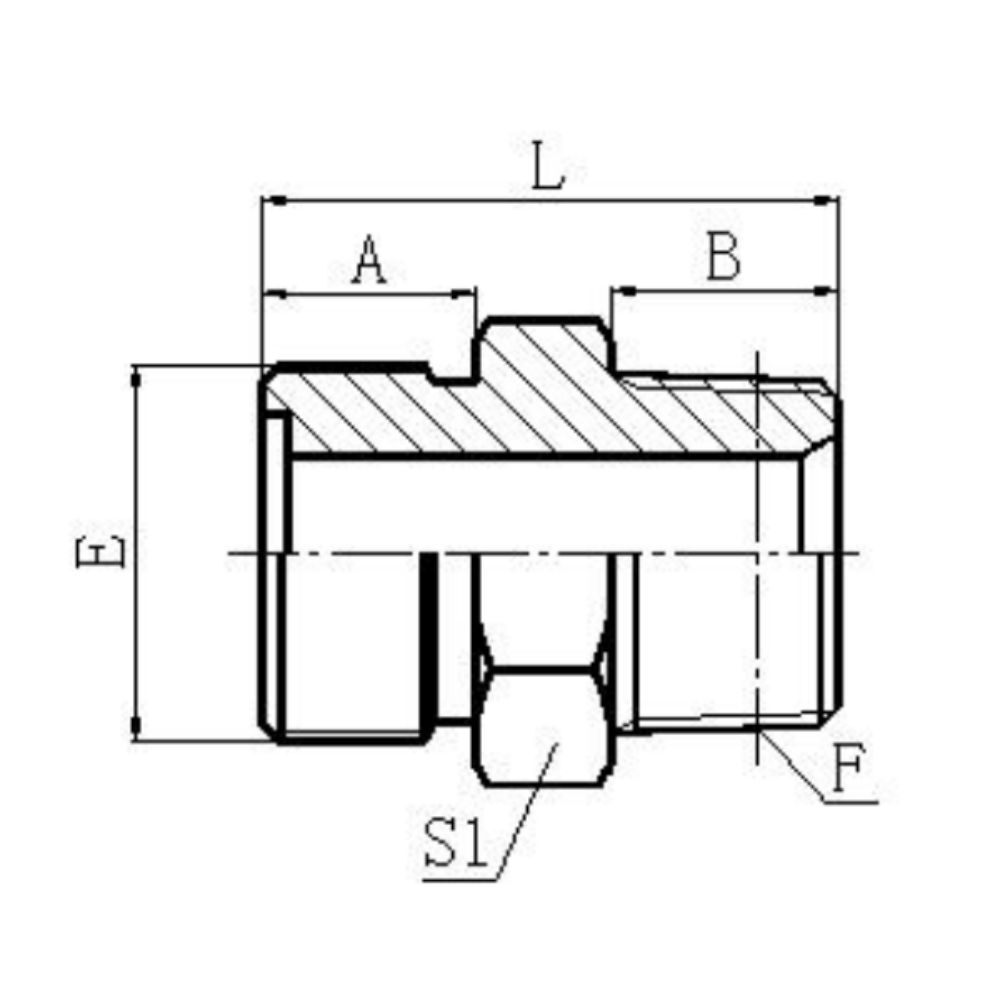

THREAD | O-RING | DIMENSIONS | |||||
PART NO. | E | F | E | A | B | L | S1 |
1EN-14-04 | M14X1.5 | Z1/4“X18 | 10X1.9 | 11 | 15 | 31 | 17 |
1EN-14-06 | M14X1.5 | Z3/8“X18 | 10X1.9 | 11 | 16 | 33 | 19 |
1EN-16-04 | M16X1.5 | Z1/4”X18 | 11X1.9 | 11 | 15 | 32 | 17 |
1EN-16-06 | M16X1.5 | Z3/8“X18 | 11X1.9 | 11 | 16 | 33 | 19 |
1EN-16-08 | M16X1.5 | Z1/2“X14 | 11X1.9 | 11 | 19.5 | 38.5 | 22 |
1EN-18-06 | M18X1.5 | Z3/8“X18 | 13X1.9 | 11 | 16 | 33 | 19 |
1EN-18-08 | M18X1.5 | Z1/2“X14 | 13X1.9 | 11 | 19.5 | 38.5 | 22 |
1EN-22-08 | M22X1.5 | Z1/2“X14 | 16X2.4 | 12 | 19.5 | 39.5 | 24 |
1EN-22-12 | M22X1.5 | Z3/4″X14 | 16X2.4 | 12 | 19.5 | 41.5 | 27 |
1EN-27-08 | M27X1.5 | Z1/2“X14 | 20X2.4 | 13 | 19.5 | 42.5 | 30 |
1EN-27-12 | M27X1.5 | Z3/4″X14 | 20X2.4 | 13 | 19.5 | 42.5 | 30 |
1EN-30-12 | M30X1.5 | Z3/4″X14 | 24X2.4 | 14 | 19.5 | 44.5 | 32 |
1EN-36-12 | M36X2 | Z3/4″X14 | 30X3.1 | 16 | 19.5 | 46.5 | 38 |
1EN-36-16 | M36X2 | Z1″X11.5 | 30X3.1 | 16 | 25.5 | 52.5 | 38 |
1EN-39-16 | M39X2 | Z1″X11.5 | 32X3.1 | 18 | 25.5 | 56.5 | 41 |
1EN-39-20 | M39X2 | Z1.1/4″X11.5 | 32X3.1 | 18 | 26.5 | 57.5 | 46 |
1EN-42-16 | M42X2 | Z1″X11.5 | 35X3.1 | 20 | 25.5 | 58.5 | 46 |
1EN-42-20 | M42X2 | Z1.1/4″X11.5 | 35X3.1 | 20 | 26.5 | 59.5 | 46 |
1EN-45-20 | M45X2 | Z1.1/4″X11.5 | 38X3.1 | 21 | 26.5 | 60.5 | 46 |
1EN-52-20 | M52X2 | Z1.1/4″X11.5 | 40X3.1 | 22 | 26.5 | 63.5 | 55 |
1EN NPT to Metric Adapters Video
This video shows information about the 1EN NPT to metric adapters.
Hydraulic metric NPT pipe adapter has a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.
If you have any questions about npt to metric fitting, please contact us.
