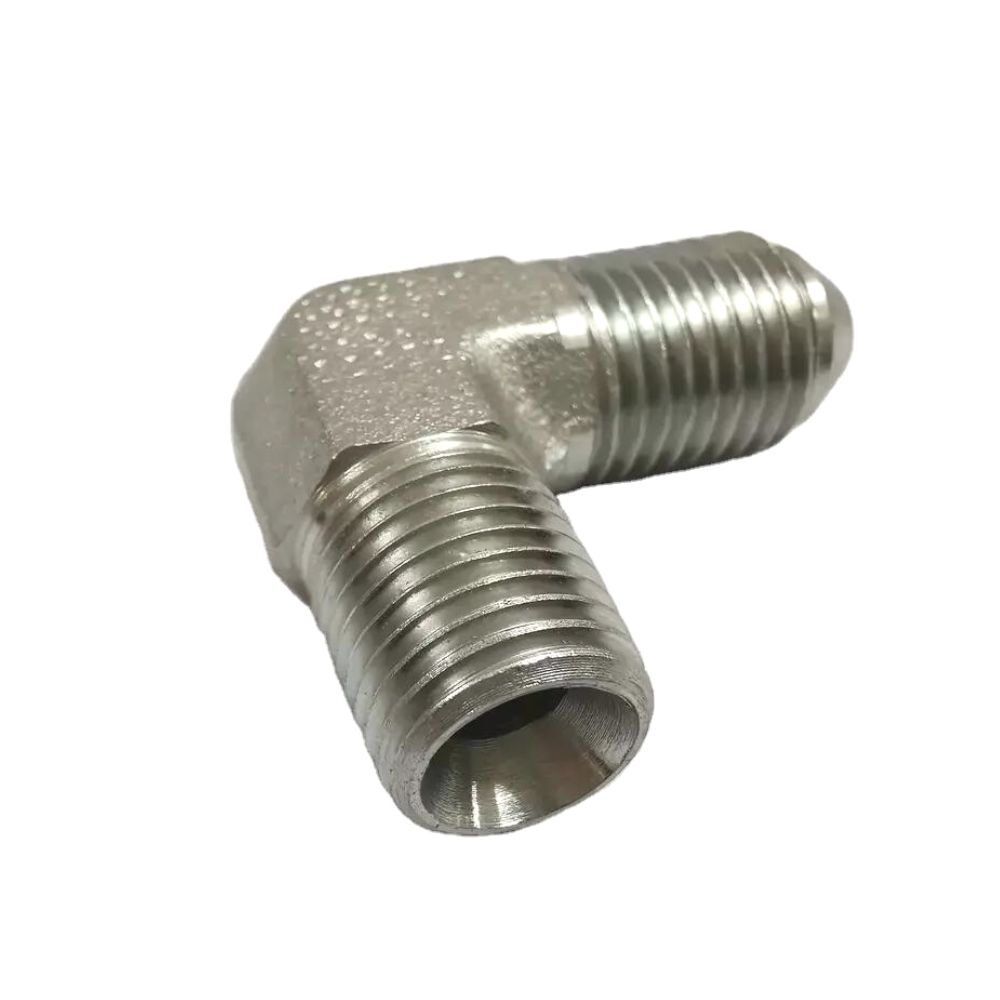

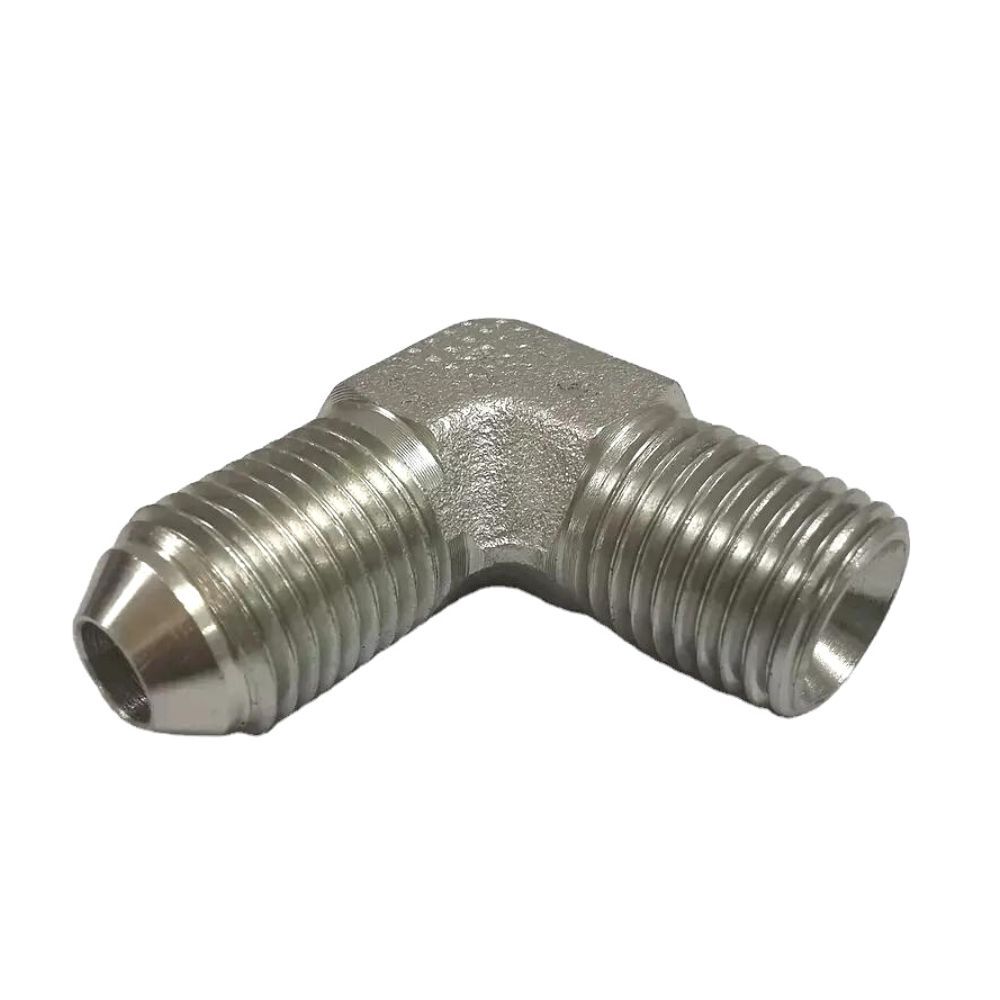

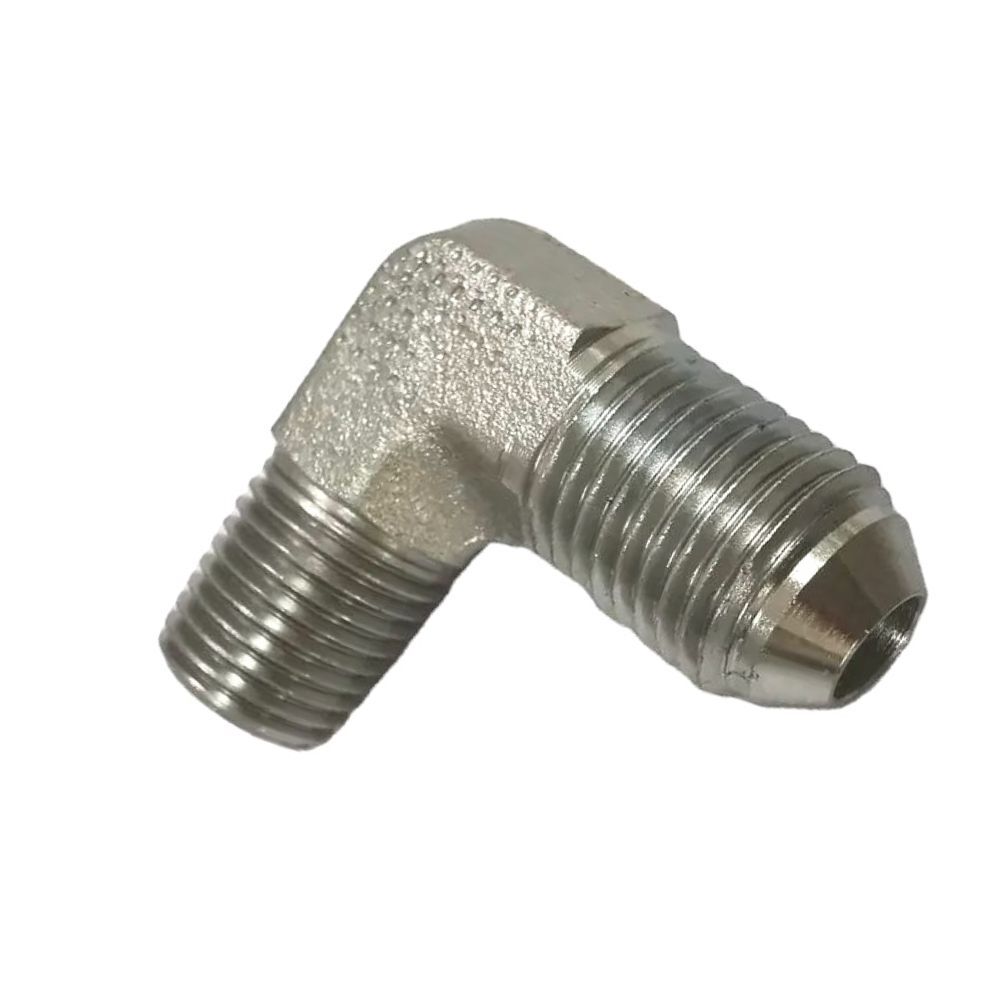

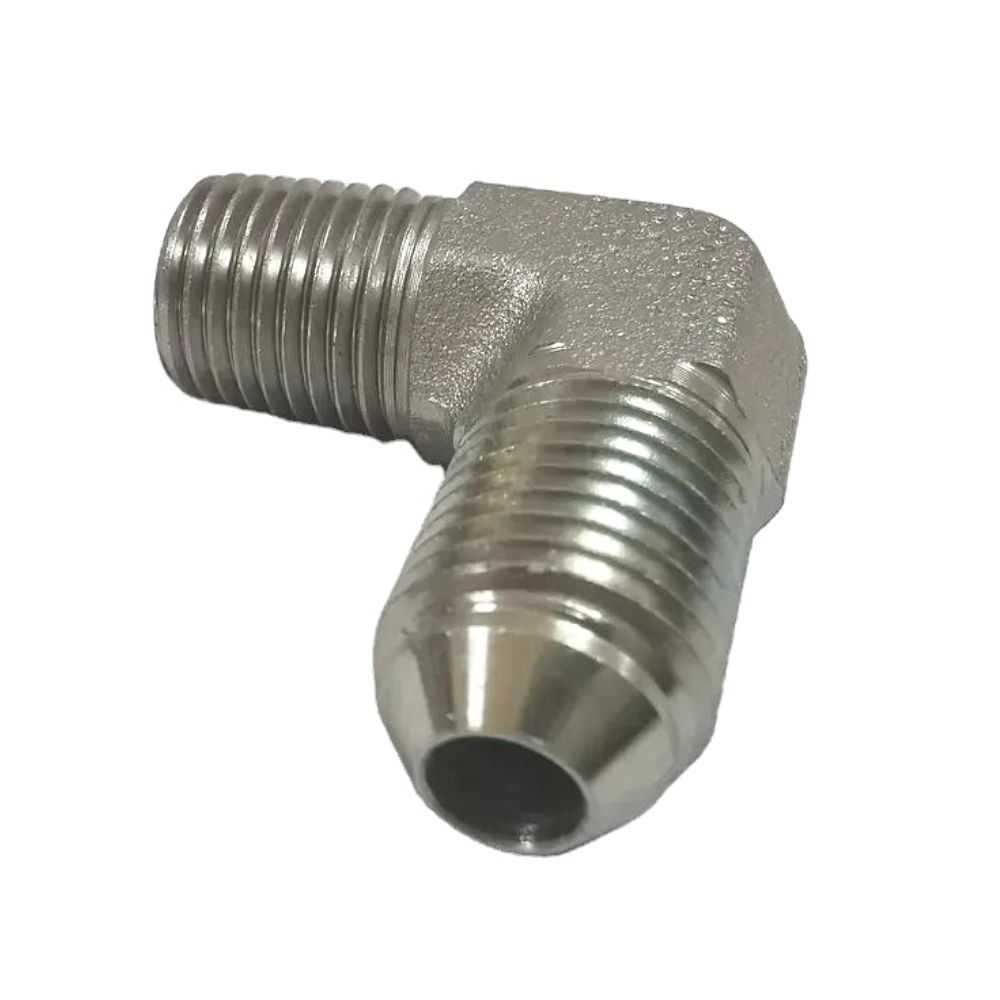

Description

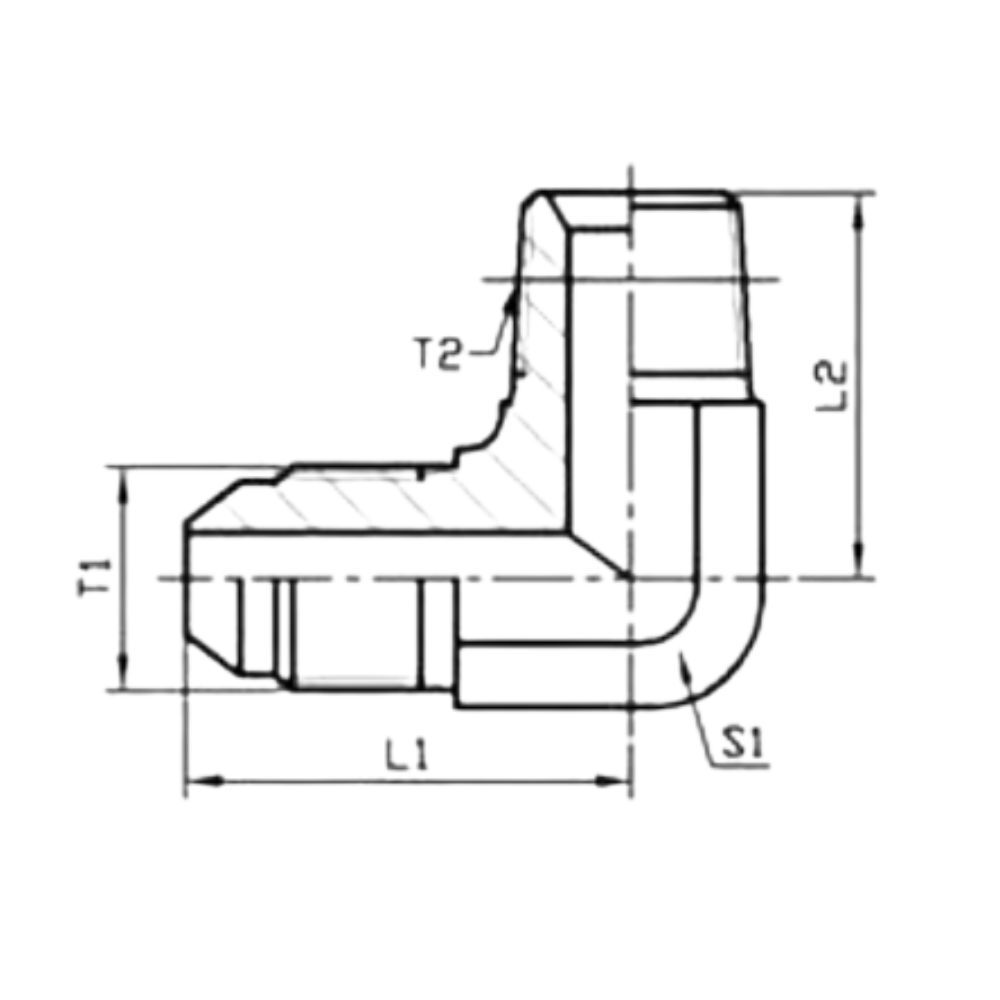

PART NO. | THREAD | DIMENSIONS | MPa | |||
T1 | T2 | L1 | L2 | S1 | ||
1QN9-12-02 | M12X1.5 | NPT1/8＂X27 | 24 | 24 | 11 | 34.5 |
1QN9-12-04 | M12X1.5 | NPT1/4＂X18 | 25 | 25.5 | 14 | 27.5 |
1QN9-14-02 | M14X1.5 | NPT1/8＂X27 | 28.5 | 23.5 | 14 | 34.5 |
1QN9-14-04 | M14X1.5 | NPT1/4＂X18 | 28.5 | 28.5 | 14 | 27.5 |
1QN9-16-04 | M16X1.5 | NPT1/4＂X18 | 30.5 | 30.5 | 16 | 25 |
1QN9-16-06 | M16X1.5 | NPT3/8＂X18 | 30.5 | 30.5 | 16 | 21 |
1QN9-16-08 | M16X1.5 | NPT1/2＂X14 | 34 | 34 | 22 | |
1QN9-18-04 | M18X1.5 | NPT1/4＂X18 | 31.5 | 28.7 | 19 | 25 |
1QN9-18-06 | M18X1.5 | NPT3/8＂X18 | 31.5 | 31.5 | 19 | 21 |
1QN9-22-06 | M22X1.5 | NPT3/8＂X18 | 34 | 34 | 22 | 20 |
1QN9-22-08 | M22X1.5 | NPT1/2＂X14 | 35.5 | 35.5 | 22 | |
1QN9-27-08 | M27X1.5 | NPT1/2＂X14 | 37.5 | 37.5 | 27 | |
1QN9-27-12 | M27X1.5 | NPT3/4＂X14 | 37.5 | 43 | 27 | 17 |
1QN9-27-16 | M27X1.5 | NPT1＂X11.5 | 43 | 47 | 33 | 14 |
1QN9-30-12 | M30X1.5 | NPT3/4＂X14 | 43 | 43 | 30 | 17 |
1QN9-36-16 | M36X2 | NPT1＂X11.5 | 47 | 47 | 36 | 14 |
1QN9-39-16 | M39X2 | NPT1＂X11.5 | 50 | 50 | 41 | 12.5 |
1QN9-42-20 | M42X2 | NPT1.1/4＂X11.5 | 52.5 | 52.5 | 41 | 8 |
1QN9-45-16 | M45X2 | NPT1＂X11.5 | 54 | 54 | 46 | 10 |
1QN9-45-20 | M45X2 | NPT1.1/4＂X11.5 | 54 | 54 | 46 | 8 |
1QN9-52-24 | M52X2 | NPT1.1/2＂X11.5 | 56 | 63 | 50 | 7 |
1QN9 90° Elbow NPT to Metric Adapter Video
This video shows information about the 1QN9 metric NPT adapter.
Hydraulic metric NPT pipe adapter has a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.
If you have any questions about npt to metric adapter fittings, please contact us.
