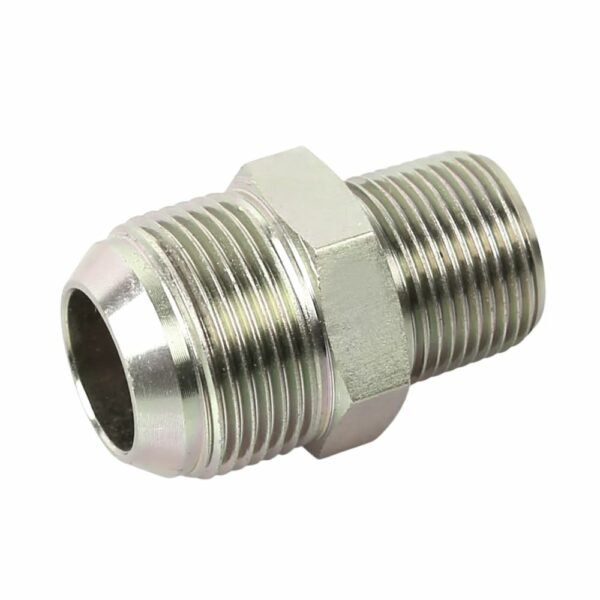

Description

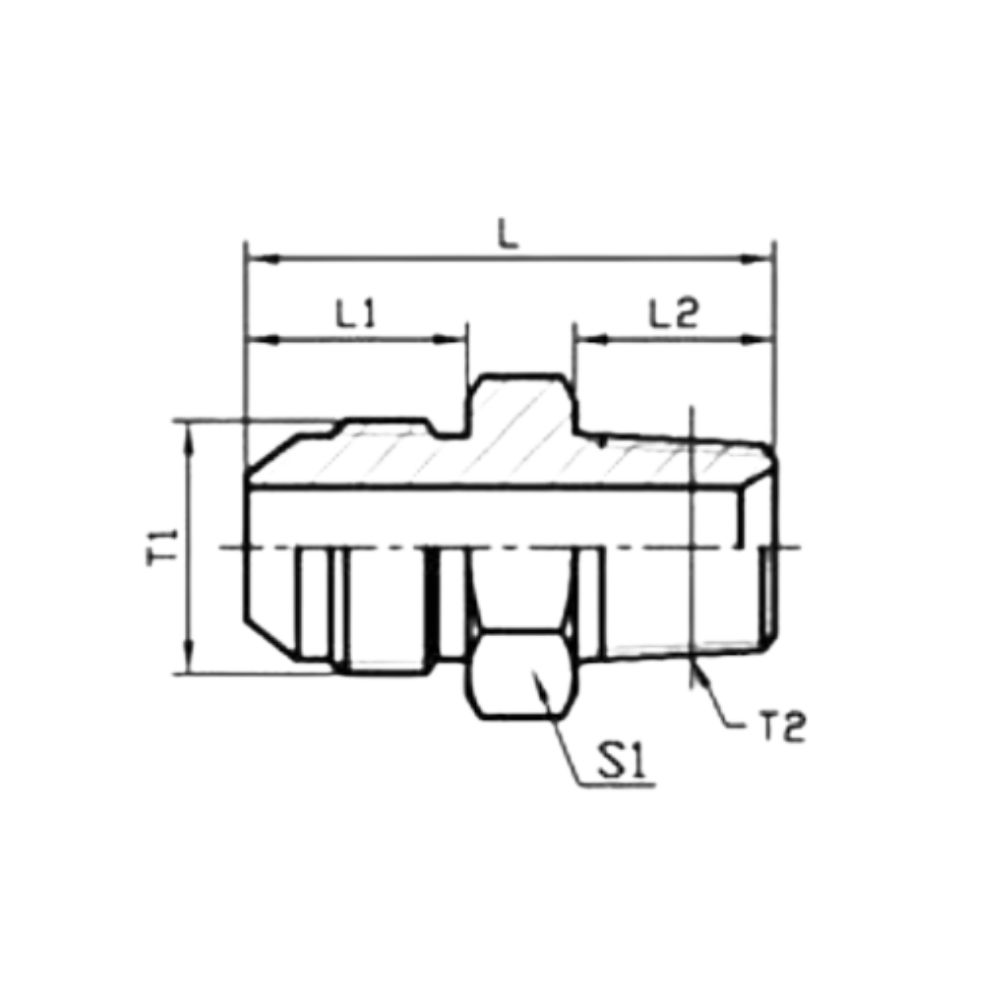

PART NO. | THREAD | DIMENSIONS | MPa | ||||
T1 | T2 | L1 | L2 | L | S1 | ||
1QN-12-02 | M12X1.5 | NPT1/8＂X27 | 16 | 10.5 | 32 | 14 | 34.5 |
1QN-12-04 | M12X1.5 | NPT1/4＂X18 | 16 | 15 | 36.5 | 14 | 27.5 |
1QN-14-02 | M14X1.5 | NPT1/8＂X27 | 18 | 10.5 | 33 | 17 | |
1QN-14-04 | M14X1.5 | NPT1/4＂X18 | 18 | 10.5 | 38 | 17 | |
1QN-16-04 | M16X1.5 | NPT1/4＂X18 | 19 | 10.5 | 39 | 19 | 25 |
1QN-16-06 | M16X1.5 | NPT3/8＂X18 | 19 | 16 | 40 | 19 | 21 |
1QN-18-04 | M18X1.5 | NPT1/4＂X18 | 19 | 10.5 | 39 | 19 | 25 |
1QN-18-06 | M18X1.5 | NPT3/8＂X18 | 19 | 16 | 40 | 19 | 21 |
1QN-18-08 | M18X1.5 | NPT1/2＂X14 | 19 | 19.5 | 45.5 | 24 | |
1QN-22-06 | M22X1.5 | NPT3/8＂X18 | 19.5 | 16 | 43.5 | 24 | 20 |
1QN-22-08 | M22X1.5 | NPT1/2＂X14 | 19.5 | 19.5 | 47 | 24 | |
1QN-27-06 | M27X1.5 | NPT3/8＂X18 | 20.5 | 16 | 46 | 30 | |
1QN-27-08 | M27X1.5 | NPT1/2＂X14 | 20.5 | 19.5 | 49 | 30 | |
1QN-27-12 | M27X1.5 | NPT3/4＂X14 | 20.5 | 19.5 | 49.5 | 30 | 17 |
1QN-27-16 | M27X1.5 | NPT1＂X11.5 | 20.5 | 25.5 | 55 | 36 | 14 |
1QN-30-12 | M30X1.5 | NPT3/4＂X14 | 23 | 19.5 | 53.5 | 32 | 17 |
1QN-33-12 | M33X2 | NPT3/4＂X14 | 26 | 19.5 | 56.5 | 36 | 16 |
1QN-36-16 | M36X2 | NPT1＂X11.5 | 26 | 25.5 | 63 | 41 | 14 |
1QN-39-16 | M39X2 | NPT1＂X11.5 | 27.5 | 25.5 | 64.5 | 41 | 12.5 |
1QN-45-16 | M45X2 | NPT1＂X11.5 | 28.5 | 25.5 | 67 | 46 | 10 |
1QN-45-20 | M45X2 | NPT1.1/4＂X11.5 | 28.5 | 26.5 | 68 | 46 | 8 |
1QN-45-24 | M45X2 | NPT1.1/2＂X11.5 | 28.5 | 27.5 | 71 | 50 | 7 |
1QN-52-20 | M52X2 | NPT1.1/4＂X11.5 | 30 | 26.5 | 71.5 | 55 | 8 |
1QN Male Metric NPT Adapter Video
This video shows information about the 1QN metric NPT adapter.
Hydraulic metric NPT pipe adapter has a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.
If you have any questions about metric adapter metric to npt, please contact us.
