Description

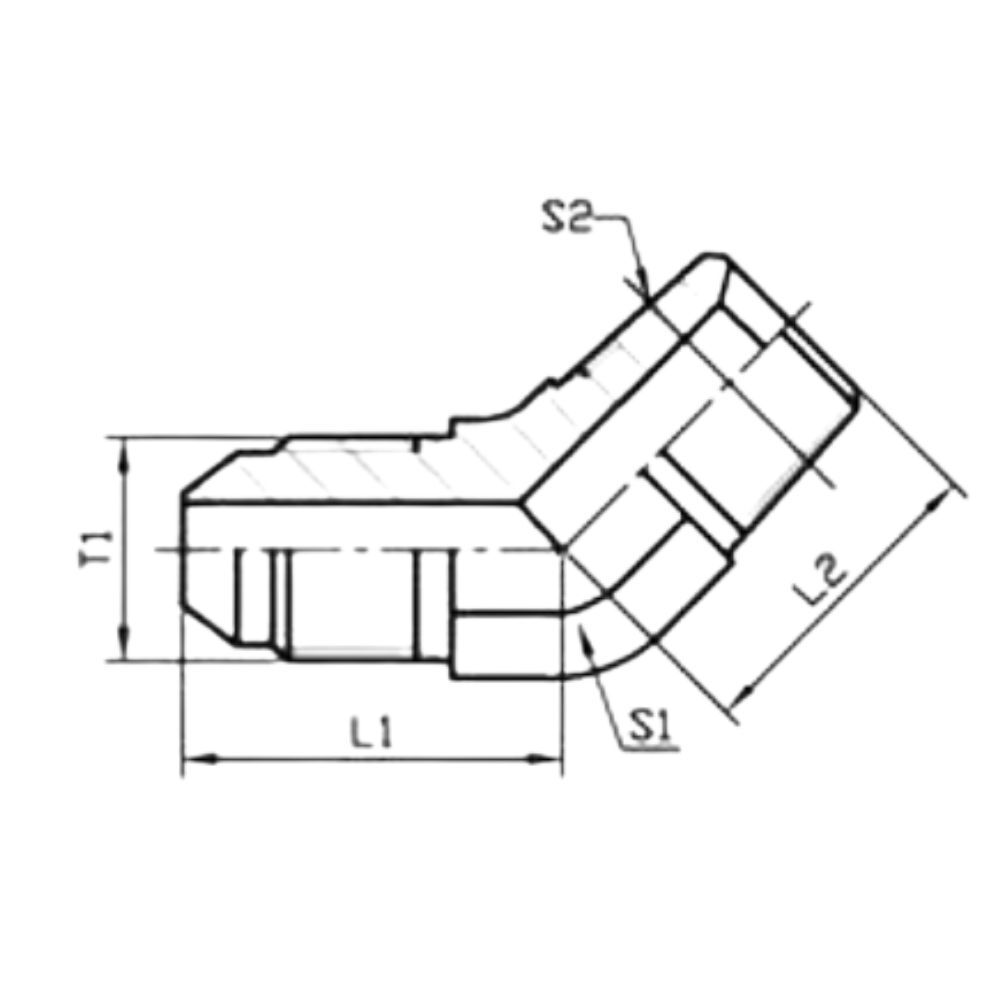

PART NO. | THREAD | DIMENSIONS | MPa | |||
T1 | T2 | L1 | L2 | S1 | ||
1QN4-12-02 | M12X1.5 | NPT1/8＂X27 | 23 | 17 | 11 | 34.5 |
1QN4-14-02 | M14X1.5 | NPT1/8＂X27 | 24 | 18 | 14 | |
1QN4-14-04 | M14X1.5 | NPT1/4＂X18 | 24 | 21 | 14 | 27.5 |
1QN4-16-06 | M16X1.5 | NPT3/8＂X18 | 26 | 24 | 16 | 21 |
1QN4-18-06 | M18X1.5 | NPT3/8＂X18 | 28 | 24 | 19 | |
1QN4-22-08 | M22X1.5 | NPT1/2＂X14 | 30.5 | 29.5 | 22 | 20 |
1QN4-27-08 | M27X1.5 | NPT1/2＂X14 | 33 | 31 | 27 | |
1QN4-27-12 | M27X1.5 | NPT3/4＂X14 | 33 | 35 | 27 | 17 |
1QN4-30-12 | M30X1.5 | NPT3/4＂X14 | 36.2 | 35.5 | 30 | |
1QN4-36-16 | M36X2 | NPT1＂X11.5 | 42 | 41 | 36 | 14 |
1QN4-39-16 | M39X2 | NPT1＂X11.5 | 44.5 | 42.5 | 41 | 12.5 |
1QN4-45-20 | M45X2 | NPT1.1/4＂X11.5 | 47 | 43 | 46 | 8 |

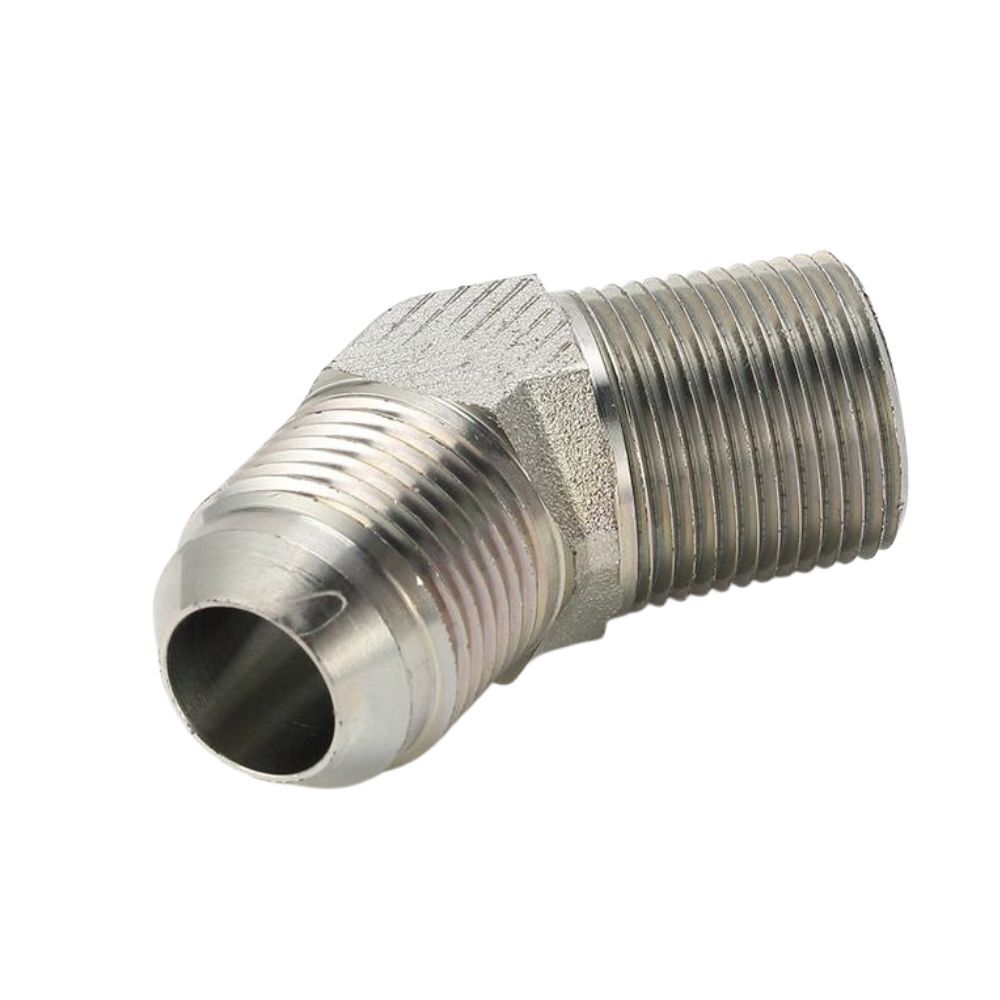

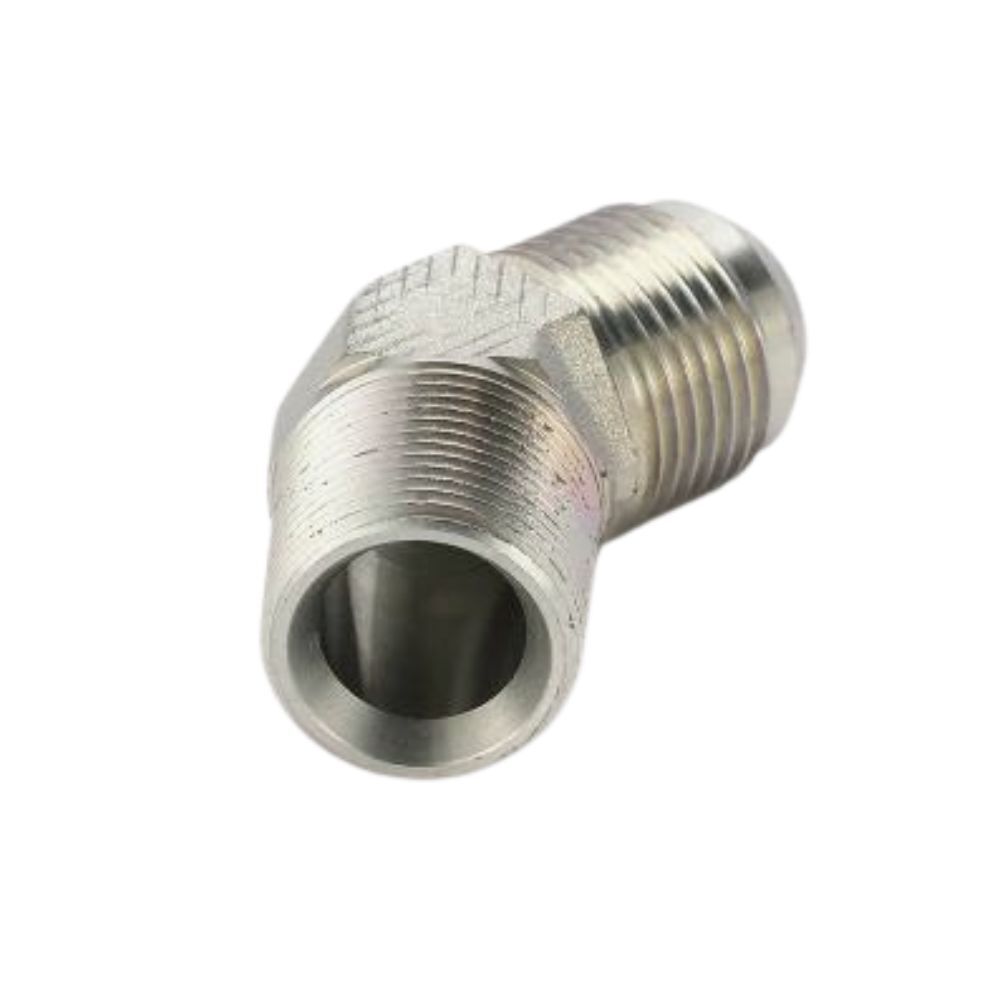

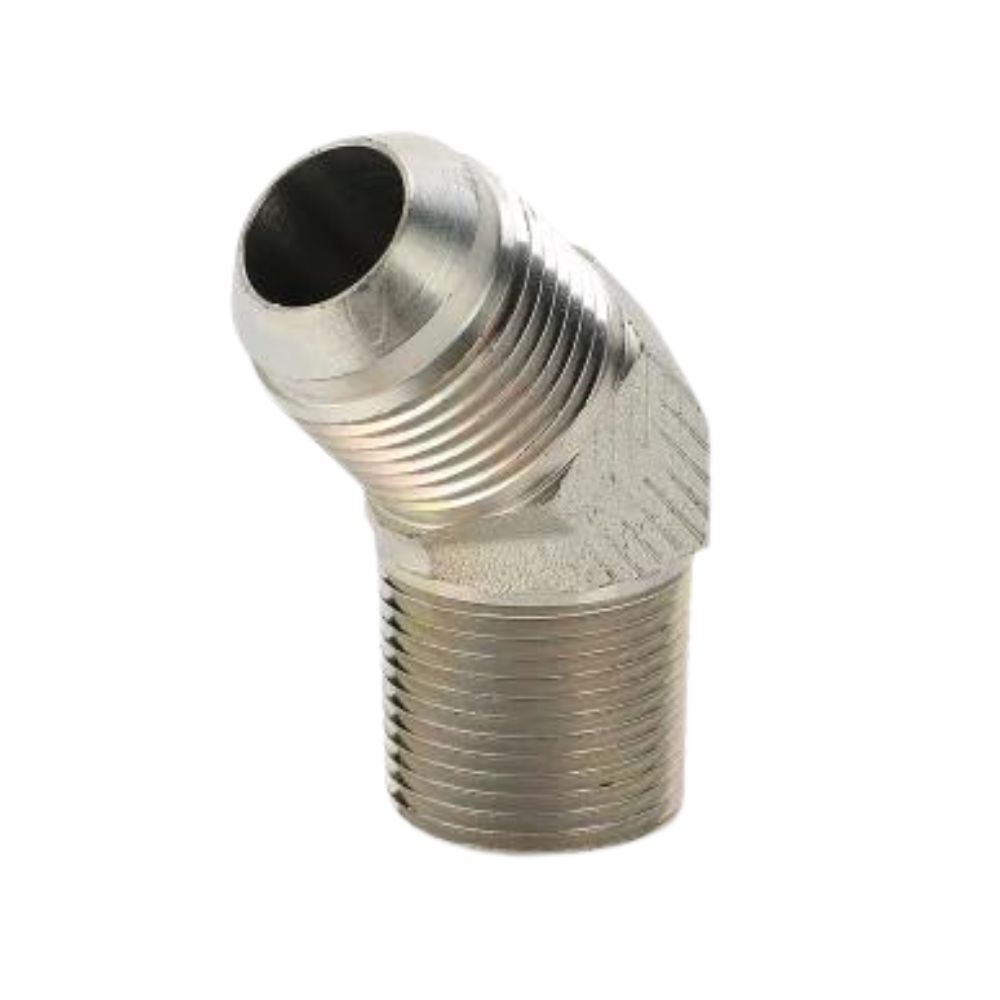

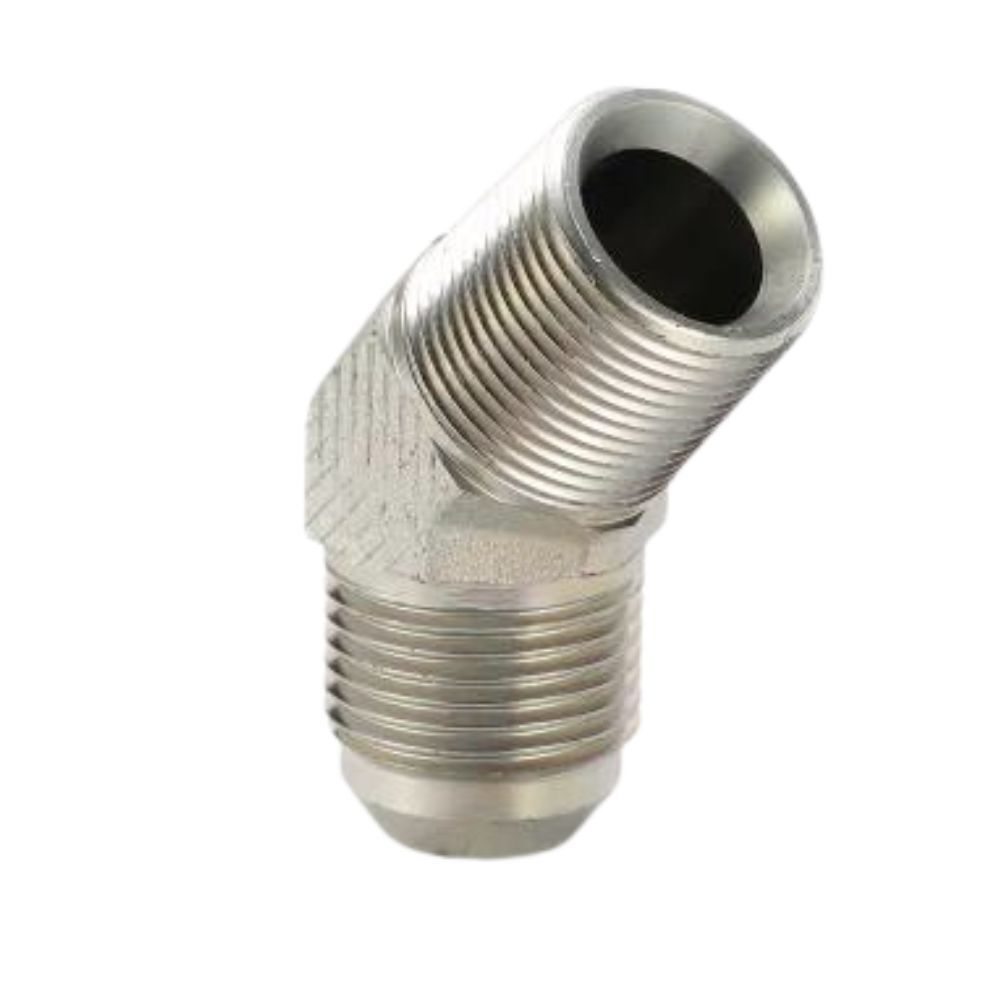

1QN4 45° Elbow Male Metric NPT Adapters Video
This video shows information about the 1QN4 45° metric NPT adapters.
Hydraulic metric NPT pipe adapter has a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.
If you have any questions about metric to npt hydraulic fittings, please contact us.
