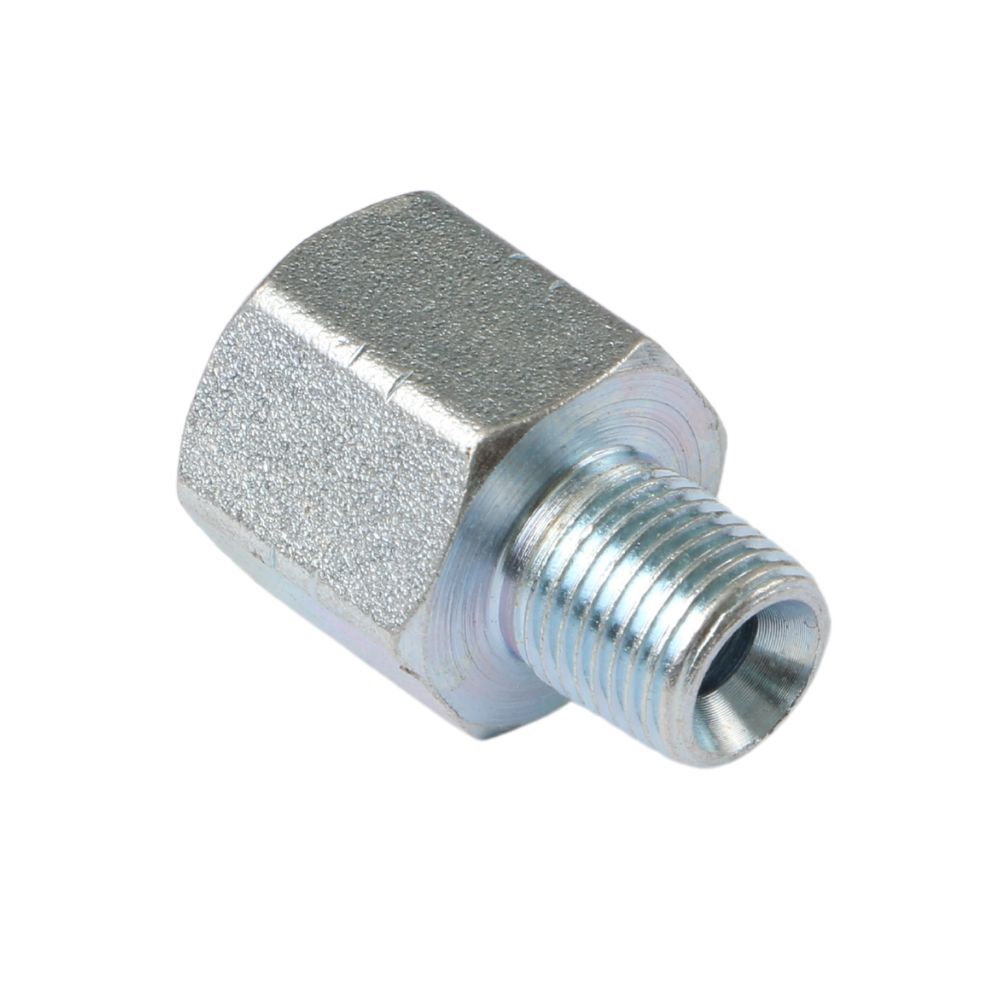

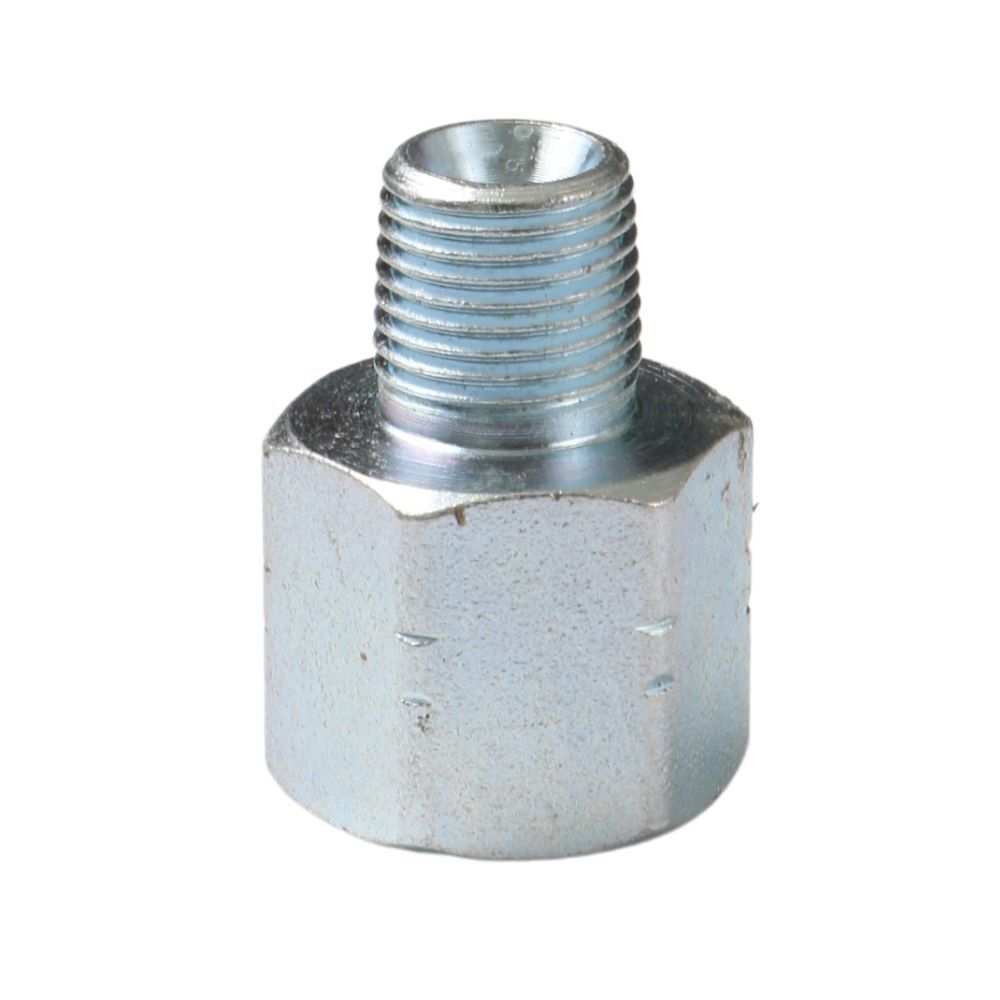

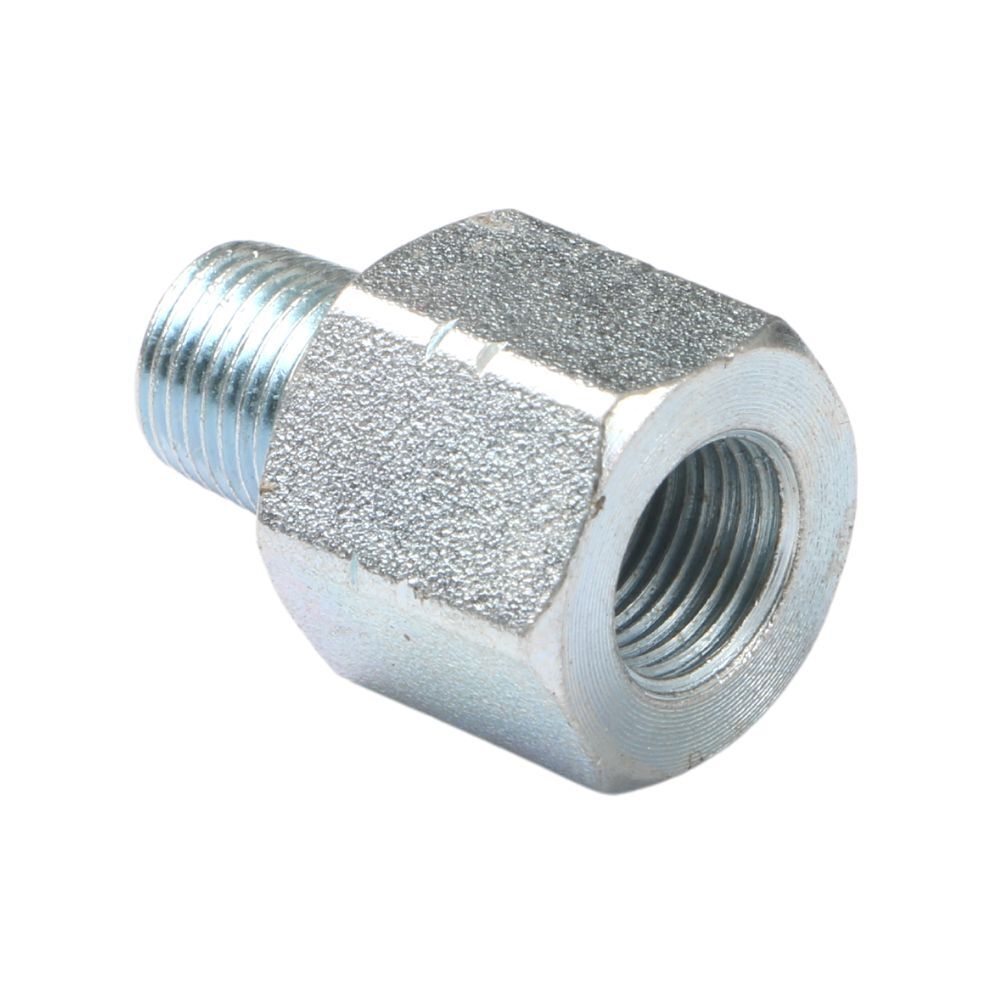

Description

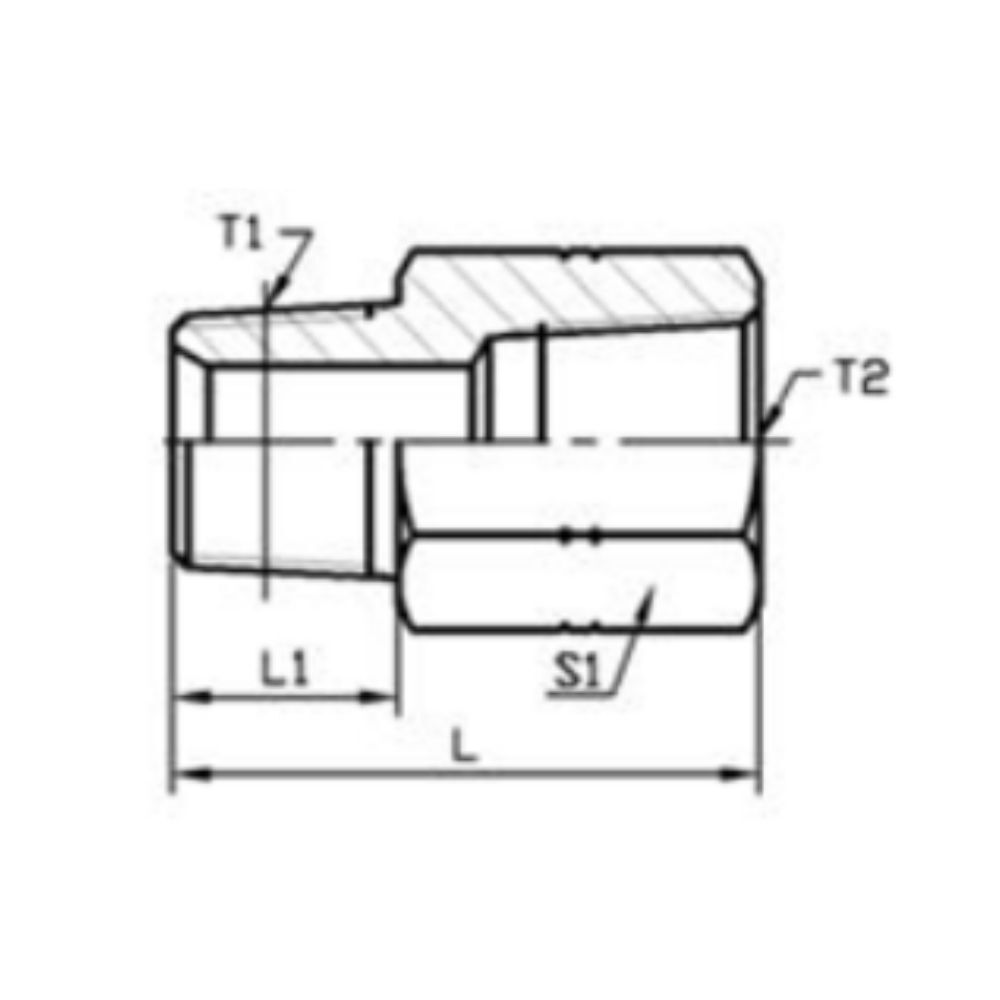

PART NO. | THREAD | DIMENSIONS | Weight(g) | Working pressure MPa | |||
T1 | T2 | L1 | L | S1 | |||
5N-02 | Z1/8＂X27 | Z1/8＂X27 | 10.5 | 26.4 | 17 | 25 | 34.5 |
5N-04-02 | Z1/4＂X18 | Z1/8＂X27 | 15 | 22 | 17 | 36 | 27.5 |
5N-04 | Z1/4＂X18 | Z1/4＂X18 | 15 | 35.3 | 19 | 38 | |
5N-04-06 | Z1/4＂X18 | Z3/8＂X18 | 15 | 37 | 24 | 58 | 21 |
5N-06-04 | Z3/8＂X18 | Z1/4＂X18 | 16 | 22 | 19 | 28 | |
5N-06 | Z3/8＂X18 | Z3/8＂X18 | 16 | 37 | 24 | 63 | |
5N-06-08 | Z3/8＂X18 | Z1/2＂X14 | 16 | 43 | 30 | 112 | |
5N-08-06 | Z1/2＂X14 | Z3/8＂X18 | 19.5 | 28.5 | 24 | 54 | |
5N-08 | Z1/2＂X14 | Z1/2＂X14 | 19.5 | 47.5 | 30 | 124 | |
5N-08-12 | Z1/2＂X14 | Z3/4＂X14 | 19.5 | 49 | 36 | 160 | 17 |
5N-12-08 | Z3/4＂X14 | Z1/2＂X14 | 19.5 | 30 | 27 | 72 | |
5N-12 | Z3/4＂X14 | Z3/4＂X14 | 25.5 | 49 | 36 | 165 | |
5N-16-12 | Z1＂X11.5 | Z3/4＂X14 | 25 | 34.5 | 36 | 139 | 14 |
5N-16 | Z1＂X11.5 | Z1＂X11.5 | 25 | 60.5 | 41 | 269 | |
5N-16-20 | Z1＂X11.5 | Z1.1/4＂X11.5 | 25.5 | 62.5 | 50 | 351 | 8 |
5N-20-16 | Z1.1/4＂X11.5 | Z1＂X11.5 | 25.5 | 37.5 | 46 | 236 | |
5N-20 | Z1.1/4＂X11.5 | Z1.1/4＂X11.5 | 25.5 | 63.5 | 50 | 396 | |
5N-20-24 | Z1.1/4＂X11.5 | Z1.1/2＂X11.5 | 25.5 | 63.5 | 60 | 559 | 7 |
5N-24-20 | Z1.1/2＂X11.5 | Z1.1/4＂X11.5 | 26.5 | 40 | 50 | 311 | |
5N-24 | Z1.1/2＂X11.5 | Z1.1/2＂X11.5 | 26.5 | 64.5 | 65 | 727 | |
5N-24-32 | Z1.1/2＂X11.5 | Z2＂X11.5 | 26.5 | 67 | 70 | 673 | 7 |
5N-32-24 | Z2＂X11.5 | Z1.1/2＂X11.5 | 27.5 | 44.5 | 65 | 605 | 5 |
5N-32 | Z2＂X11.5 | Z2＂X11.5 | 27.5 | 67.6 | 70 | 728 | 5 |
5N Male to Female NPT Pipe Fitting Video
This video shows information about male to female NPT pipe fitting.
Typically, NPT hydraulic fitting is always applied in hydraulic systems, such as construction applications, agricultural machinery and manufacturing machinery.
If you have any questions about npt male fitting, please contact us.
