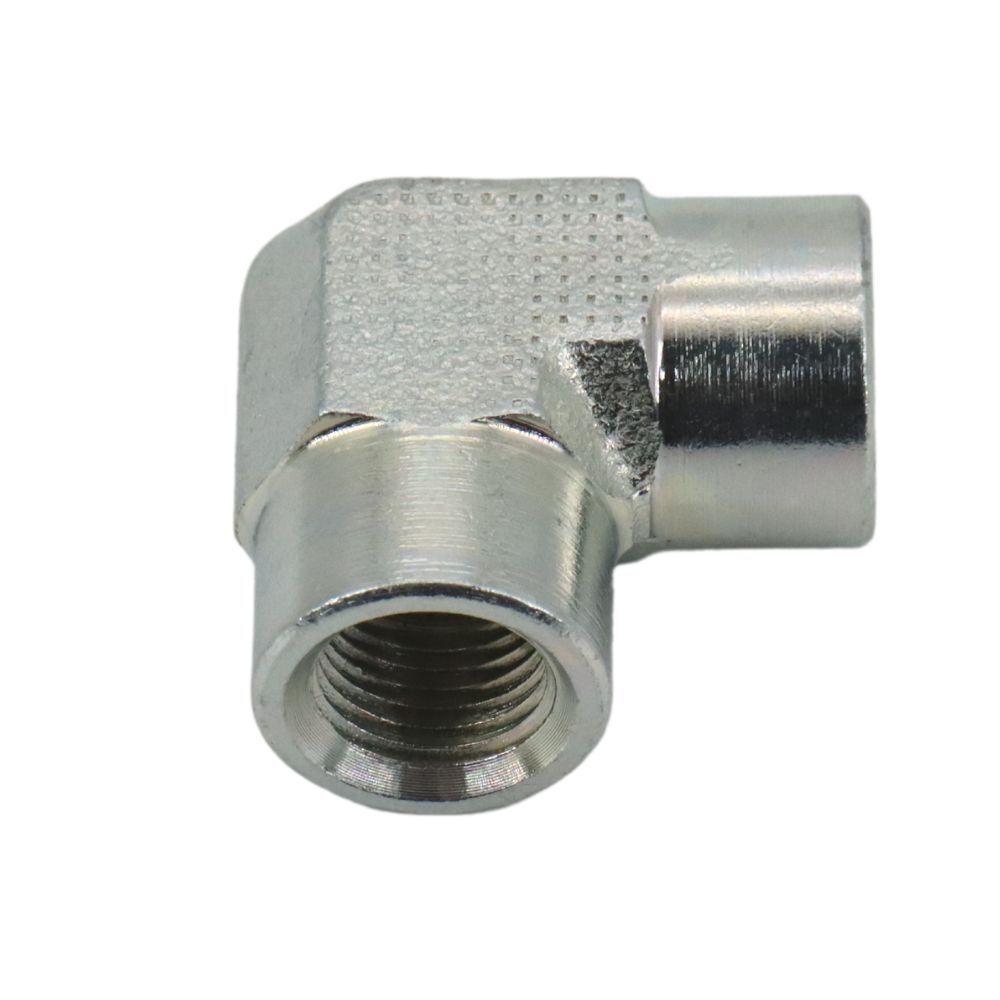

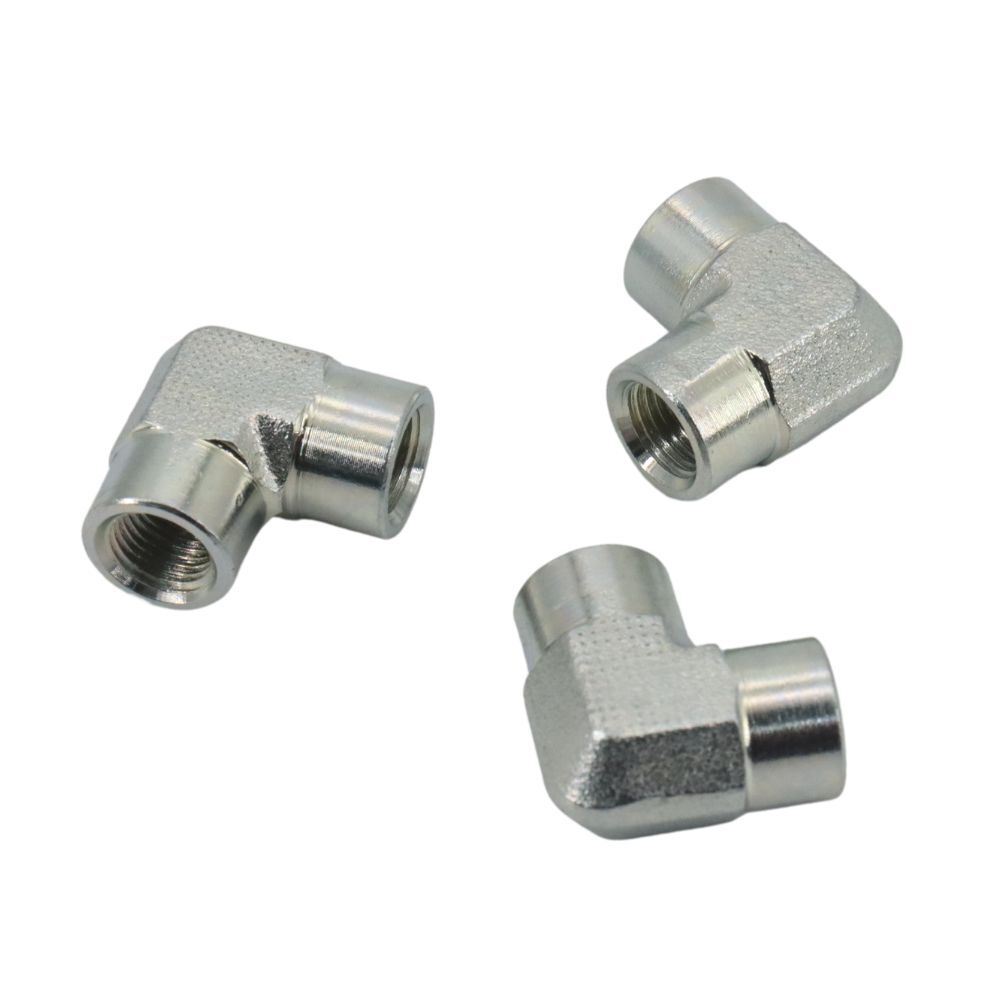

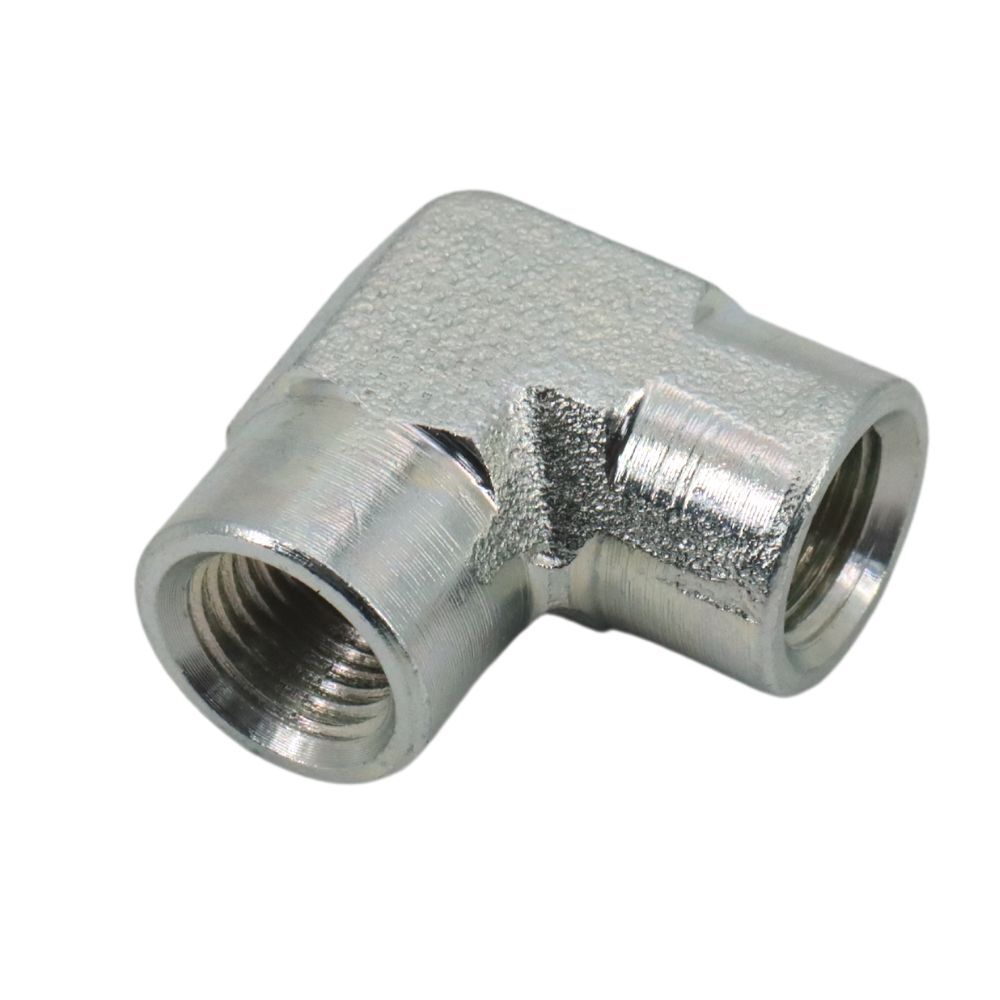

Description

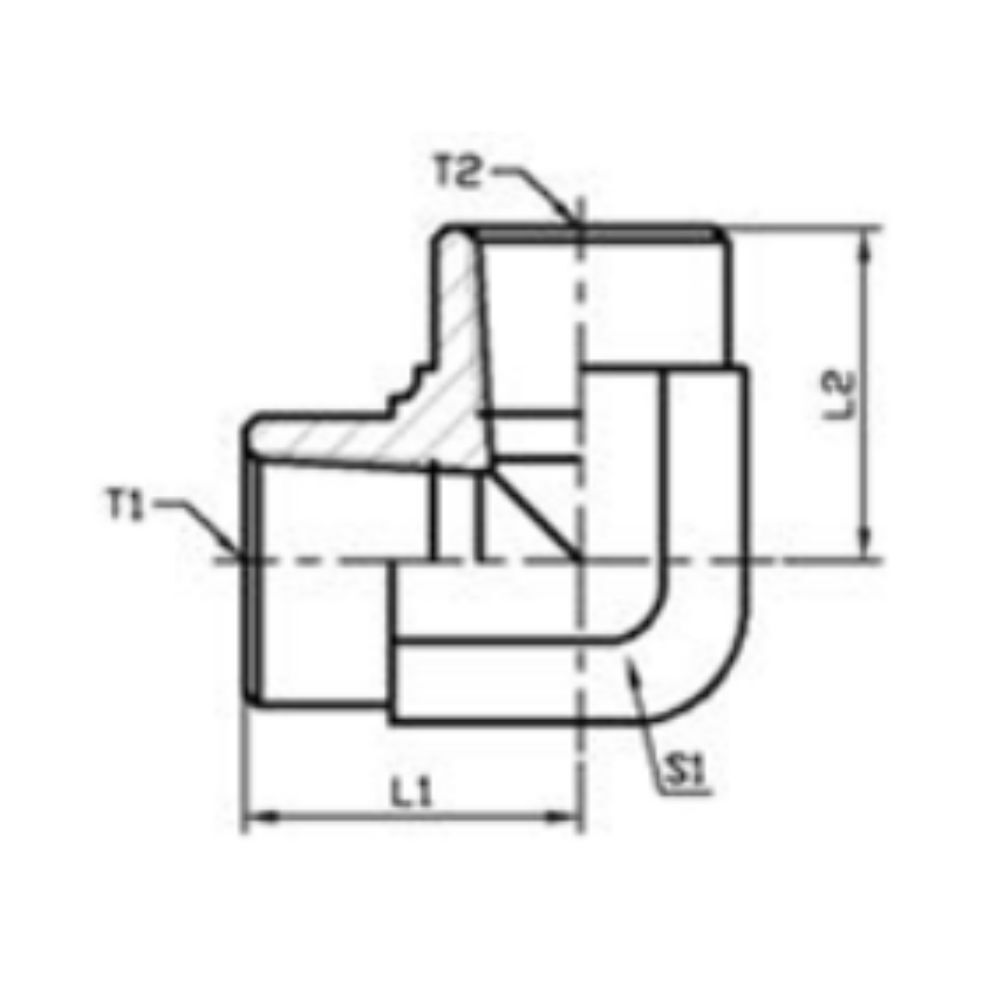

PART NO. | THREAD | DIMENSIONS | Weight(g) | Working pressure MPa | |||
T1 | T2 | L1 | L2 | S1 | |||
7N9-02 | Z1/8"X27 | Z1/8"X27 | 20 | 20 | 16 | 38 | 34.5 |
7N9-04 | Z1/4"X18 | Z1/4"X18 | 22.5 | 22.5 | 19 | 51 | 21 |
7N9-06 | Z3/8"X18 | Z3/8"X18 | 26 | 26 | 24 | 96 | |
7N9-08 | Z1/2"X14 | Z1/2"X14 | 31 | 31 | 27 | 114 | 21 |
7N9-12 | Z3/4"X14 | Z3/4"X14 | 34 | 34 | 33 | 173 | 17 |
7N9-16 | Z1"X11.5 | Z1"X11.5 | 42 | 42 | 41 | 320 | 14 |
7N9-20 | Z1.1/4"X11.5 | Z1.1/4"X11.5 | 48 | 48 | 50 | 469 | 8 |
7N9-24 | Z1.1/2"X11.5 | Z1.1/2"X11.5 | 53 | 53 | 60 | 885 | 7 |
7N9-32 | Z2"X11.5 | Z2"X11.5 | 62 | 62 | 70 | 1048 |

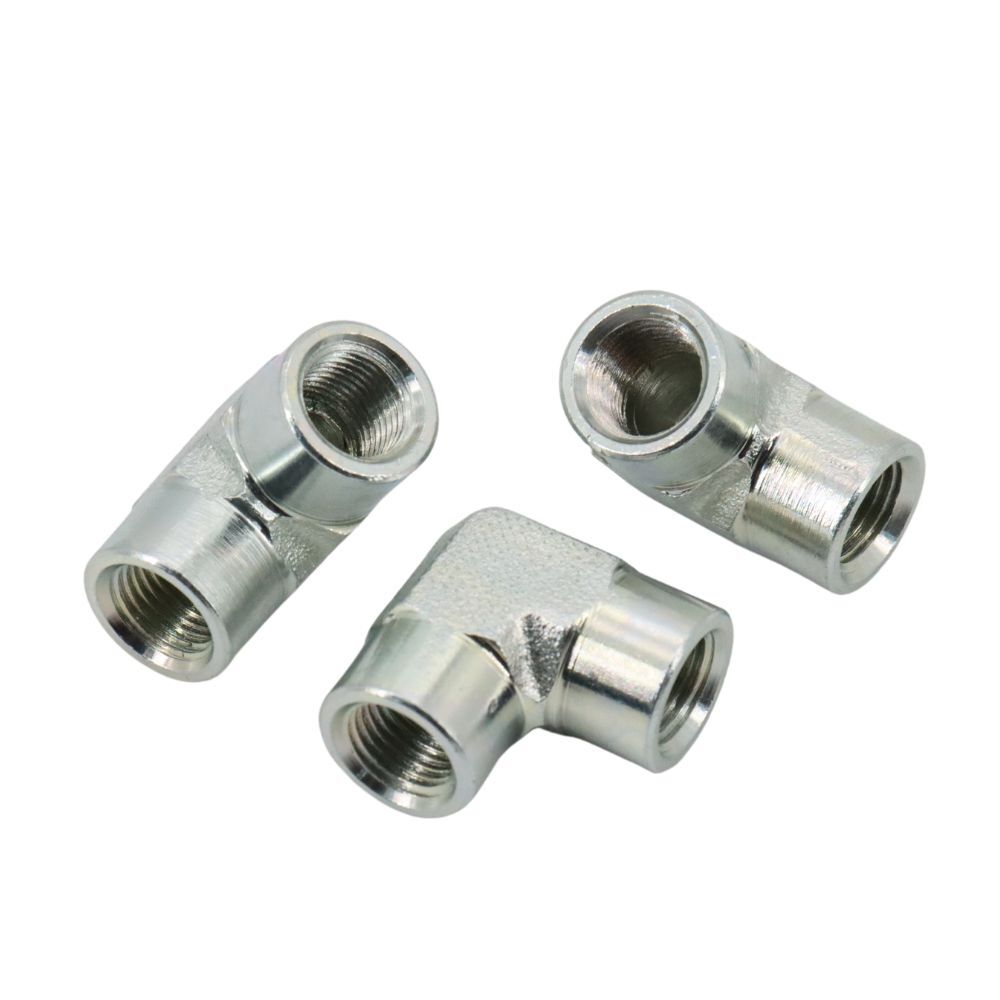

7N9 90° Elbow Female NPT Fittings Video
This video shows information about 7N9 hydraulic NPT fittings.
Typically, NPT fitting is always applied in gas lines, and other fluid transfer applications, such as construction applications, agricultural machinery and manufacturing machinery.
If you have any questions about npt hydraulic fittings, please contact us.
