2NU9 90° Female NPSM/Male NPT Adapters China Wholesaler-Topa

NPT Adapters

Description:

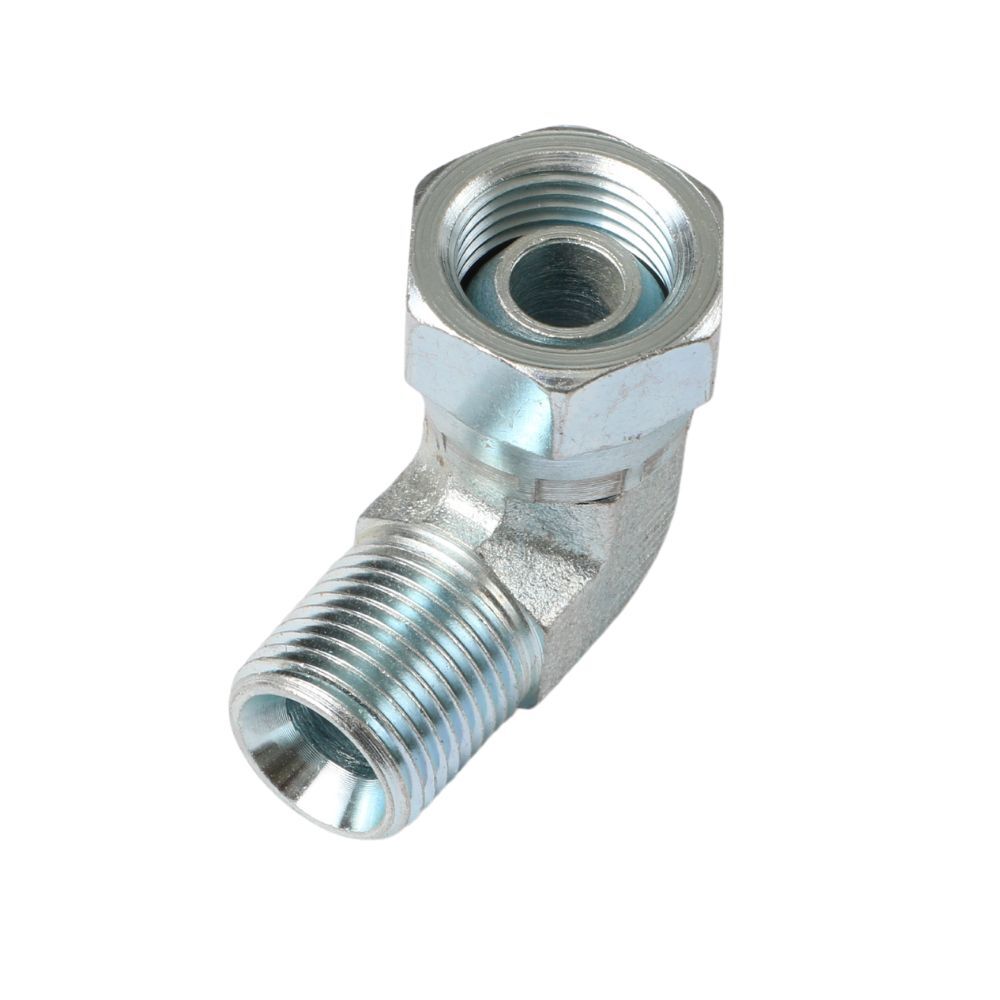

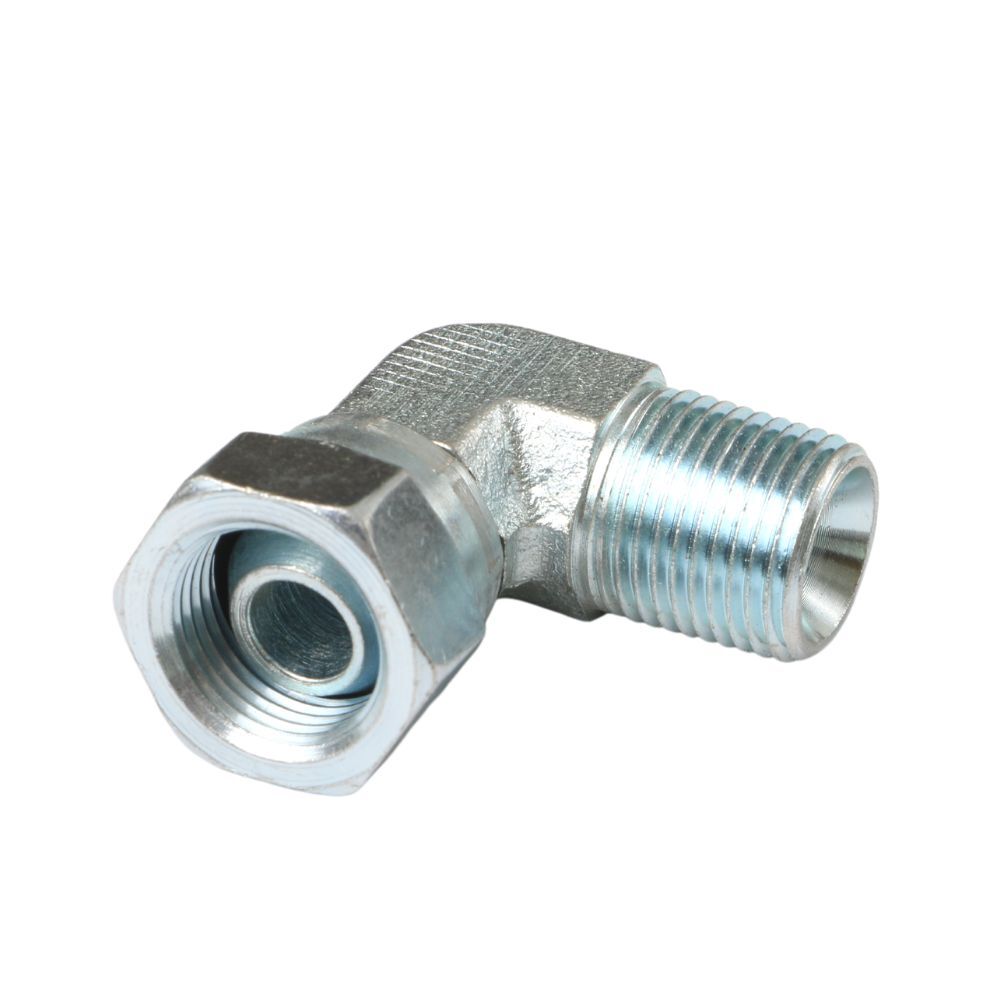

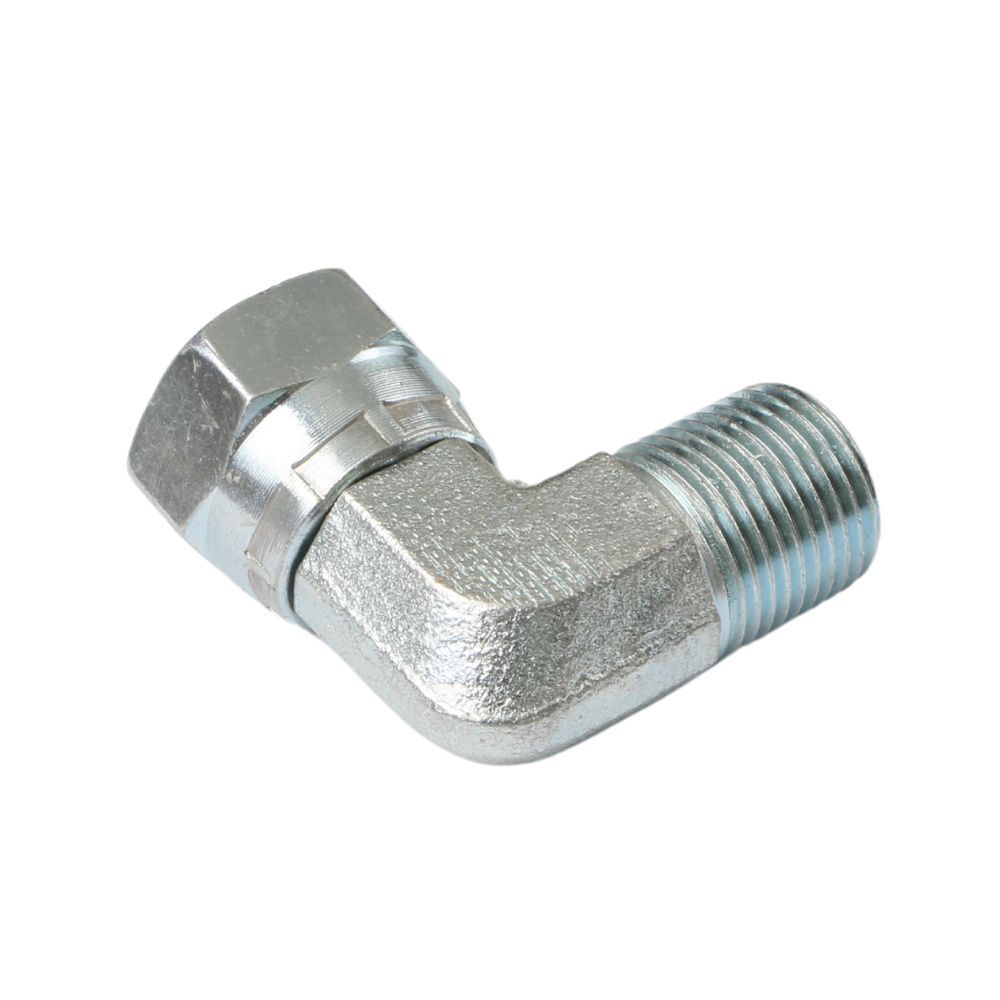

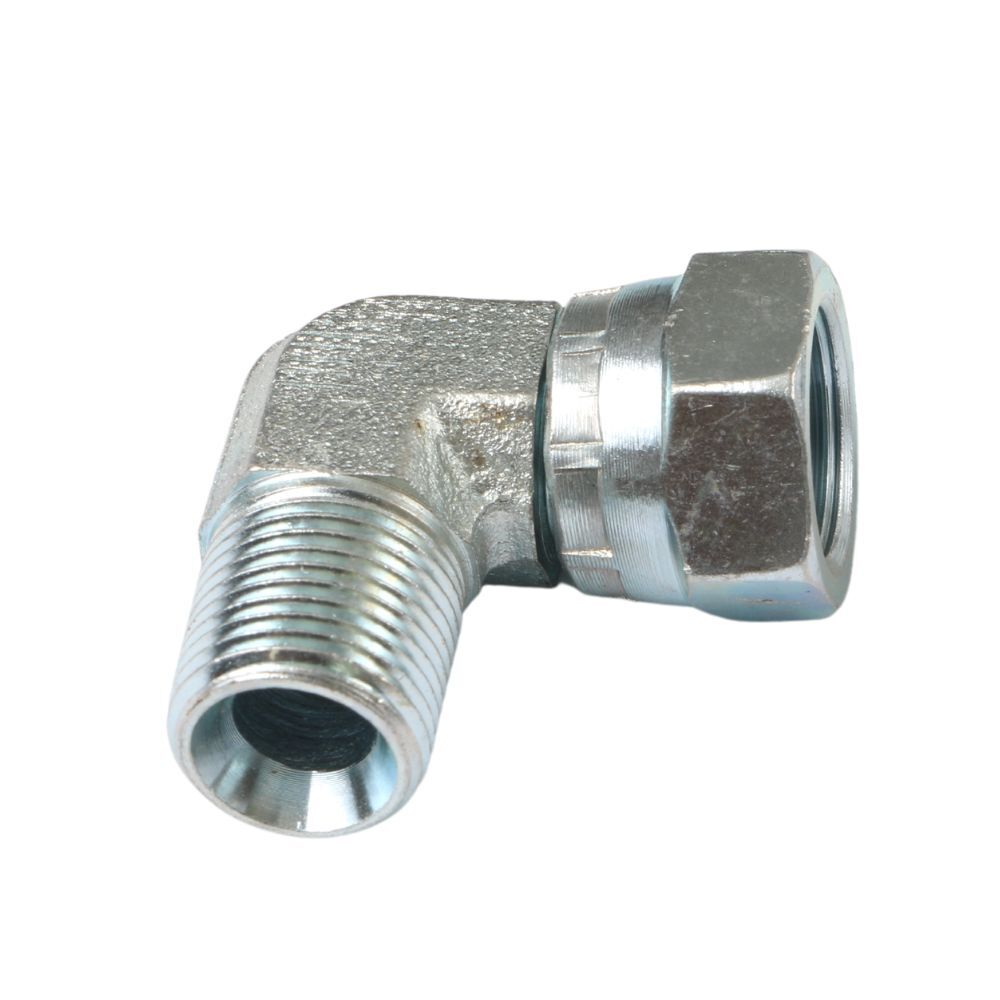

2NU9 90-degree male NPT/female NPSM 60° cone adapter is an elbow adapter that has two different threads.

The 90-degree angle allows the NPT adapter to connect pipes or tubes at a right angle.

If you have any questions about npsm to npt adapter, feel free to ask.

Features and Benefits:

• Leak-free
• Reliable
• Free samples
• Customize

Description

PART NO.	THREAD		DIMENSIONS				Weight(g)	Working pressure MPa

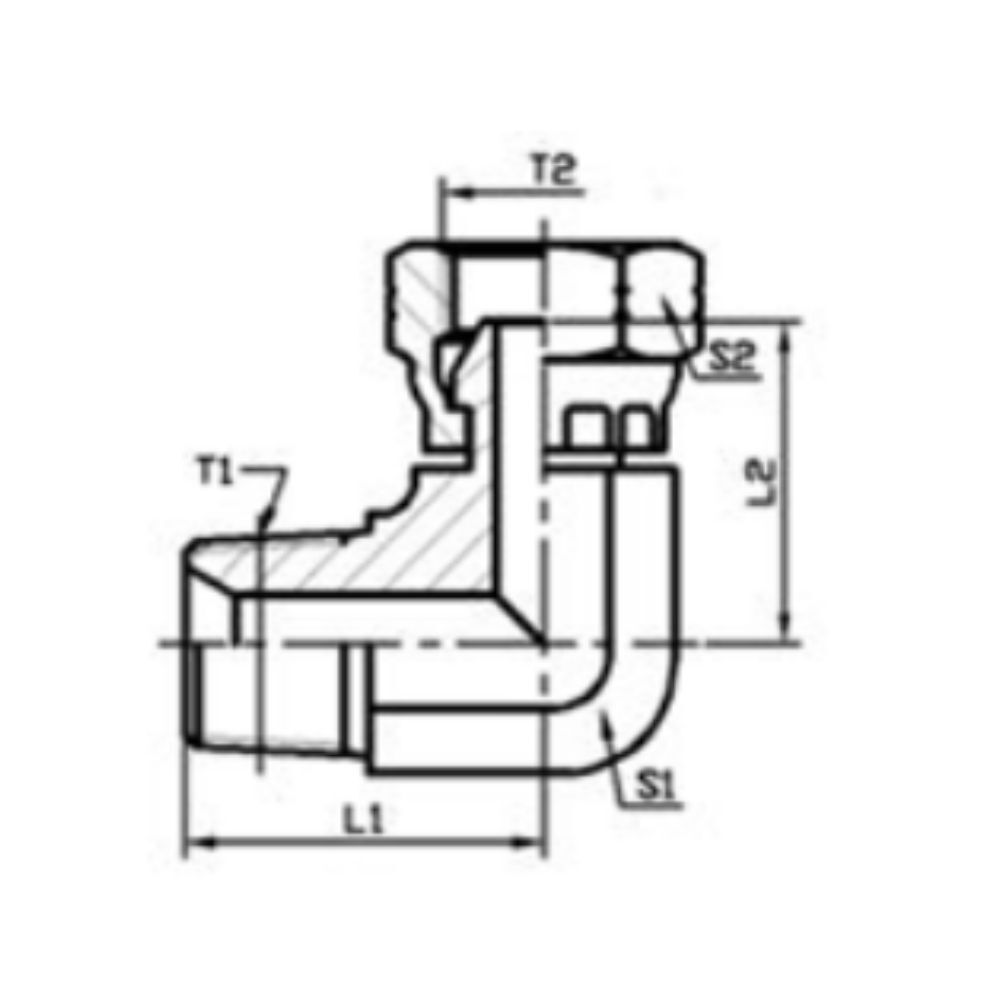

PART NO.	T1	T2	L1	L2	S1	S2	Weight(g)	Working pressure MPa
2NU9-04	Z1/4＂X18	1/4＂X18	27.7	22.4	14	19	40	27.5
2NU9-06	Z3/8＂X18	3/8＂X18	31	25.1	19	22	69	21
2NU9-08	Z1/2＂X14	1/2＂X14	37.4	28.2	22	27	115	21
2NU9-12	Z3/4＂X14	3/4＂X14	40.4	33	27	32	190	17
2NU9-16	Z1＂X11.5	1＂X11.5	50	39.1	33	41	341	14
2NU9-20	Z1.1/4＂X11.5	1.1/4＂X11.5	60.5	44	41	50	631	8
2NU9-24	Z1.1/2＂X11.5	1.1/2＂X11.5	67	48	48	55	866	7

2NU9 90° Female NPSM/Male NPT Adapters Video

This video shows information about 2NU9 90-degree NPT adapters.

Typically, NPT male to female adapter is always applied in hydraulic systems, such as construction applications, agricultural machinery and manufacturing machinery.

If you have any questions about npsm to npt adapter, please contact us.
