Description
PART NO. | THREAD | DIMENSIONS | Weight(g) | Working pressure MPa | ||||
T1 | T2 | L1 | L | S1 | S2 | |||
2NU-04 | Z1/4＂X18 | 1/4＂X18 | 14.5 | 31.8 | 17 | 19 | 25 | 27.5 |
2NU-06 | Z3/8＂X18 | 3/8＂X18 | 14.5 | 33.3 | 22 | 22 | 44 | 21 |
2NU-08 | Z1/2＂X14 | 1/2＂X14 | 19.5 | 41.1 | 27 | 27 | 75 | |
2NU-12 | Z3/4＂X14 | 3/4＂X14 | 19.5 | 42.9 | 32 | 32 | 115 | 17 |
2NU-16 | Z1＂X11.5 | 1＂X11.5 | 24.5 | 50.8 | 41 | 41 | 195 | 14 |
2NU-20 | Z1.1/4＂X11.5 | 1.1/4＂X11.5 | 25 | 53.1 | 50 | 50 | 305 | 8 |
2NU-24 | Z1.1/2＂X11.5 | 1.1/2＂X11.5 | 26 | 55.6 | 55 | 55 | 395 | 7 |

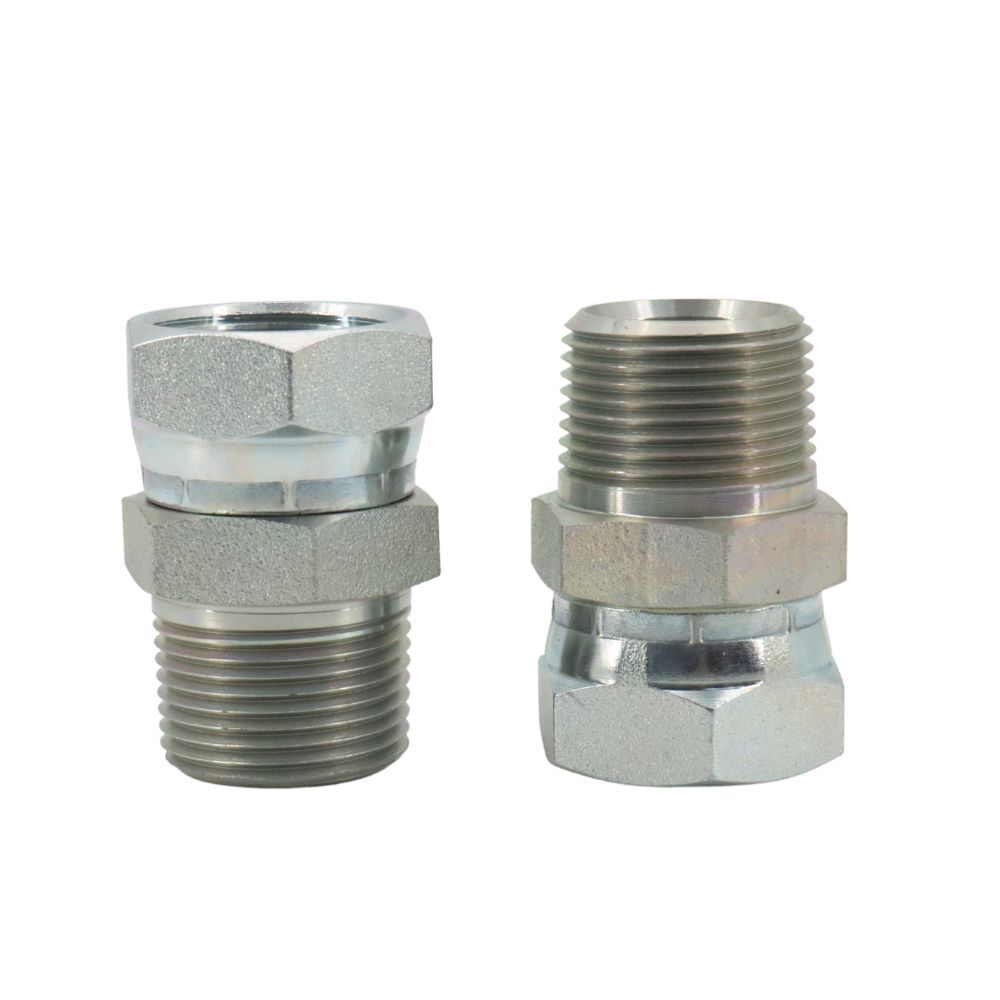

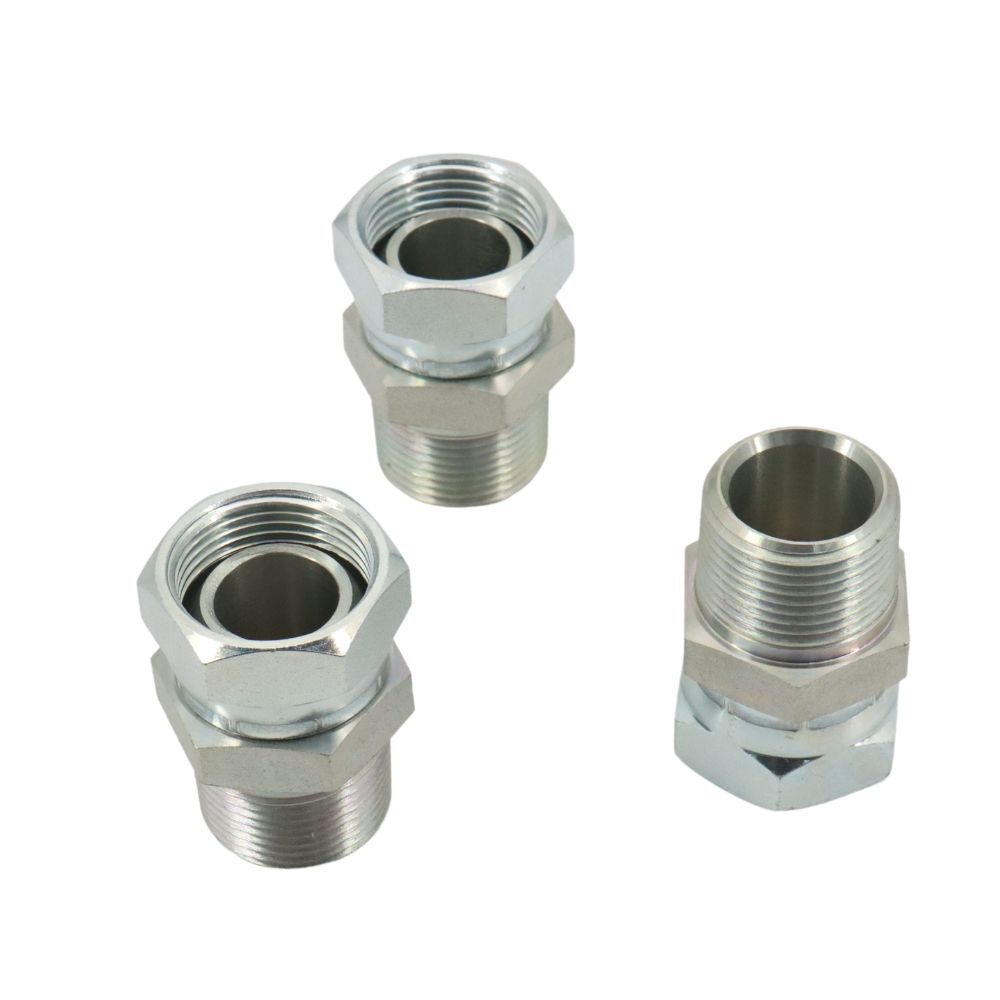

2NU Straight NPSM to NPT Adapter Video
This video shows information about 2NU straight NPSM to NPT adapter.
Typically, NPT to NPSM adapter is always applied in hydraulic systems, such as construction applications, agricultural machinery and manufacturing machinery.
If you have any questions about the npt to npsm adapter, please contact us.
