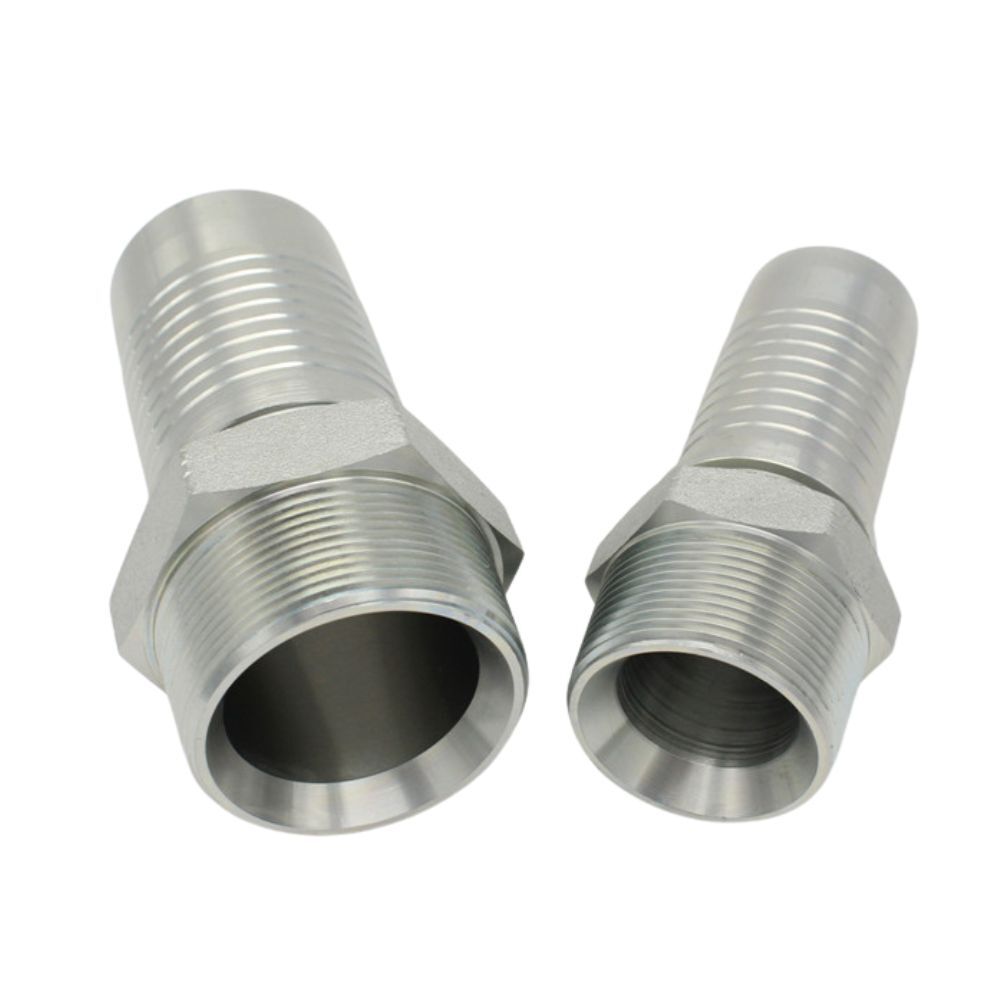

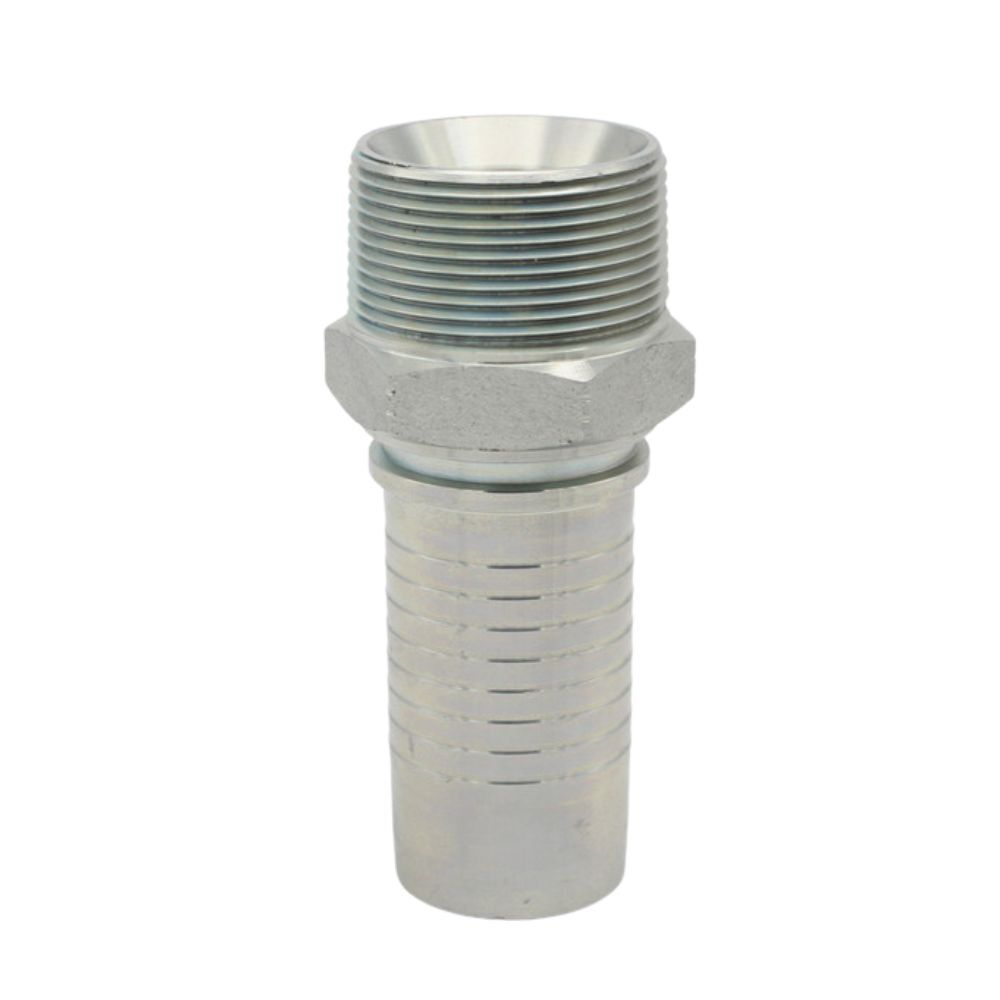

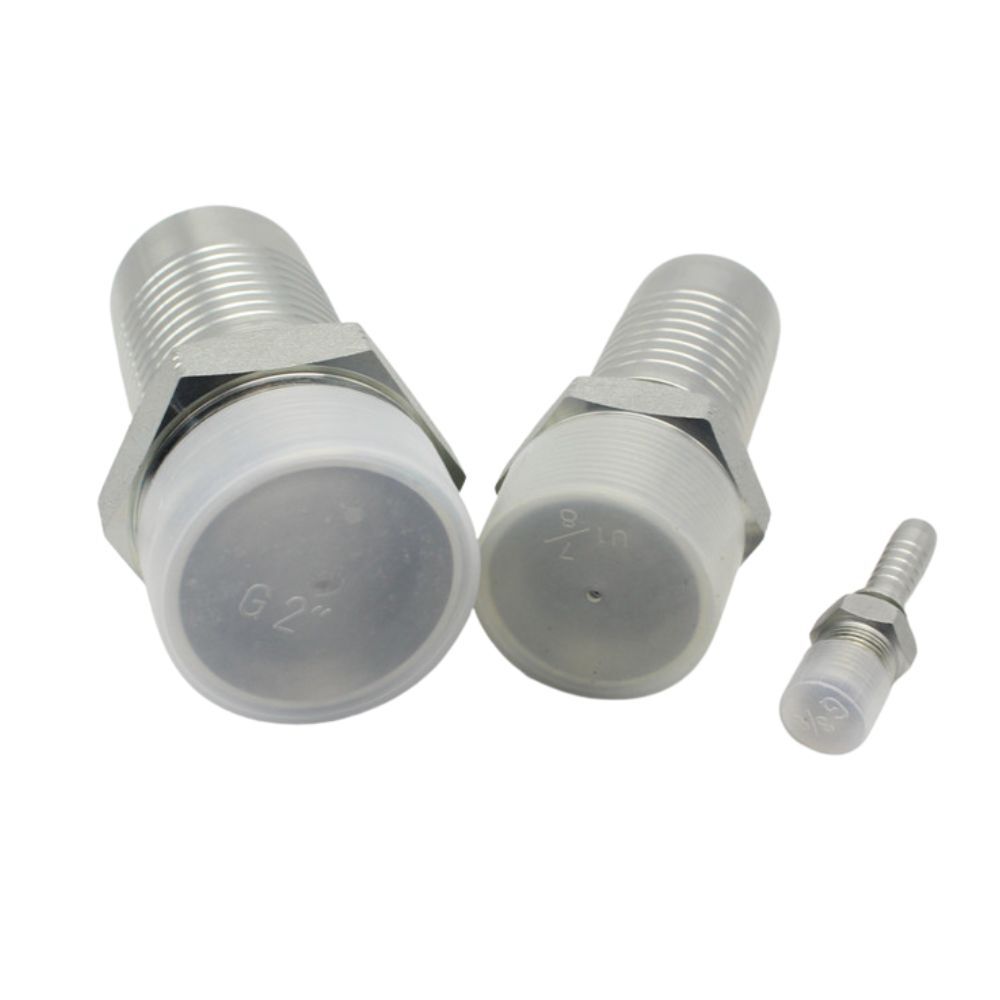

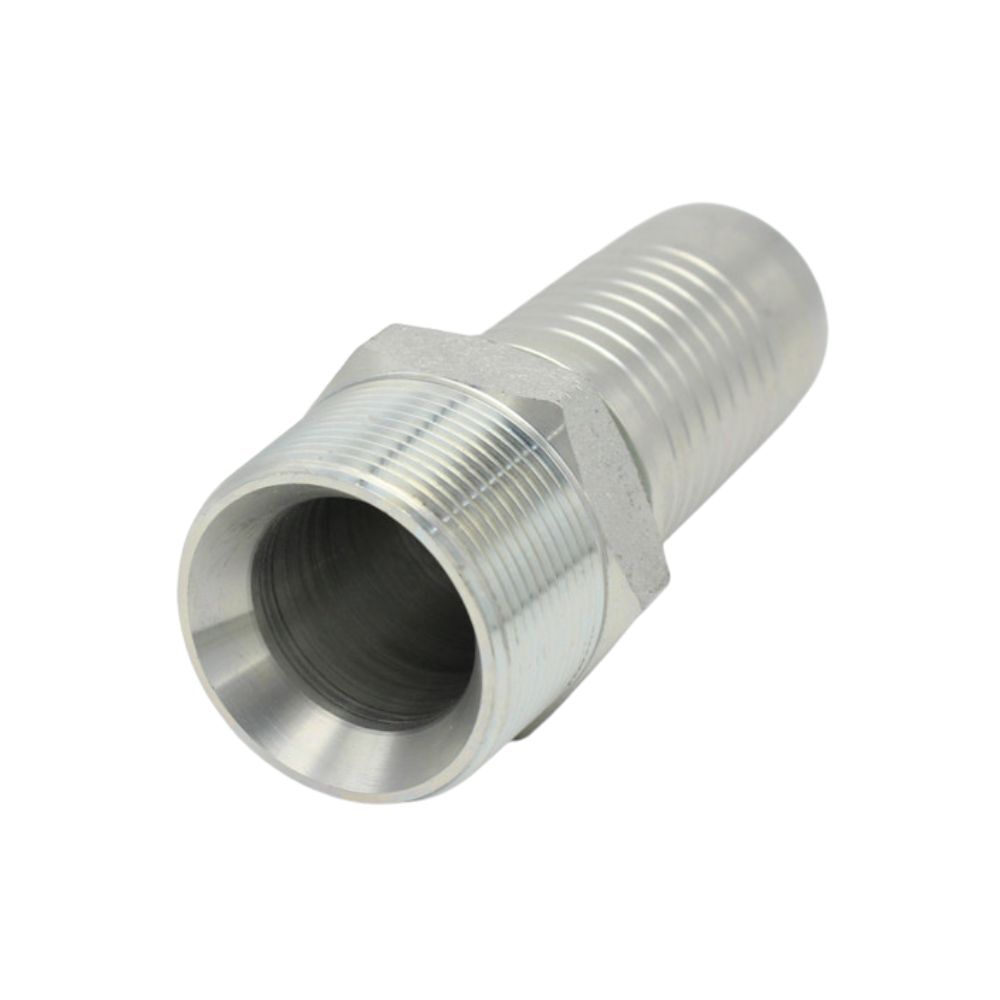

Description
PART NO. | E | HOSE BORE | DIMENSIONS | |||

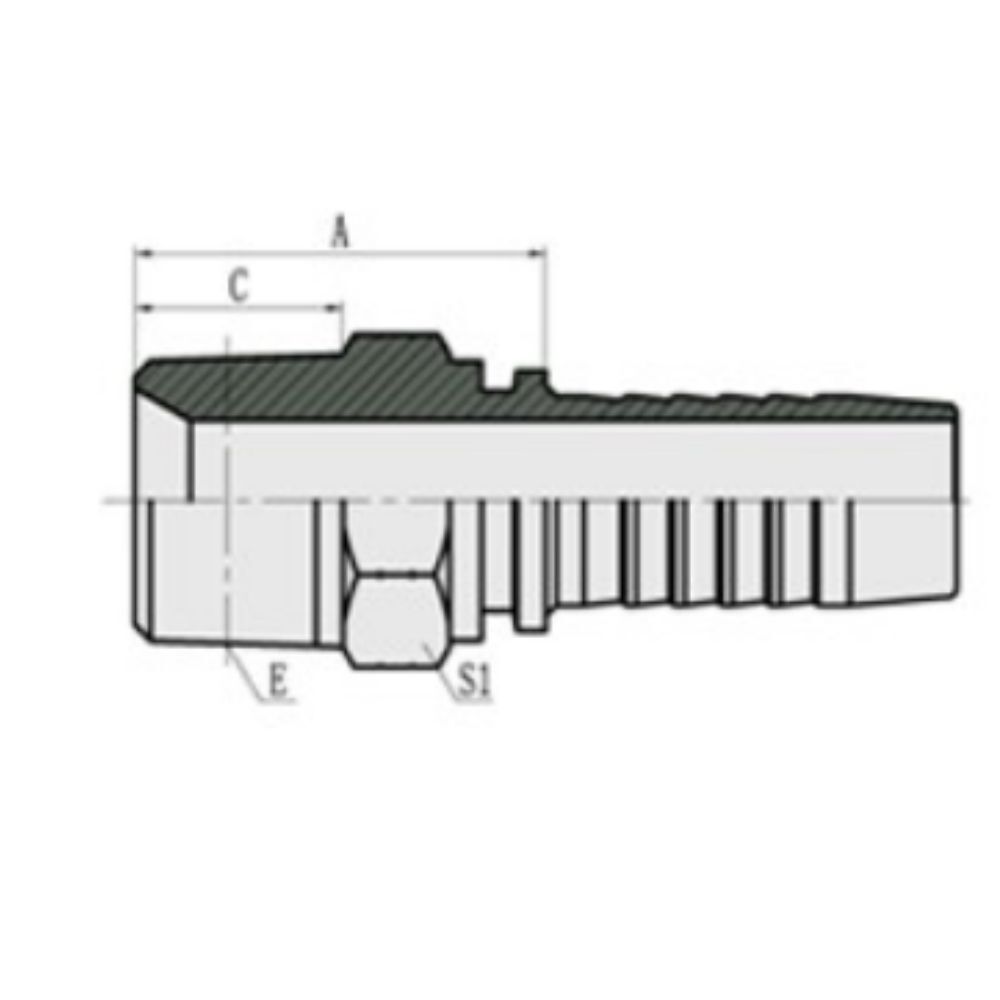

THREAD E | DN | DASH | A | C | S1 | |
15611-02-03 | Z1/8″×27 | 5 | 03 | 22.5 | 10.5 | 12 |
15611-02-04 | Z1/8″×27 | 6 | 04 | 22.5 | 10.5 | 12 |
15611-04-03 | Z1/4″×18 | 5 | 03 | 27.5 | 15 | 17 |
15611-04-04 | Z1/4″×18 | 6 | 04 | 28 | 15 | 17 |
15611-04-05 | Z1/4″×18 | 8 | 05 | 28 | 15 | 17 |
15611-04-06 | Z1/4″×18 | 10 | 06 | 27 | 15 | 17 |
15611-06-04 | Z3/8″×18 | 6 | 04 | 28 | 16 | 19 |
15611-06-05 | Z3/8″×18 | 8 | 05 | 28 | 16 | 19 |
15611-06-06 | Z3/8″×18 | 10 | 06 | 30 | 16 | 19 |
15611-06-08 | Z3/8″×18 | 12 | 08 | 30.5 | 16 | 19 |
15611-08-06 | Z1/2″×14 | 10 | 06 | 34.5 | 19.5 | 22 |
15611-08-08 | Z1/2″×14 | 12 | 08 | 34.5 | 19.5 | 22 |
15611-08-10 | Z1/2″×14 | 16 | 10 | 36 | 19.5 | 22 |
15611-12-08 | Z3/4″×14 | 12 | 08 | 37.5 | 19.5 | 27 |
15611-12-10 | Z3/4″×14 | 16 | 10 | 38 | 19.5 | 27 |
15611-12-12 | Z3/4″×14 | 20 | 12 | 38.5 | 19.5 | 27 |
15611-12-16 | Z3/4″×14 | 25 | 16 | 39.5 | 19.5 | 32 |
15611-16-10 | Z1″×11.5 | 16 | 10 | 45 | 25.5 | 36 |
15611-16-12 | Z1″×11.5 | 20 | 12 | 45 | 25.5 | 36 |
15611-16-16 | Z1″×11.5 | 25 | 16 | 44.5 | 25.5 | 36 |
15611-20-16 | Z1.1/4″×11.5 | 25 | 16 | 49.5 | 26.5 | 46 |
15611-20-20 | Z1.1/4″×11.5 | 32 | 20 | 49 | 26.5 | 46 |
15611-24-24 | Z1.1/2″×11.5 | 40 | 24 | 51 | 27.5 | 50 |
15611-32-32 | Z2″×11.5 | 50 | 32 | 55 | 27.5 | 65 |
15611 Male NPT Fitting Video
This video shows information about 15611 hydraulic NPT fitting.
Typically, NPT fitting is always applied in hydraulic systems, such as construction applications, agricultural machinery and manufacturing machinery.
If you have any questions about NPT adapter, please contact us.
