20641 Metric Tube Fitting-45° Female 60° Cone Seat-Topa

Metric Tube Fitting

Description:

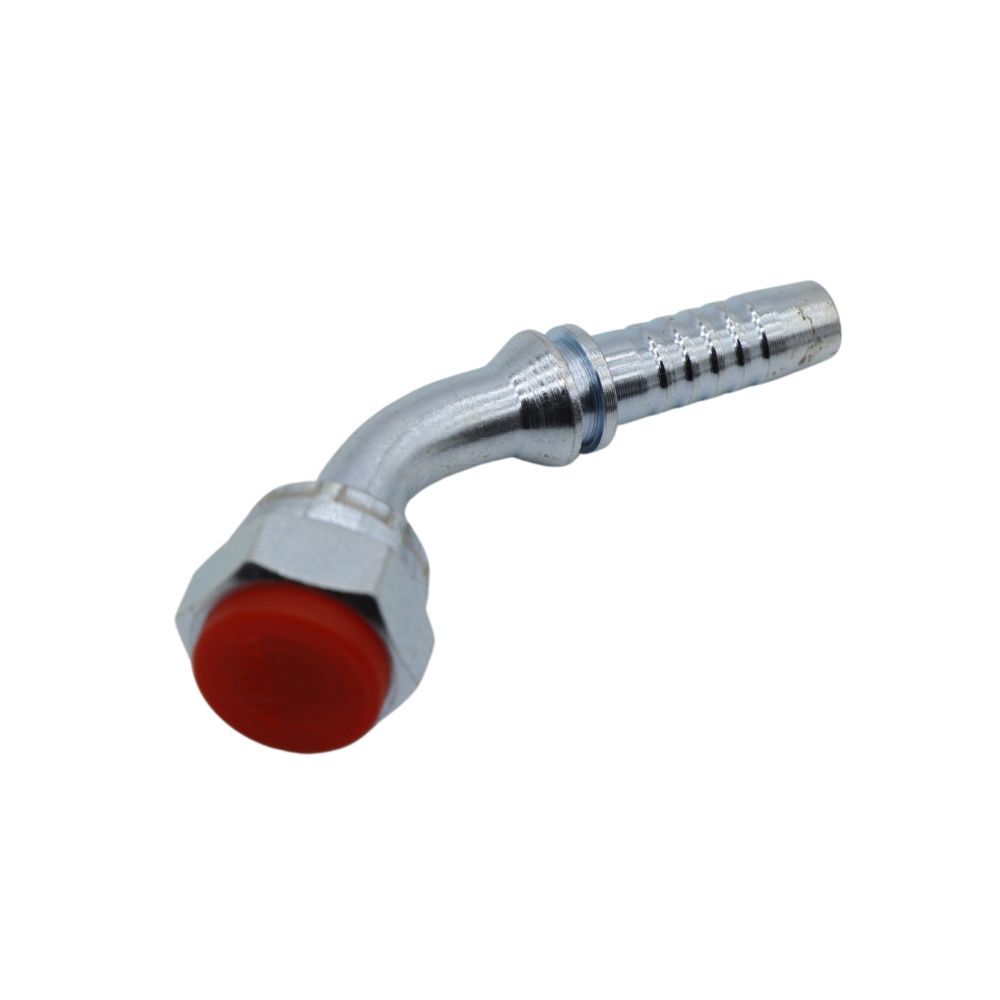

20641 female 45-degree elbow hydraulic metric thread hose fitting has a 60-degree cone metric thread that can connect with a 60-degree cone male thread.

The 60-degree cone seat fittings can create a tight seal between the two tapered surfaces. This seal prevents leaks and ensures that the hydraulic system operates efficiently.

Feel free to ask if you have any questions about the metric hydraulic hose fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

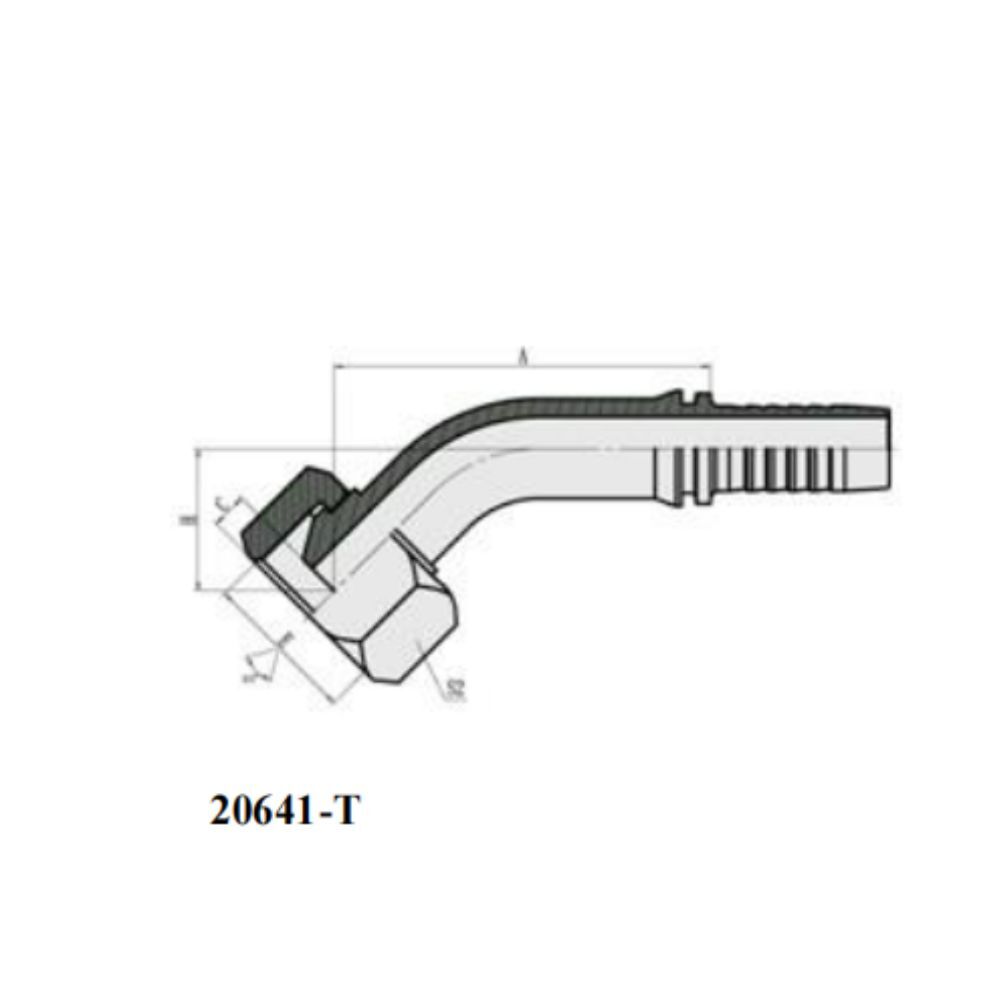

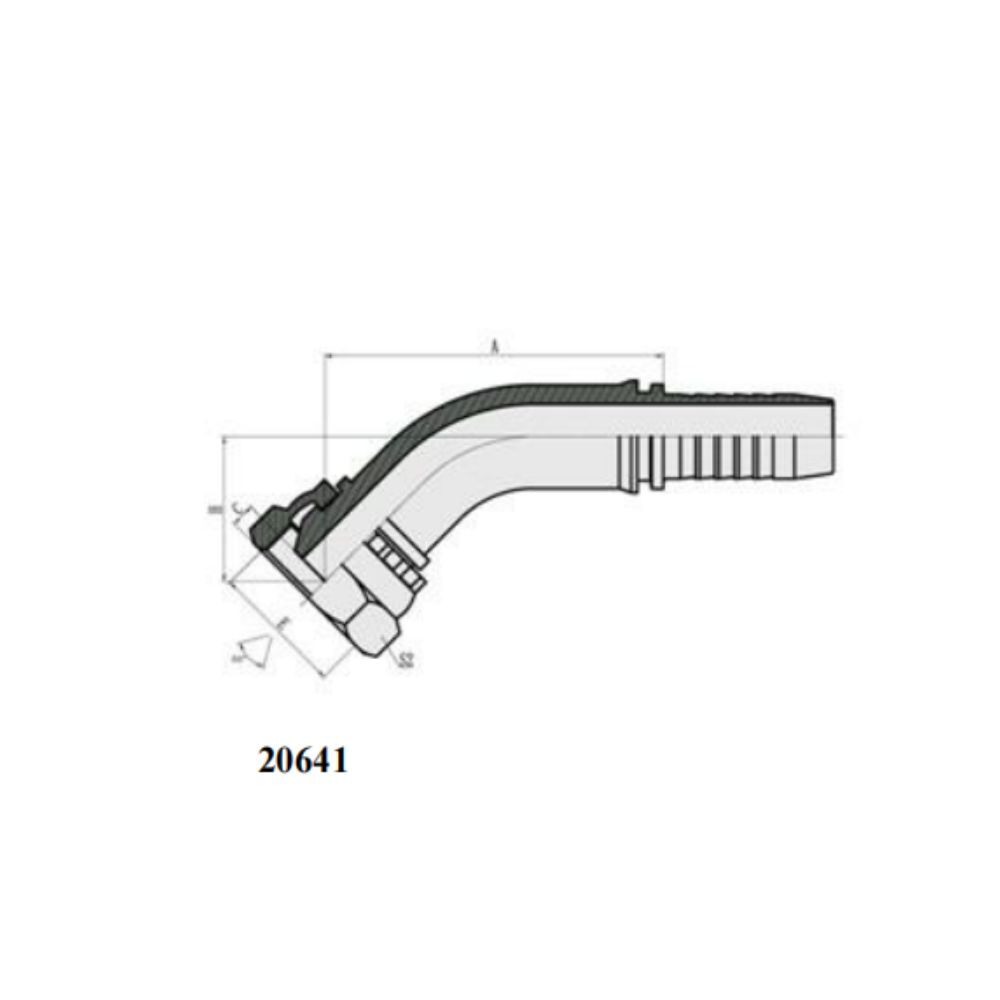

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	H	S2
20641-14-04	M14*1.5	6	04	42.7	5.5	20.6	19
20641-16-05	M16*1.5	8	05	45.1	5.5	21.8	22
20641-18-06	M18*1.5	10	06	47.4	5.5	23.2	24
20641-22-08	M22*1.5	12	08	61.8	6	26.8	27
20641-27-10DT	M27*1.5	16	10	71.4	6	27.1	32
20641-30-12D	M30*1.5	20	12	81.6	6	33.5	36
20641-36-14T	M36*2	22	14	81.9	6.5	31.6	41
20641-39-16T	M39*2	25	16	88.5	6.5	34.3	46
20641-45-20T	M45*2	32	20	99.1	8.5	39.4	55
20641-52-24T	M52*2	40	24	113.4	10	42.7	60

20641 45° Female 60° Cone Seat Metric Tube Fitting Video

This video shows information about 20641 60-degree cone seat metric tube fitting.

The metric tube fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.

If you have any questions about metric o-ring fittings, please contact us.
