Metric Thread Hose Fitting

10611 Metric Thread Hose Fitting

Description:

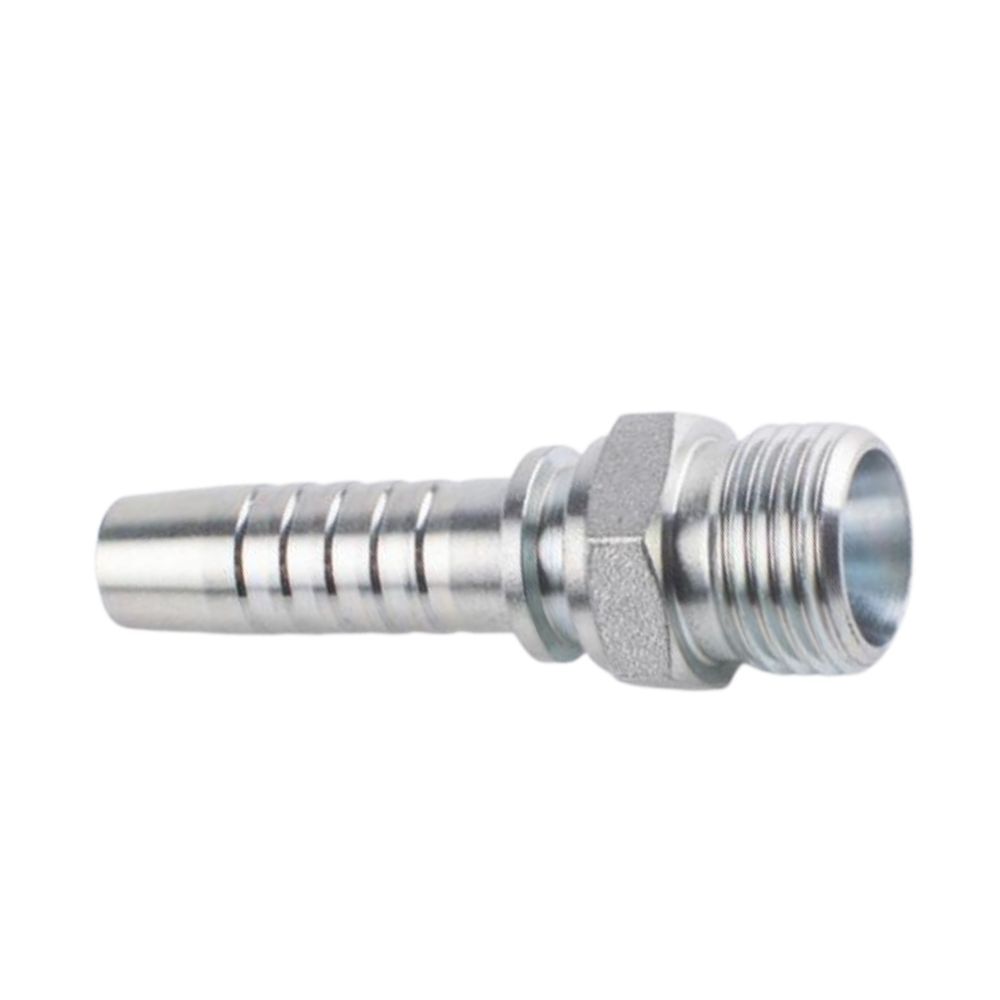

10611 male hydraulic metric thread hose fitting has a 60-degree cone metric thread that can connect with a 60-degree cone female thread.

The 60-degree cone seat fittings can create a tight seal between the two tapered surfaces. This seal prevents leaks and ensures that the hydraulic system operates efficiently.

Feel free to ask if you have any questions about the metric hydraulic fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S2
10611-14-04	M14*1.5	6	04	23.5	11	19
10611-14-06	M14*1.5	10	06	24	11	19
10611-16-04	M16*1.5	6	04	27.5	12	22
10611-16-05	M16*1.5	8	05	26.5	12	22
10611-18-06	M18*1.5	10	06	29.5	12	24
10611-22-06	M22*1.5	10	06	30.5	14	27
10611-22-08	M22*1.5	12	08	32	14	27
10611-24-10	M24*1.5	16	10	35	14	30
10611-26-10	M26*1.5	16	10	35	16	32
10611-27-10D	M27*1.5	16	10	35	16	32
10611-27-10	M27*2	16	10	37	18	32
10611-30-12D	M30*1.5	20	12	38	18	36
10611-30-12	M30*2	20	12	38	18	36
10611-33-16	M33*2	25	16	43	20	46
10611-42-20	M42*2	32	20	46	20	50
10611-45-20	M45*2	32	20	46	20	55
10611-48-24	M48*2	40	24	46	20	55
10611-52-24	M52*2	40	24	46	20	60

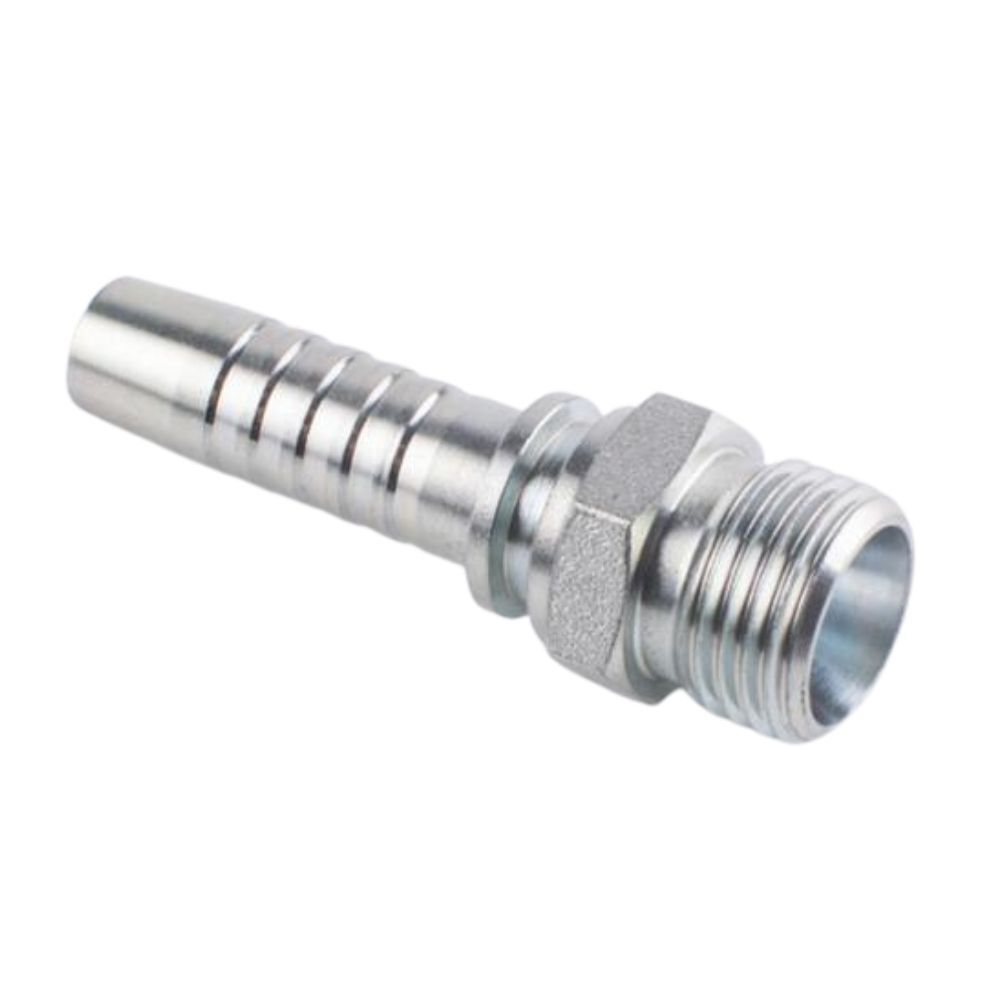

10611 Male 60° Cone Seat Metric Thread Hose Fitting Video

This video shows information about 10611 60-degree cone seat metric thread hose fitting.

The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.
