Metric Thread Hose Fittings

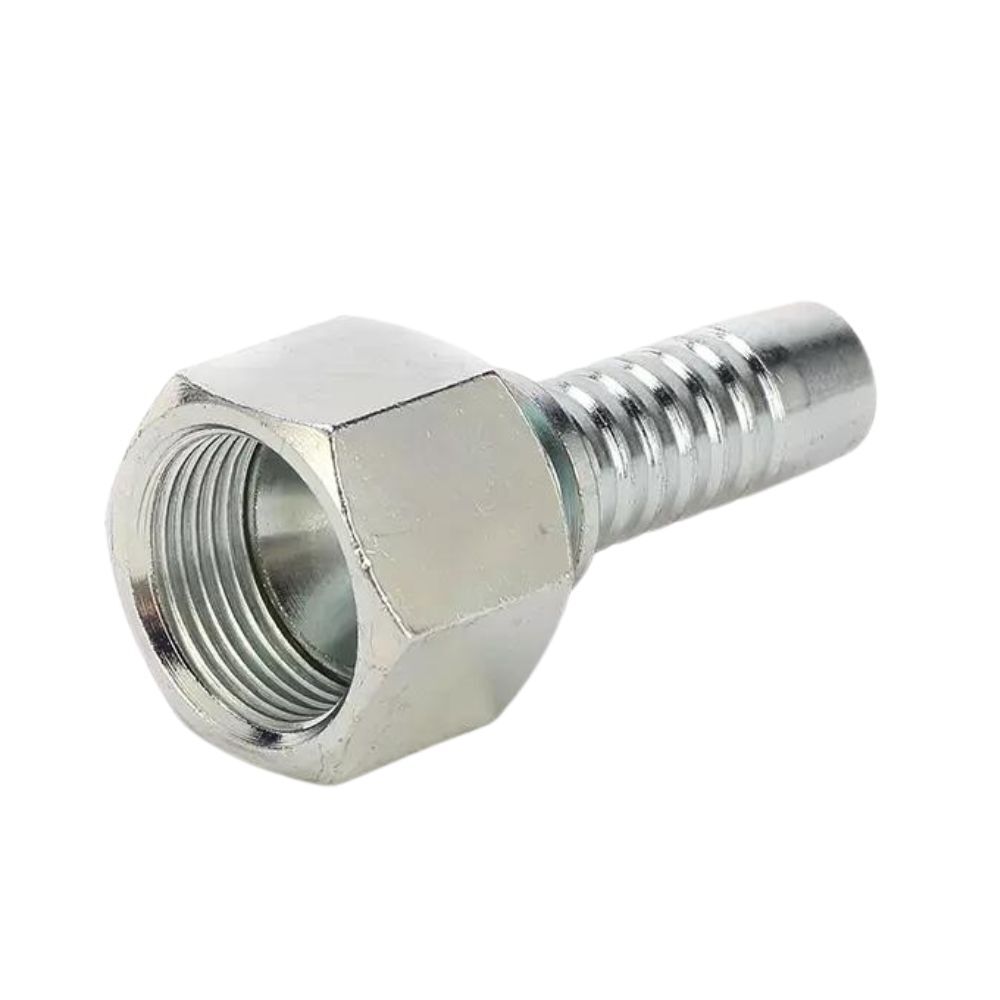

20611 Metric Thread Hose Fitting

Description:

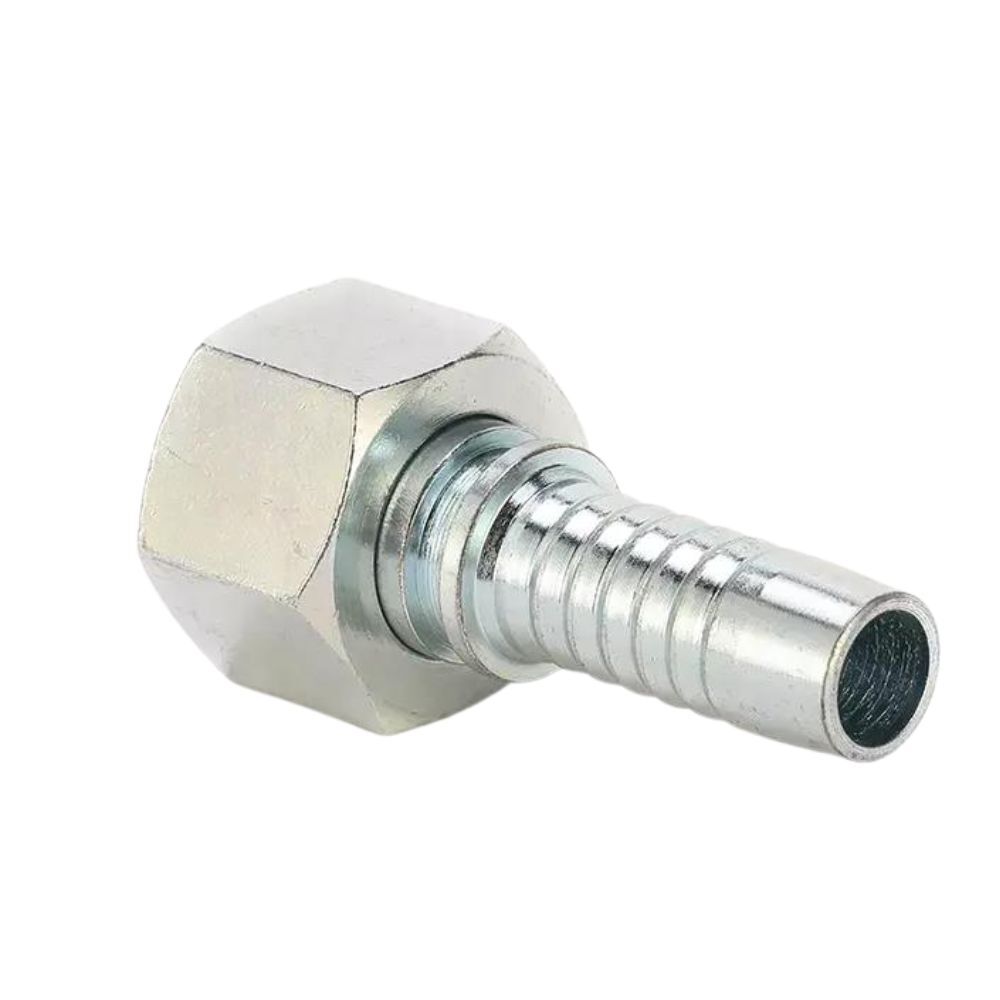

20611 female hydraulic metric thread hose fitting has a 60-degree cone metric thread that can connect with a 60-degree cone male thread.

The 60-degree cone seat fittings can create a tight seal between the two tapered surfaces. This seal prevents leaks and ensures that the hydraulic system operates efficiently.

Feel free to ask if you have any questions about the metric hydraulic hose fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

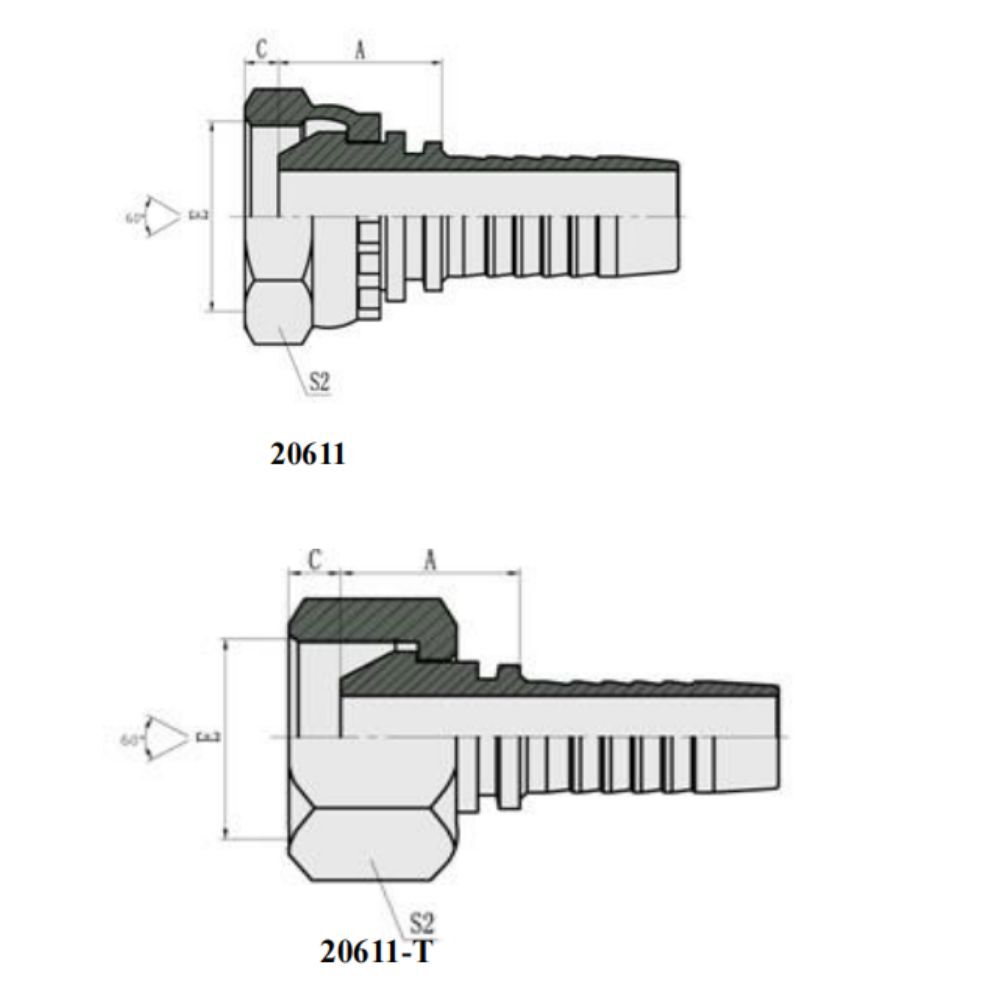

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S2
20611-14-04	M14*1.5	6	04	18	5.5	19
20611-16-05	M16*1.5	8	05	19	5.5	22
20611-16-06	M16*1.5	10	06	19	5.5	22
20611-18-06	M18*1.5	10	06	20	5.5	24
20611-20-08	M20*1.5	12	08	22	6.5	27
20611-22-08	M22*1.5	12	08	22.5	6	27
20611-24-10	M24*1.5	16	10	24.5	6.5	30
20611-26-10	M26*1.5	16	10	25.5	6	32
20611-27-10DT	M27*1.5	16	10	25.5	6	32
20611-27-10T	M27*2	16	10	25.5	6	32
20611-30-10D	M30*1.5	16	10	26.5	6	36
20611-30-12D	M30*1.5	20	12	26.5	6	36
20611-30-12	M30*2	20	12	26.5	6	36
20611-36-16	M36*2	25	16	30	6.5	41
20611-39-16T	M39*2	25	16	30	6.5	46
20611-45-20T	M45*2	32	20	31	8.5	55
20611-52-24T	M52*2	40	24	32	10	60

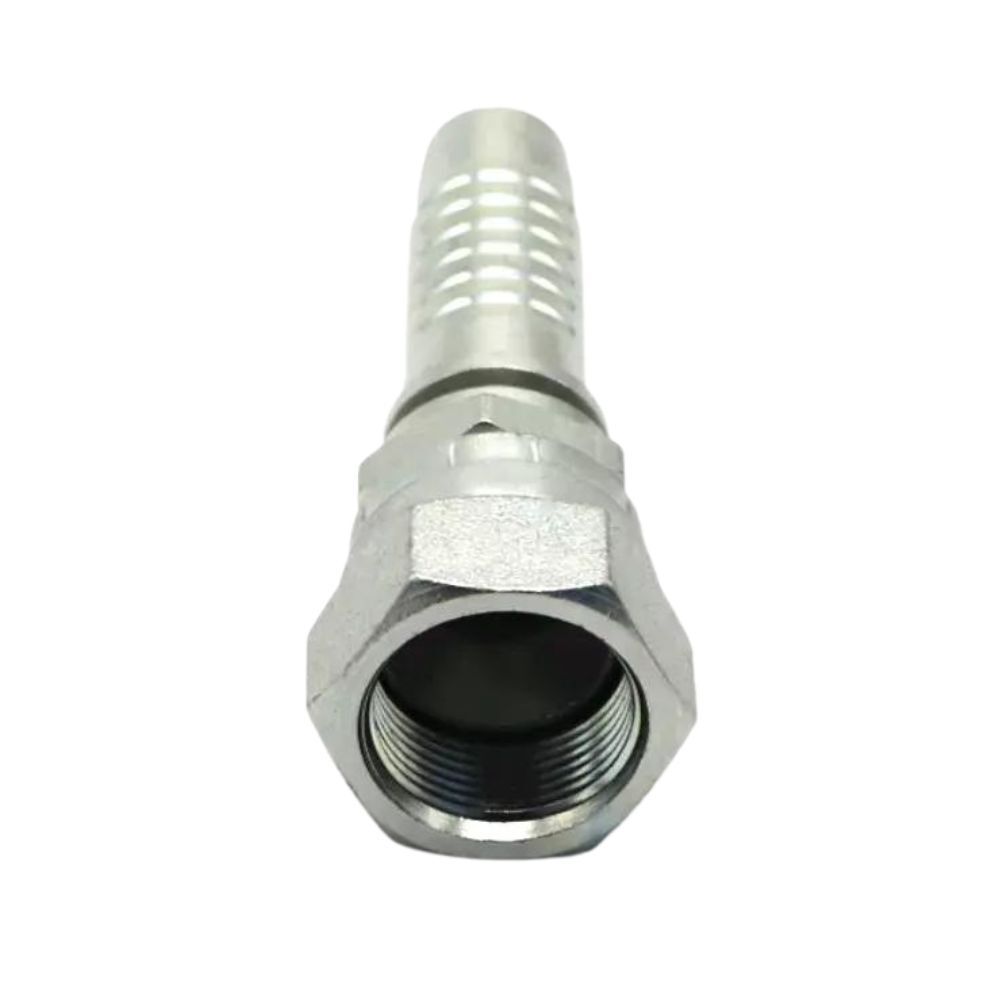

20611 Female 60° Cone Seat Metric Thread Hose Fittings Video

This video shows information about 20611 60-degree cone seat metric thread hose fittings.

The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.

If you have any questions about metric o-ring fitting, please contact us.
