20511 Hydraulic Metric Hose Fittings-Female 24° Cone H.T.

Hydraulic Metric Hose Fittings

Description:

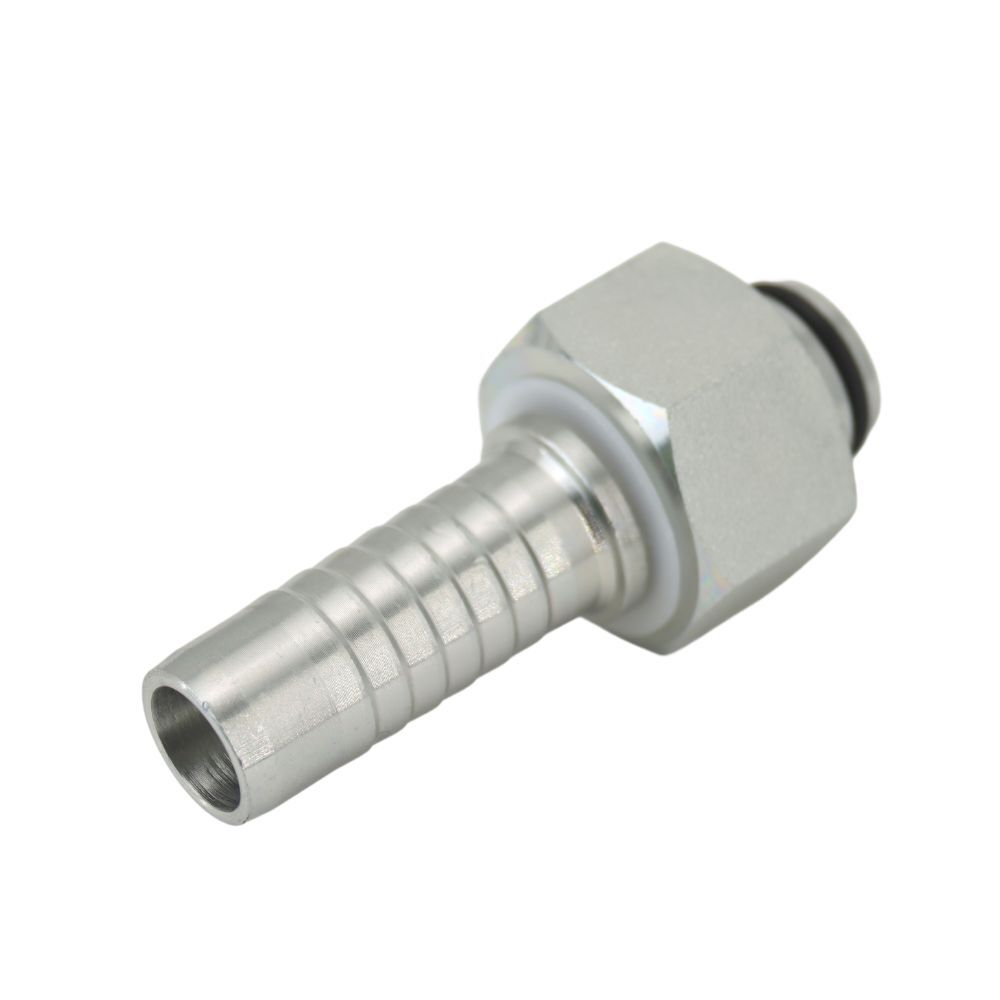

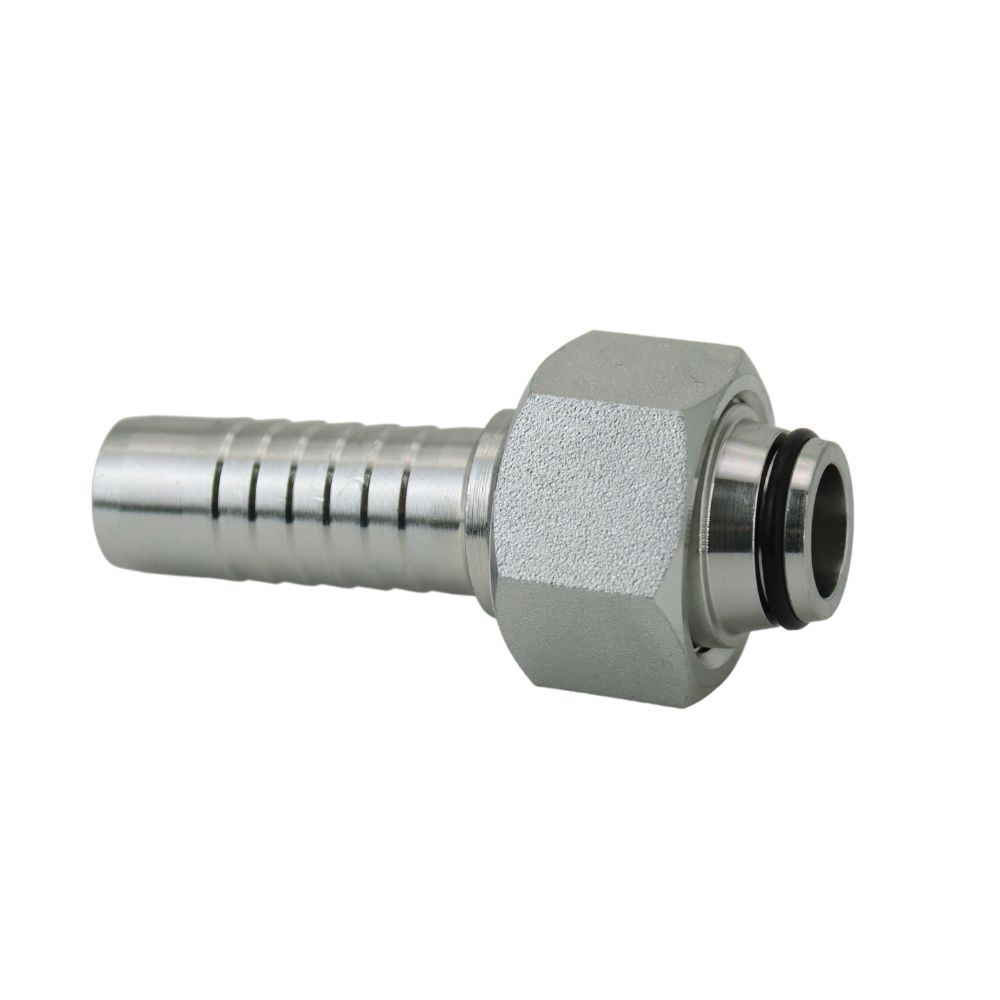

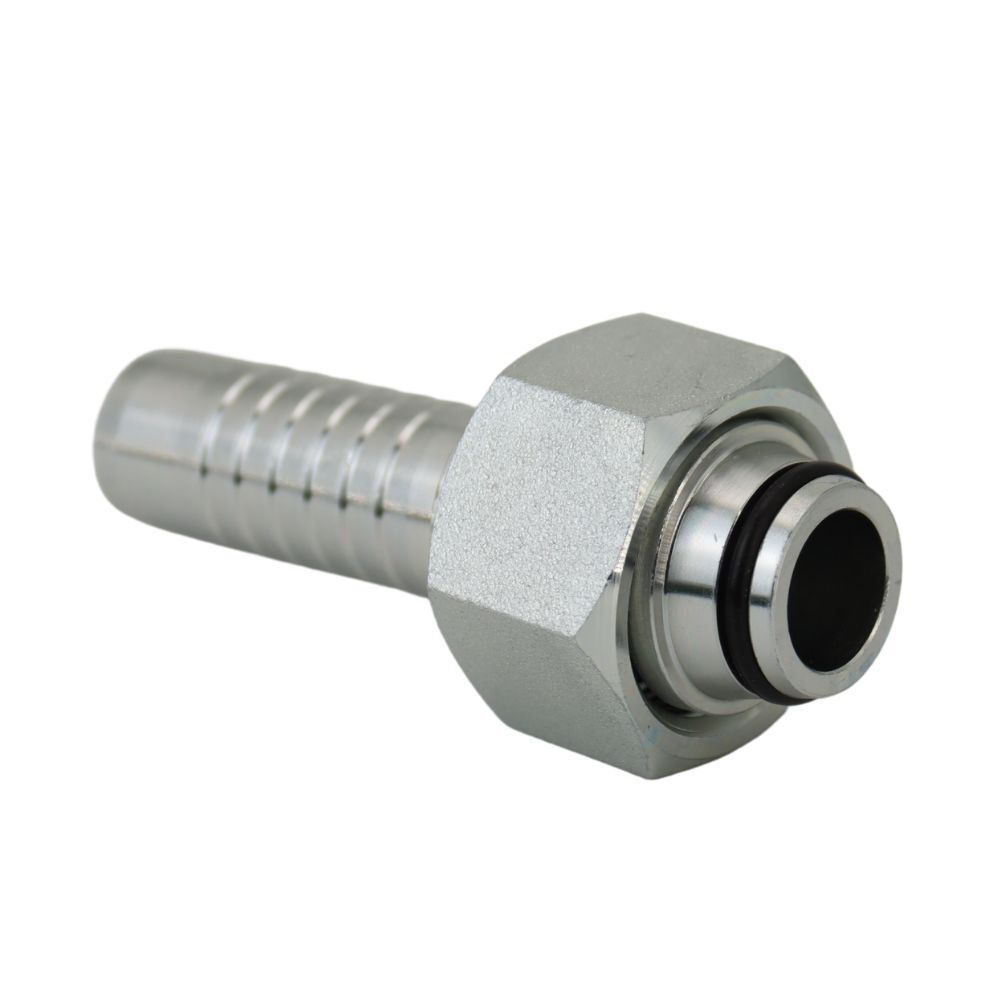

20511 female 24-degree cone H.T. hydraulic hose fitting has a female metric thread that can be screwed onto other fittings, and it has an o-ring that can create a leak-free seal.

The heavy-type fittings are designed for use in high-pressure applications and are constructed with thicker walls and stronger materials to withstand the stresses and forces of hydraulic systems.

Feel free to ask if you have any questions about the hydraulic metric fitting adapters.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

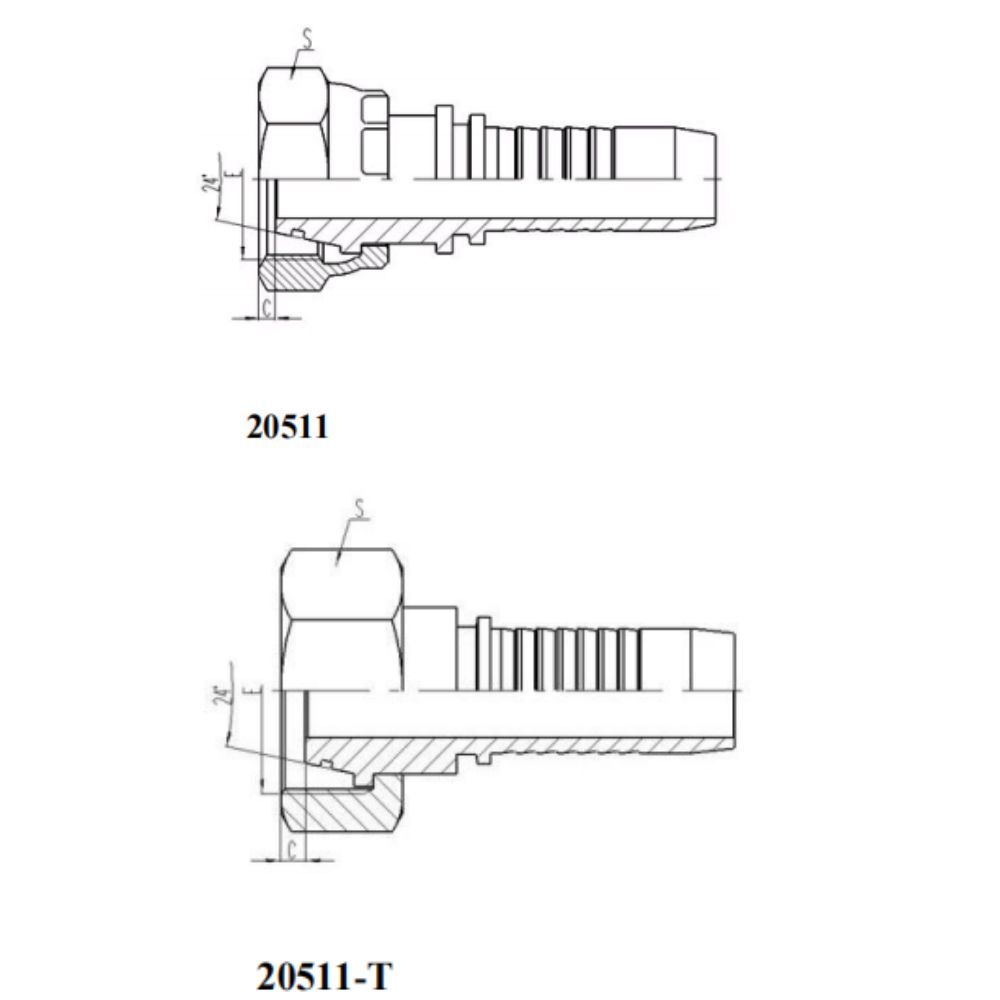

	E	HOSE BORE			DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	C	S
20511-16-04	M16X1.5	6	04	8	1.5	22
20511-18-06	M18X1.5	10	06	10	2	24
20511-20-08	M20X1.5	12	08	12	2.5	27
20511-20-05T	M20X1.5	8	05	12	2.5	24
20511-20-06T	M20X1.5	10	06	12	2.5	24
20511-22-08	M22X1.5	12	08	14	2.5	27
20511-30-12	M30X2	20	12	20	3	36
20511-36-16	M36X2	25	16	25	6.5	41
20511-42-20	M42X2	32	20	30	5	50
20511-42-14T	M42X2	22	14	30	5	50
20511-42-16T	M42X2	25	16	30	5	50
20511-52-20T	M52X2	32	20	38	6.5	60
20511-52-24T	M52X2	40	24	38	6.5	60

20511 Female 24° Cone H.T. Hydraulic Metric Hose Fittings Video

This video shows information about 20511 24° cone seat H.T. hydraulic metric hose fitting.

The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems,industrial machinery, and construction equipment.

If you have any questions about metric hydraulic hose fittings, please contact us.
