Metric Thread Adaptors

Description:

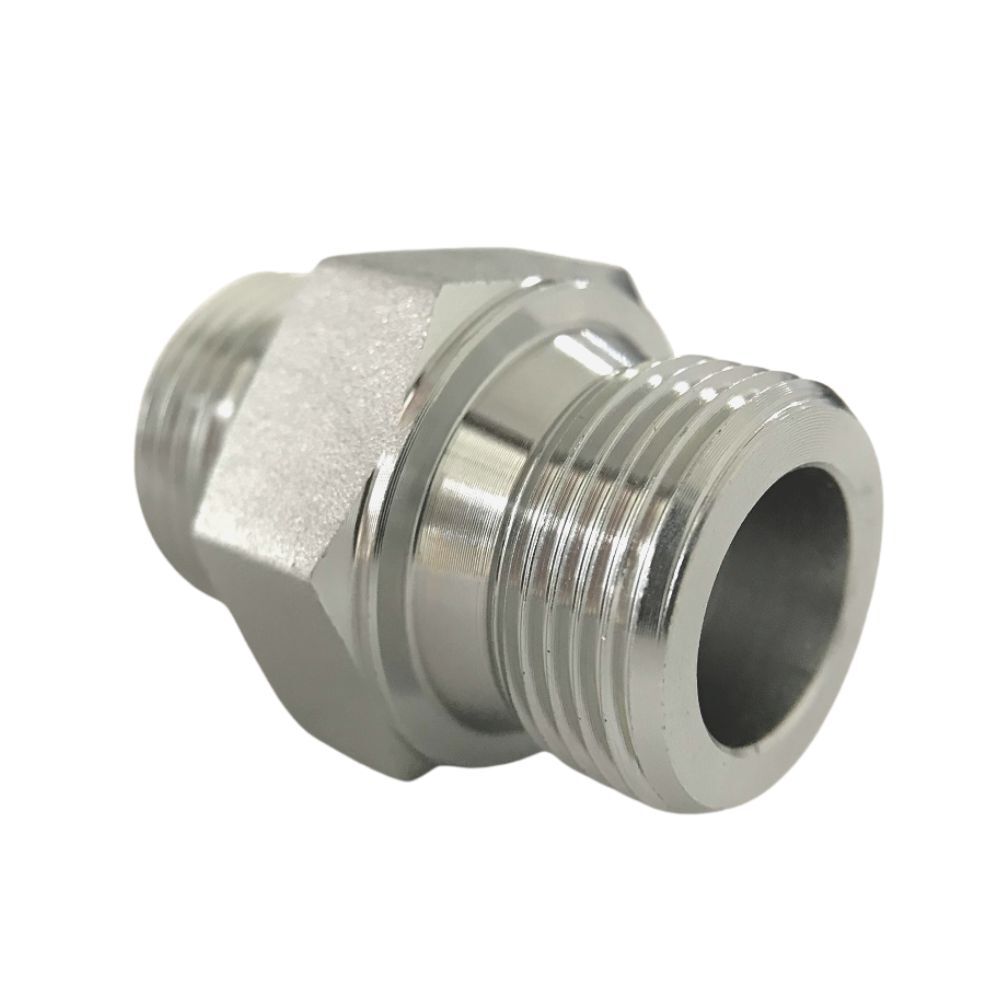

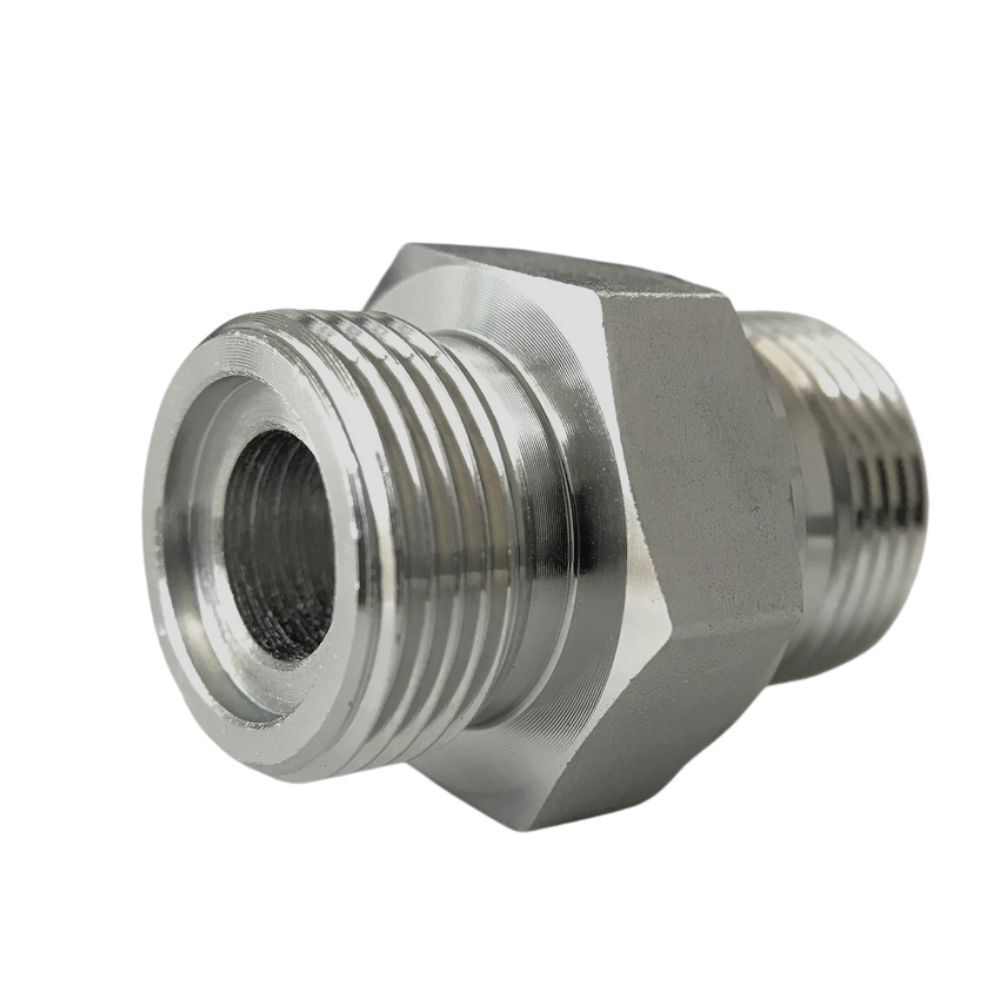

1EL metric o-ring pipe adapter has metric threads and the o-ring sealing, which can create a strong seal between two components.

The male adapter has external threads that match the internal threads of the female adapter, and the o-rings are placed in grooves on each fitting to create a seal.

Feel free to ask any questions about the metric pipe adapter.

Features and Benefits:

• Strong-seal
• Strength
• Easy to operate
• Customize



Description

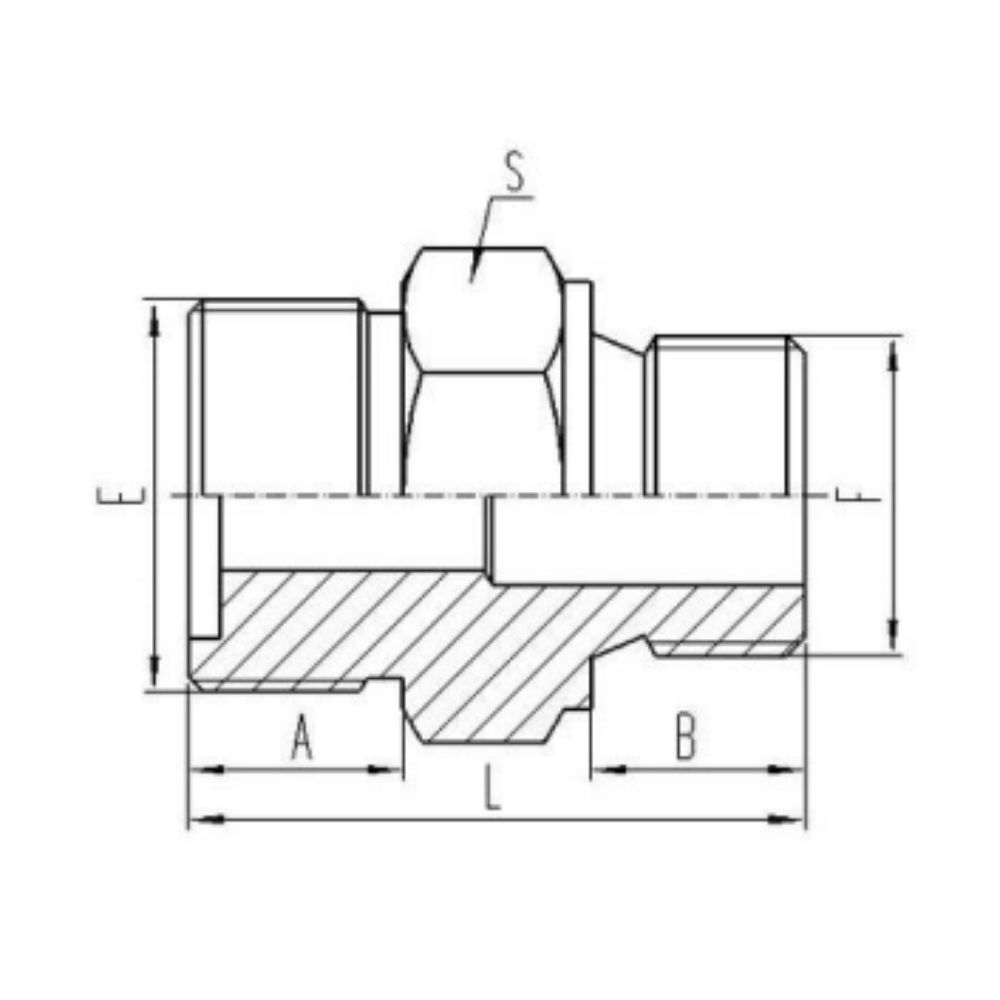

THREAD

DIMENSIONS

PART NO.

E

F

A

B

L

S

1EL-14

M14X1.5

M14X1.5

11

12

30.5

19

1EL-14-16

M14X1.5

M16X1.5

11

12

31

22

1EL-14-18

M14X1.5

M18X1.5

11

12

32.5

24

1EL-14-22

M14X1.5

M22X1.5

11

14

36.5

27

1EL-16-14

M16X1.5

M14X1.5

11

12

29

19

1EL-16-18

M16X1.5

M18X1.5

11

12

31

24

1EL-22-18

M27X1.5

M18X1.5

12

12

33.5

24

1EL-27-22

M27X1.5

M22X1.5

13

14

38.5

30

1EL-27-33

M27X1.5

M33X2

13

18

44

41

1EL-30-18

M30X1.5

M18X1.5

14

12

38.5

32

1EL-30-27

M30X1.5

M27X1.5

14

16

41

34

1EL-36-33

M36X2

M33X2

16

18

49

41

1EL-36-48

M36X2

M48X2

16

22

53

60

1EL-45-42

M45X2

M42X2

21

20

56

50

1EL-52-48

M52X2

M48X2

22

22

61

60

1EL O-ring Seal/Bonded Seal Metric Thread Adaptors Video

This video shows information about the 1EL o-ring seal metric pipe fitting.

Hydraulic metric thread adaptors are commonly used in hydraulic and pneumatic systems, as well as in industrial applications where leak prevention is critical.

If you have any questions about metric o’ring fitting, please contact us.
