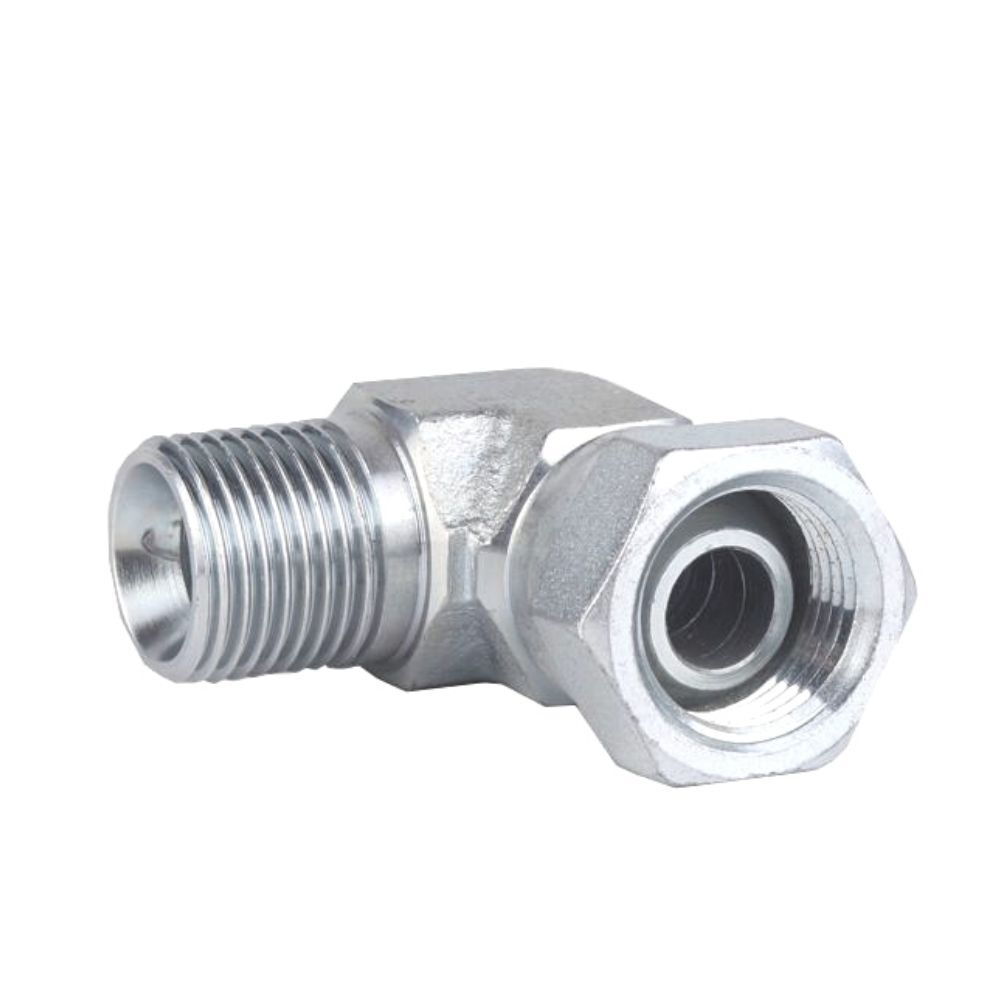

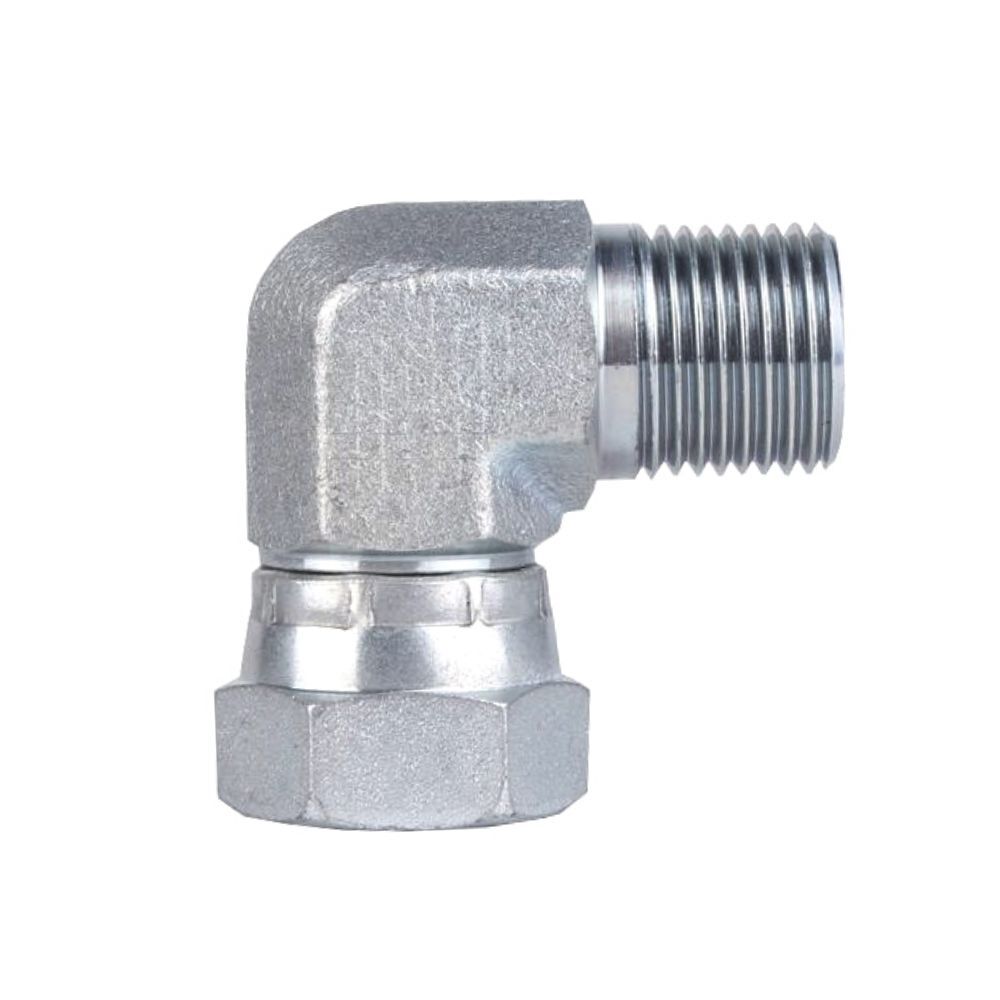

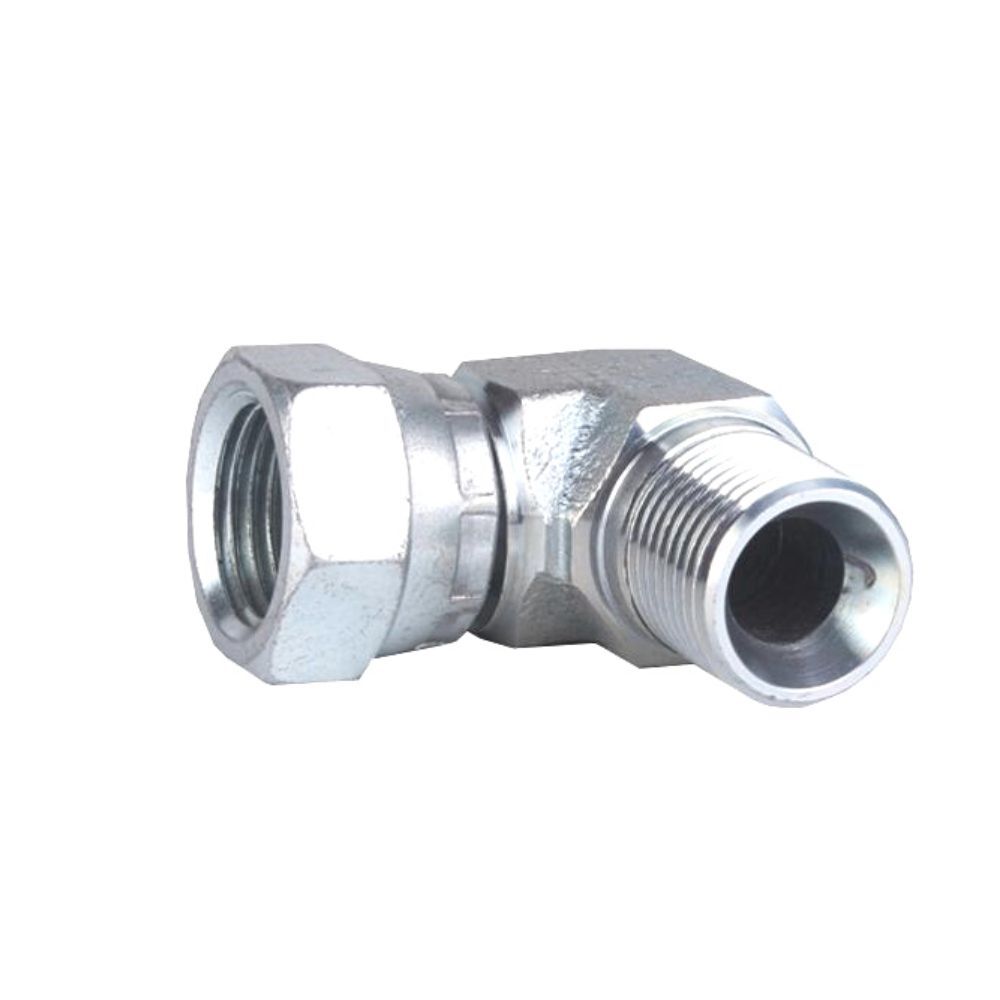

2E9 90° O-ring Seal Metric Thread Adapter China Wholesaler

Metric Thread Adapter

Description:

2E9 90° metric o-ring pipe adapter has two metric threads and an o-ring sealing, which can create a strong seal between two components.

The female adapter has internal threads that match the external threads of the male adapter, and the o-rings are placed in grooves on each fitting to create a seal.

Feel free to ask any questions about the metric tube fitting.

Features and Benefits:

• Strong-seal
• Strength
• Easy to operate
• Customize

Description

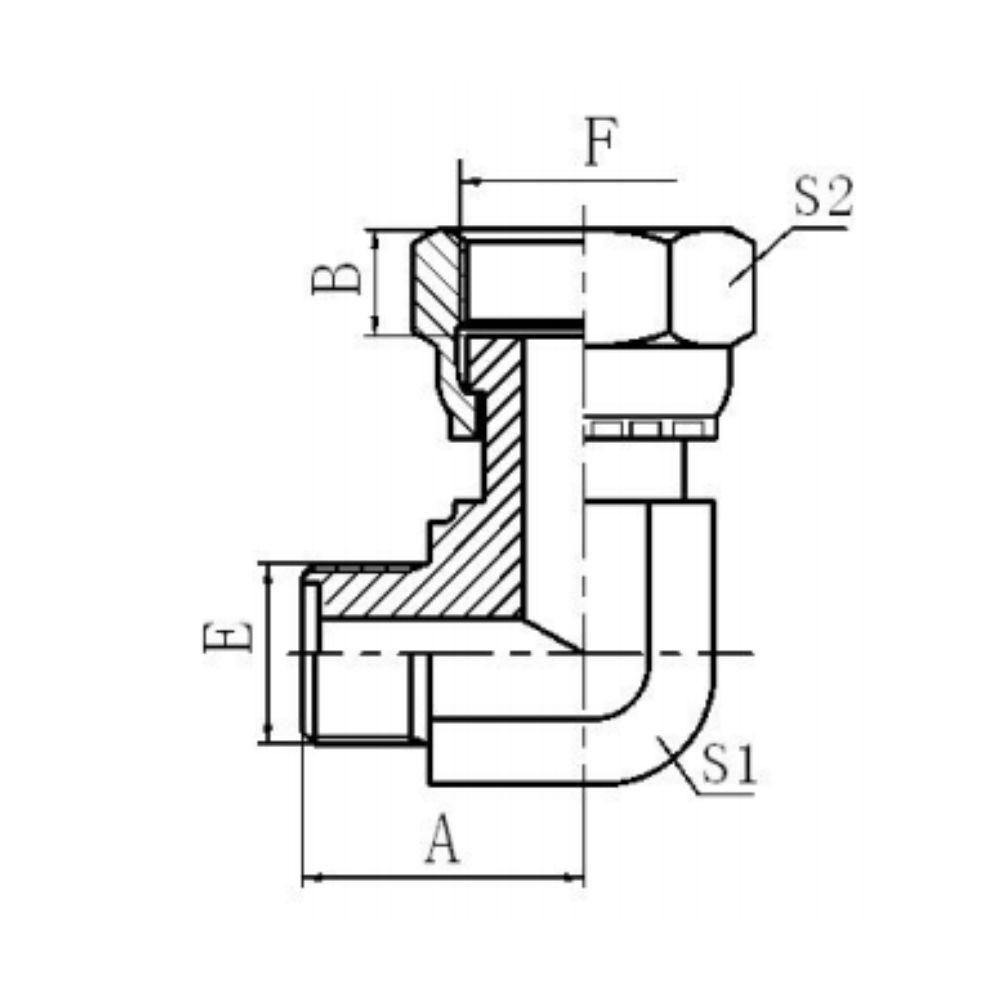

	THREAD	O-RING	DIMENSIONS
PART NO.	E、F	E	A	B	S1	S2
2E9-12	M12X1.25	8X1.9	20.5	8	12	17
2E9-14	M14X1.5	10X1.9	22.5	8.5	14	19
2E9-16	M16X1.5	11X1.9	24	8.5	17	22
2E9-18	M18X1.5	13X1.9	26	8.5	19	24
2E9-22	M22X1.5	16X2.4	29	10	22	27
2E9-27	M27X1.5	20X2.4	32.5	10	27	32
2E9-30	M30X1.5	24X2.4	35.5	11	30	36
2E9-36	M36X2	30X3.1	42	13	36	41
2E9-39	M39X2	32X3.1	47.5	13	41	46
2E9-42	M42X2	35X3.1	49.5	15	41	50
2E9-45	M45X2	38X3.1	52.5	15	46	55
2E9-52	M52X2	40X3.1	57	17	50	60

2E9 90° Female O-ring Seal Metric Thread Adapter Video

This video shows information about the 2E9 90° o-ring seal metric thread adapter.

Hydraulic metric o-ring adapters are commonly used in hydraulic and pneumatic systems, as well as in industrial applications where leak prevention is critical.

If you have any questions about metric thread adaptors, please contact us.
