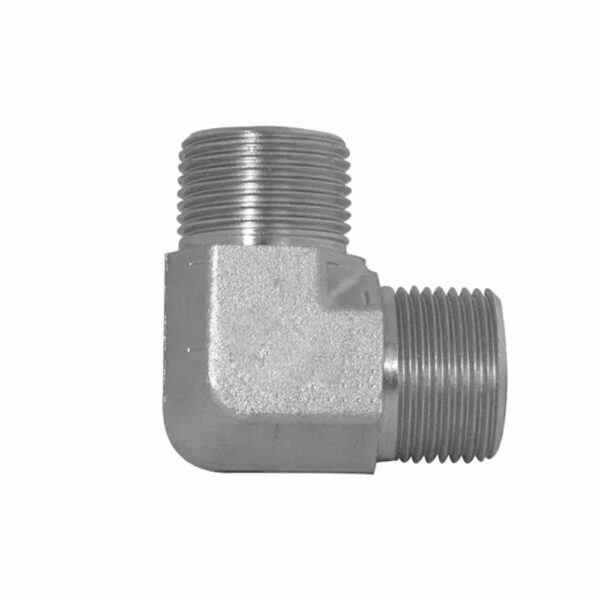

Description

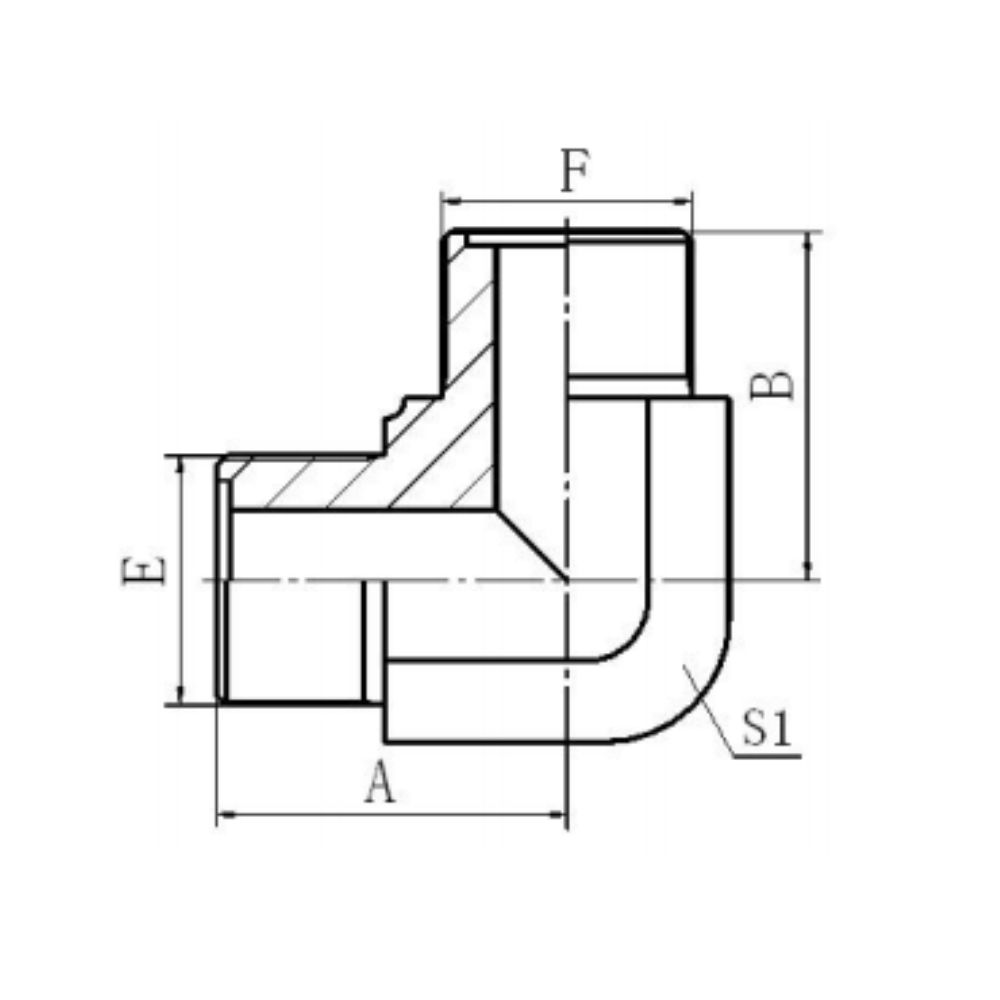

THREAD | O-RING | DIMENSIONS | |||
PART NO. | E、F | E、F | A | B | S1 |
1E9-12 | M12X1.25 | 8X1.9 | 20.5 | 20.5 | 12 |
1E9-14 | M14X1.5 | 10X1.9 | 22.5 | 22.5 | 14 |
1E9-16 | M16X1.5 | 11X1.9 | 24 | 24 | 17 |
1E9-18 | M18X1.5 | 13X1.9 | 26 | 26 | 19 |
1E9-22 | M22X1.5 | 16X2.4 | 29 | 29 | 22 |
1E9-27 | M27X1.5 | 20X2.4 | 32.5 | 32.5 | 27 |
1E9-30 | M30X1.5 | 24X2.4 | 35.5 | 35.5 | 30 |
1E9-36 | M36X2 | 30X3.1 | 42 | 42 | 36 |
1E9-39 | M39X2 | 32X3.1 | 47.5 | 47.5 | 41 |
1E9-42 | M42X2 | 35X3.1 | 49.5 | 49.5 | 41 |
1E9-45 | M45X2 | 38X3.1 | 52.5 | 52.5 | 46 |
1E9-52 | M52X2 | 40X3.1 | 57 | 57 | 50 |

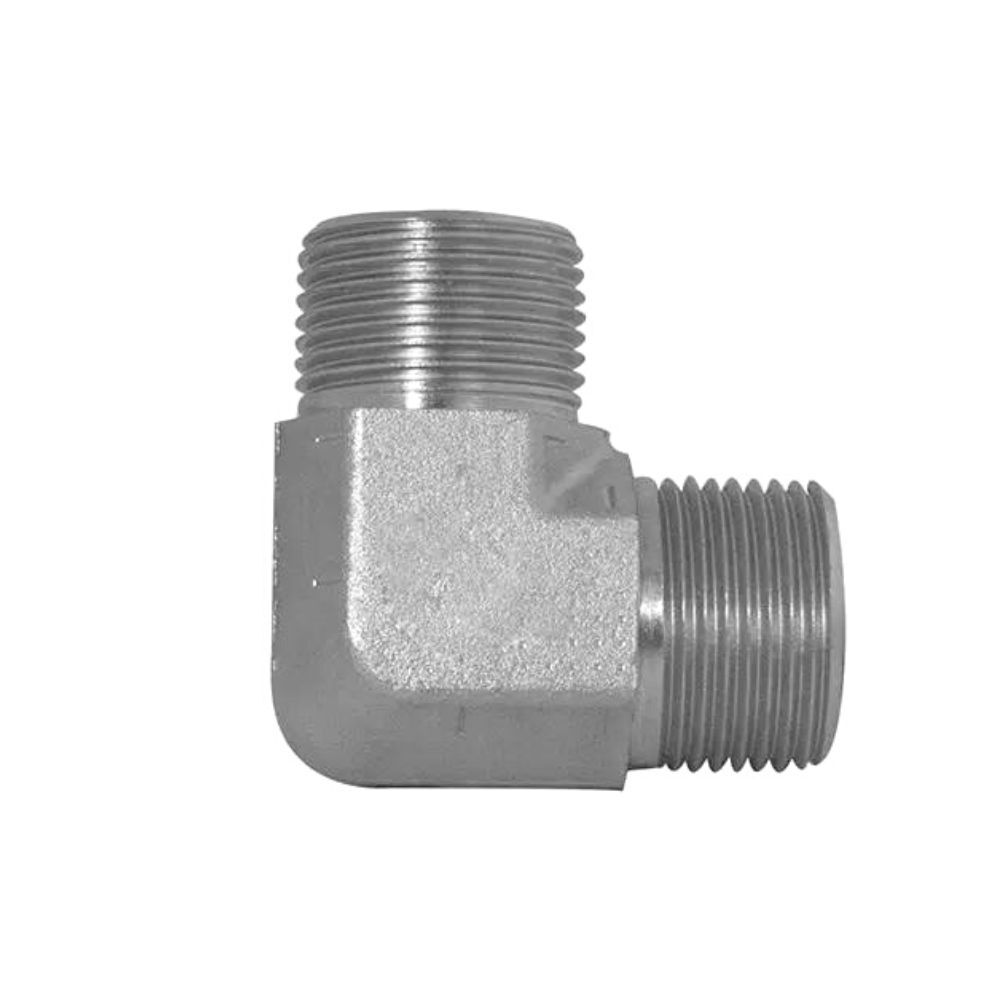

1E9 90° Male O-ring Seal Metric Pipe Fittings Video
This video shows information about the 1E9 90° o-ring seal metric pipe fittings.
Hydraulic metric o-ring adapters are commonly used in hydraulic and pneumatic systems, as well as in industrial applications where leak prevention is critical.
If you have any questions about metric fitting adapters, please contact us.
