Metric O-ring Fitting

Description:

1CO/1DO metric o-ring adapter is a male adapter and the UNF ends with an o-ring sealing, which can provide a leak-free seal.

The male adapter has external threads that match the internal threads of the female adapter, and the o-rings are placed in grooves on each fitting to create a seal.

Feel free to ask any questions about the metric o ring fitting.

Features and Benefits:

• Strong-seal
• Strength
• Easy to operate
• Customize



Description

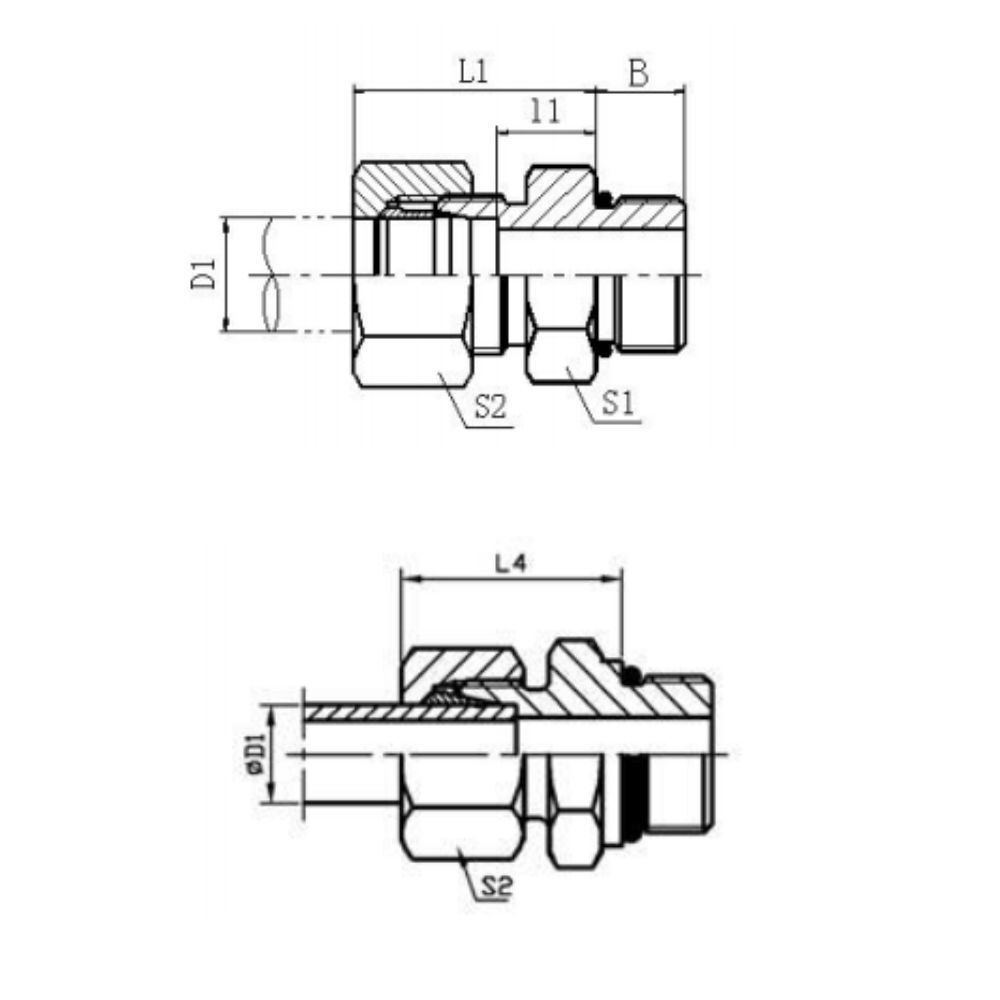

THREAD

TUBE O.D.

DIMENSIONS

PART NO.

E

F

D1

B

l1

L1

S1

S2

1CO-14-04

M14X1.5

7/16″X20

8

9

10

25

17

17

1CO-16-04

M16X1.5

7/16″X20

10

9

11

26

17

19

1CO-18-06

M18X1.5

9/16″X18

12

10

11

26

19

22

1CO-18-08

M18X1.5

3/4″X16

12

11

13

28

24

22

1CO-18-10

M18X1.5

7/8″X14

12

12.7

14.3

29

27

22

1CO-22-08

M22X1.5

3/4″X16

15

11

14

29

24

27

1CO-22-10

M22X1.5

7/8″X14

15

12.7

15.3

30

27

27

1CO-22-12

M22X1.5

1.1/16″X12

15

15.09

11.91

30

32

27

1CO-26-08

M26X1.5

3/4″X16

18

11

14.5

31

27

32

1CO-26-10

M26X1.5

7/8″X14

18

12.7

14.8

31

27

32

1CO/1DO Metric O-ring Fitting Video

This video shows information about the 1CO/1DO metric o-ring fitting.

Hydraulic metric thread adapters are commonly used in hydraulic and pneumatic systems, as well as in industrial applications where leak prevention is critical.

If you have any questions about metric o ring hydraulic fittings, please contact us.
