Metric Standpipe Hose Fitting

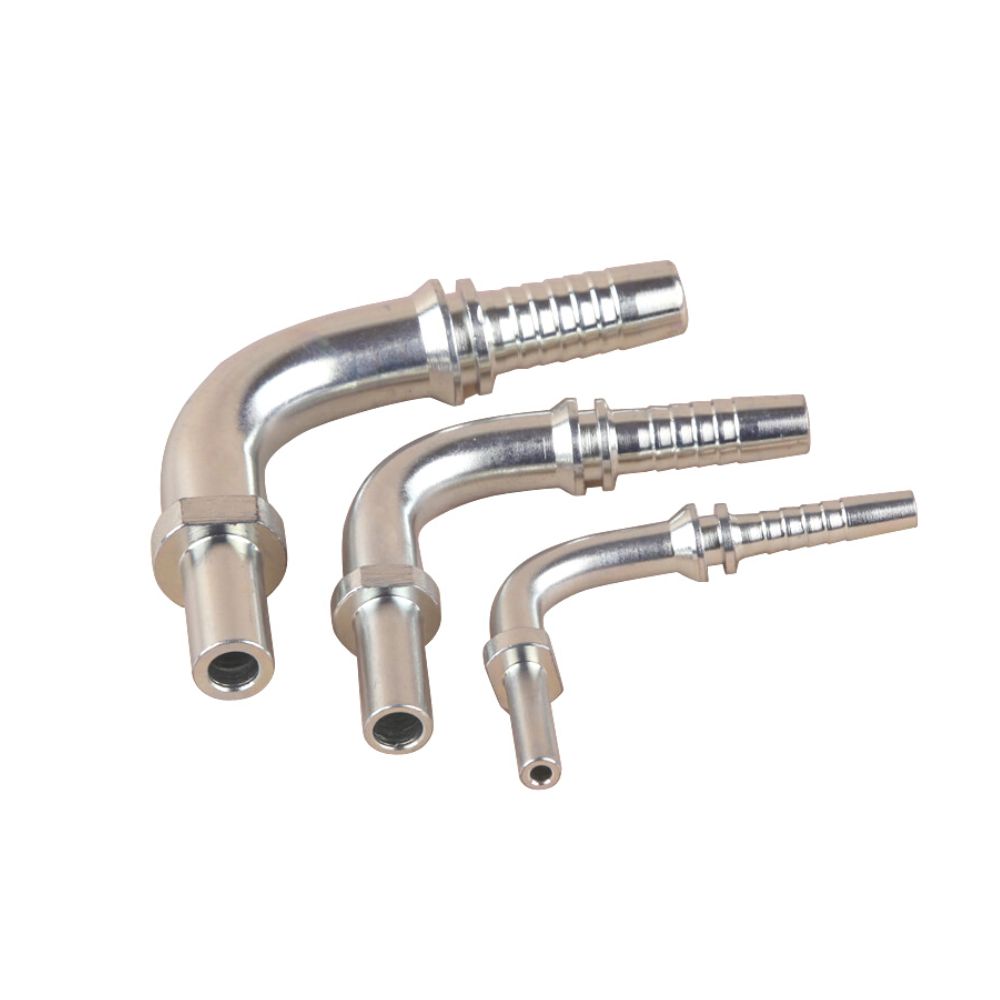

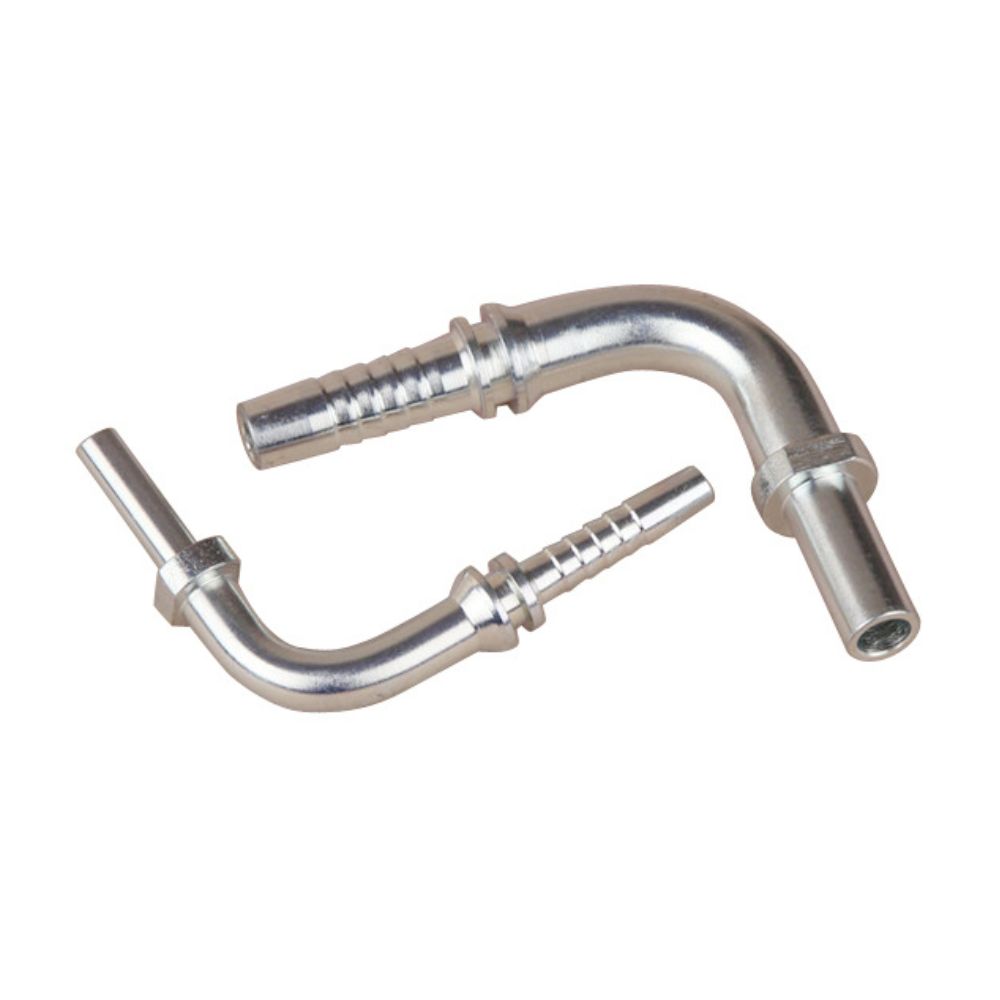

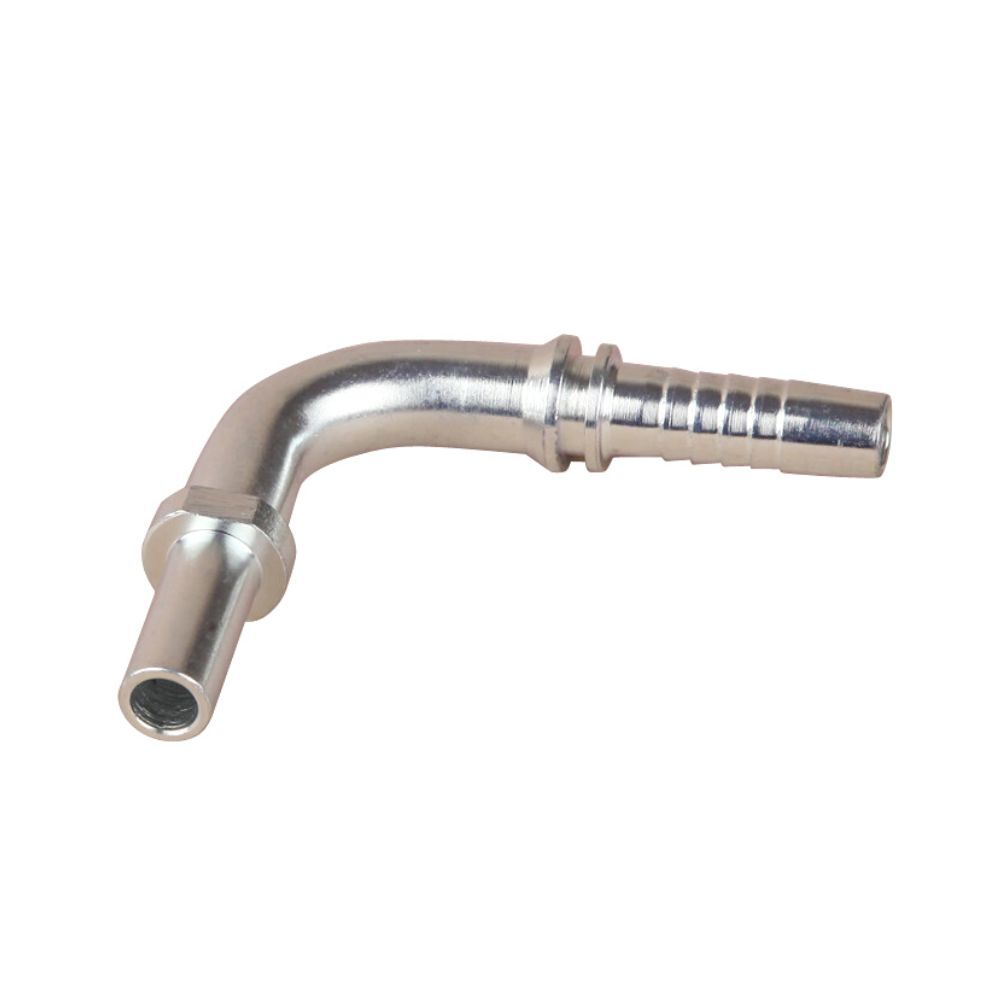

50091 Metric Standpipe Fitting

Description:

50091 90-degree metric standpipe fitting is an elbow fitting with a metric thread on one end and a smooth hose tail on the other end.

The smooth hose tail end of the standpipe fitting is designed to be used with a hose that has a corresponding inside diameter.

Feel free to ask if you have any questions about the female hydraulic fitting.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize



Description

PART NO.

TUBEO.D.

HOSE BORE

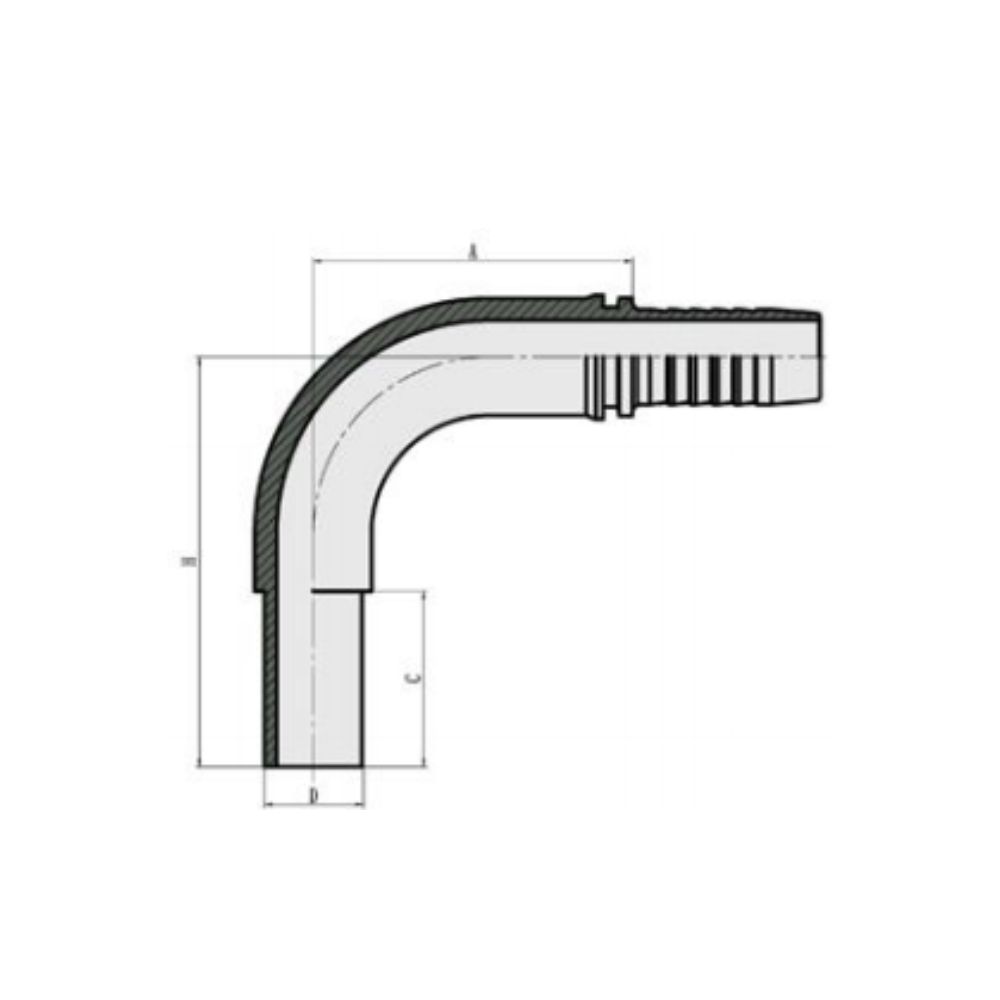

DIMENSIONS

REMARK

DN

DASH

A

C

H

50091-06-03

6

5

03

26.5

22

45

LIGHT TYPE

50091-06-04

6

6

04

30

22

48

50091-08-05

8

8

05

34

24

55.5

50091-08-06

8

10

06

35.8

24

57.8

50091-10-05

10

8

05

34

23

53

50091-10-06

10

10

06

35.3

23

55.3

50091-12-06

12

10

06

35.3

23

59.8

50091-12-08

12

12

08

41

23

67

50091-15-06

15

10

06

35.8

25

59.8

50091-15-08

15

12

08

41

25

65

50091-18-08

18

12

08

41

26

68.5

50091-18-10

18

16

10

56.5

26

73

50091-22-10

22

16

10

56.5

28

76.5

50091-22-12

22

20

12

65.5

28

86

50091-22-16

22

25

16

76.7

28

91.5

50091-28-16

28

25

16

76.7

30

95.5

50091-35-20

35

32

20

91.5

36

112.5

50091-08-04

8

6

04

30

24

52.5

HEAVY TYPE

50091-10-04

10

6

04

30

26

53

50091-12-04

12

6

04

30

26

57.5

50091-12-05

12

8

05

33

26

60.5

50091-14-06

14

10

06

35.3

29

63.8

50091-14-08

14

12

08

41

29

69

50091-14-12

14

20

12

66.2

29

83

50091-16-08

16

12

08

42

30

73

50091-16-10

16

16

10

56.5

30

77.5

50091-20-10

20

16

10

56.5

36

84.5

50091-20-12

20

20

12

65.5

36

95.5

50091-25-12

25

20

12

65.5

40

98

50091-25-16

25

25

16

76.7

40

103.5

50091-30-16

30

25

16

78

44

109.5

50091-30-20

30

32

20

91.5

44

120.5

50091-38-16

38

25

16

76.7

50

115.5

50091-38-20

38

32

20

91.5

50

126.5



50091 90° Metric Standpipe Hose Fitting Video

This video shows information about the 50091 metric standpipe hose fitting.

In addition, metric standpipe fittings are used in a variety of hydraulic applications, including hydraulic oil transfer, lubrication systems, and fuel systems.

If you have any questions about hydraulic metric pipe fittings, please contact us.
