Description

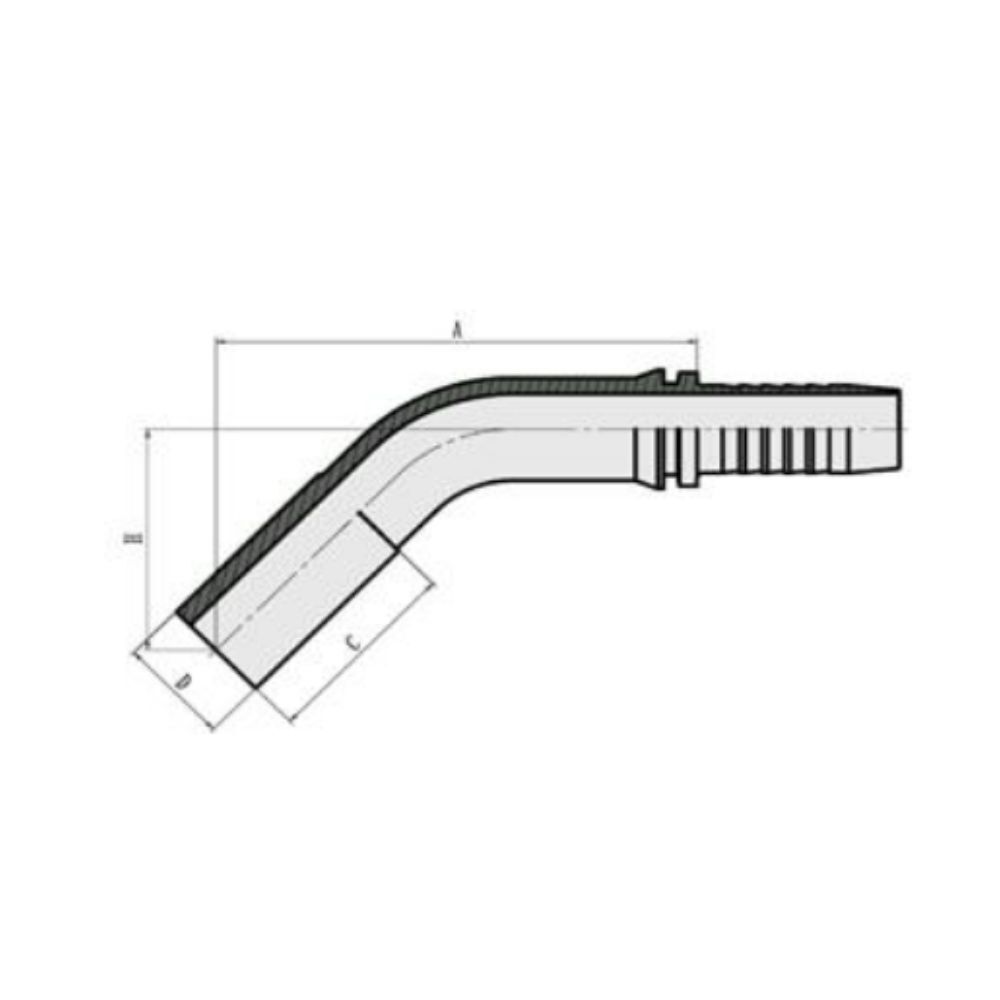

PART NO. | D TUBEO.D. | HOSE BORE | DIMENSIONS | NOTE | |||
DN | DASH | A | C | H | |||
50041-06-03 | 6 | 5 | 03 | 47.8 | 22 | 27.5 | LIGHT TYPE |
50041-06-04 | 6 | 6 | 04 | 52.2 | 22 | 30.1 | |
50041-08-05 | 8 | 8 | 05 | 55.7 | 24 | 32.4 | |
50041-08-06 | 8 | 10 | 06 | 57.9 | 24 | 33.1 | |
50041-10-05 | 10 | 8 | 05 | 54 | 23 | 30.6 | |
50041-10-06 | 10 | 10 | 06 | 56.1 | 23 | 31.3 | |
50041-12-06 | 12 | 10 | 06 | 58.5 | 23 | 34.5 | |
50041-12-08 | 12 | 12 | 08 | 72.4 | 23 | 37.4 | |
50041-15-06 | 15 | 10 | 06 | 59.3 | 25 | 34.5 | |
50041-15-08 | 15 | 12 | 08 | 70.6 | 25 | 35.7 | |
50041-18-08 | 18 | 12 | 08 | 73.4 | 26 | 38.5 | |
50041-18-10 | 18 | 16 | 10 | 84.6 | 26 | 39.8 | |
50041-22-10 | 22 | 16 | 10 | 87.1 | 28 | 42.3 | |
50041-22-12 | 22 | 20 | 12 | 93.3 | 28 | 45.9 | |
50041-22-16 | 22 | 25 | 16 | 100.9 | 28 | 46.7 | |
50041-28-16 | 28 | 25 | 16 | 103.7 | 30 | 49.5 | |
50041-35-20 | 35 | 32 | 20 | 118.5 | 36 | 57.8 | |
50041-08-04 | 8 | 6 | 04 | 53.6 | 24 | 31.5 | HEAVY TYPE |
50041-10-04 | 10 | 6 | 04 | 54 | 26 | 31.9 | |
50041-12-04 | 12 | 6 | 04 | 57.1 | 26 | 35.1 | |
50041-12-05 | 12 | 8 | 05 | 59.2 | 26 | 35.9 | |
50041-14-06 | 14 | 10 | 06 | 61.6 | 29 | 37.3 | |
50041-14-08 | 14 | 12 | 08 | 73.8 | 29 | 38.8 | |
50041-14-12 | 14 | 20 | 12 | 91.9 | 29 | 43.8 | |
50041-16-08 | 16 | 12 | 08 | 76.6 | 30 | 41.7 | |
50041-16-10 | 16 | 16 | 10 | 87.8 | 30 | 43 | |
50041-20-10 | 20 | 16 | 10 | 92.8 | 36 | 48 | |
50041-20-12 | 20 | 20 | 12 | 100.7 | 36 | 52.6 | |
50041-25-12 | 25 | 20 | 12 | 101.8 | 40 | 54.4 | |
50041-25-16 | 25 | 25 | 16 | 109.4 | 40 | 55.2 | |
50041-30-16 | 30 | 25 | 16 | 113.6 | 44 | 59.4 | |
50041-30-20 | 30 | 32 | 20 | 124.2 | 44 | 63.5 | |
50041-38-16 | 38 | 25 | 16 | 117.9 | 50 | 63.6 | |
50041-38-20 | 38 | 32 | 20 | 128.4 | 50 | 67.7 | |

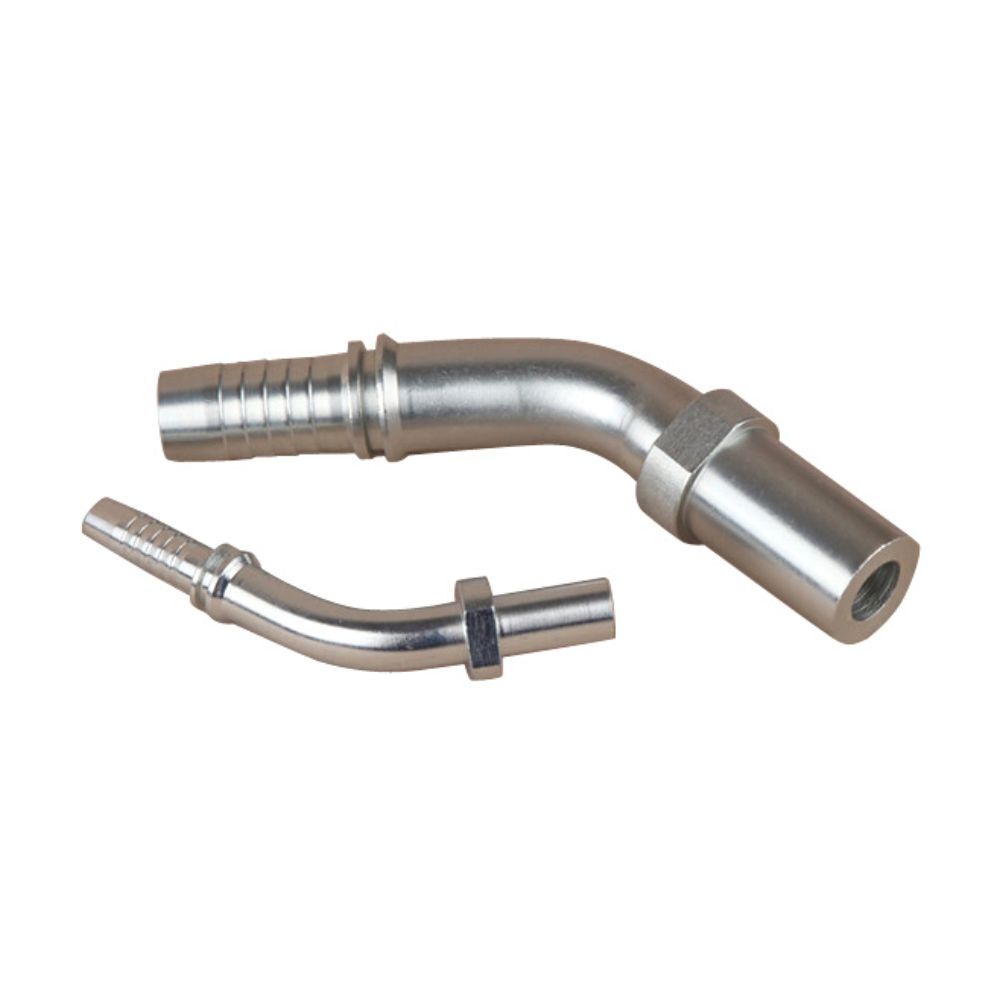

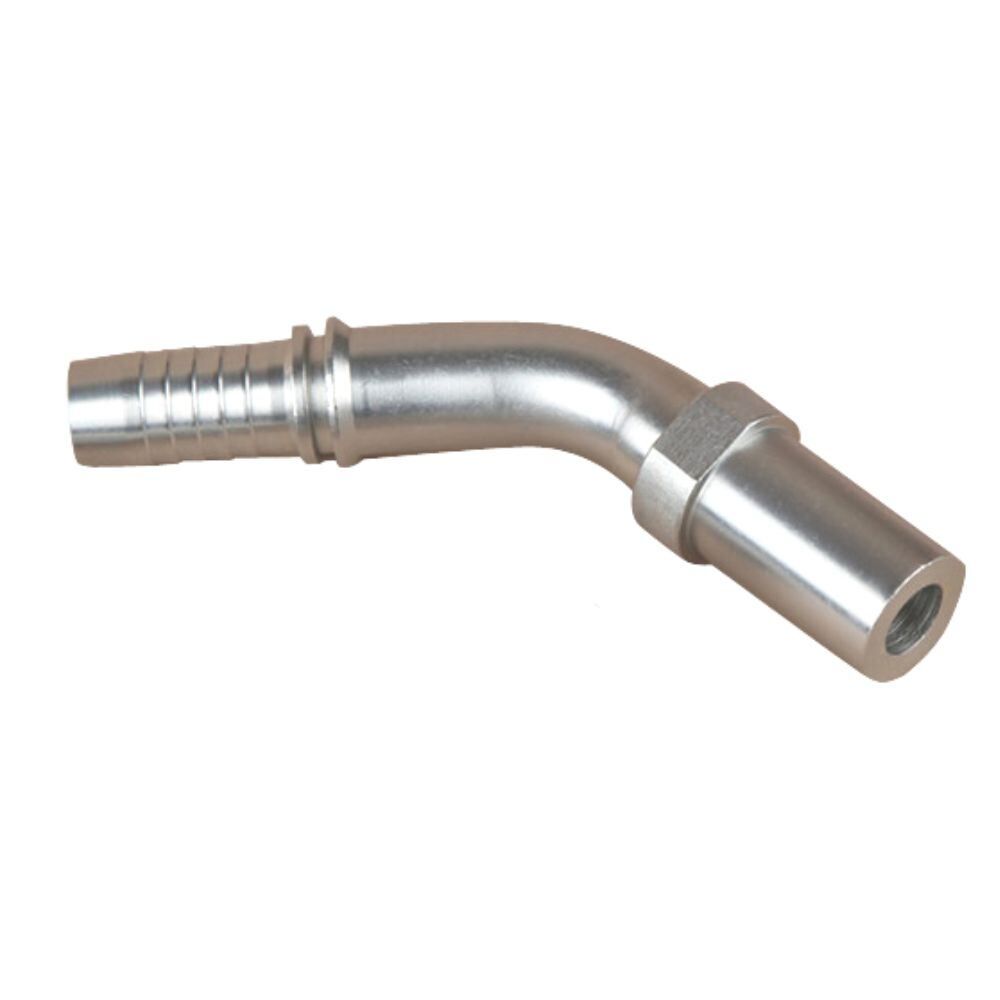

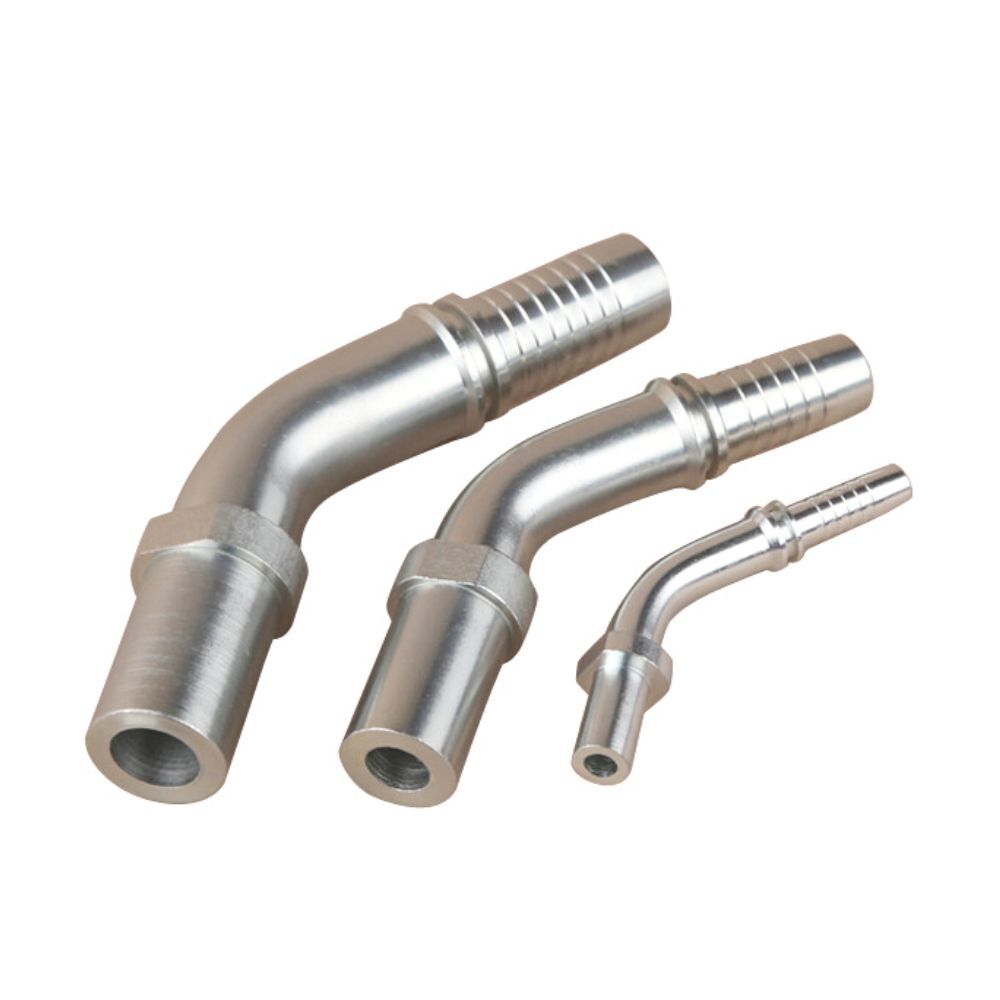

50041 Elbow 45° Metric Standpipe Fittings Video
This video shows information about the 50041 metric standpipe Fittings.
In addition, metric standpipe fittings are used in a variety of hydraulic applications, including hydraulic oil transfer, lubrication systems, and fuel systems.
If you have any questions about hydraulic metric straight fittings, please contact us.
