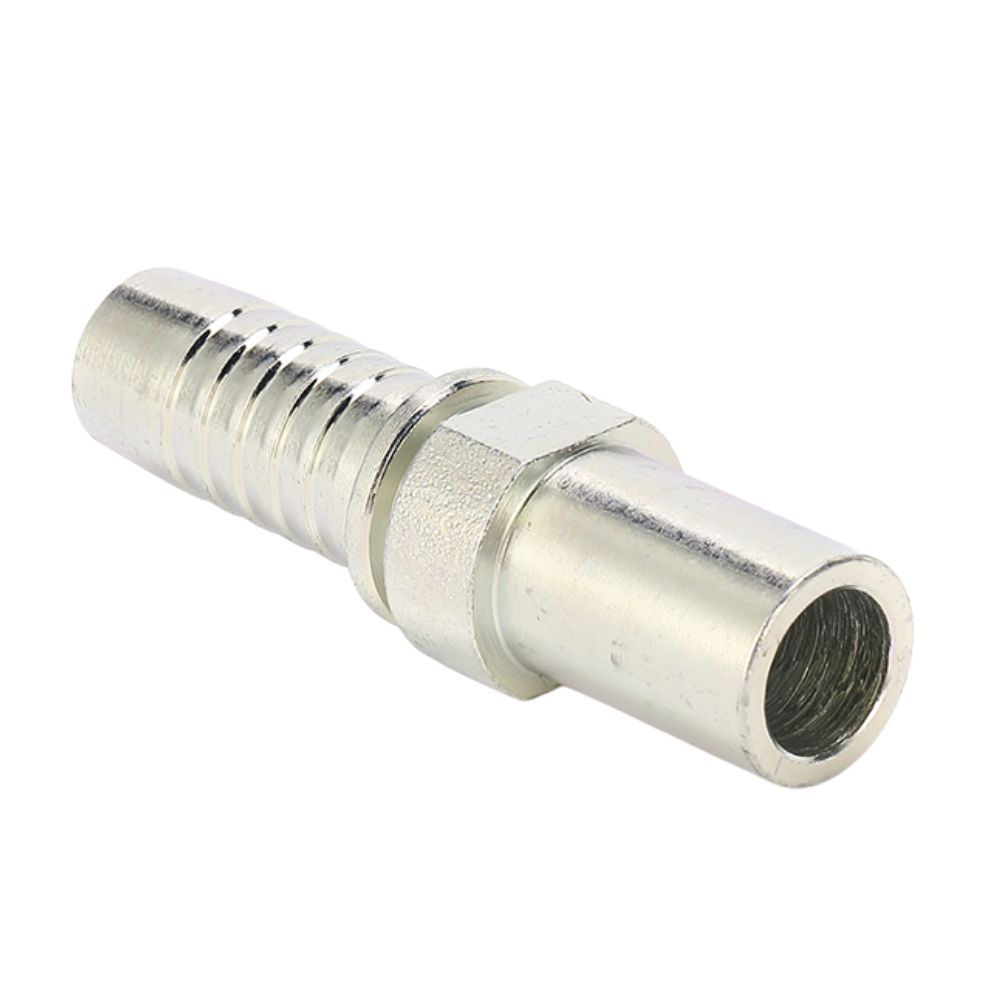

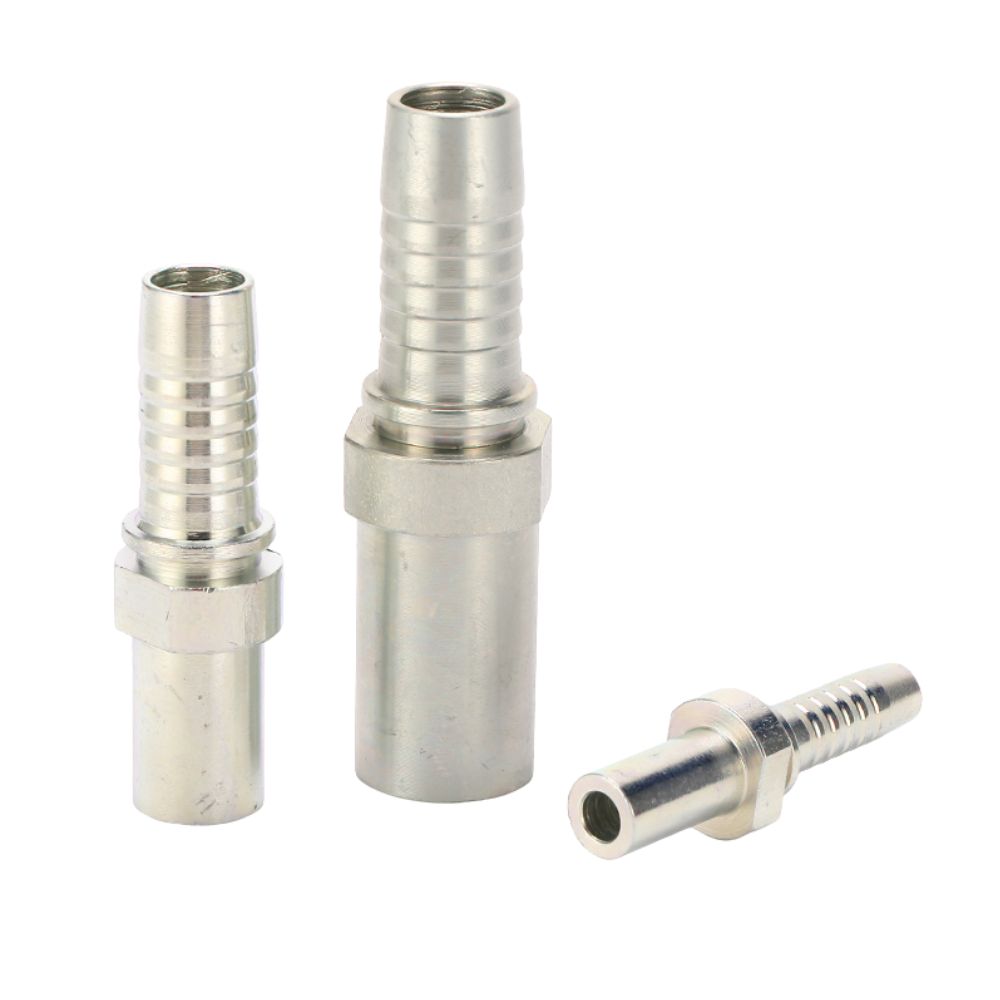

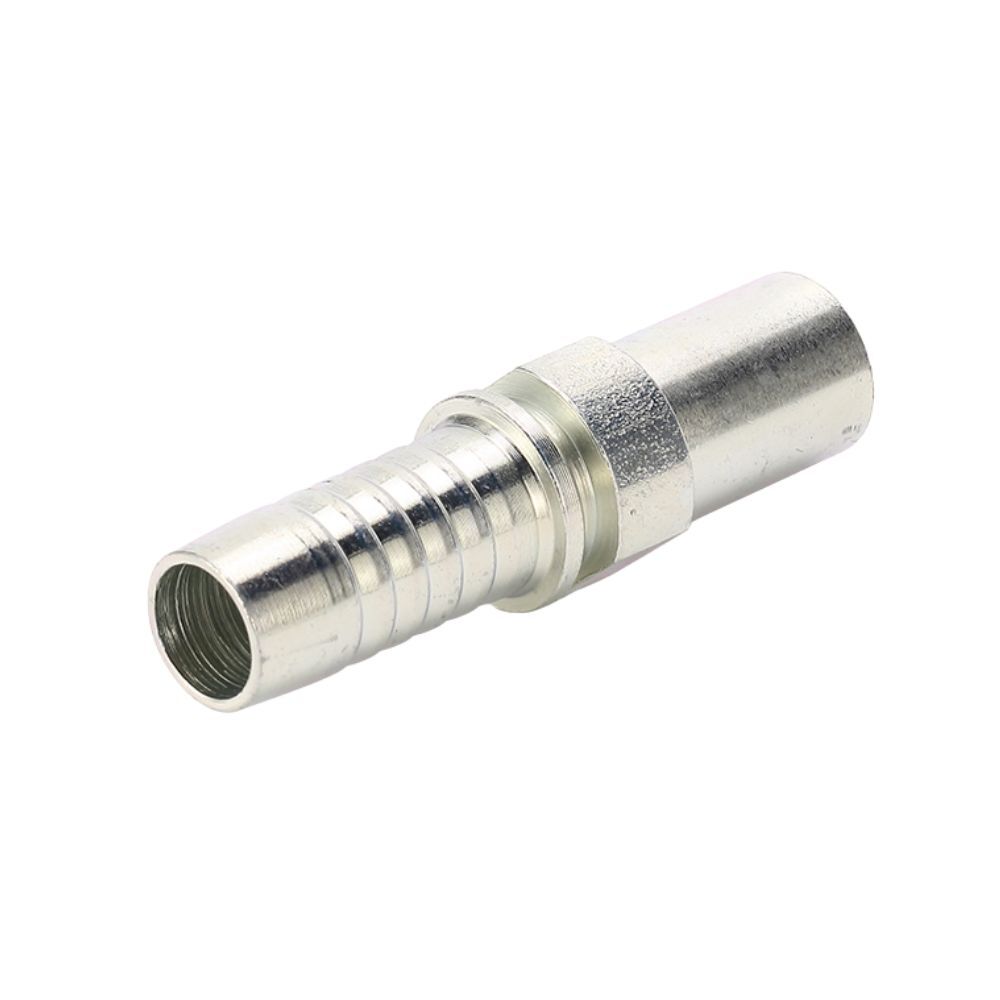

Metric Standpipe Fitting

Description:

50011 metric standpipe fitting is a straight fitting with a metric thread on one end and a smooth hose tail on the other end.

The smooth hose tail end of the standpipe fitting is designed to be used with a hose that has a corresponding inside diameter.

Feel free to ask if you have any questions about the female hydraulic fitting.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize



Description

PART NO.

TUBE O.D.

HOSE BORE

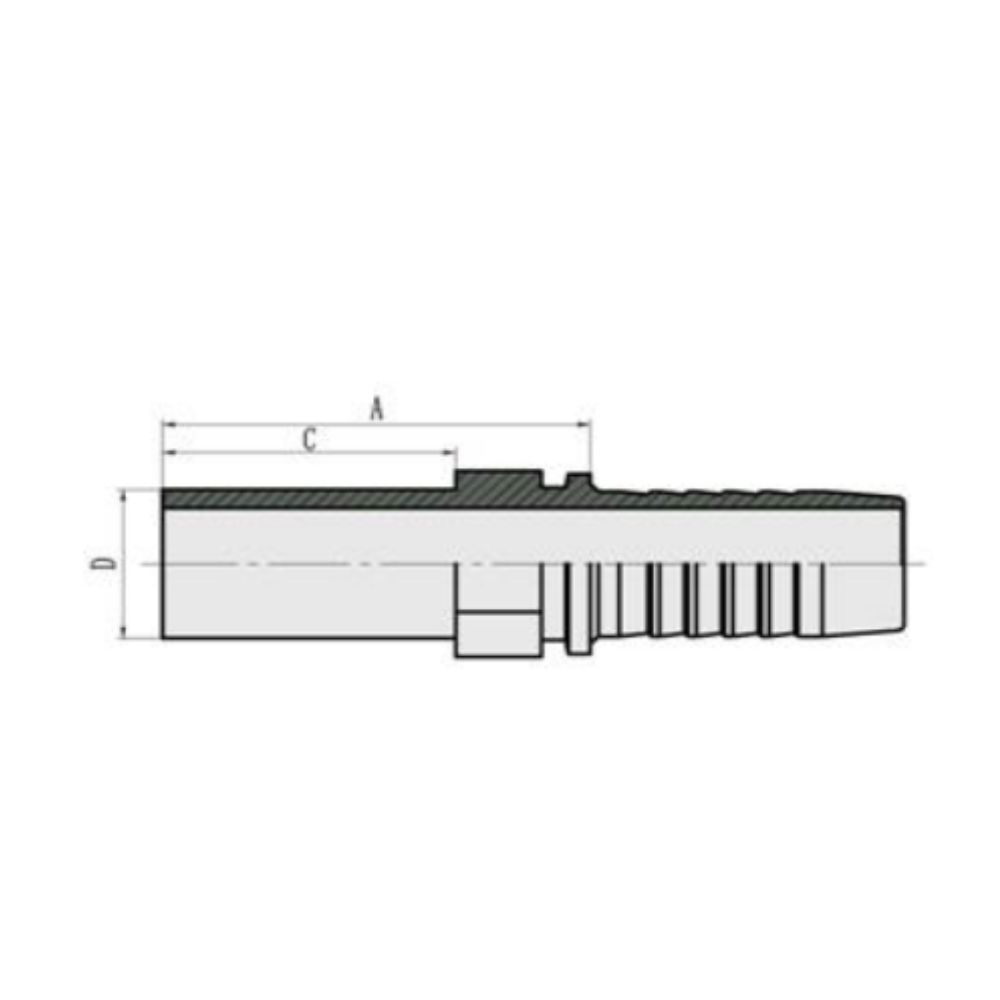

DIMENSIONS

NOTE

DN

DASH

A

C

50011-06-04

6

6

04

29

22

LIGHT TYPE

50011-10-05

10

8

05

31

23

50011-10-06

10

10

06

32

23

50011-12-06

12

10

06

33.5

23

50011-12-08

12

12

08

33

23

50011-15-06

15

10

06

35.5

25

50011-15-08

15

12

08

35.5

25

50011-18-08

18

12

08

36.5

26

50011-18-10

18

16

10

41

26

50011-22-10

22

16

10

44

28

50011-22-12

22

20

12

44

28

50011-22-16

22

25

16

46

28

50011-28-16

28

25

16

47

30

50011-35-20

35

32

20

56

36

50011-42-24

42

40

24

62

40

50011-08-05

8

8

05

33

24

HEAVY TYPE

50011-08-06

8

10

06

33

24

50011-10-04

10

6

04

35

26

50011-12-04

12

6

04

34.5

26

50011-12-05

12

8

05

35.5

26

50011-14-06

14

10

06

39.5

29

50011-14-08

14

12

08

40

29

50011-14-12

14

20

12

45.5

29

50011-16-08

16

12

08

41

30

50011-16-10

16

16

10

45.5

30

50011-20-10

20

16

10

52.5

36

50011-20-12

20

20

12

52.5

36

50011-25-12

25

20

12

56

40

50011-25-16

25

25

16

57

40

50011-30-16

30

25

16

63

44

50011-30-20

30

32

20

64

44

50011-38-16

38

35

16

69

50

50011-38-20

38

32

20

70

50

50011 Metric Standpipe Fitting Video

This video shows information about the 50011 Metric Straight Fittings.

In addition, metric straight fittings are used in a variety of hydraulic applications, including hydraulic oil transfer, lubrication systems, and fuel systems.

If you have any questions about hydraulic metric straight fittings, please contact us.
