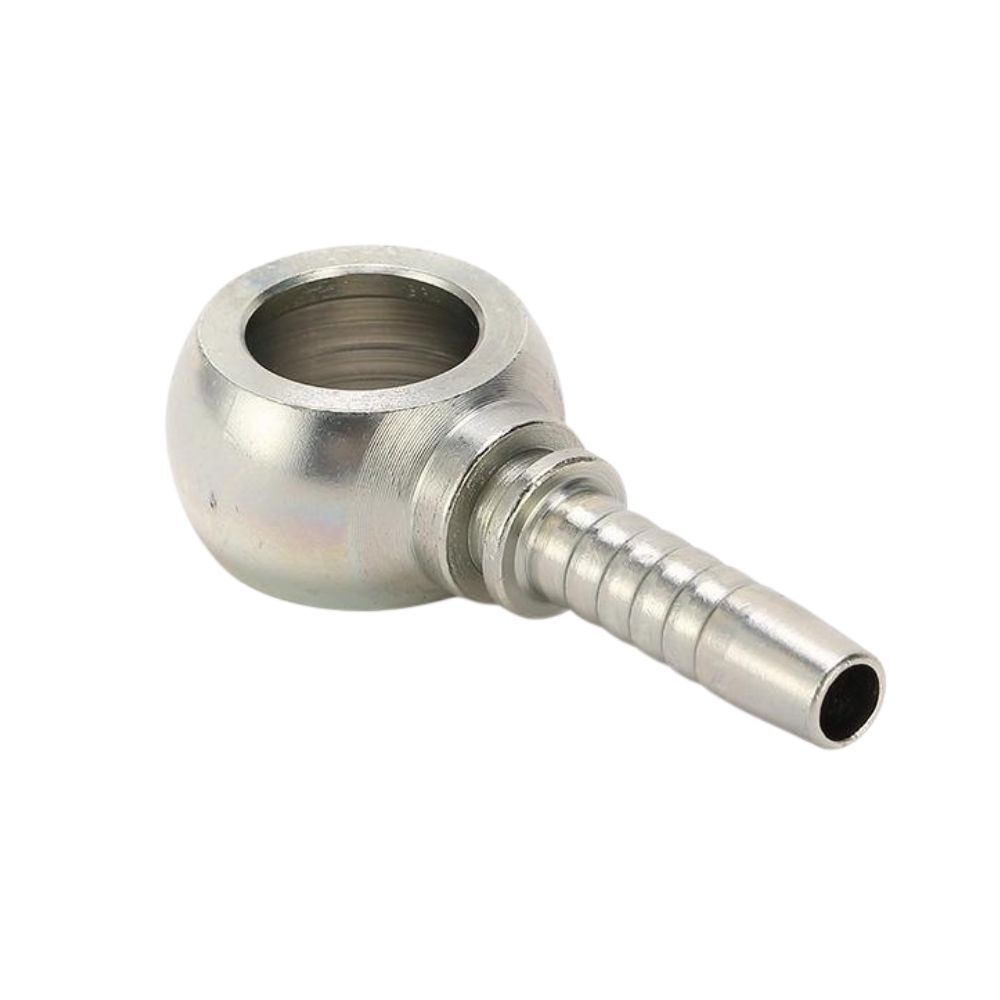

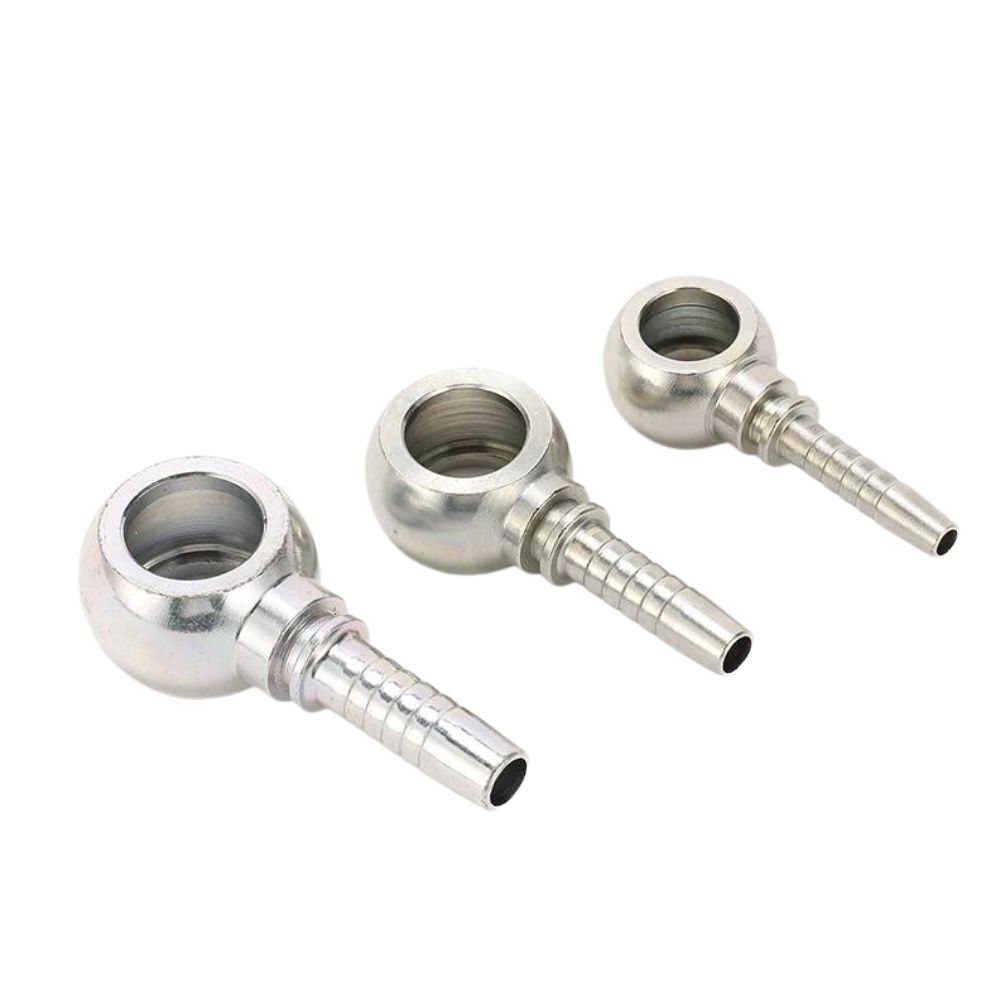

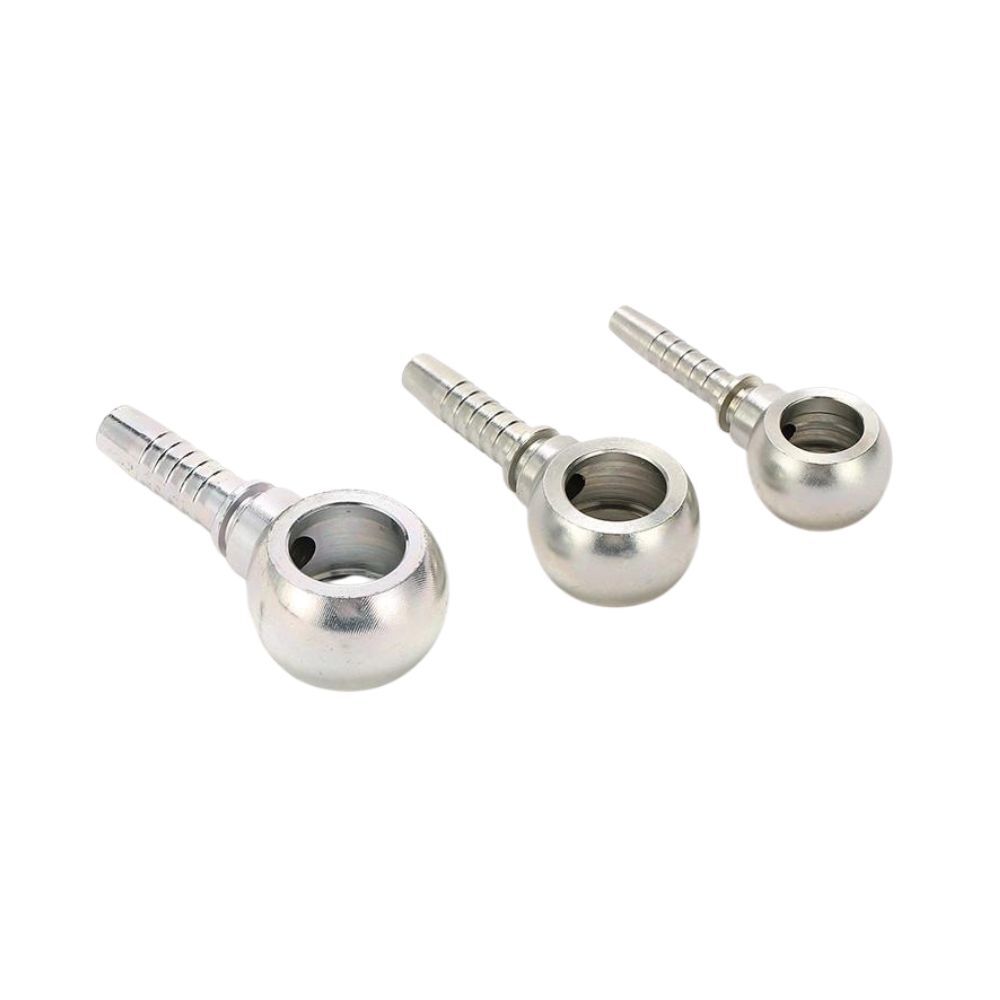

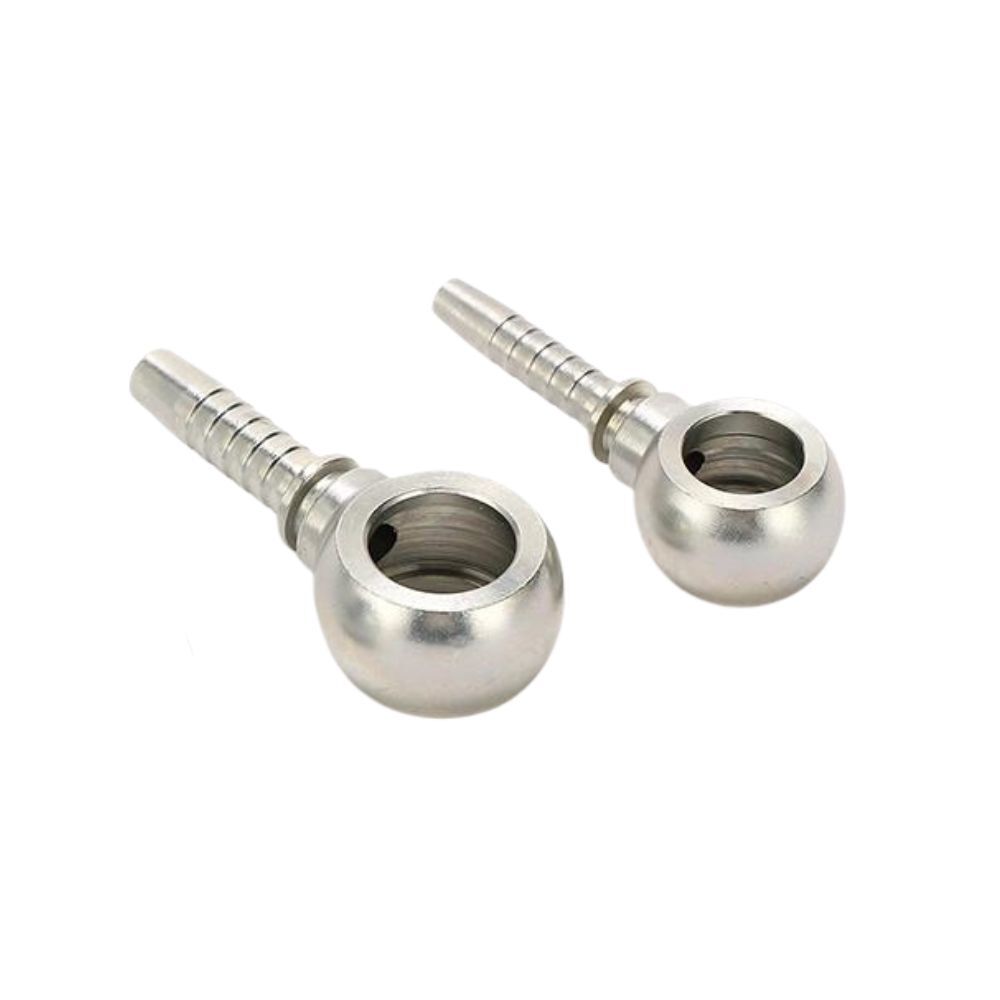

Description

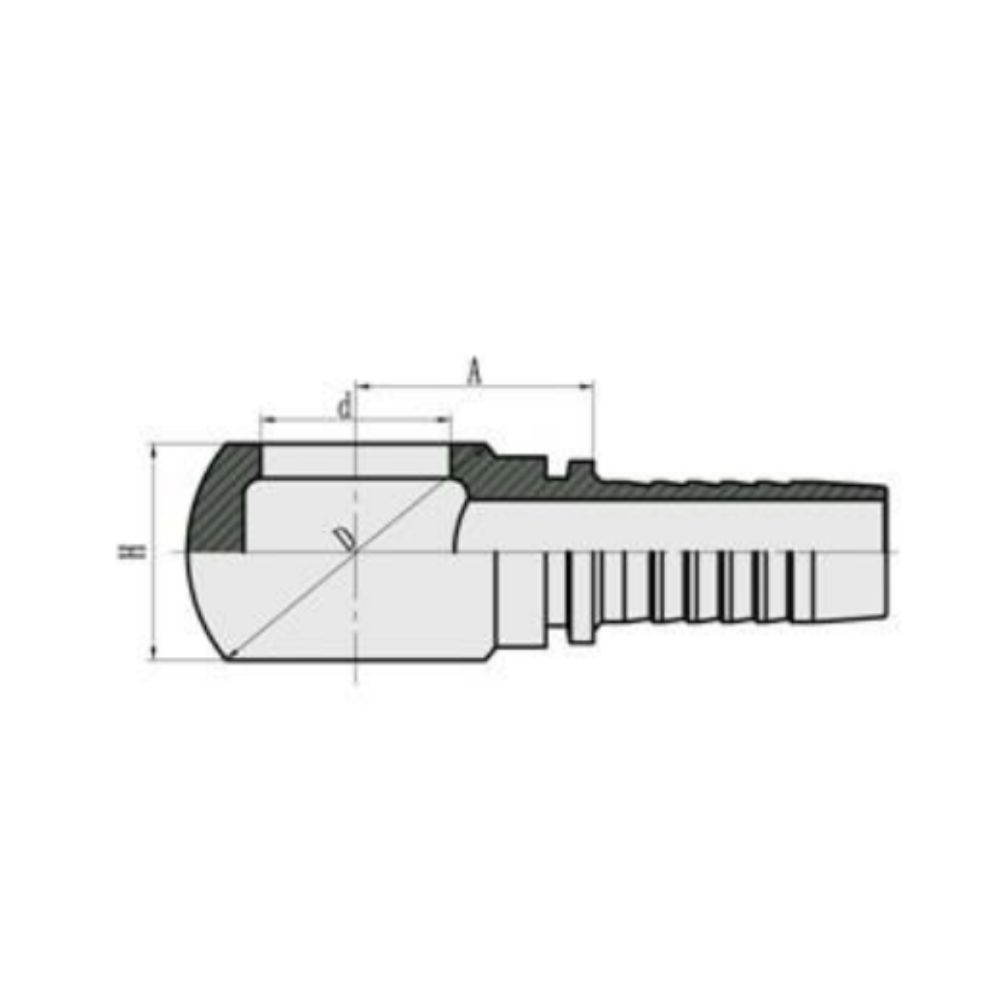

PART NO. | BOLT | HOSE BORE | DIMENSIONS | ||||
DN | DASH | A | d | D | H | ||
70011-10-03 | M10X1 | 5 | 03 | 14.5 | 10.1 | 17 | 10 |
70011-10-04 | M10X1 | 6 | 04 | 17 | 10.1 | 17 | 10 |
70011-12-04 | M12X1.5 | 6 | 04 | 20.5 | 12.1 | 20 | 12 |
70011-12-05 | M12X1.5 | 8 | 05 | 20.5 | 12.1 | 20 | 12 |
70011-12-06 | M12X1.5 | 10 | 06 | 20.5 | 12.1 | 20 | 12 |
70011-14-04 | M14X1.5 | 6 | 04 | 21 | 14.1 | 24 | 14 |
70011-14-05 | M14X1.5 | 8 | 05 | 21 | 14.1 | 24 | 14 |
70011-14-06 | M14X1.5 | 10 | 06 | 21 | 14.1 | 24 | 14 |
70011-16-04 | M16X1.5 | 6 | 04 | 20.5 | 16.1 | 28 | 16 |
70011-16-05 | M16X1.5 | 8 | 05 | 20.5 | 16.1 | 28 | 16 |
70011-16-06 | M16X1.5 | 10 | 06 | 20.5 | 16.1 | 28 | 16 |
70011-18-04 | M18X1.5 | 6 | 04 | 23 | 18.1 | 32 | 20 |
70011-18-05 | M18X1.5 | 8 | 05 | 24 | 18.1 | 32 | 20 |
70011-18-06 | M18X1.5 | 10 | 06 | 24 | 18.1 | 32 | 20 |
70011-18-08 | M18X1.5 | 12 | 08 | 24.5 | 18.1 | 32 | 20 |
70011-22-06 | M22X1.5 | 10 | 06 | 28.1 | 22.1 | 39 | 25 |
70011-22-08 | M22X1.5 | 12 | 08 | 28.5 | 22.1 | 39 | 25 |
70011-22-10 | M22X1.5 | 16 | 10 | 28 | 22.1 | 39 | 25 |
70011-26-12 | M26X1.5 | 20 | 12 | 32.5 | 26.1 | 46 | 30 |
70011-30-16 | M30X1.5 | 25 | 16 | 37 | 30.1 | 54 | 36 |
70011-30-20 | M30X1.5 | 32 | 20 | 40 | 30.1 | 54 | 36 |
70011 Metric Banjo Fitting Video
This video shows information about the 70011 metric banjo fitting.
In addition, banjo fittings are commonly used in applications where space is limited, such as in automotive brake systems or hydraulic power steering systems.
If you have any questions about hydraulic metric banjo fittings, please contact us.
