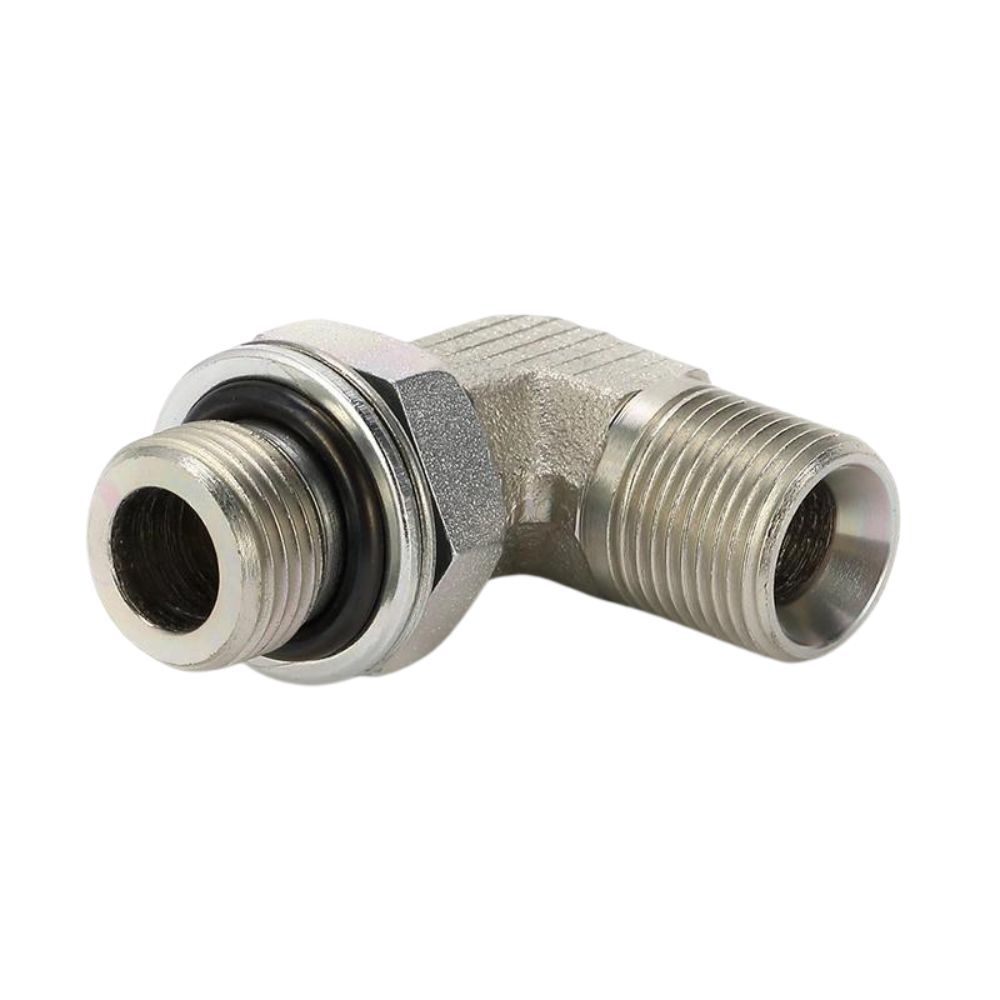

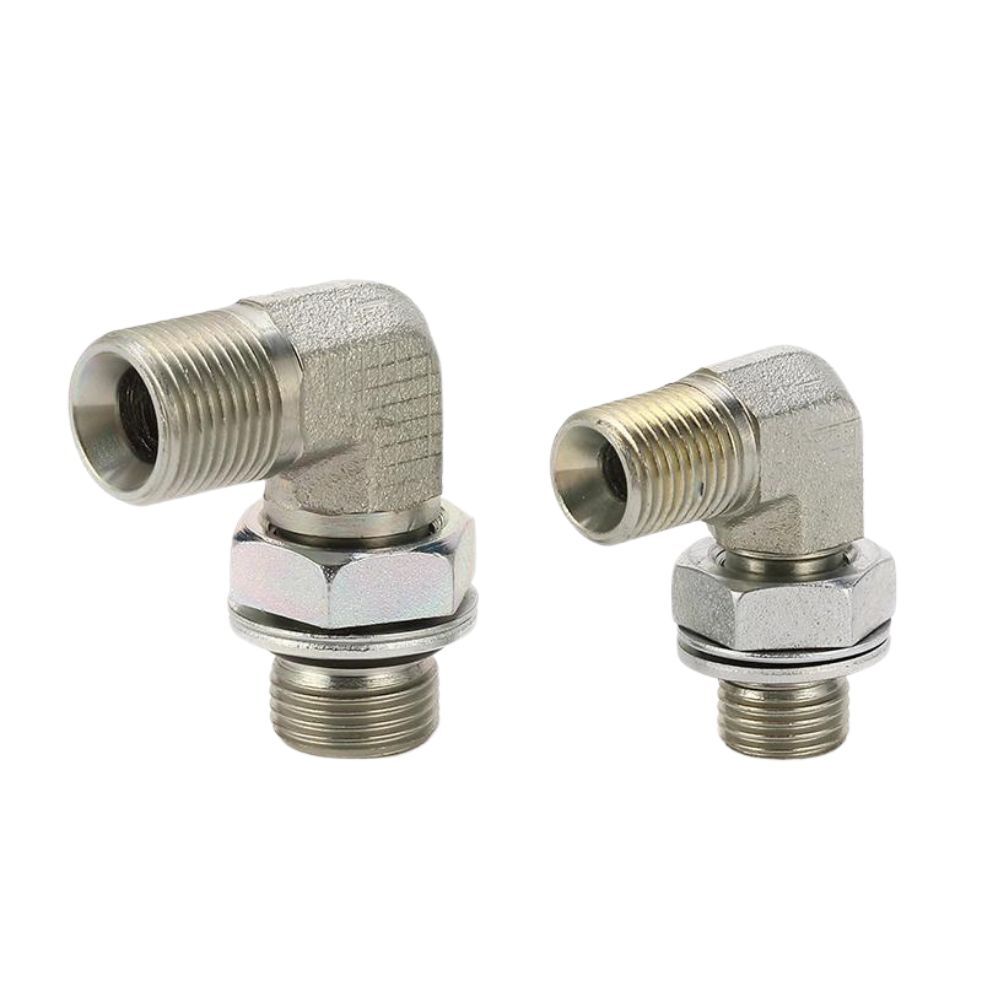

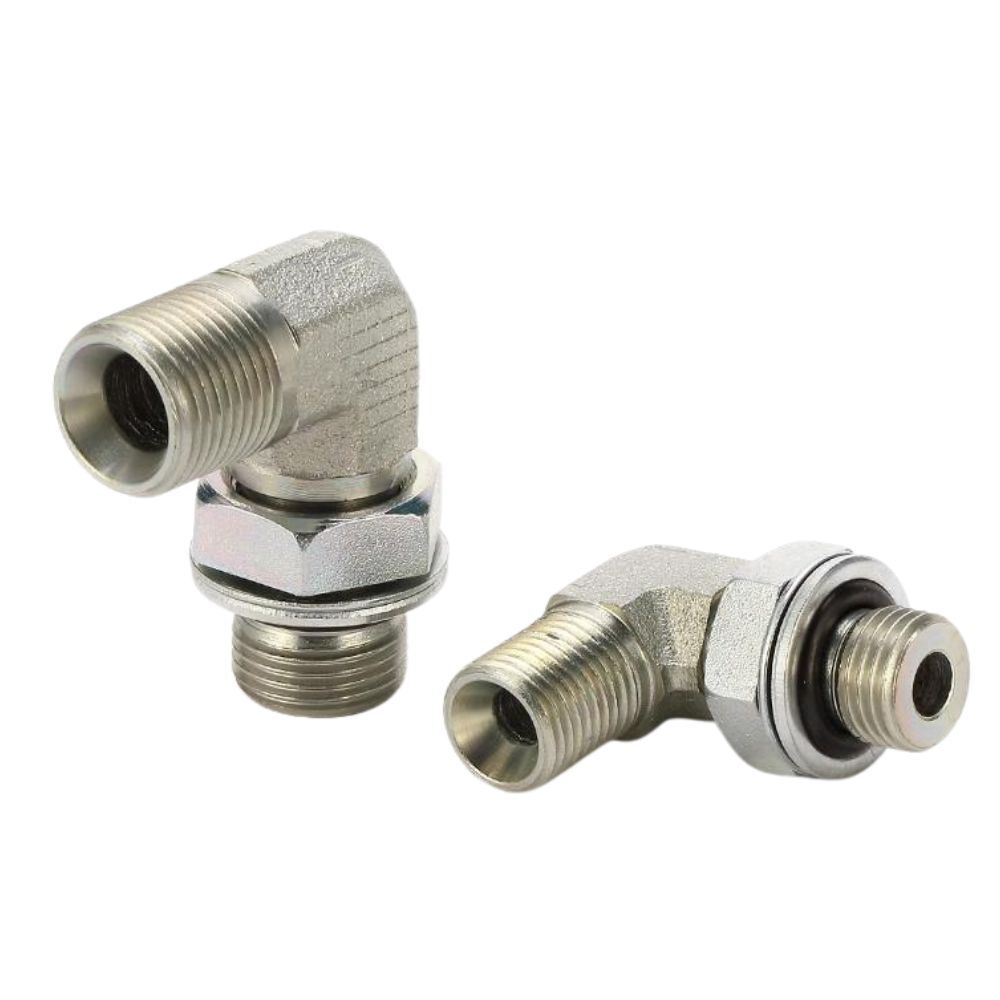

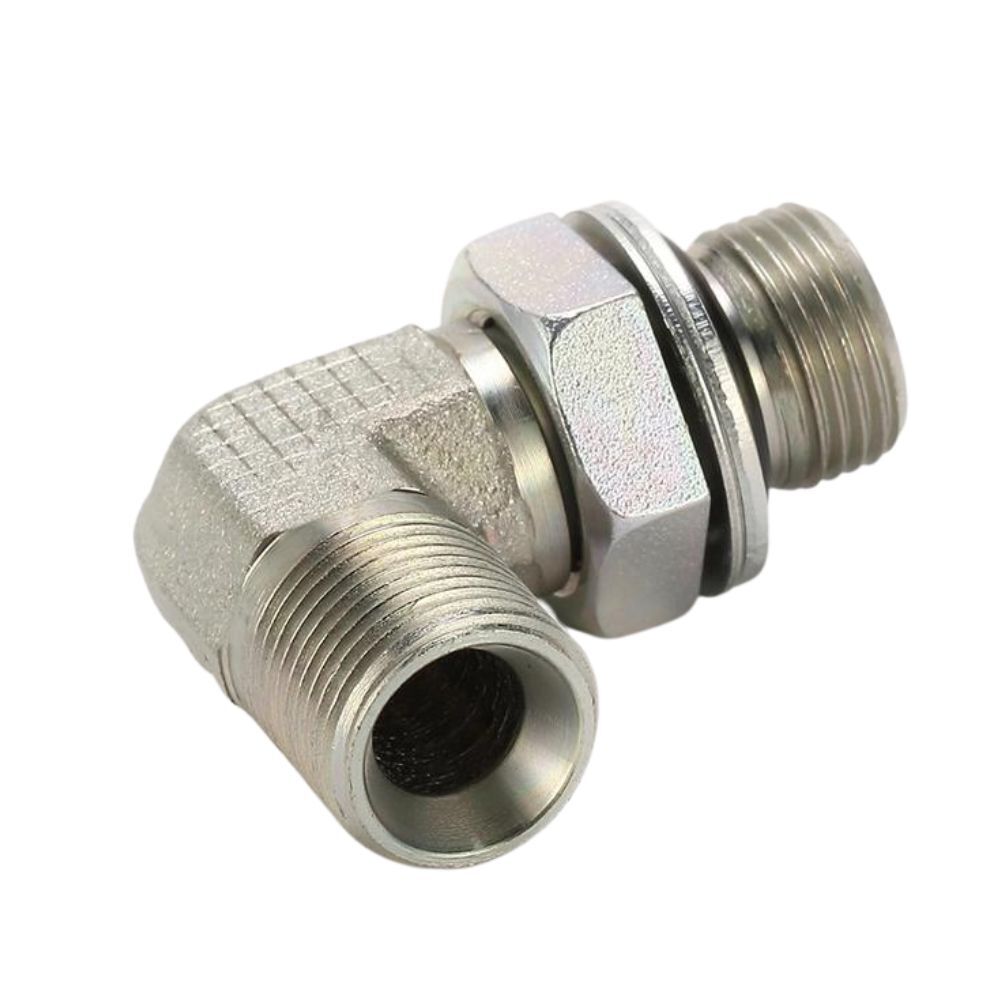

1CO9/1DO9 Metric O-ring Fittings China Wholesaler-Topa

Description

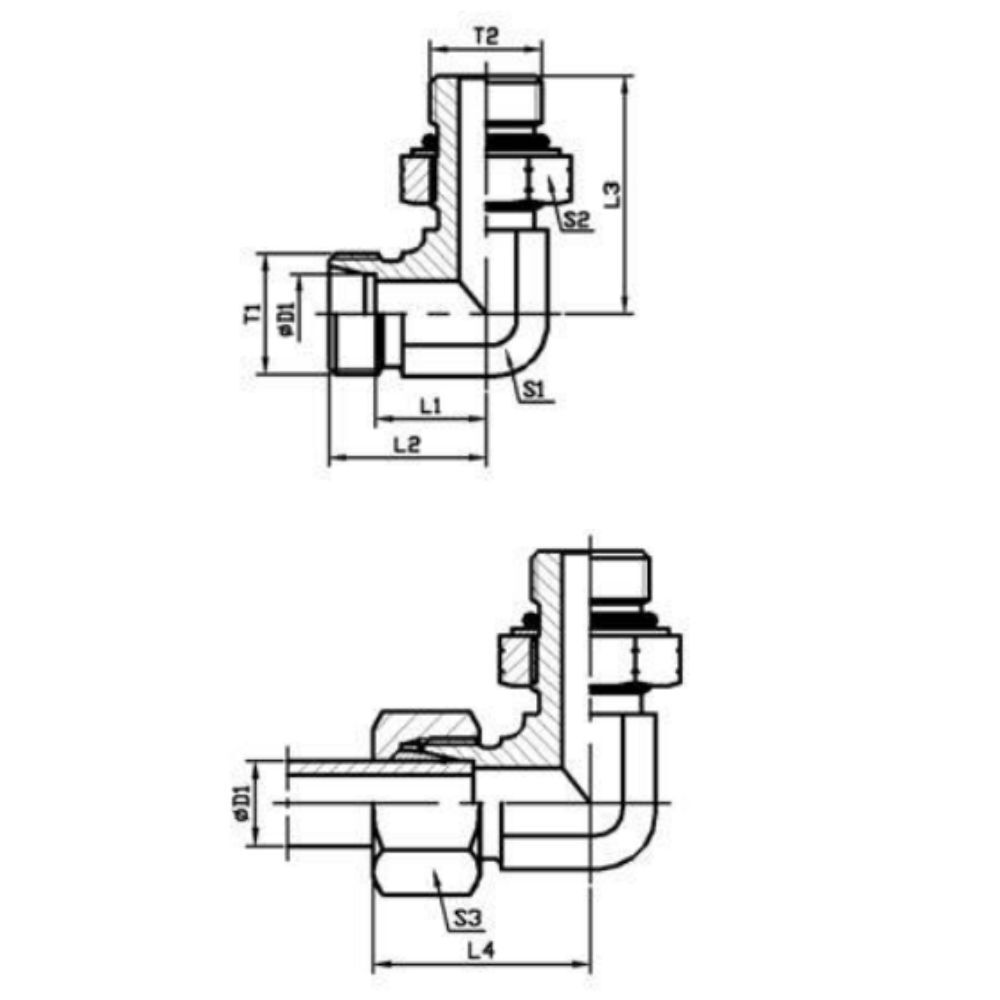

	PART NO.	THREAD		TUBE O.D	DIMENSIONS
	PART NO.	T1	T2	D1	L1	L2	L3	L4	S1	S2	S3
L	1CO9-12-04OG	M12X1.5	7/16＂X20	06	14	21	29	29	14	14	14
	1CO9-14-06OG	M14X1.5	9/16＂X18	08	15.5	22.5	31.8	30.5	14	17	17
	1CO9-16-06OG	M16X1.5	9/16＂X18	10	17	24	34	32	19	17	19
	1CO9-18-08OG	M18X1.5	3/4＂X16	12	19	26	38	34	19	22	22
	1CO9-22-08OG	M22X1.5	3/4＂X16	15	21	28	41	36	22	22	27
	1CO9-22-10OG	M22X1.5	7/8＂X14	15	21	28	43	36	22	27	27
	1CO9-26-12OG	M26X1.5	1.1/16＂X12	18	24	31.5	49	40	30	32	32
	1CO9-30-12OG	M30X2	1.1/16＂X12	22	28	35.5	52	44	30	32	36
	1CO9-36-12OG	M36X2	1.1/16＂X12	28	33.5	41	57.5	47.8	36	41	41
	1CO9-36-16OG	M36X2	1.5/16＂X12	28	31	38.5	59	47	36	41	41
	1CO9-45-20OG	M45X2	1.5/8＂X12	35	38	48.5	63	59	50	50	50
	1CO9-52-24OG	M52X2	1.7/8＂X12	42	38	49	64	61	50	55	60
S	1DO9-14-04OG	M14X1.5	7/16＂X20	06	15	22	32	30	14	14	17
	1DO9-16-06OG	M16X1.5	9/16＂X18	08	17	24	37	32	19	17	19
	1DO9-18-06OG	M18X1.5	9/16＂X18	10	18	25.5	38	34	19	17	22
	1DO9-18-08OG	M18X1.5	3/4＂X16	10	19.5	27	37.5	36	19	22	22
	1DO9-20-08OG	M20X1.5	3/4＂X16	12	22	29.5	44	38	22	22	24
	1DO9-22-10OG	M22X1.5	7/8＂X14	14	23	31	44	41	22	27	27
	1DO9-24-10OG	M24X1.5	7/8＂X14	16	25	33.5	50	43	27	27	30
	1DO9-30-12OG	M30X2	1.1/16＂X12	20	28	38.5	56	49	30	32	36
	1DO9-36-16OG	M36X2	1.5/16＂X12	25	30	42	57.5	54	36	41	46
	1DO9-42-20OG	M42X2	1.5/8＂X12	30	36	49.5	69	62	50	50	50
	1DO9-52-24OG	M52X2	1.7/8＂X12	38	34	50	70	65	50	55	60

1CO9/1DO9 90° Metric O-ring Fittings Video

This video shows information about the 1CO9/1DO9 metric o-ring fittings.

Hydraulic metric thread adapters are commonly used in hydraulic and pneumatic systems, as well as in industrial applications where leak prevention is critical.

If you have any questions about metric oring hydraulic adapter, please contact us.
