Hydraulic Metric O-ring Adapter

Description:

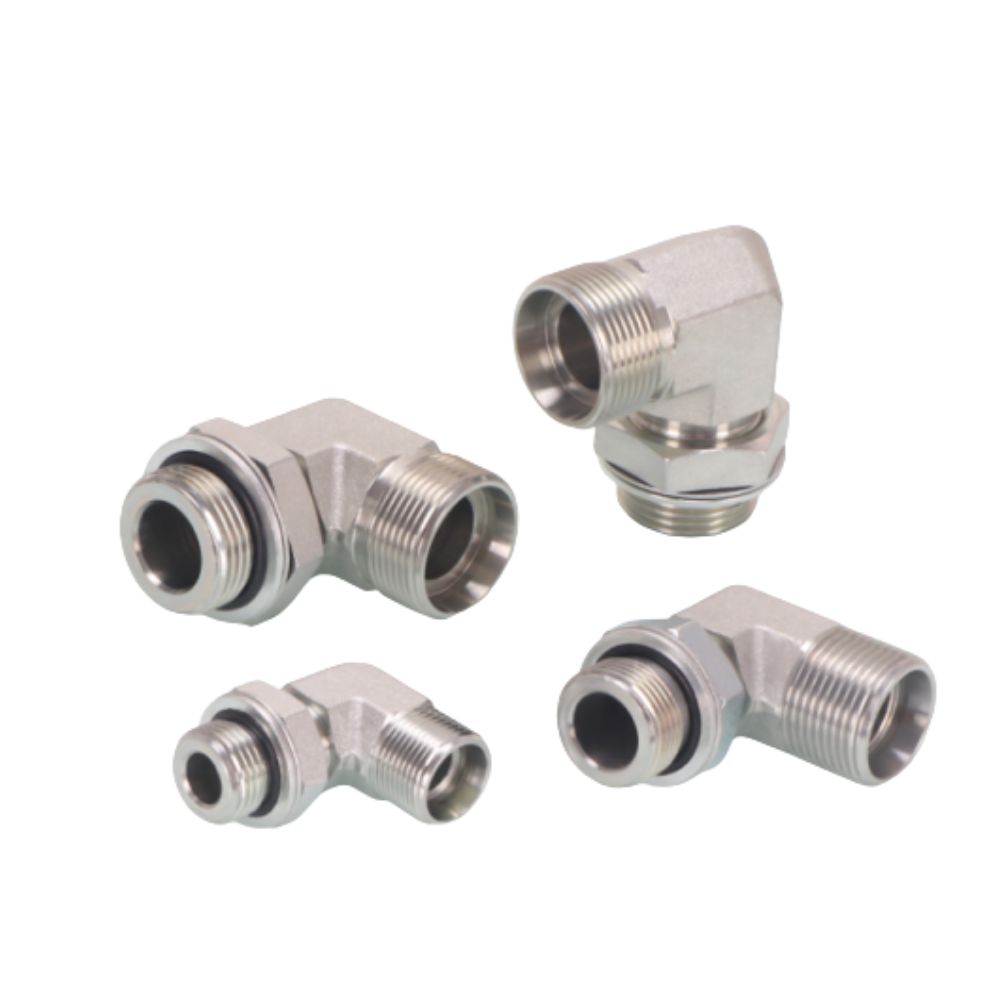

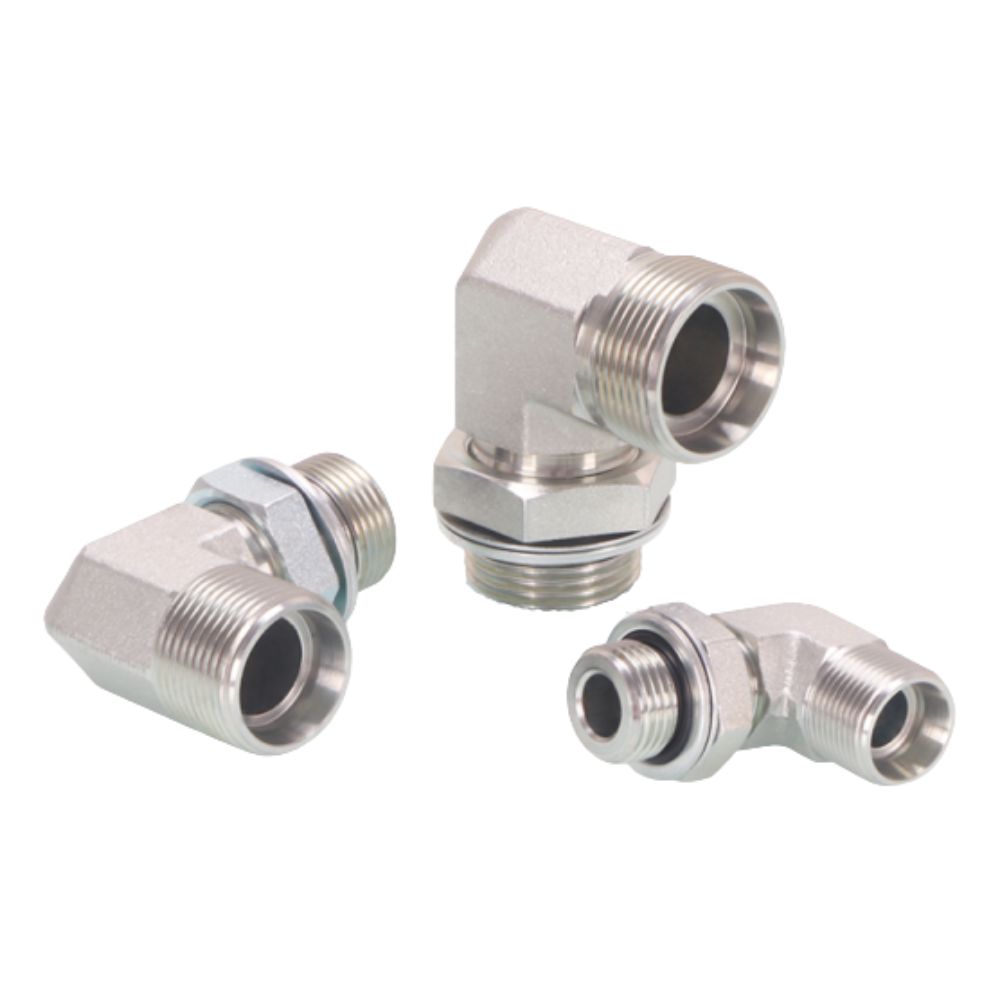

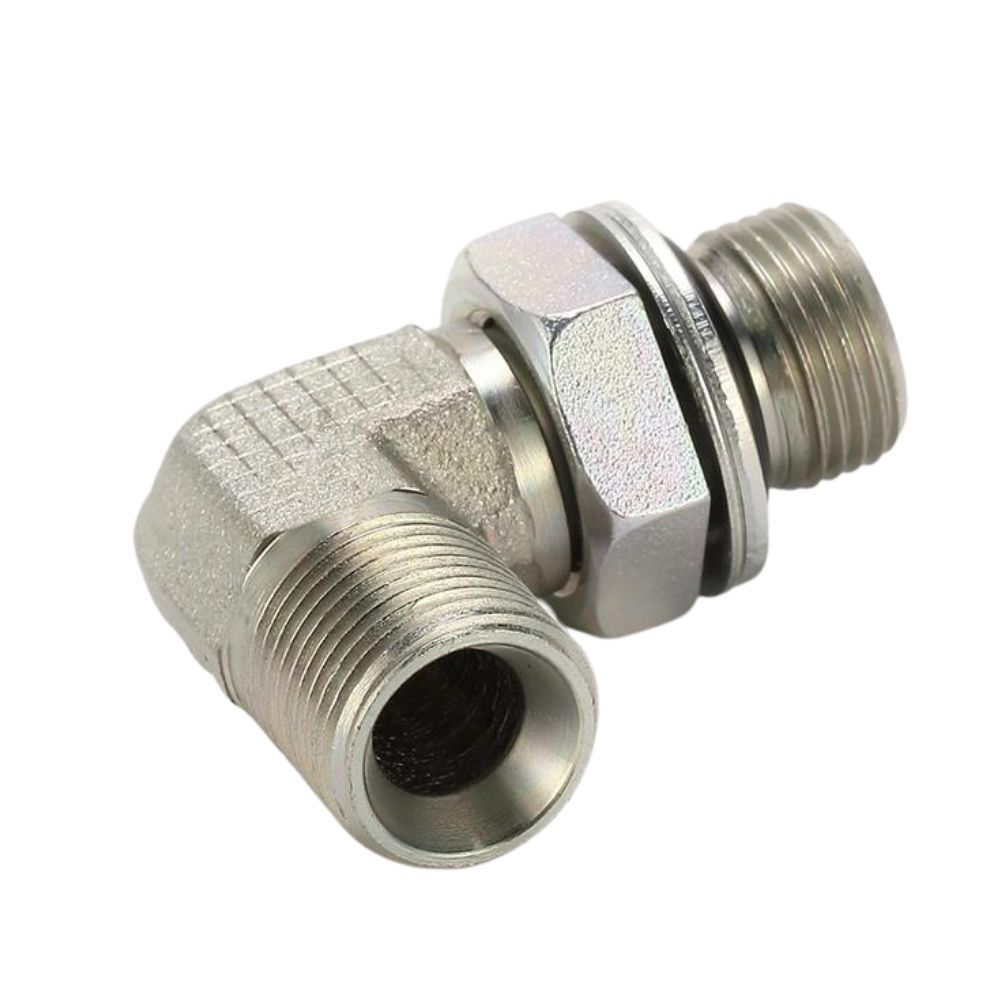

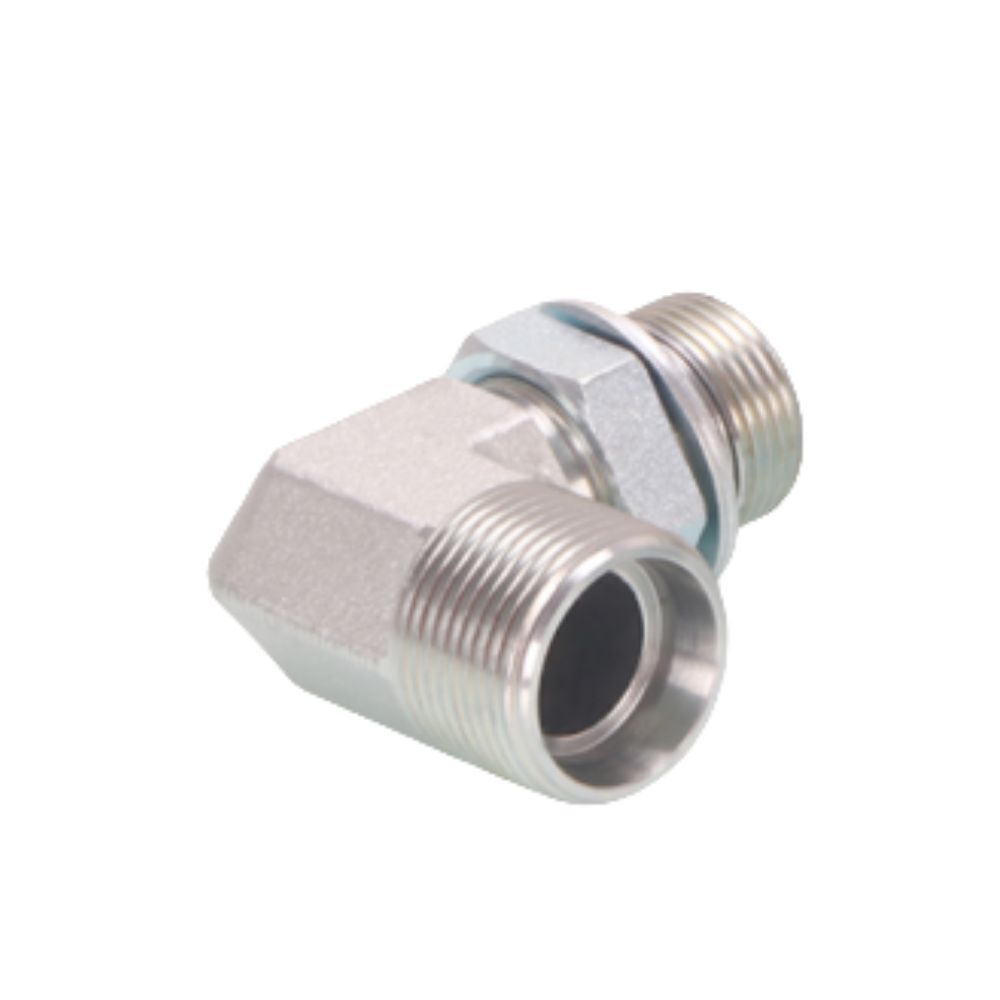

1CH9-OG/1DH9-OG 90° elbow metric o-ring adapter is a male adapter and the male adjustable ends with an o-ring sealing, which can provide a leak-free seal.

The male adapter has external threads that match the internal threads of the female adapter, and the o-rings are placed in grooves on each fitting to create a seal.

Feel free to ask any questions about the metric hydraulic fittings with o ring.

Features and Benefits:

• Strong-seal
• Strength
• Easy to operate
• Customize



Description



PART  NO.

THREAD

TUBE O.D

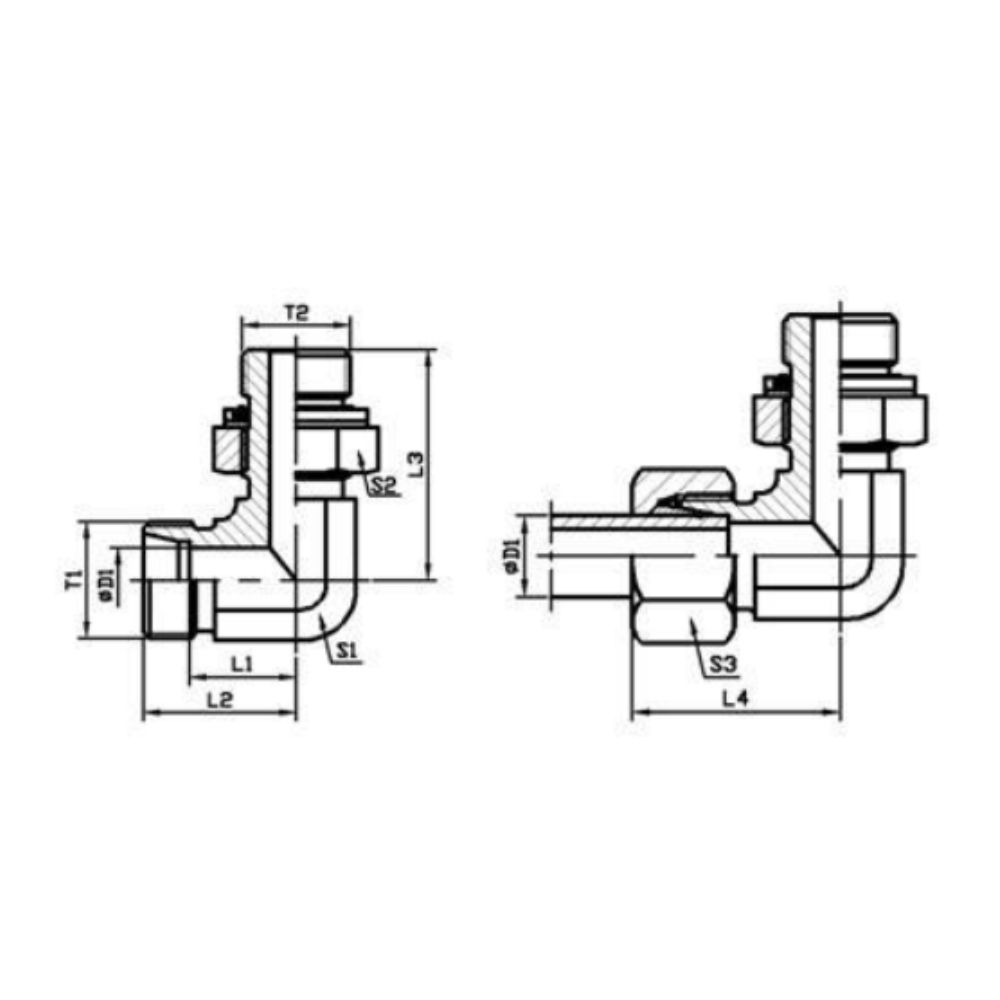

DIMENSIONS

T1

T2

D1

L1

L2

L3

L4

S1

S2

S3

L

1CH9-12-10OG

M12X1.5

M10X1

06

14

21

27

29

14

14

14

1CH9-14-12OG

M14X1.5

M12X1.5

08

16

23

32

31

14

17

17

1CH9-16-14OG

M16X1.5

M14X1.5

10

17

24

35

32

19

19

19

1CH9-18-16OG

M18X1.5

M16X1.5

12

19

26

36

34

19

22

22

1CH9-22-18OG

M22X1.5

M18X1.5

15

21

28

41

36

22

24

27

1CH9-26-22OG

M26X1.5

M22X1.5

18

24

31.5

45

40

27

27

32

1CH9-30-27OG

M30X2

M27X2

22

28

35.5

49

44

30

32

36

1CH9-36-33OG

M36X2

M33X2

28

31

38.5

52

47

36

41

41

S

1DH9-14-12OG

M14X1.5

M12X1.5

06

15

22

32

30

14

17

17

1DH9-16-14OG

M16X1.5

M14X1.5

08

17

24

36

32

19

19

19

1DH9-18-16OG

M18X1.5

M16X1.5

10

18

25.5

38

34

19

22

22

1DH9-20-18OG

M20X1.5

M18X1.5

12

22

29.5

43

38

22

24

24

1DH-22-20OG

M22X1.5

M20X1.5

14

22

30

40

40

22

27

27

1DH9-24-22OG

M24X1.5

M22X1.5

16

25

33.5

49

43

27

27

30

1DH9-30-27OG

M30X2

M27X2

20

28

38.5

55

49

30

32

36

1DH9-36-33OG

M36X2

M33X2

25

30

42

60

54

36

41

46

1DH9-42OG

M42X2

M42X2

30

36

49.5

68

62

46

50

50
