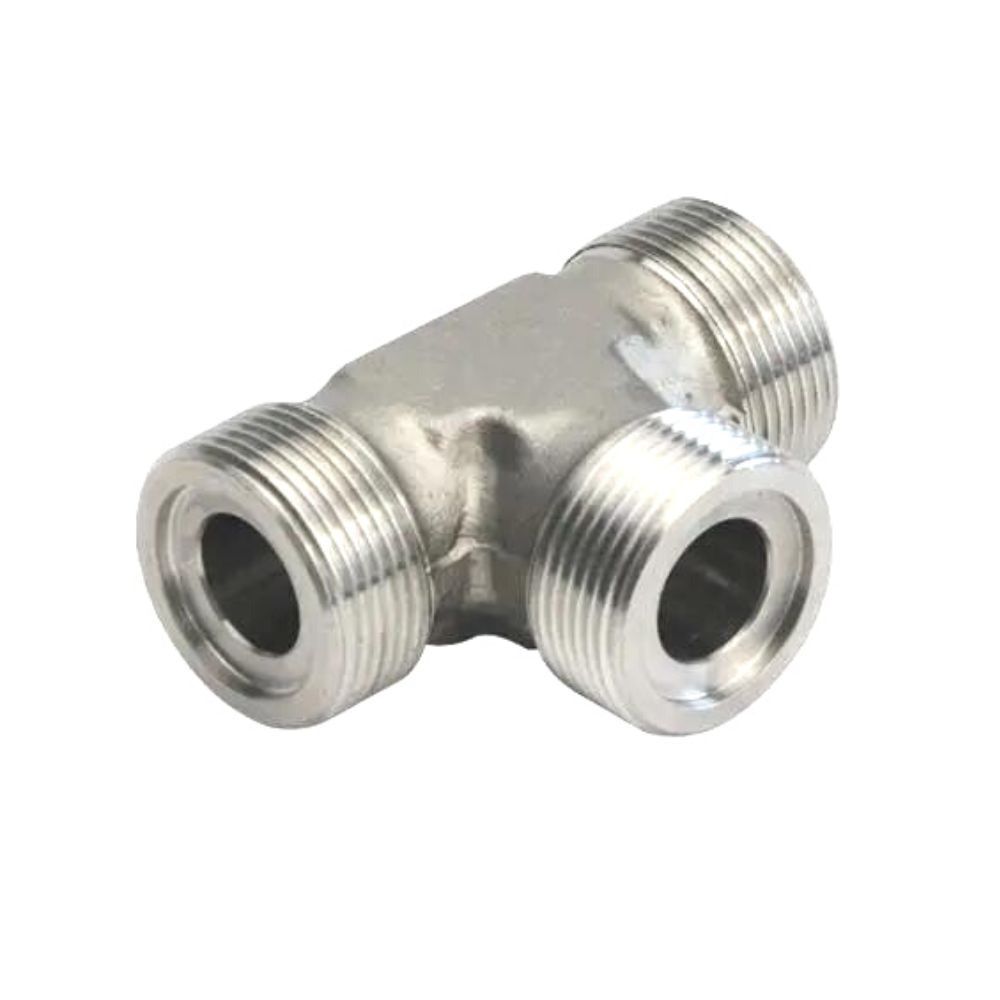

Metric O-ring Adapter

Description:

AE metric o-ring adapter is a type of tee adapter that can divide or mix fluid in three different ways.

The metric tee fitting also has an O-ring seal or other types of the gasket to ensure a tight, leak-free connection.

Feel free to ask any questions about the hydraulic metric o ring fittings.

Features and Benefits:

• Strong-seal
• Strength
• Easy to operate
• Customize

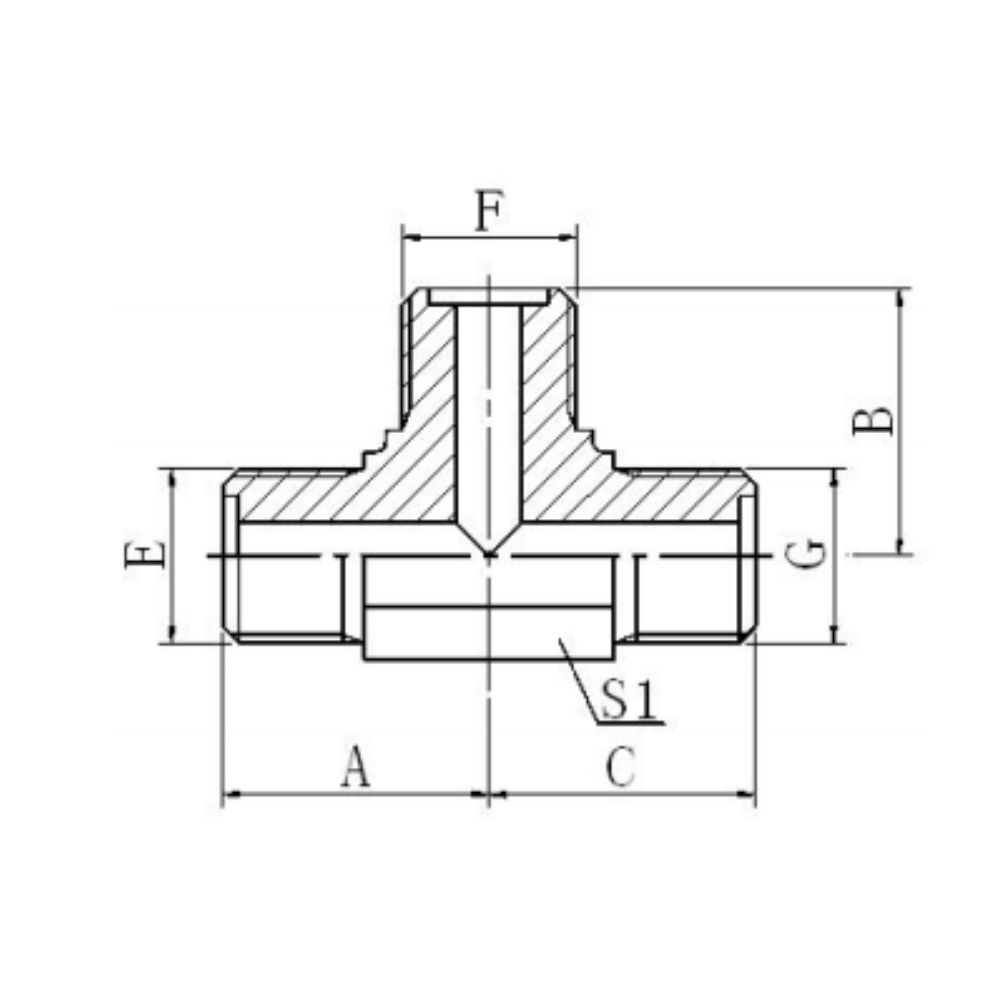

Description



THREAD

O O-RING

DIMENSIONS

PART NO.

EFG

EFG

A

B

C

S1

AE-14

M14X1.5

10X1.9

22.5

22.5

22.5

14

AE-16

M16X1.5

11X1.9

24

24

24

17

AE-18

M18X1.5

13X1.9

26

26

26

19

AE-22

M22X1.5

16X2.4

29

29

29

22

AE-27

M27X1.5

20X2.4

32.5

32.5

32.5

27

AE-30

M30X1.5

24X2.4

35.5

35.5

35.5

30

AE-36

M36X2

30X3.1

42

42

42

36

AE-39

M39X2

32X3.1

47.5

47.5

47.5

41

AE-42

M42X2

35X3.1

49.5

49.5

49.5

41

AE-45

M45X2

38X3.1

52.5

52.5

52.5

46

AE-52

M52X2

40X3.1

57

57

57

50

AE Male Tee Metric O-ring Adapter Video

This video shows information about the AE metric o-ring adapter.

Hydraulic metric thread tees are commonly used in hydraulic and pneumatic systems, as well as in industrial applications where leak prevention is critical.

If you have any questions about metric hydraulic fittings, please contact us.
