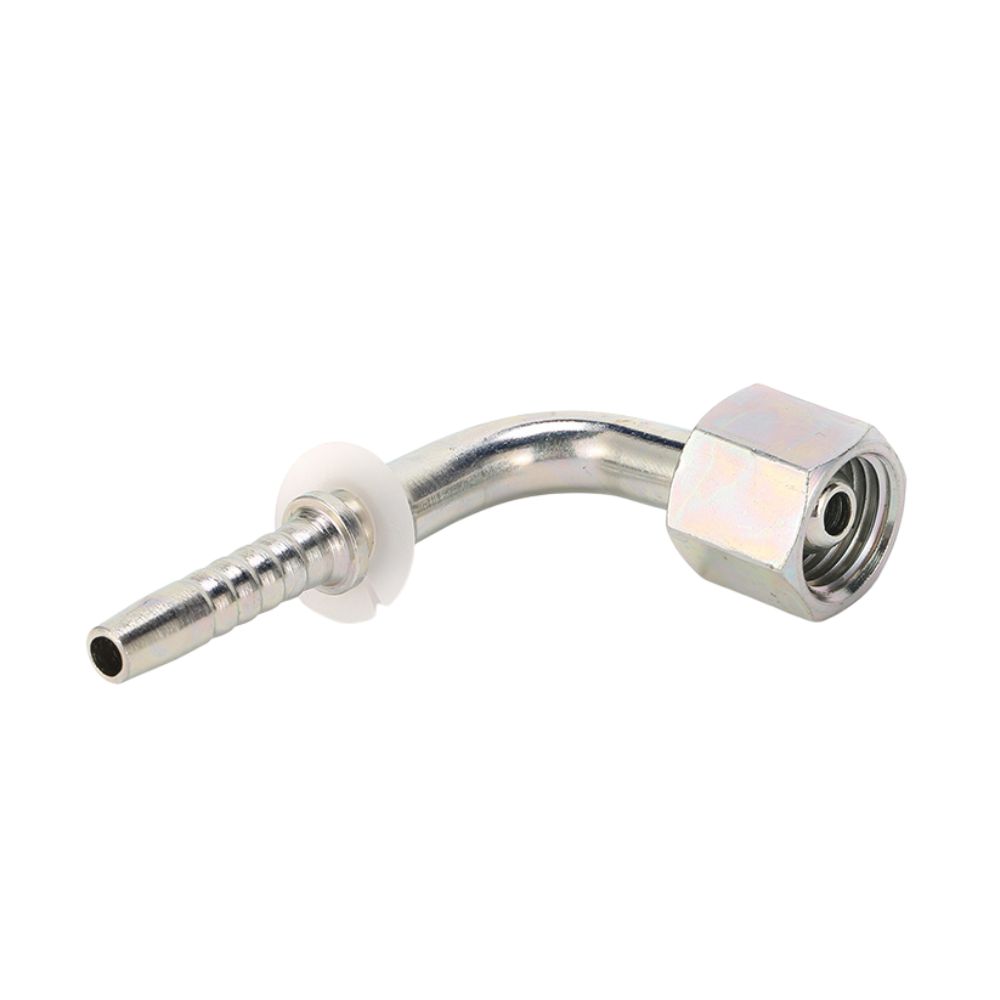

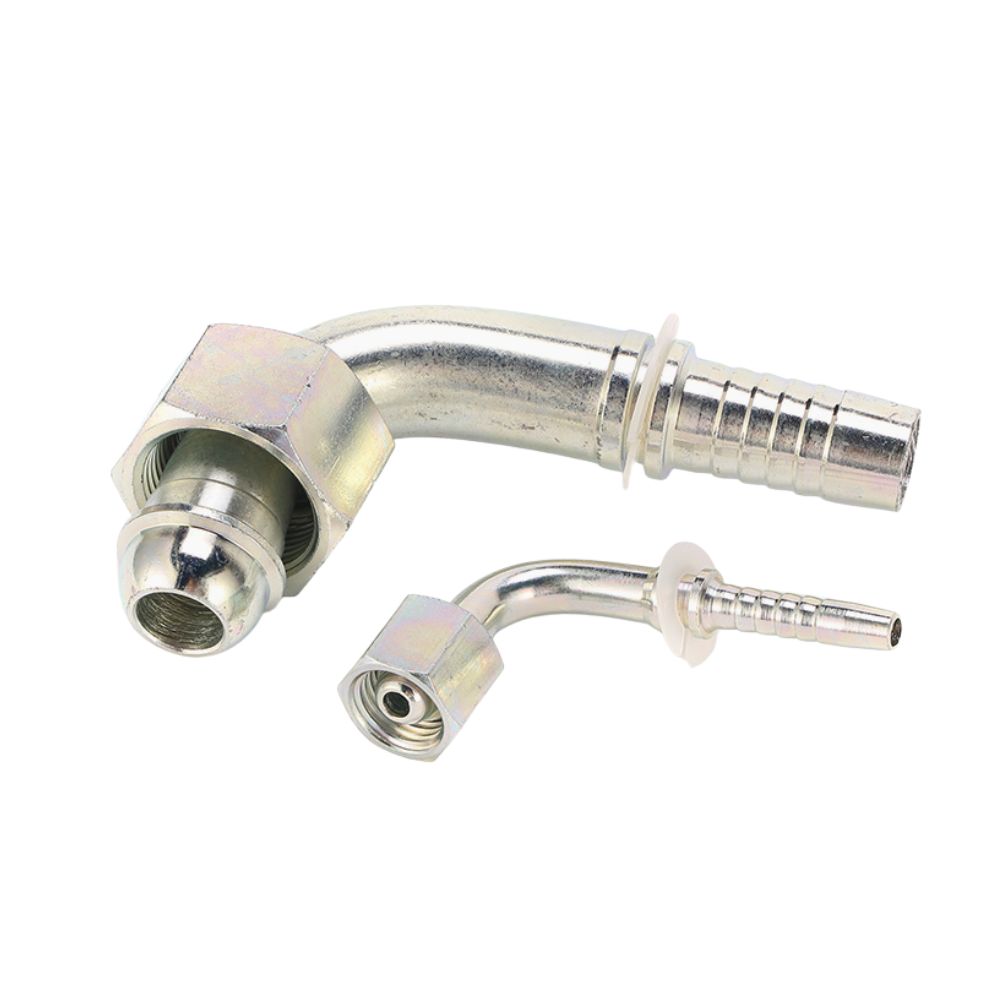

Description

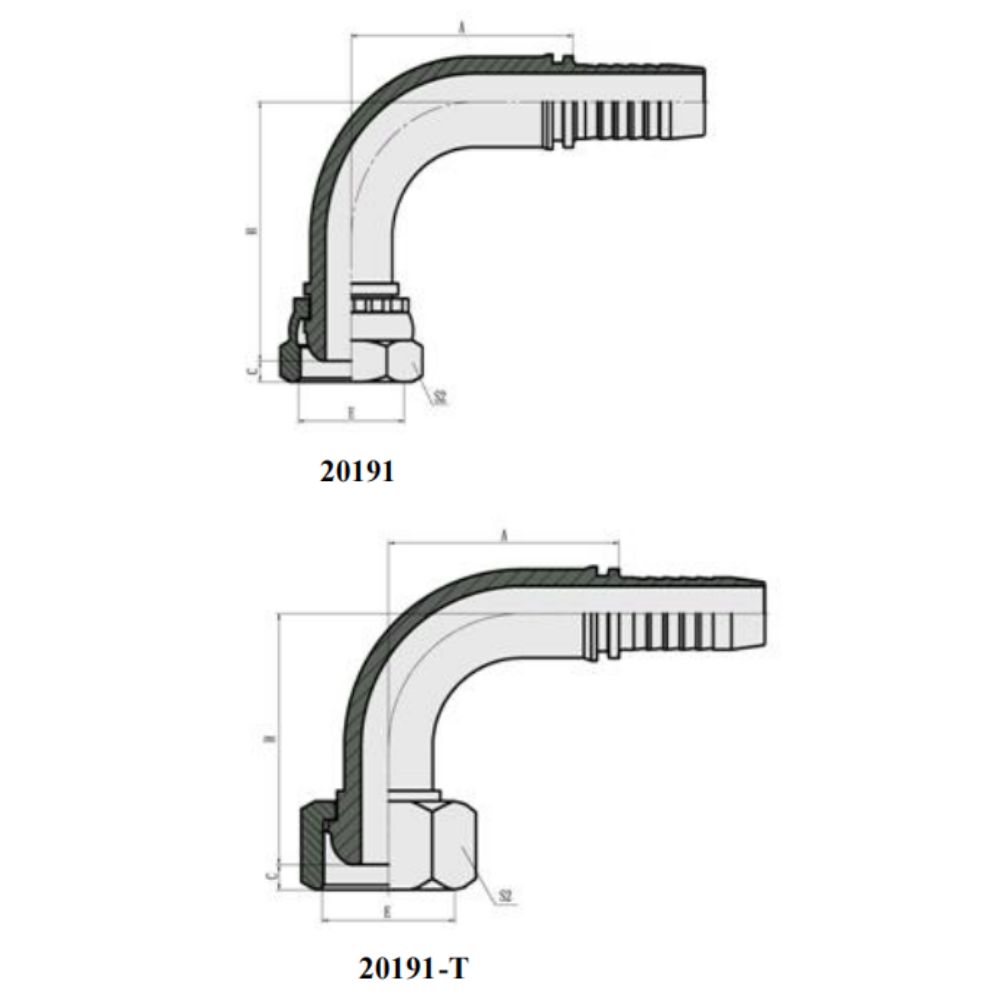

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
DN | DASH | A | C | H | S2 | ||
20191-10-03 | M10*1 | 5 | 03 | 27 | 2.5 | 35.5 | 14 |
20191-12-04 | M12*1.5 | 6 | 04 | 30 | 4 | 37.5 | 17 |
20191-14-04 | M14*1.5 | 6 | 04 | 30 | 4.5 | 38 | 19 |
20191-14-05 | M14*1.5 | 8 | 05 | 33 | 4.5 | 41 | 19 |
20191-16-04 | M16*1.5 | 6 | 04 | 30 | 4.5 | 38.5 | 19 |
20191-16-05 | M16*1.5 | 8 | 05 | 33 | 4.5 | 41.5 | 22 |
20191-16-06 | M16*1.5 | 10 | 06 | 35.3 | 4.5 | 43.8 | 22 |
20191-18-05T | M18*1.5 | 8 | 05 | 33 | 4 | 43 | 24 |
20191-18-06 | M18*1.5 | 10 | 06 | 35.3 | 4 | 45.3 | 24 |
20191-18-08 | M18*1.5 | 12 | 08 | 40.5 | 4 | 50.5 | 24 |
20191-20-06T | M20*1.5 | 10 | 06 | 35.3 | 5.5 | 44.8 | 24 |
20191-20-08 | M20*1.5 | 12 | 08 | 41 | 5.5 | 52 | 27 |
20191-22-06T | M22*1.5 | 10 | 06 | 35.8 | 5 | 76.8 | 27 |
20191-22-08 | M22*1.5 | 12 | 08 | 41 | 5 | 52.5 | 27 |
20191-24-08T | M24*1.5 | 12 | 08 | 41 | 5.5 | 51 | 30 |
20191-24-10 | M24*1.5 | 16 | 10 | 58 | 5 | 58.5 | 30 |
20191-27-10DT | M27*1.5 | 16 | 10 | 56 | 5.5 | 55.5 | 32 |
20191-27-10T | M27*2 | 16 | 10 | 56 | 5.5 | 55.5 | 32 |
20191-30-12D | M30*1.5 | 20 | 12 | 67.5 | 6 | 68.5 | 36 |
20191-30-12 | M30*2 | 20 | 12 | 67.5 | 6 | 68.5 | 36 |
20191-36-12T | M36*2 | 20 | 12 | 65.5 | 7 | 67 | 41 |
20191-36-14T | M36*2 | 22 | 14 | 71.2 | 7 | 69 | 41 |
20191-39-16T | M39*2 | 25 | 16 | 76.7 | 7 | 73.5 | 46 |
20191-45-20T | M45*2 | 32 | 20 | 91.5 | 8.5 | 85 | 55 |
20191-52-24T | M52*2 | 40 | 24 | 109.4 | 9 | 100 | 60 |

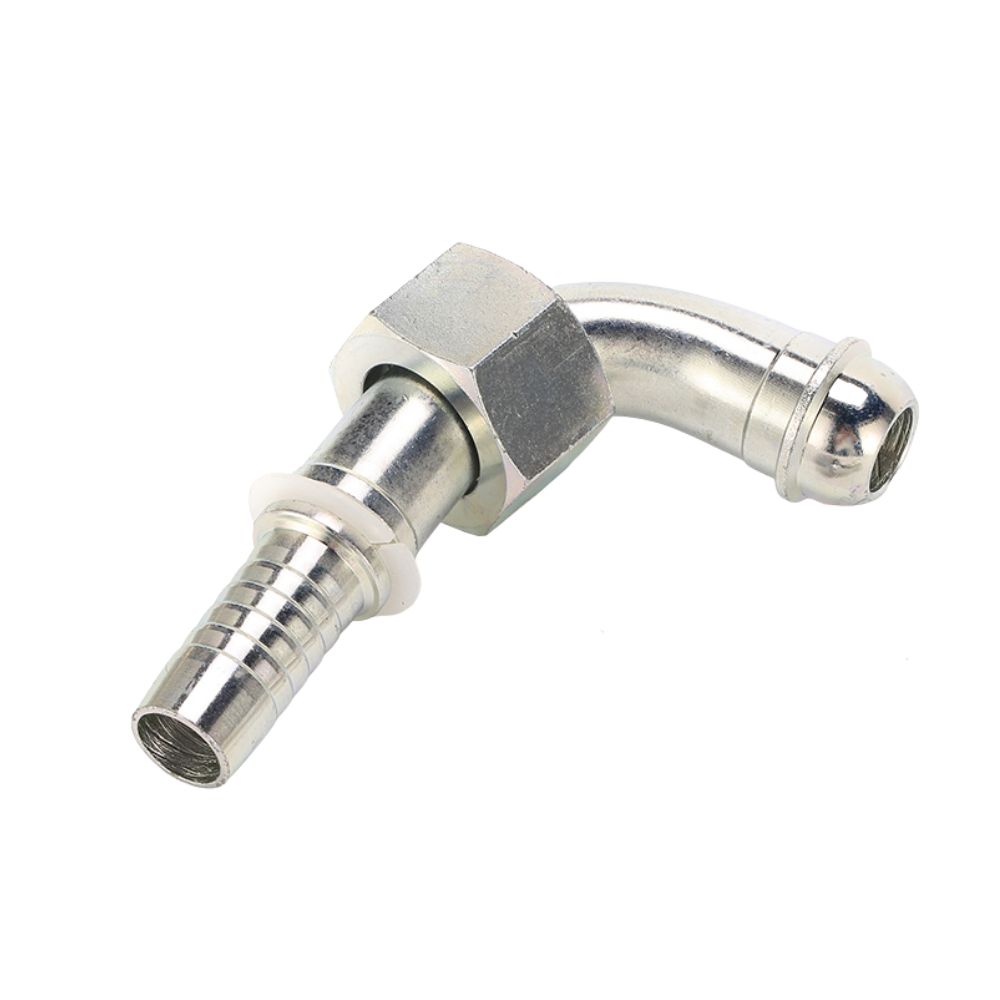

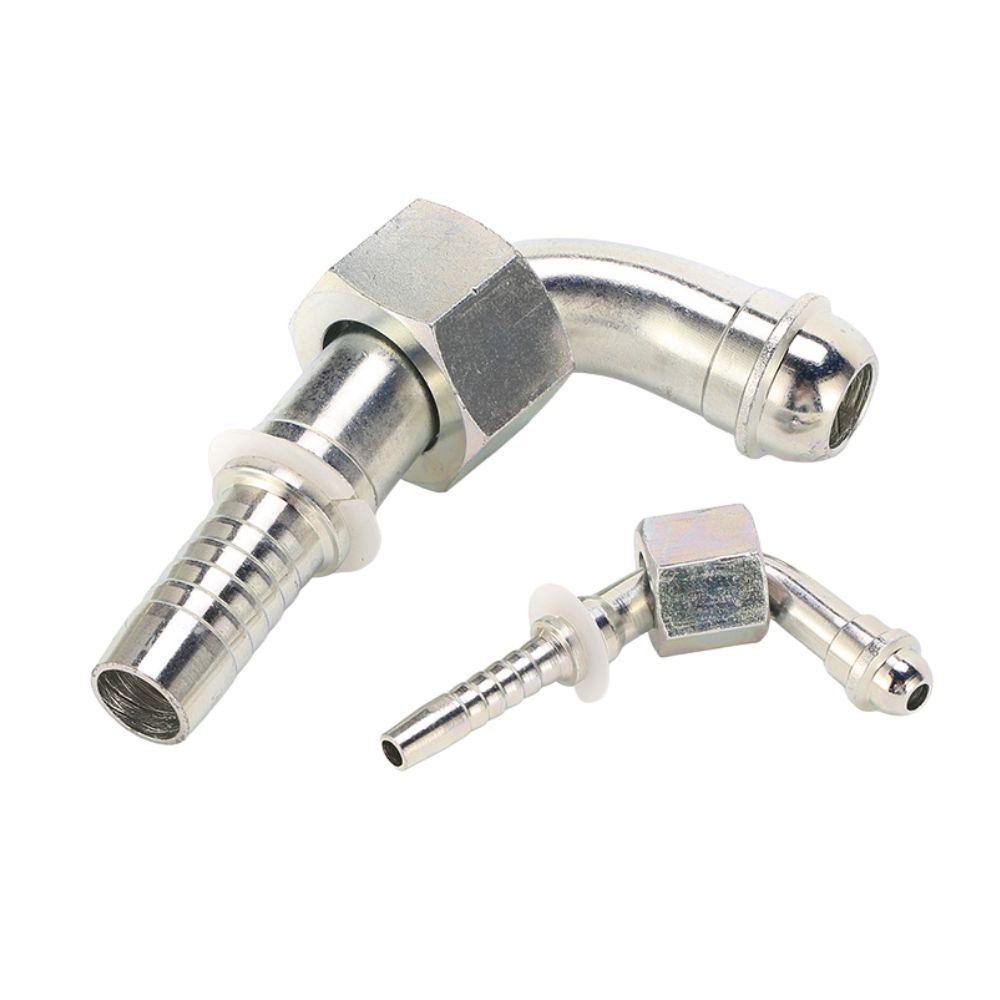

20191 90° Female Metric Multiseal Fitting Video
This video shows information about 20191 female metric multiseal fitting.
The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.
If you have any questions about hydraulic metric multiseal fittings, please contact us.
