Description

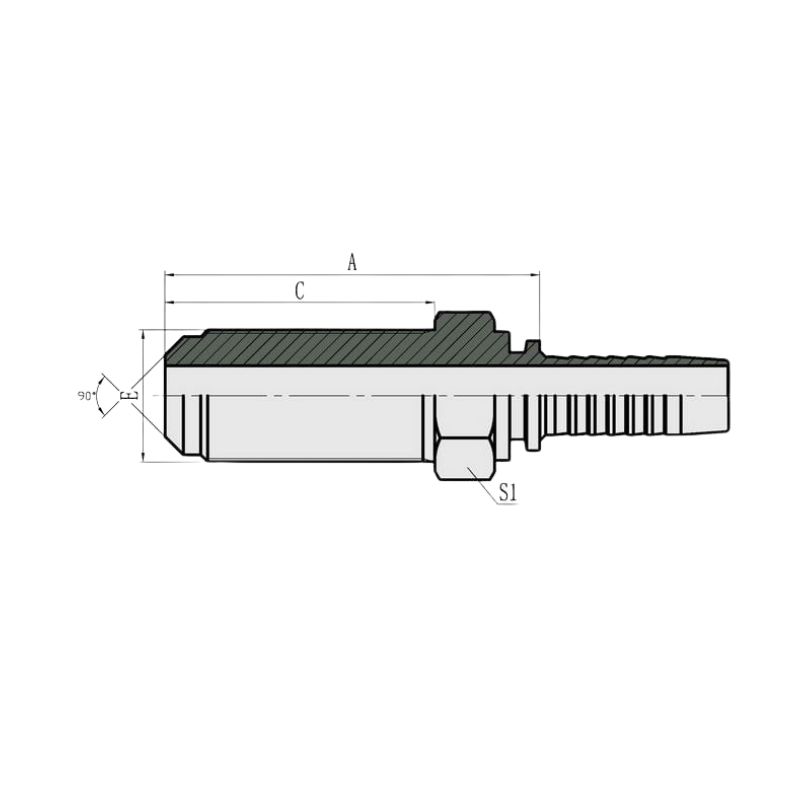

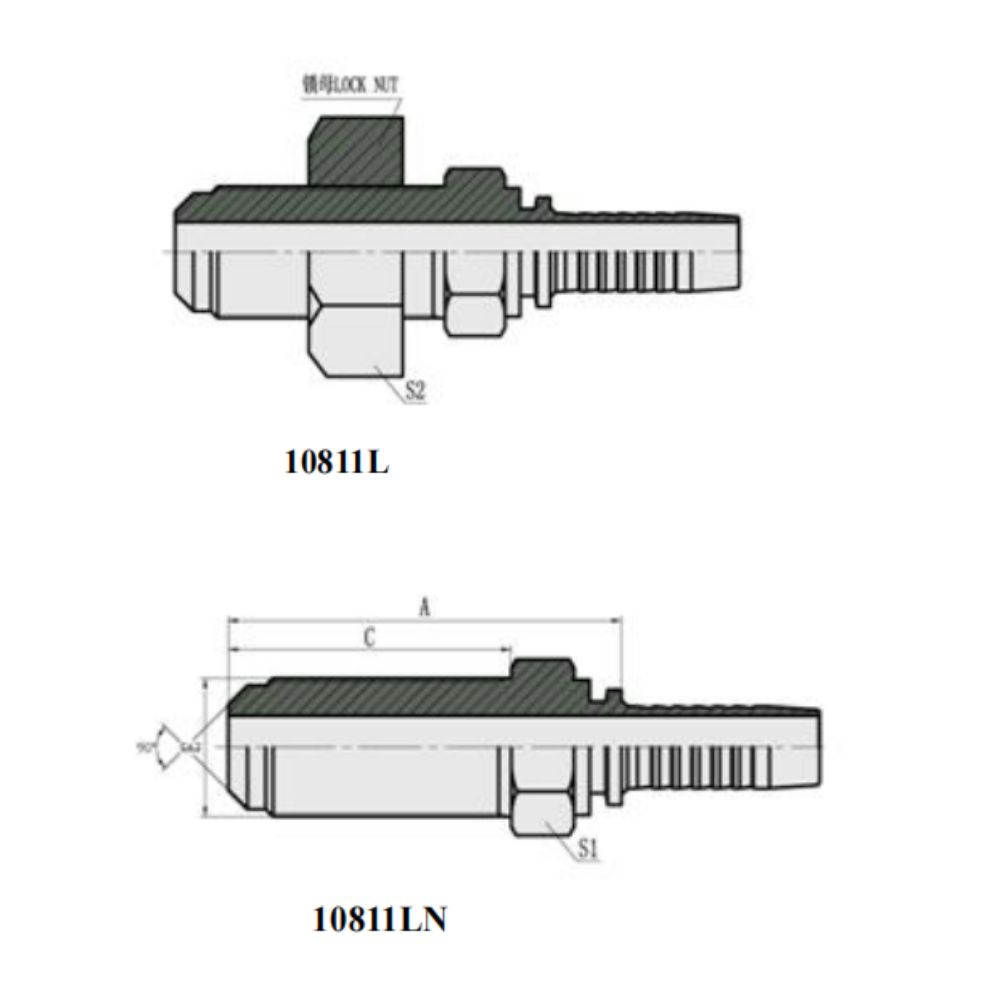

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
DN | DASH | A | C | H | S2 | ||
10811L-12-04 | M12*1.5 | 6 | 04 | 46 | 34 | 17 | 17 |
10811L-12-04A | M12*1 | 6 | 04 | 44.5 | 32.5 | 18 | 17 |
10811L-14-04 | M14*1.5 | 6 | 04 | 46 | 34 | 19 | 19 |
10811L-14-06 | M14*1.5 | 10 | 06 | 46.5 | 34 | 17 | 19 |
10811L-16-04 | M16*1.5 | 6 | 04 | 46.5 | 34 | 19 | 22 |
10811L-16-06 | M16*1.5 | 10 | 06 | 46.5 | 34 | 22 | 22 |
10811L-20-06 | M20*1.5 | 10 | 06 | 57 | 40 | 27 | 27 |
10811L-20-08 | M20*1.5 | 12 | 08 | 57.5 | 40 | 27 | 27 |
10811L-22-08 | M22*1.5 | 12 | 08 | 62.5 | 45 | 27 | 27 |

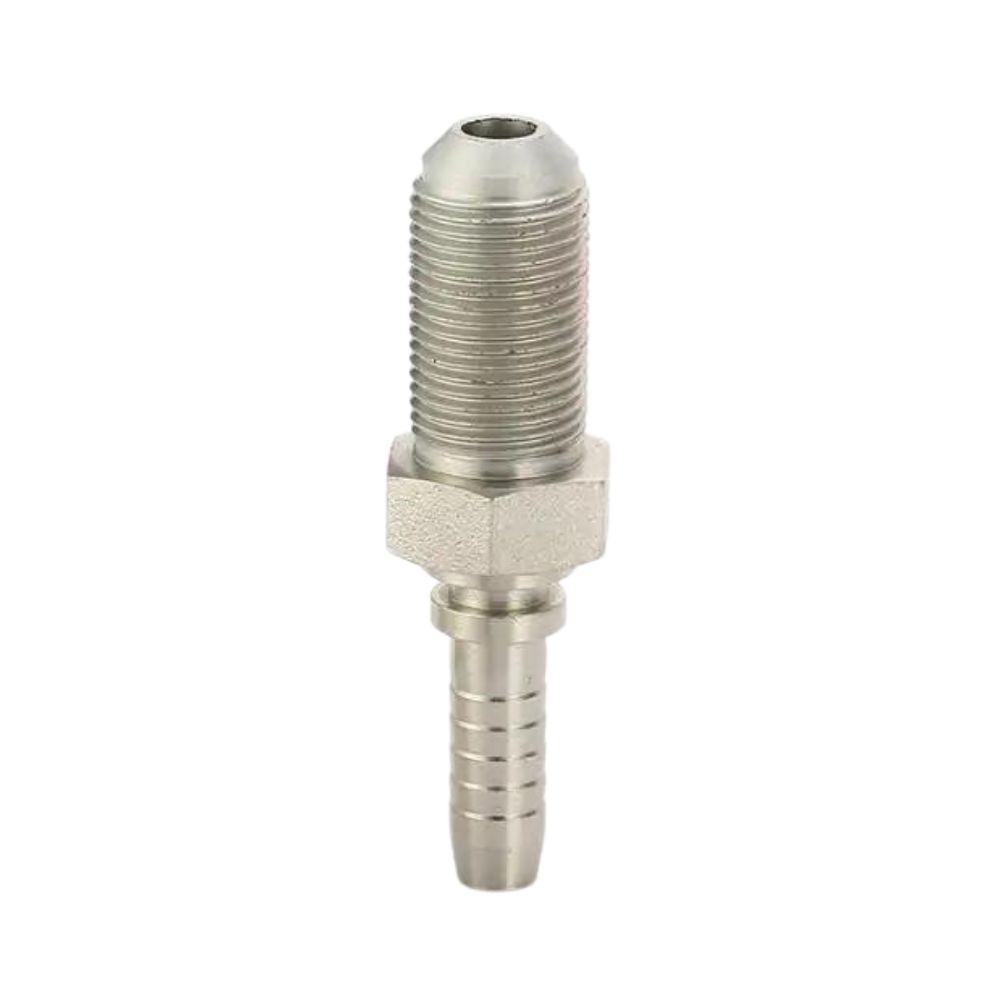

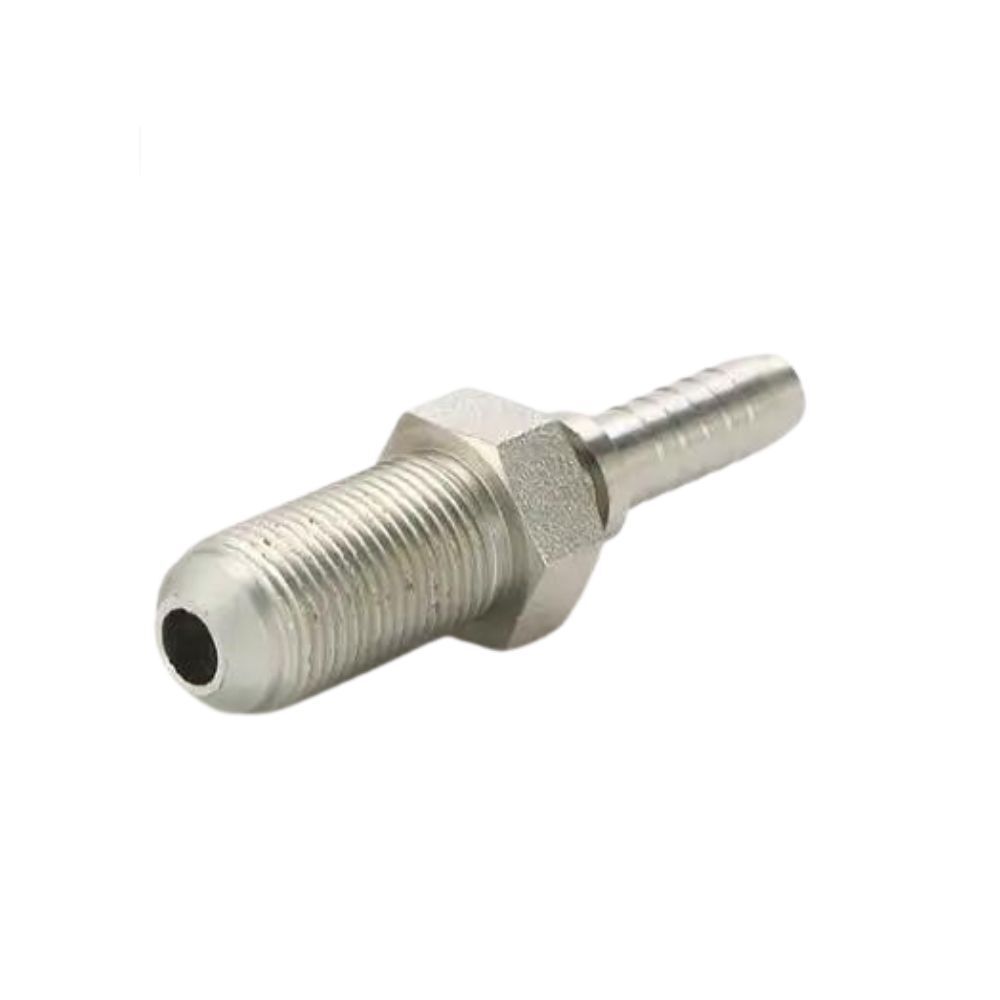

10811 Male 90° Cone Seat Metric Hose Connectors Video
This video shows information about 10811 90-degree cone seat metric hose connectors.
The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.
If you have any questions about metric hose fittings, please contact us.
