Metric Elbow Fitting

Description:

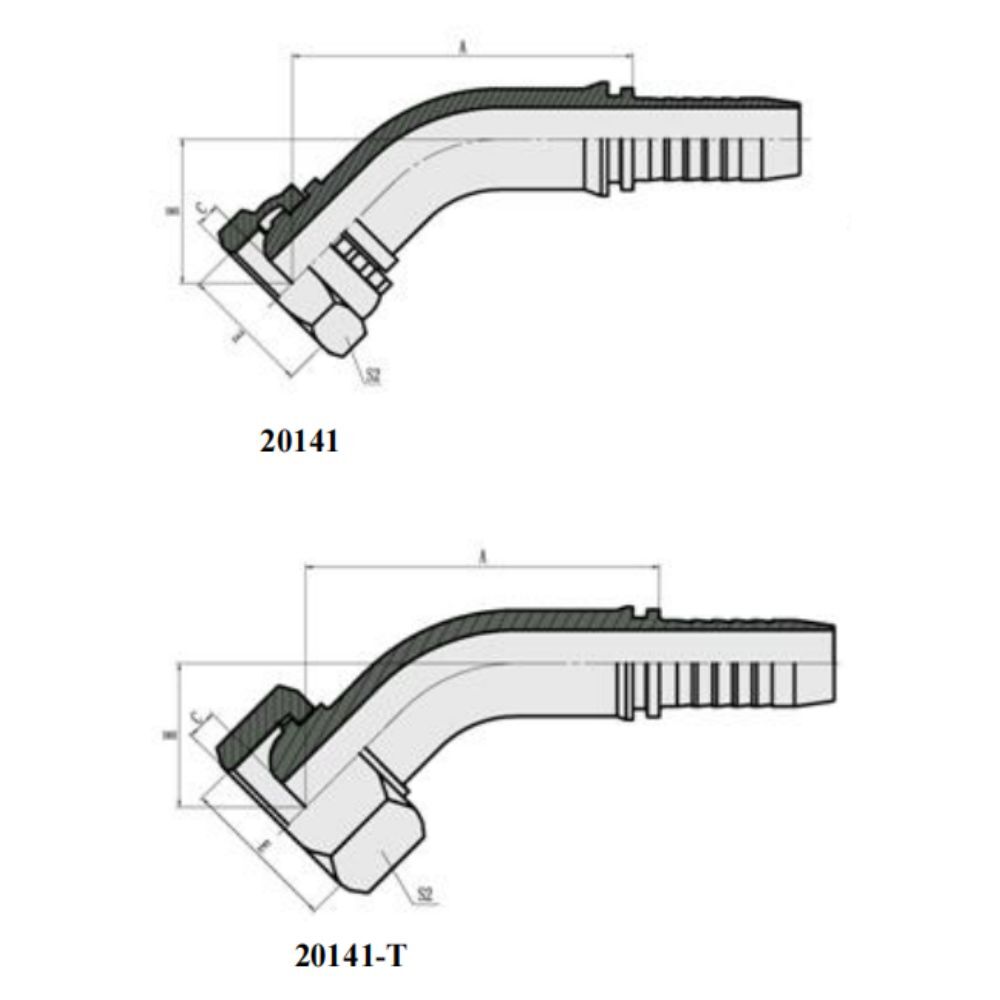

20141/20141-T 45-degree metric multiseal hose fitting has different types of seals that can create a strong seal to prevent leakage.

Female multi-seal metric hose fittings are designed to connect a hydraulic hose to a fluid system using a socket with multiple seals.

Feel free to ask if you have any questions about the metric female hydraulic fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize



Description

PART NO.

THREAD E

HOSE BORE

DIMENSIONS

DN

DASH

A

C

H

S2

20141-10-03

M10*1

5

03

41.1

2.5

20.7

14

20141-10-04

M10*1

6

04

43.2

2.5

21.5

14

20141-12-03

M12*1.5

5

03

40.9

4

21.2

17

20141-12-04

M12*1.5

6

04

43

4

22

17

20141-14-04

M14*1.5

6

04

43.4

4.5

21.3

19

20141-14-05

M14*1.5

8

05

45.5

4.5

22.2

19

20141-16-04

M16*1.5

6

04

43.7

4.5

21.4

22

20141-16-05

M16*1.5

8

05

45.8

4.5

22.5

22

20141-16-06

M16*1.5

10

06

47.4

4.5

24.1

22

20141-18-05T

M18*1.5

8

05

46.8

4

22.6

24

20141-18-06

M18*1.5

10

06

48.5

4

24.2

24

20141-18-08

M18*1.5

12

08

52.2

4

25.7

24

20141-20-06T

M20*1.5

10

06

48.2

5.5

23.9

27

20141-20-08

M20*1.5

12

08

62.1

5.5

27.2

27

20141-22-06T

M22*1.5

10

06

58.4

5

25.7

27

20141-22-08

M22*1.5

12

08

62.1

5

27.2

27

20141-24-08T

M24*1.5

12

08

61.1

5.5

26.1

30

20141-24-10

M24*1.5

16

10

75.4

5

29.6

30

20141-27-10DT

M27*1.5

16

10

74.4

5.5

29.6

32

20141-27-10T

M27*2

16

10

74.4

5.5

29.6

32

20141-30-12D

M30*1.5

20

12

80.9

6

33.5

36

20141-30-12

M30*2

20

12

80.9

6

33.5

36

20141-36-14T

M36*2

22

14

83

7

32.64

41

20141-39-16T

M39*2

25

16

88.2

7

33.95

46

20141-45-20T

M45*2

32

20

99.1

8.5

38.4

55

20141-52-24T

M52*2

40

24

114.1

9

43.4

60
