Metric Hose Connector

20791 Metric Hydraulic Fittings

Description:

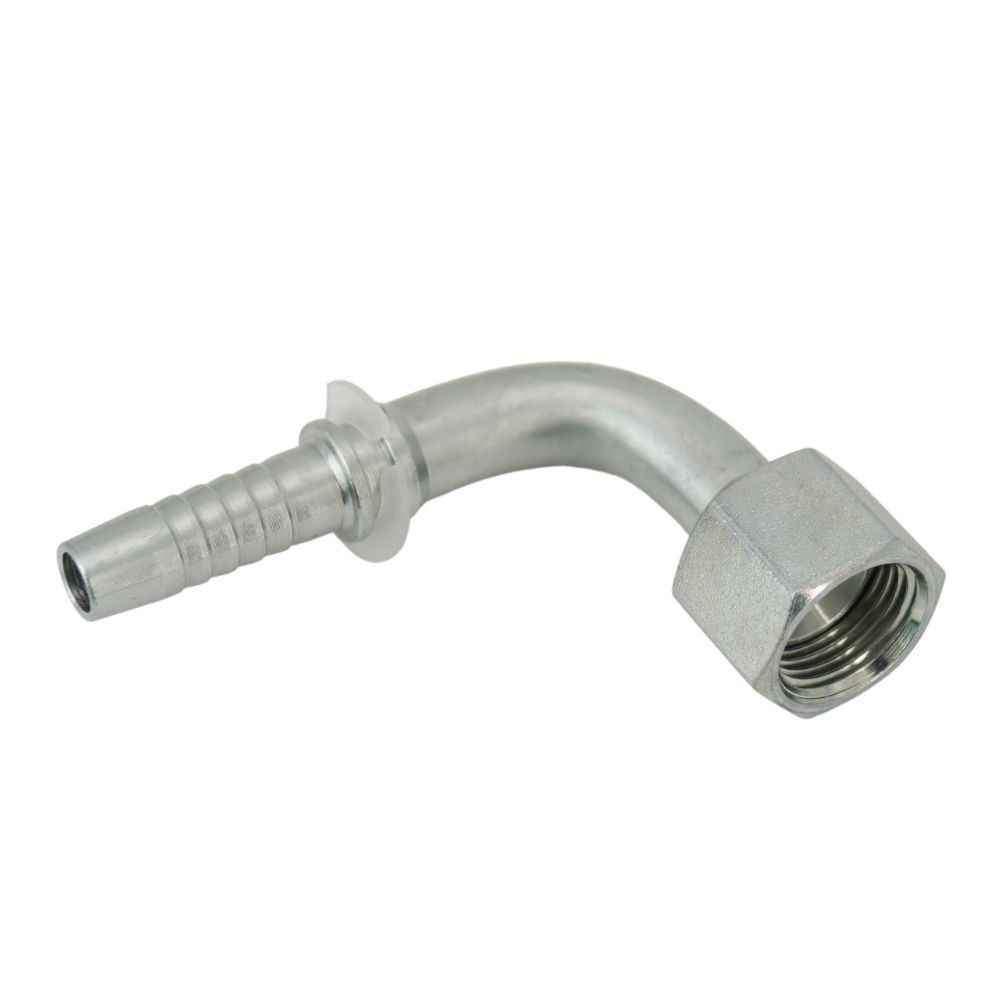

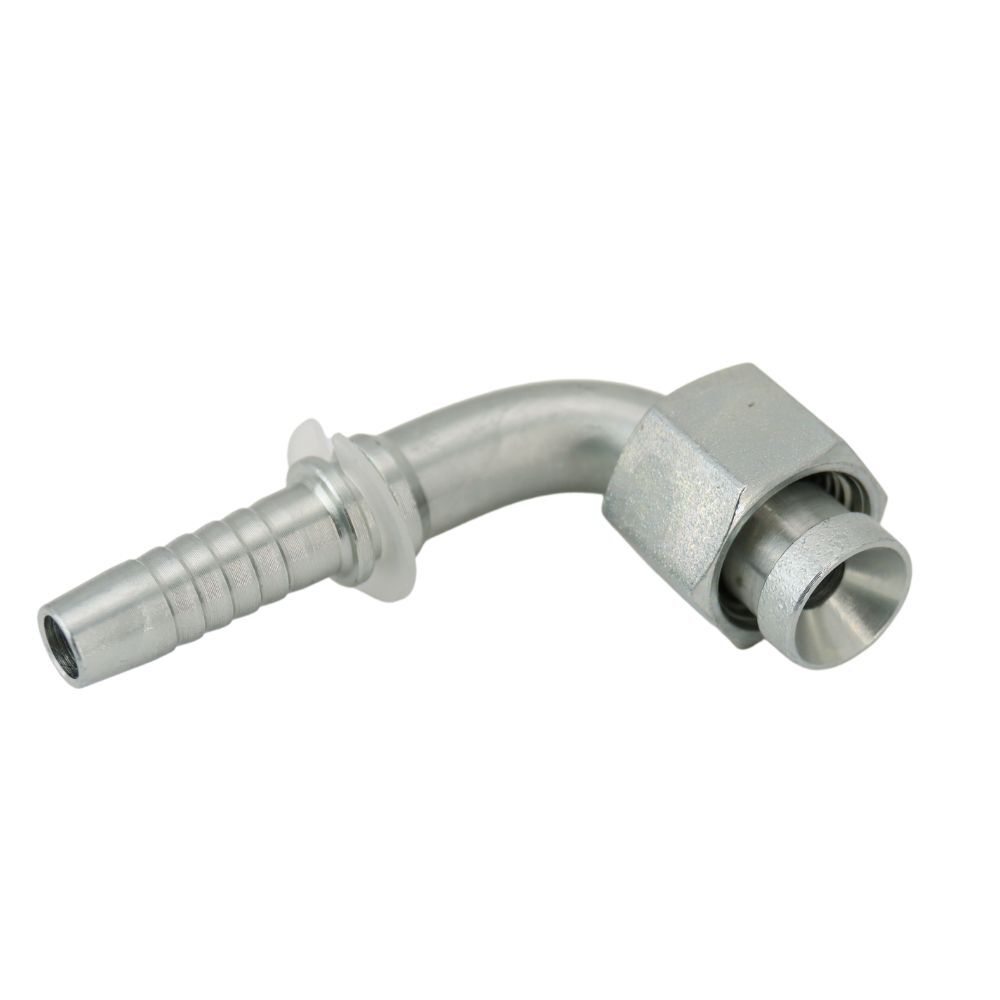

20791/20791-T GB metric 74-degree cone seat hose fitting is a type of hydraulic elbow fitting that is used to connect a hose to a tube or other component in a hydraulic system.

The 74° cone seat refers to the angle of the cone-shaped end of the fitting, which is designed to fit into a corresponding seat in the receiving component.

Feel free to ask if you have any questions about the metric female hydraulic fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

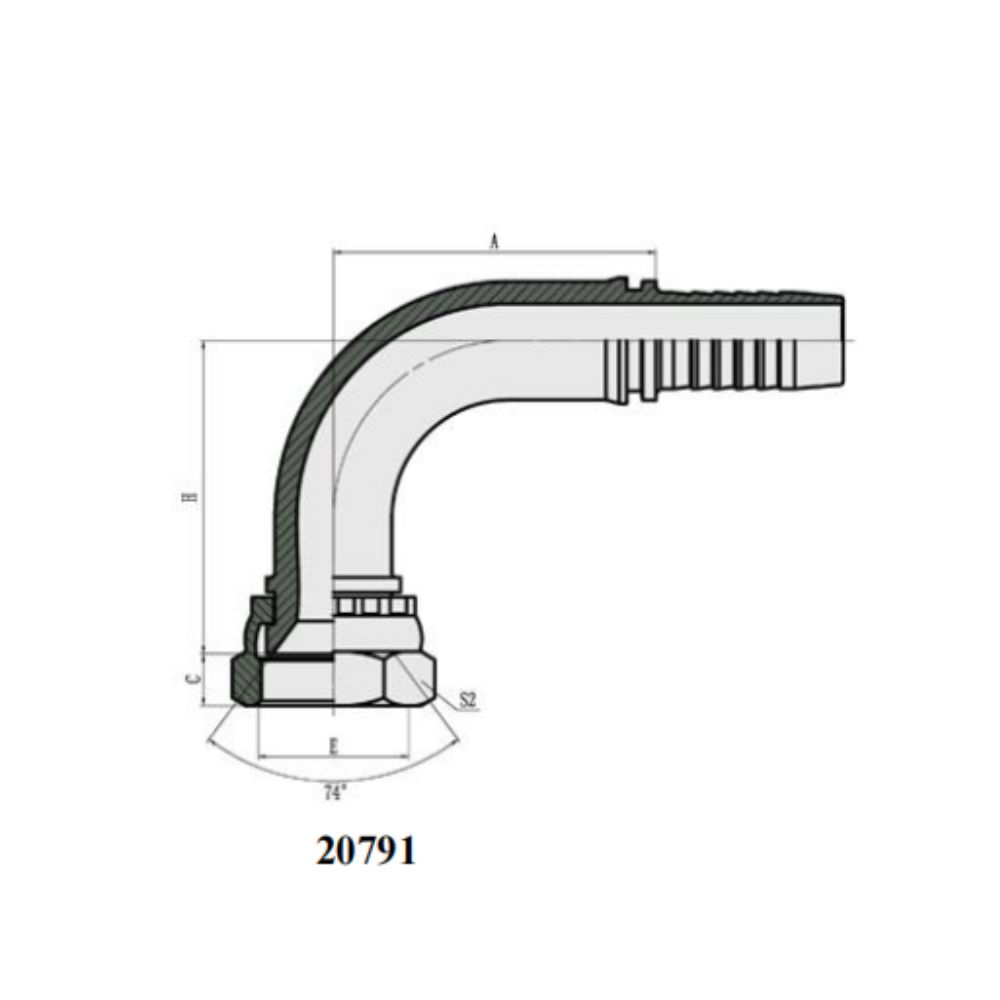

Description

PART NO.

THREAD E

HOSE BORE

DIMENSIONS

DN

DASH

A

C

H

S2

20791-12-04C

M12*1.5

6

04

30

9

33.5

17

20791-12-04

M12*1.5

6

04

30

10

33.5

17

20791-14-04

M14*1.5

6

04

30

8.5

34

19

20791-16-04

M16*1.5

6

04

30

8

35

22

20791-16-05

M16*1.5

8

05

34

8

38

22

20791-18-06

M18*1.5

10

06

35.3

10

41.3

24

20791-22-08

M22*1.5

12

08

41

10

48

27

20791-22-10

M22*1.5

16

10

56.5

10

52.5

27

20791-27-10

M27*1.5

16

10

56.5

11

54

32

20791-30-12

M30*1.5

20

12

66.2

11

63.5

36

20791-33-12

M33*2

20

12

65.5

13

63.5

41

20791-33-16

M33*2

25

16

76.7

13

69

41

20791-36-12

M36*2

20

12

65.5

14

63.5

41

20791-36-14

M36*2

22

14

71.2

14

64.5

41

20791-39-16

M39*2

25

16

76.7

14

70.5

46

20791-45-20W

M45*2

32

20

91.5

15

83

55

20791-52-20W

M52*2

32

20

93

17

84.5

60

20791-52-24W

M52*2

40

24

110.7

17

96.5

60



20791 90° Female 74° Cone Seat Metric Hose Connector Video

This video shows information about 20791 74-degree cone seat metric hose connector.

The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.

If you have any questions about metric hose fitting, please contact us.
