Description

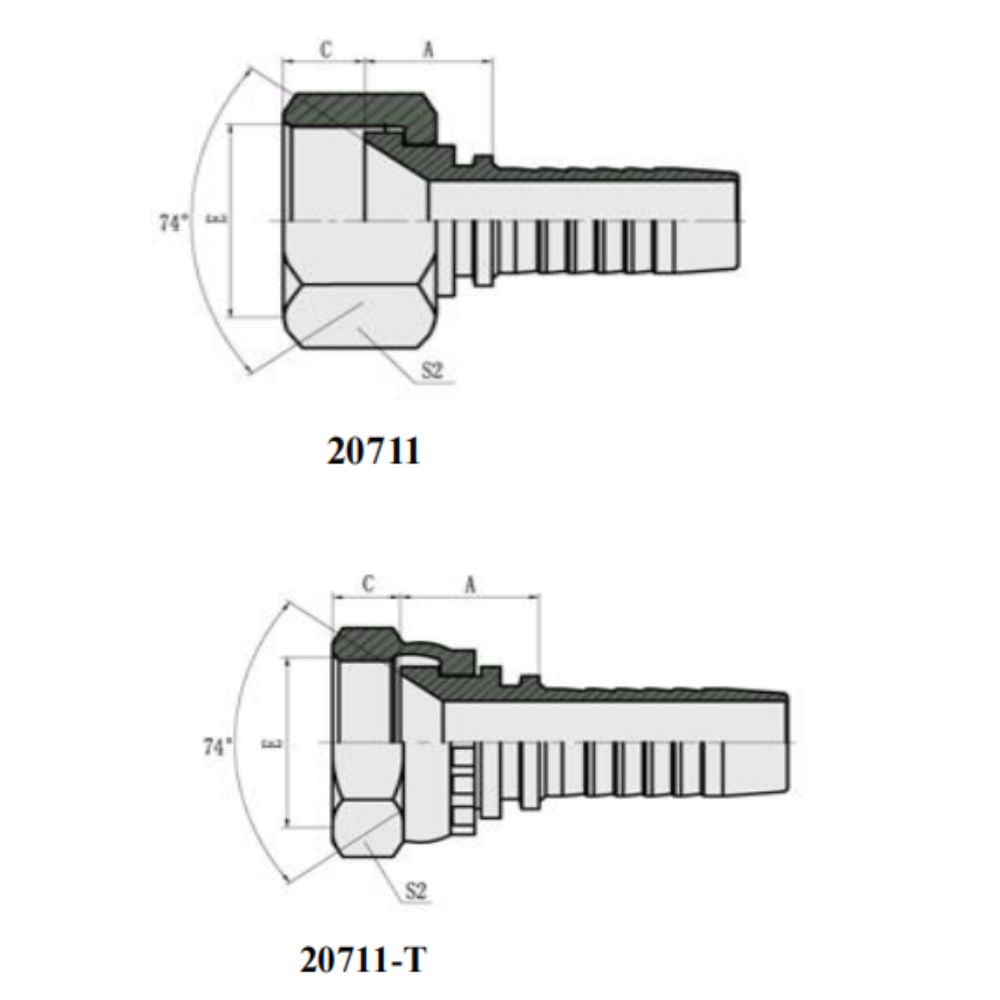

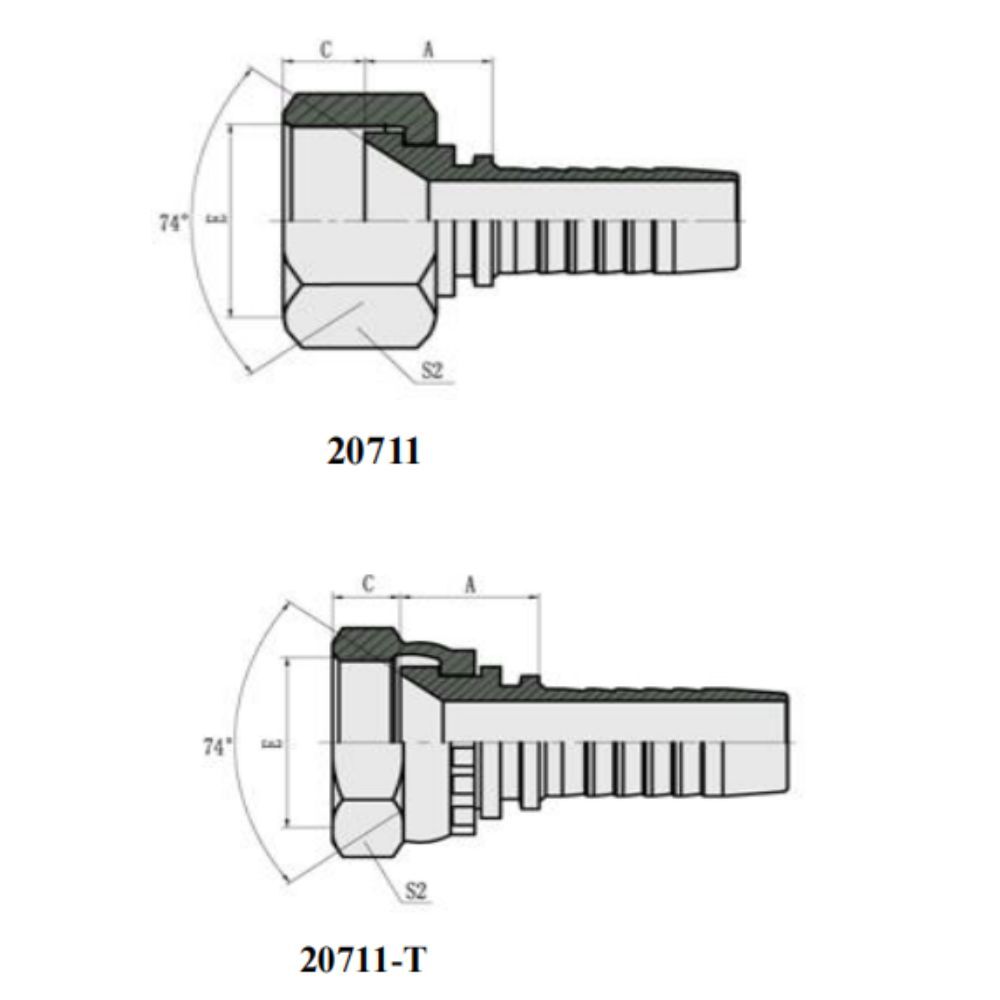

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | C | S2 | ||
20711-10-02 | M10*1 | 4 | 02 | 14 | 7.5 | 14 |
20711-12-04 | M12*1.5 | 6 | 04 | 14.5 | 10 | 17 |
20711-14-04 | M14*1.5 | 6 | 04 | 15.5 | 8.5 | 19 |
20711-14-05 | M14*1.5 | 8 | 05 | 15.5 | 8.5 | 19 |
20711-16-04 | M16*1.5 | 6 | 04 | 16.5 | 8 | 22 |
20711-16-06 | M16*1.5 | 10 | 06 | 16 | 8 | 22 |
20711-18-05T | M18*1.5 | 8 | 05 | 16 | 8 | 22 |
20711-18-06 | M18*1.5 | 10 | 06 | 17.5 | 10 | 24 |
20711-20-06T | M20*1.5 | 10 | 06 | 16 | 10 | 24 |
20711-20-08 | M20*1.5 | 12 | 08 | 18.5 | 10 | 27 |
20711-22-06T | M22*1.5 | 10 | 06 | 16 | 10 | 27 |
20711-22-08 | M22*1.5 | 12 | 08 | 18.5 | 10 | 27 |
20711-22-10 | M22*1.5 | 16 | 10 | 19.5 | 10 | 27 |
20711-24-08T | M24*1.5 | 12 | 08 | 16.5 | 11 | 30 |
20711-27-08T | M27*1.5 | 12 | 08 | 18.5 | 11 | 32 |
20711-27-10T | M27*1.5 | 16 | 10 | 19.5 | 11 | 32 |
20711-27-12 | M27*1.5 | 20 | 12 | 21.5 | 11 | 32 |
20711-30-10T | M30*1.5 | 16 | 10 | 18.5 | 11 | 36 |
20711-30-12 | M30*1.5 | 20 | 12 | 21.5 | 11 | 36 |
20711-33-10T | M33*2 | 22 | 10 | 20 | 13 | 41 |
20711-33-12T | M33*2 | 20 | 12 | 20 | 13 | 41 |
20711-36-12T | M36*2 | 20 | 12 | 20 | 14 | 41 |
20711-36-14T | M36*2 | 22 | 14 | 20 | 14 | 41 |
20711-36-16 | M36*2 | 25 | 16 | 23 | 14 | 41 |
20711-42-16T | M42*2 | 25 | 16 | 23.5 | 15 | 50 |
20711-42-20 | M42*2 | 32 | 20 | 26 | 15 | 50 |
20711-45-20T | M45*2 | 32 | 20 | 25 | 15 | 55 |
20711-52-24 | M52*2 | 40 | 24 | 25 | 17 | 60 |

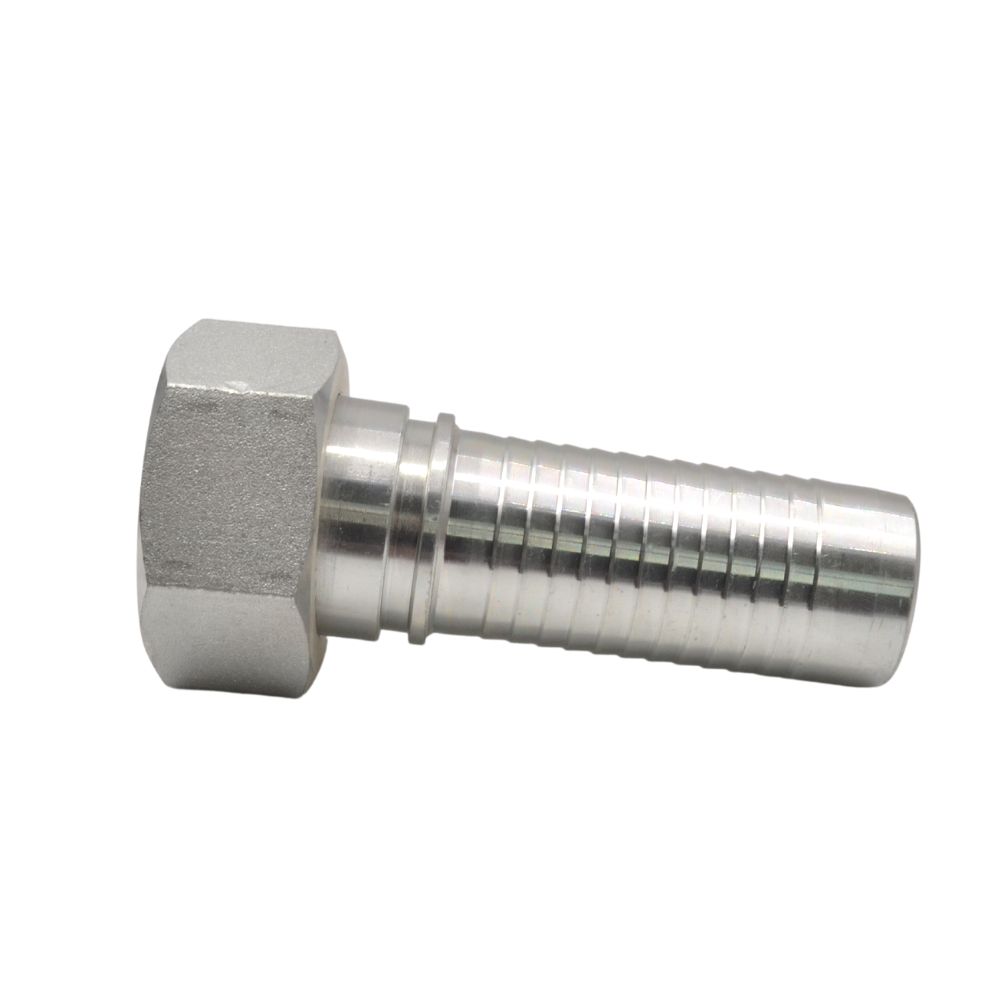

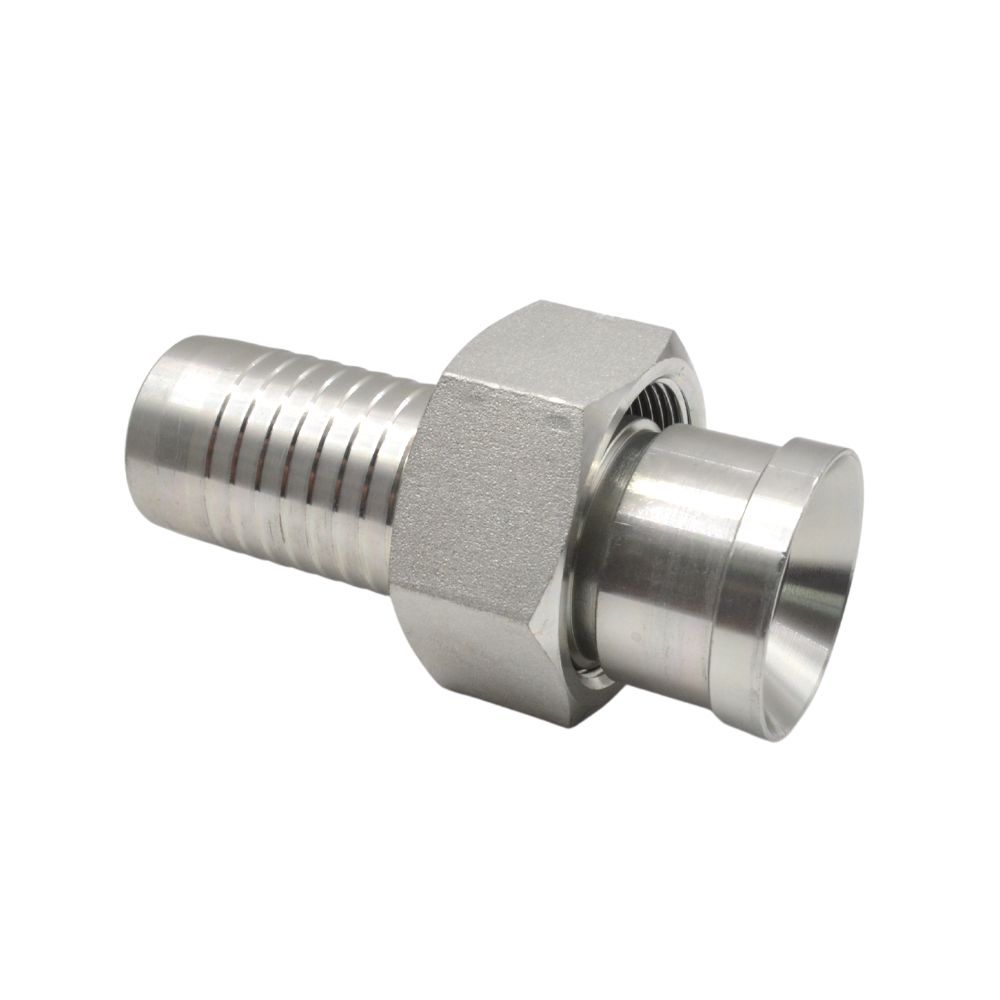

20711 74° Cone Seat Metric Female Hose Fittings Video
This video shows information about 20711 74-degree cone seat metric female hose fittings.
The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.
If you have any questions about metric fitting, please contact us.
