Metric Elbow Fittings

Description:

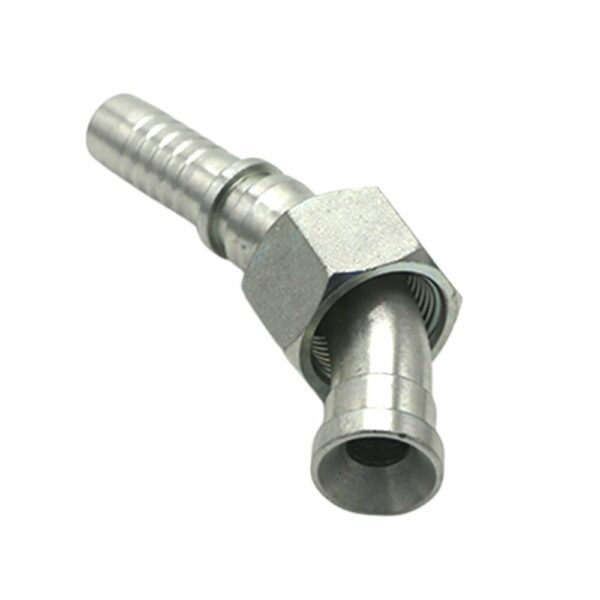

20741 GB metric 74-degree cone seat hose fitting is a type of hydraulic elbow fitting that is used to connect a hose to a tube or other component in a hydraulic system.

The 74° cone seat refers to the angle of the cone-shaped end of the fitting, which is designed to fit into a corresponding seat in the receiving component.

Feel free to ask if you have any questions about the metric female hydraulic fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

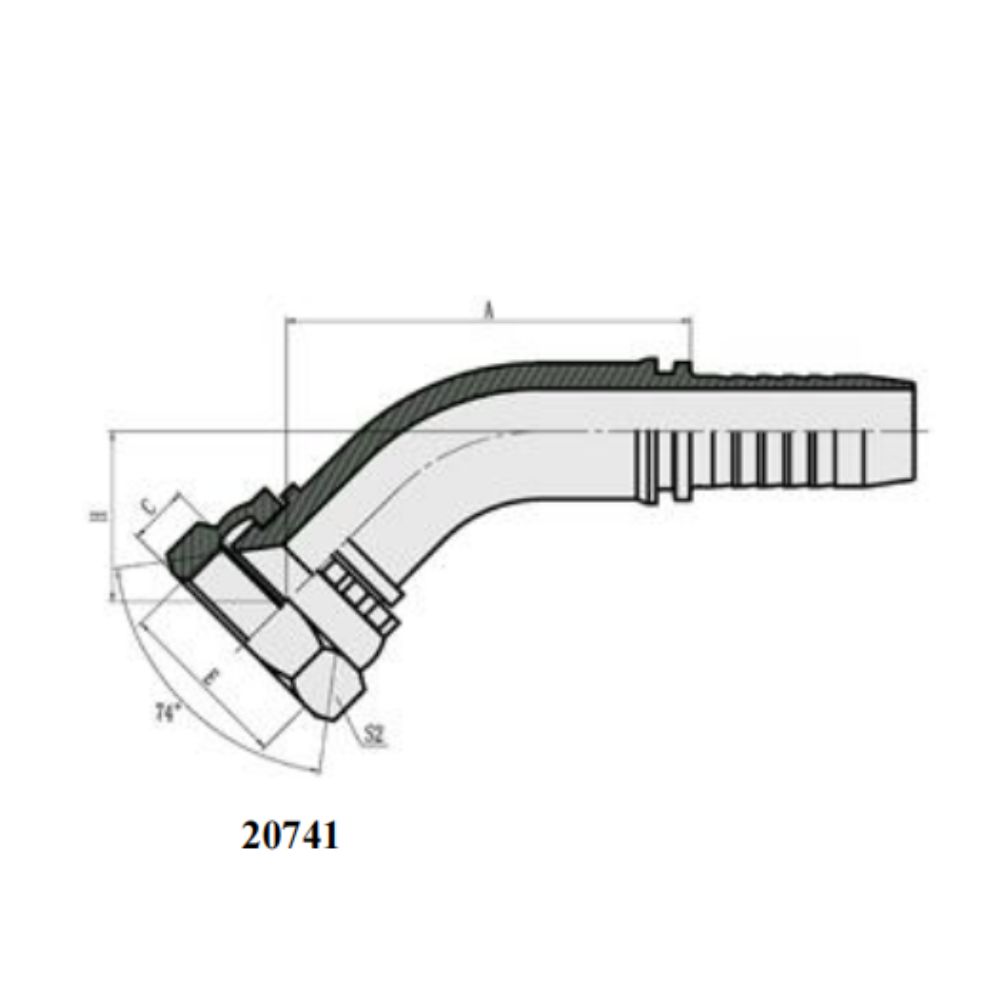

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	H	S2
20741-14-04	M14*1.5	6	04	40.5	8.5	18.5	19
20741-16-05	M16*1.5	8	05	44.4	8	20	22
20741-18-06	M18*1.5	10	06	45.7	10	21.4	24
20741-22-08	M22*1.5	12	08	58.9	10	24	27
20741-27-10	M27*1.5	16	10	71.2	11	26.4	32
20741-30-12	M30*1.5	20	12	78.1	11	30	36
20741-33-12	M33*2	20	12	77.4	13	30	41
20741-33-16	M33*2	25	16	85	13	30.8	41
20741-36-14	M36*2	22	14	79.8	14	29.6	41
20741-36-16	M36*2	25	16	85.7	14	31.5	41
20741-39-16	M39*2	25	16	86.1	14	31.8	46
20741-45-20W	M45*2	32	20	97	15	36.2	55
20741-52-24W	M52*2	40	24	112.9	17	40.9	60

20741 45° Female 74° Cone Seat Metric Elbow Fittings Video

This video shows information about 20741 74-degree cone seat metric elbow fittings.

The metric hydraulic fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems, industrial machinery, and construction equipment.

If you have any questions about metric fittings, please contact us.
