Metric Fitting Adapters

Description:

1EW metric o-ring pipe adapter has metric threads and the butt-welld, which can provides a secure and leak-free joint that can withstand high pressure and temperature conditions.

The male butt-weld fitting is typically used in industrial applications where precise and secure connections are required.

Feel free to ask any questions about the metric adapter.

Features and Benefits:

• Strong-seal
• Strength
• Easy to operate
• Customize

Description

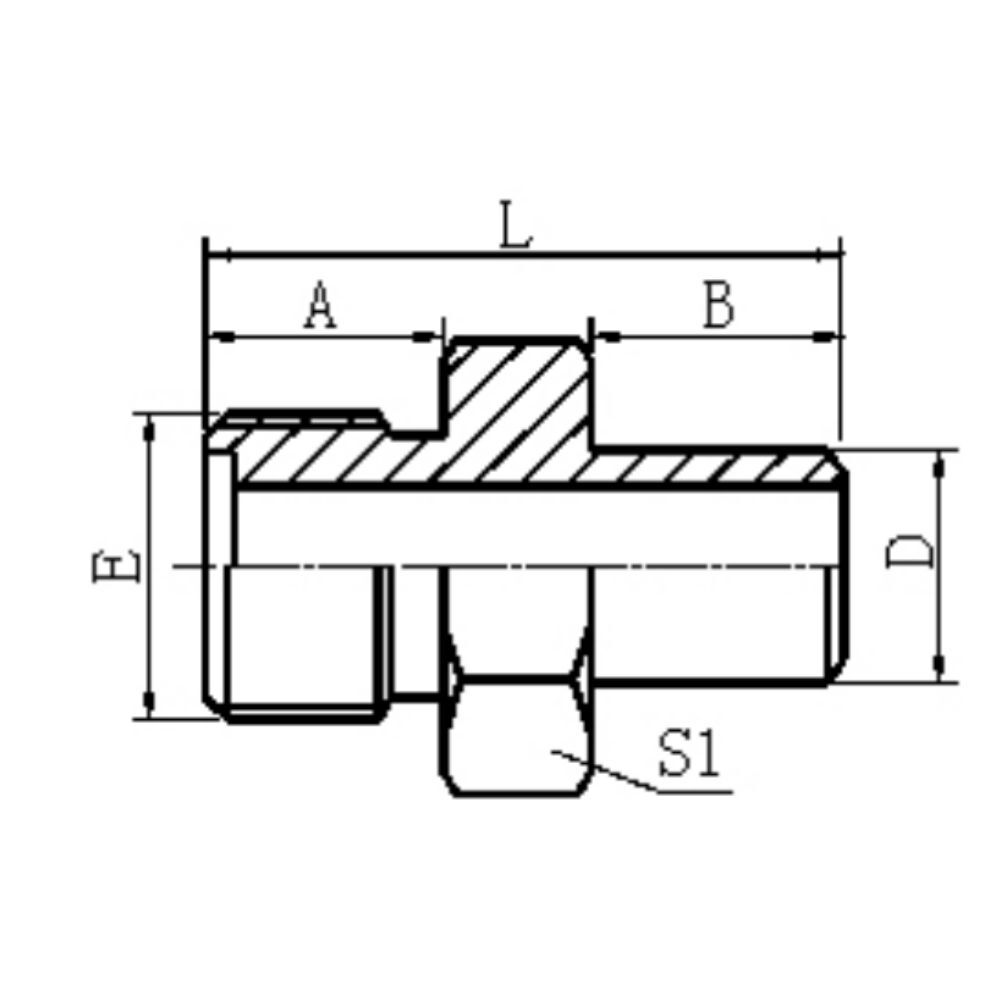

	THREAD	TUBE O.D.	O-RING	DIMENSIONS
PART NO.	E		E	A	B	D	L	S1
1EW-12-06	M12X1.25	6	8X1.9	11	8	6	24	14
1EW-14-08	M14X1.5	8	10X1.9	11	8	8	25	17
1EW-16-10	M16X1.5	10	11X1.9	11	8	10	25	17
1EW-18-12	M18X1.5	12	13X1.9	11	12	12	29	19
1EW-22-14	M22X1.5	14	16X2.4	12	12	14	32.5	24
1EW-27-18	M27X1.5	18	20X2.4	13	12	18	35	30
1EW-30-22	M30X1.5	22	24X2.4	14	14	22	39	32
1EW-36-28	M36X2	28	30X3.1	16	16	28	43	38
1EW-39-30	M39X2	30	32X3.1	18	16	30	47	41
1EW-42-34	M42X2	34	35X3.1	20	16	34	49	46
1EW-45-38	M45X2	38	38X3.1	21	18	38	51	46
1EW-52-42	M52X2	42	40X3.1	22	18	42	55	55

1EW O-ring Seal/Butt-weld Metric Fitting Adapters Video

This video shows information about the 1EW o-ring seal metric fitting adapters.

Hydraulic metric thread adaptors are commonly used in hydraulic and pneumatic systems, as well as in industrial applications where leak prevention is critical.

If you have any questions about metric adapter fittings, please contact us.
