Metric Compression Fittings

Description:

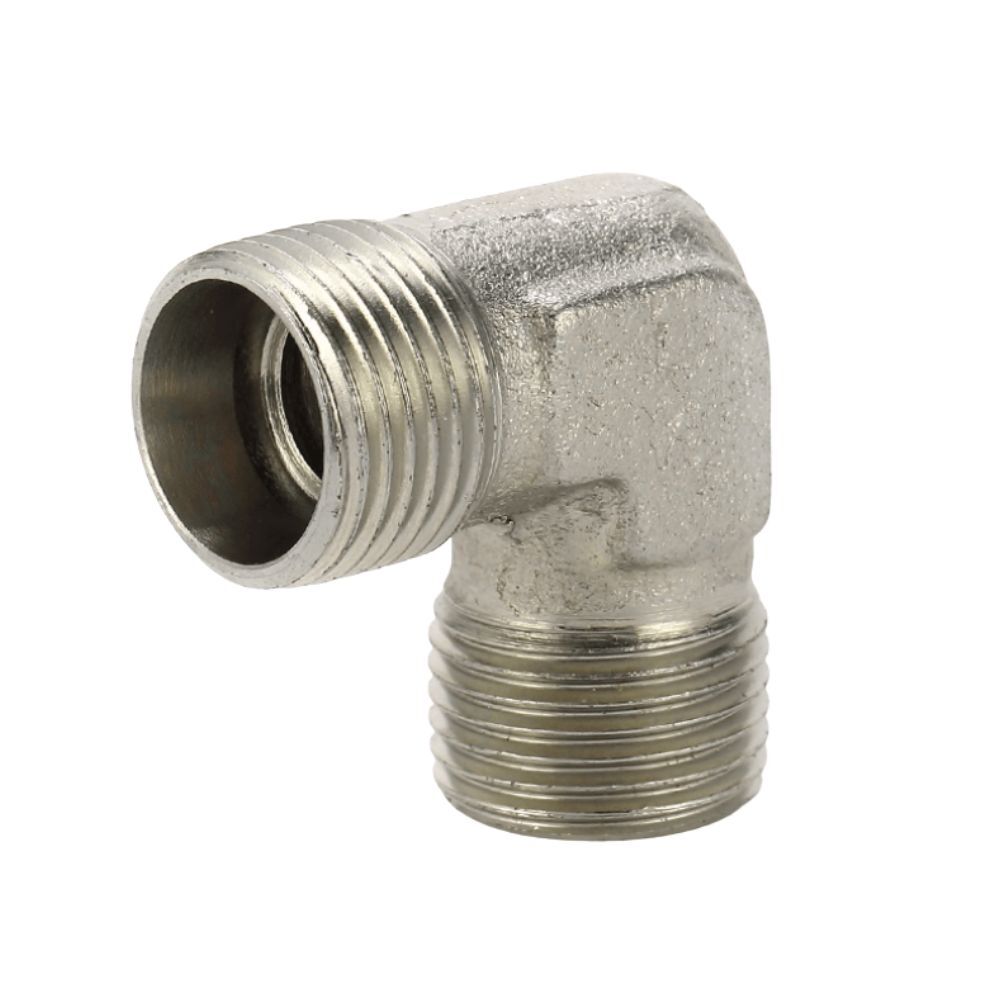

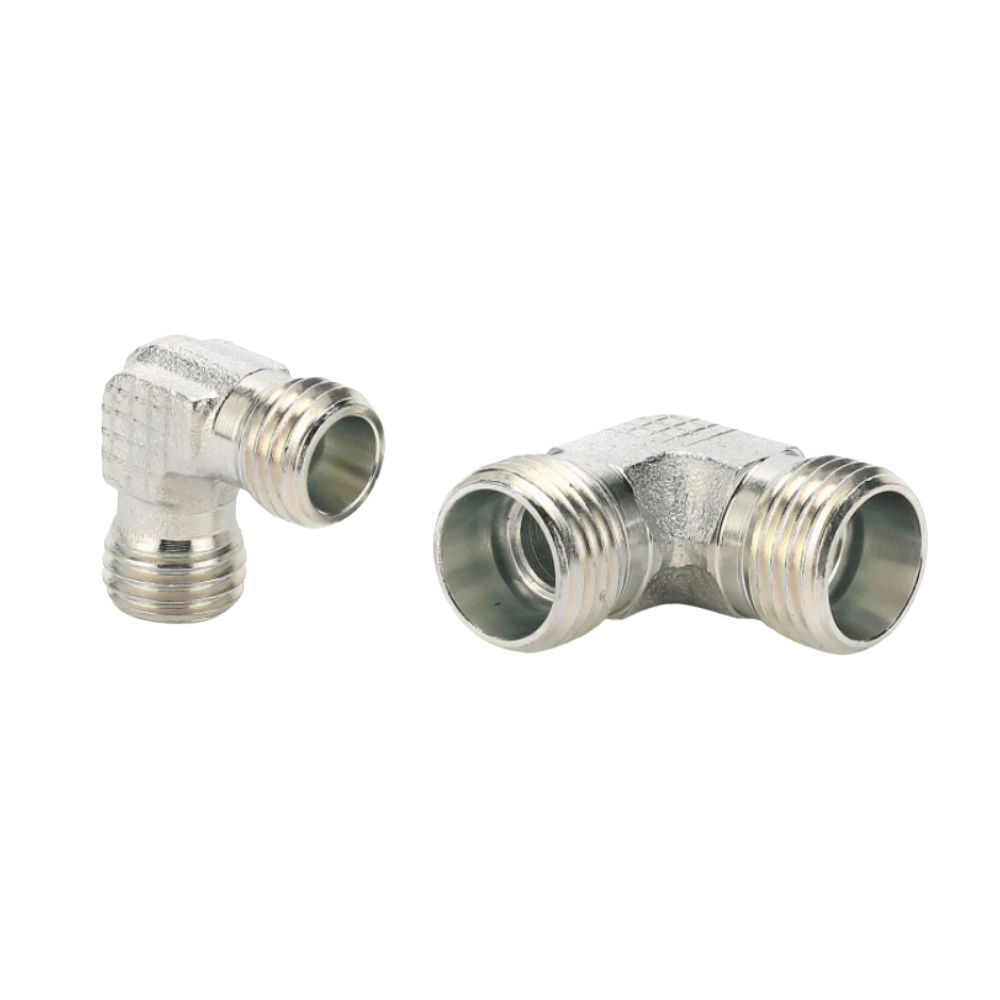

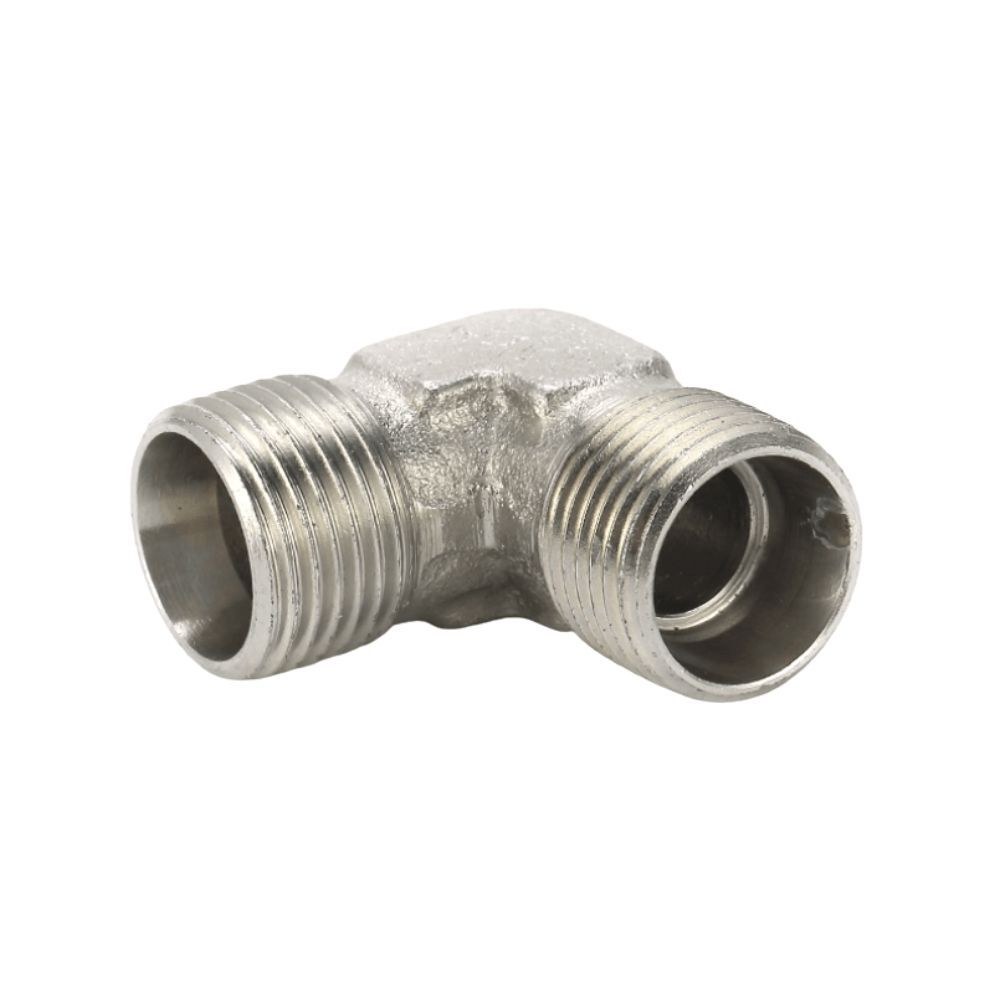

1C9/1D9 hydraulic metric compression fitting is a 90-degree elbow adaptor that has two male threads and compression nuts, and sleeves.

In addition, metric compression fittings are typically used in applications that require high-pressure and high-temperature resistance, making them suitable for industrial and commercial applications.

Feel free to ask any questions about the hydraulic metric adapters.

Features and Benefits:

• Strong-seal
• Strength
• Easy to maintain
• Customize



Description



 PART  NO.

THREAD

TUBE O.D

DIMENSIONS

T1

T2

D1D2

L1L2

L3L4

I1I2

S1

S2S3

L

1C9-12

M12X1.5

M12X1.5

06

19

27

12

12

14

1C9-14

M14X1.5

M14X1.5

08

21

29

14

12

17

1C9-16

M16X1.5

M16X1.5

10

22

30

15

14

19

1C9-18

M18X1.5

M18X1.5

12

24

32

17

17

22

1C9-22

M22X1.5

M22X1.5

15

28

36

21

19

27

1C9-26

M26X1.5

M26X1.5

18

31

40

23.5

24

32

1C9-30

M30X2

M30X2

22

35

44

27.5

27

36

1C9-36

M36X2

M36X2

28

38

47

30.5

36

41

1C9-45

M45X2

M45X2

35

45

56

34.5

41

50

1C9-52

M52X2

M52X2

42

51

63

40

50

60

S

1D9-14

M14X1.5

M14X1.5

06

23

31

16

12

17

1D9-16

M16X1.5

M16X1.5

08

24

32

17

14

19

1D9-18

M18X1.5

M18X1.5

10

25

34

17.5

17

22

1D9-20

M20X1.5

M20X1.5

12

29

38

21.5

17

24

1D9-22

M22X1.5

M22X1.5

14

30

40

22

19

27

1D9-24

M24X1.5

M24X1.5

16

33

43

24.5

24

30

1D9-30

M30X2

M30X2

20

37

48

26.5

27

36

1D9-36

M36X2

M36X2

25

42

54

30

36

46

1D9-42

M42X2

M42X2

30

49

62

35.5

41

50

1D9-52

M52X2

M52X2

38

57

72

41

50

60

1C9/1D9 90° Metric Compression Fittings Video

This video shows information about the 1C9/1D9 90° metric compression fittings.

Hydraulic compression adapters are versatile, and are suitable for hydraulic systems, plumbing system and different applications.

If you have any questions about metric hydraulic compression fittings, please contact us.
