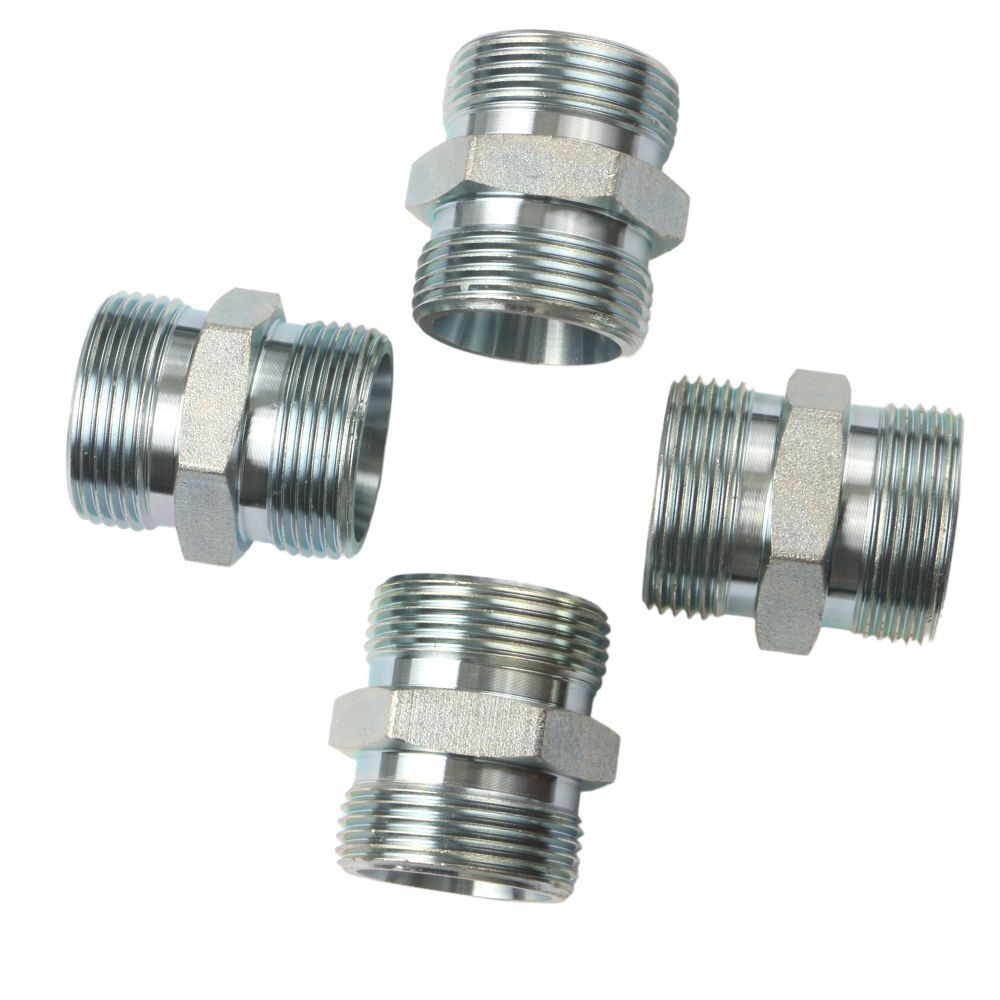

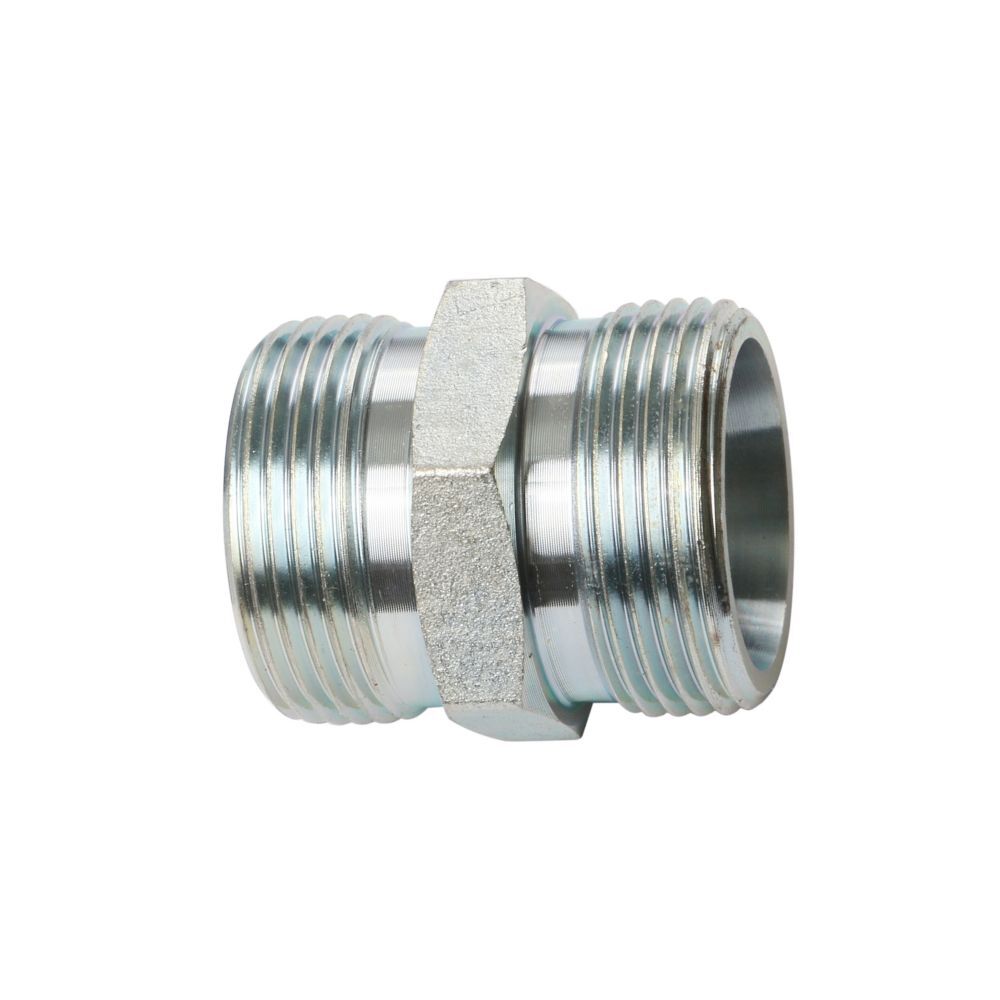

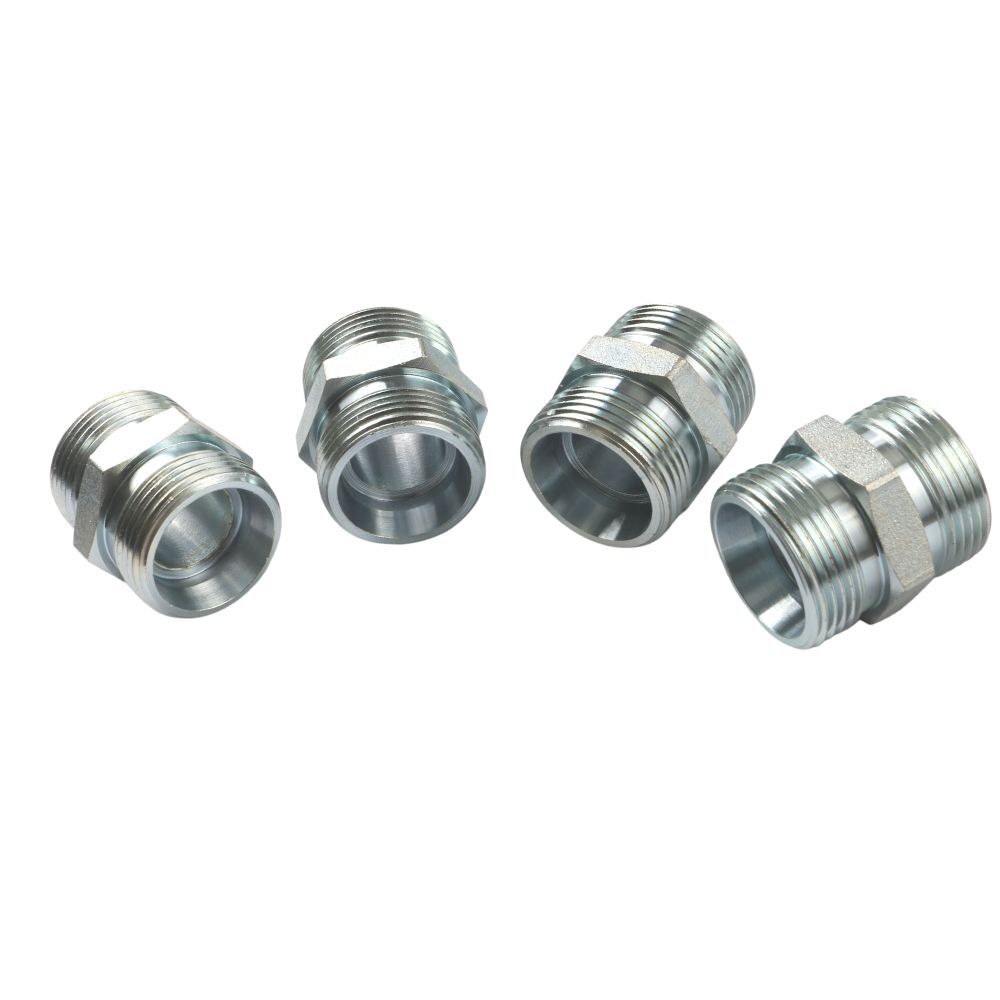

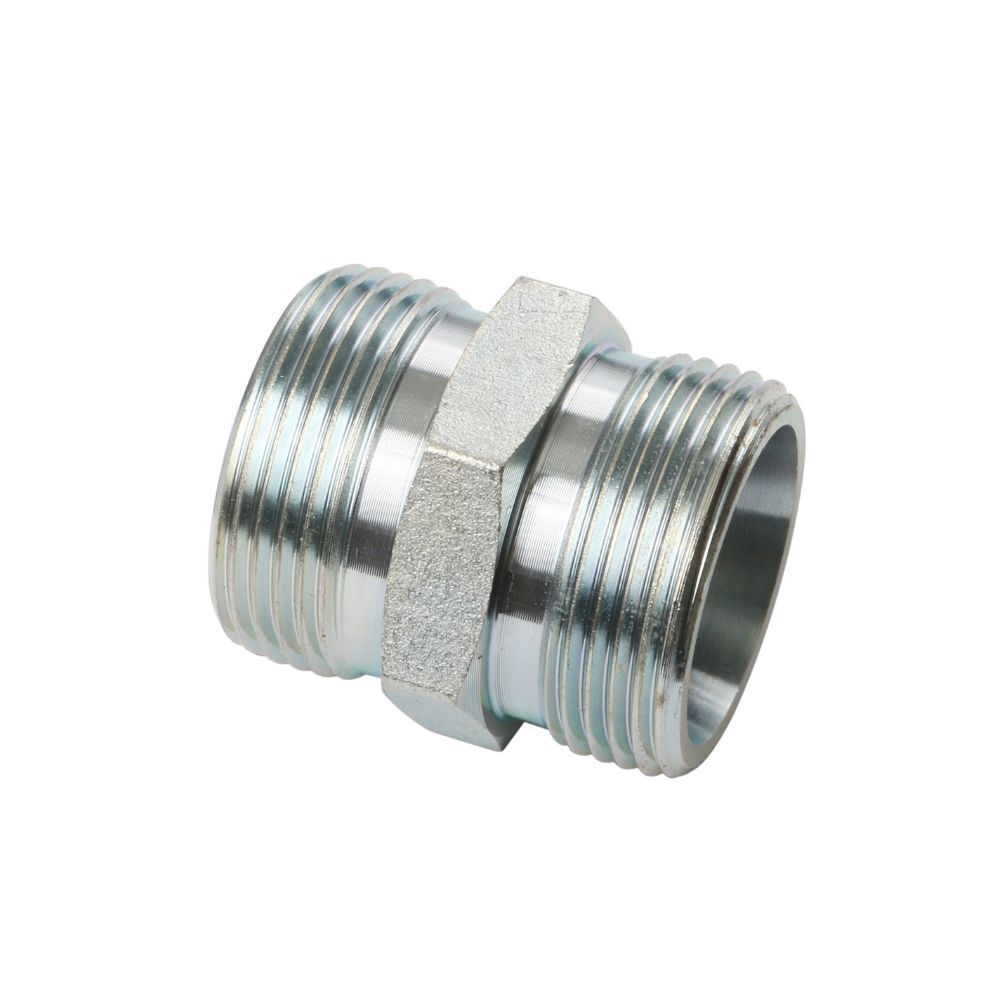

Description

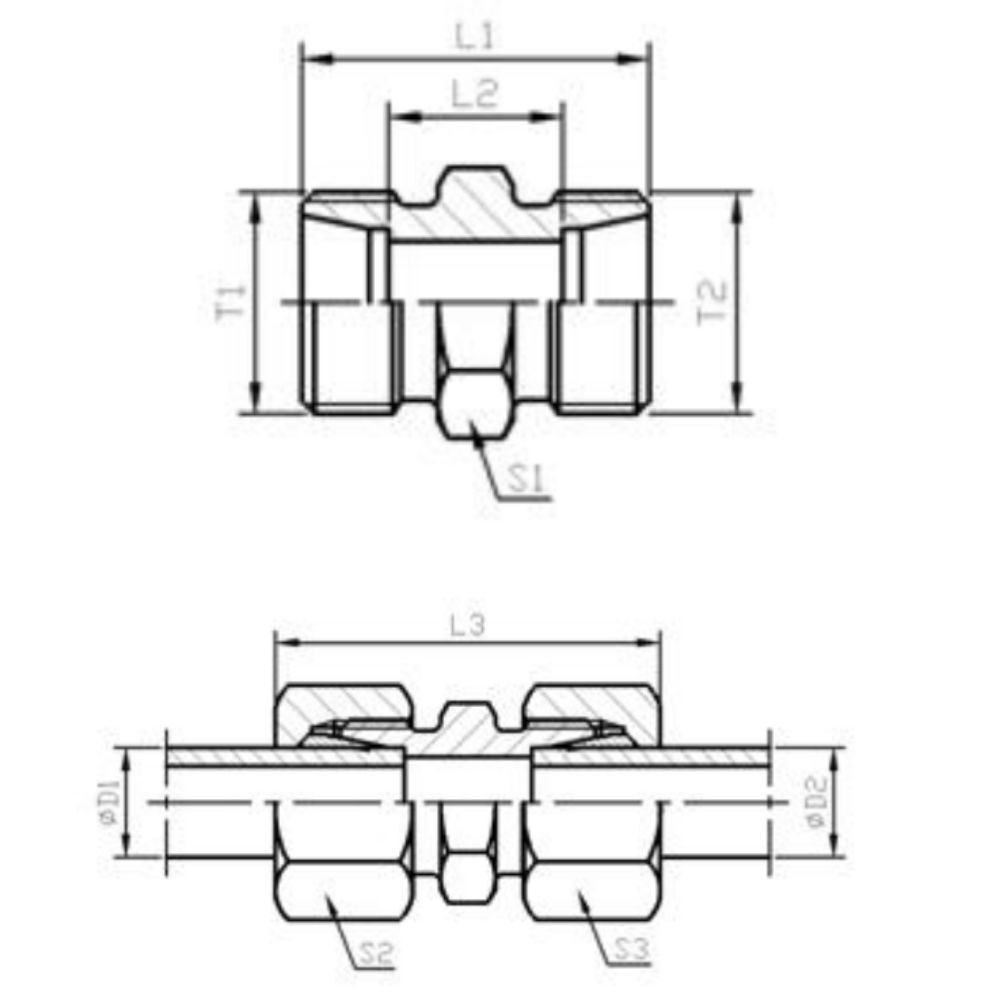

PART NO. | THREAD | TUBE O.D | DIMENSIONS | ||||||
T1 | T2 | D1、D2 | L1 | L2 | L3 | S1 | S2、S3 | ||
L | 1C-12 | M12X1.5 | M12X1.5 | 06 | 24 | 10 | 39 | 12 | 14 |
1C-14 | M14X1.5 | M14X1.5 | 08 | 25 | 11 | 40 | 14 | 17 | |
1C-16 | M16X1.5 | M16X1.5 | 10 | 27 | 13 | 42 | 17 | 19 | |
1C-18 | M18X1.5 | M18X1.5 | 12 | 28 | 14 | 43 | 19 | 22 | |
1C-22 | M22X1.5 | M22X1.5 | 15 | 30 | 16 | 46 | 24 | 27 | |
1C-26 | M26X1.5 | M26X1.5 | 18 | 31 | 16 | 48 | 27 | 32 | |
1C-30 | M30X2 | M30X2 | 22 | 35 | 20 | 52 | 32 | 36 | |
1C-36 | M36X2 | M36X2 | 28 | 36 | 21 | 54 | 41 | 41 | |
1C-45 | M45X2 | M45X2 | 35 | 41 | 20 | 63 | 46 | 50 | |
1C-52 | M52X2 | M52X2 | 42 | 43 | 21 | 66 | 55 | 60 | |
S | 1D-14 | M14X1.5 | M14X1.5 | 06 | 30 | 16 | 45 | 14 | 17 |
1D-16 | M16X1.5 | M16X1.5 | 08 | 32 | 18 | 47 | 17 | 19 | |
1D-18 | M18X1.5 | M18X1.5 | 10 | 32 | 17 | 49 | 19 | 22 | |
1D-20 | M20X1.5 | M20X1.5 | 12 | 34 | 19 | 51 | 22 | 24 | |
1D-22 | M22X1.5 | M22X1.5 | 14 | 38 | 22 | 57 | 24 | 27 | |
1D-24 | M24X1.5 | M24X1.5 | 16 | 38 | 21 | 57 | 27 | 30 | |
1D-30 | M30X2 | M30X2 | 20 | 44 | 23 | 66 | 32 | 36 | |
1D-36 | M36X2 | M36X2 | 25 | 50 | 26 | 74 | 41 | 46 | |
1D-42 | M42X2 | M42X2 | 30 | 54 | 27 | 80 | 46 | 50 | |
1D-52 | M52X2 | M52X2 | 38 | 61 | 29 | 90 | 55 | 60 | |
1C/1D Straight Metric Compression Fitting Video
This video shows information about the 1C/1D metric compression fitting.
Hydraulic compression adapter is versatile, and are suitable for hydraulic systems, plumbing system and different applications.
If you have any questions about metric adapter fittings, please contact us.
