Metric Banjo Fittings

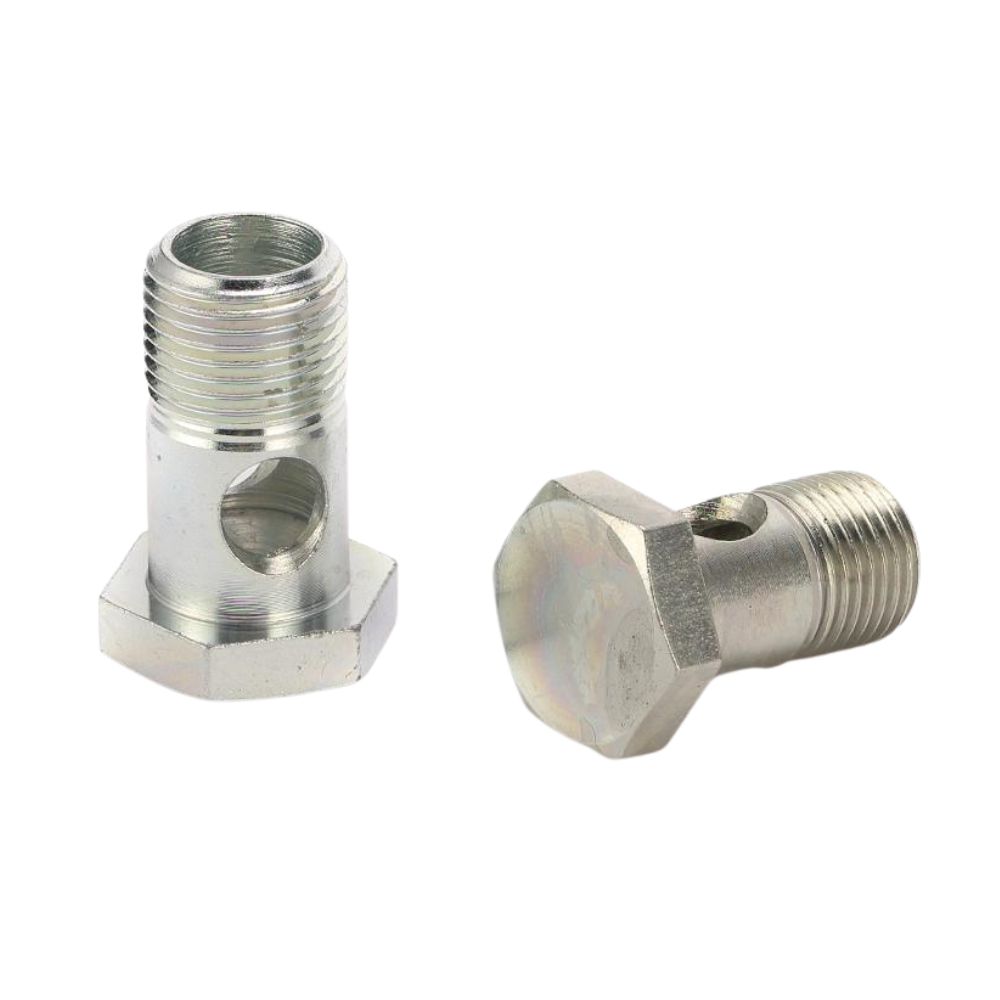

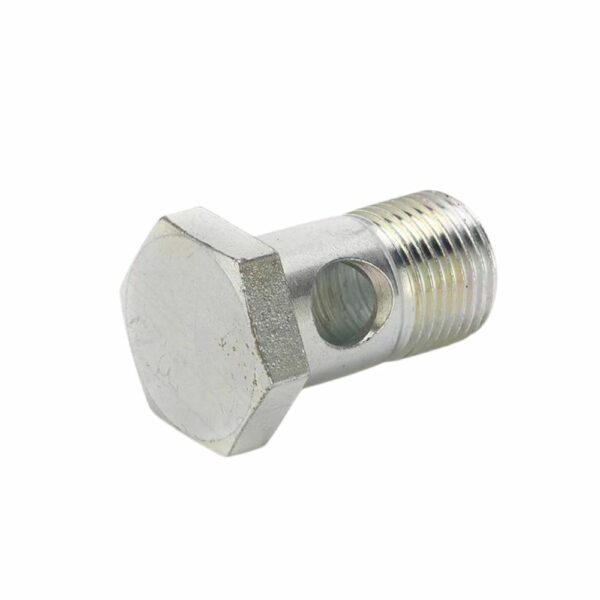

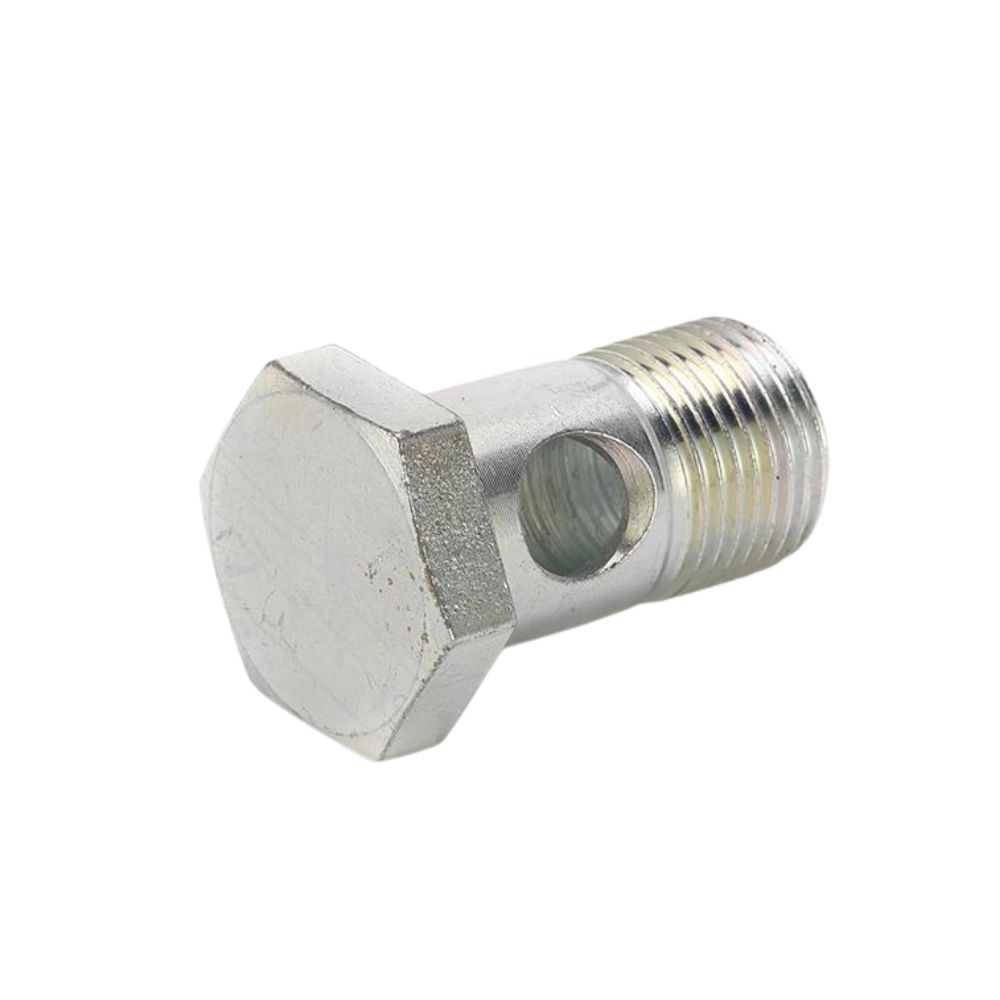

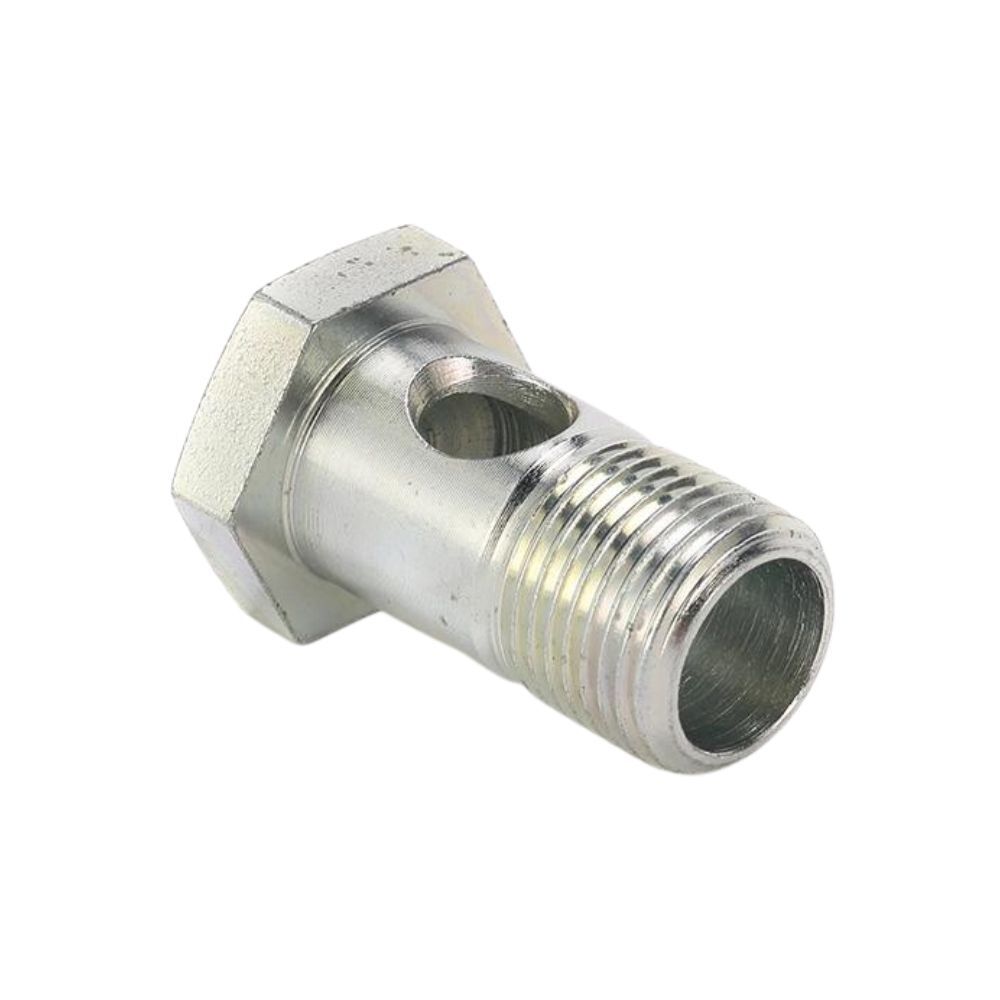

700M Metric Banjo Bolts

Description:

700M Metric Banjo bolt fitting is a type of hydraulic banjo bolt fitting commonly used in fluid power systems.

The end of the banjo bolt is designed to be used with a Banjo fitting, a type of hydraulic fitting containing a hole for the bolt to pass through.

Feel free to ask any questions about the banjo hydraulic fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Categories: Carbon steel, Hose fitting, Metric, Products Tags: Banjo, Carbon steel, hose fitting, Metric

Description

Description

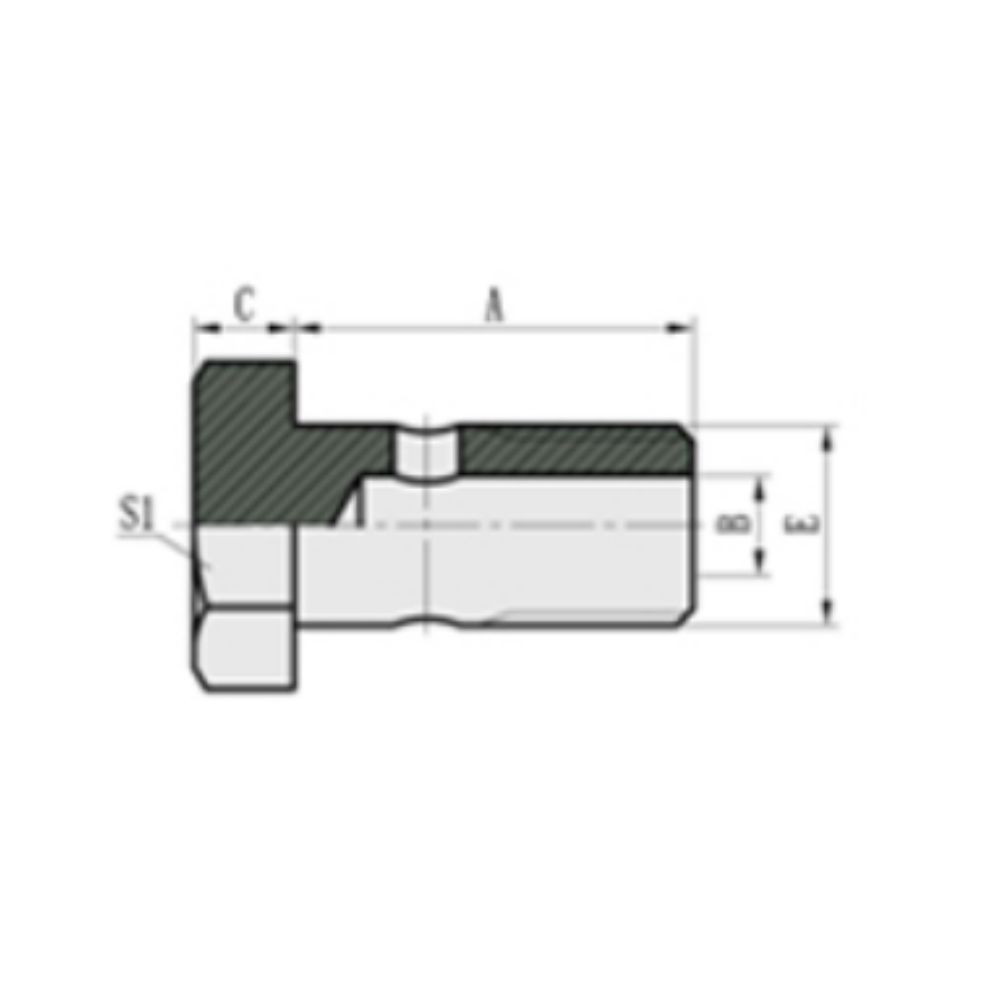

PART NO.	THREAD E	DIMENSIONS
PART NO.	THREAD E	A	B	C	S1
700M-10	M10*1	19	5.5	6	14
700M-12	M12*1.5	24	7	6	17
700M-14	M14*1.5	26	9	6	19
700M-16	M16*1.5	28	11	6	22
700M-18	M18*1.5	32	13	6	24
700M-22	M22*1.5	39	16	7	27
700M-26	M26*1.5	45	20	7	32
700M-30	M30*1.5	51	24	7	36

700M Metric Banjo Fittings Video

This video shows information about the 700M metric banjo fittings.

In addition, banjo bolt fittings are commonly used in applications where space is limited, such as in automotive brake systems or hydraulic power steering systems.

If you have any questions about hydraulic metric banjo fitting, please contact us.

Hot Sales

img:is([sizes="auto" i],[sizes^="auto," i]){contain-intrinsic-size:3000px 1500px;}img.wp-smiley,img.emoji{display:inline !important;border:none !important;box-shadow:none !important;height:1em !important;width:1em !important;margin:0 .07em !important;vertical-align:-.1em !important;background:none !important;padding:0 !important;}.wp-block-button__link{color:#fff;background-color:#32373c;border-radius:9999px;box-shadow:none;text-decoration:none;padding:calc(.667em + 2px) calc(1.333em + 2px);font-size:1.125em;}.wp-block-file__button{background:#32373c;color:#fff;text-decoration:none;}:root{--wp--preset--aspect-ratio--square:1;--wp--preset--aspect-ratio--4-3:4/3;--wp--preset--aspect-ratio--3-4:3/4;--wp--preset--aspect-ratio--3-2:3/2;--wp--preset--aspect-ratio--2-3:2/3;--wp--preset--aspect-ratio--16-9:16/9;--wp--preset--aspect-ratio--9-16:9/16;--wp--preset--color--black:#000;--wp--preset--color--cyan-bluish-gray:#abb8c3;--wp--preset--color--white:#fff;--wp--preset--color--pale-pink:#f78da7;--wp--preset--color--vivid-red:#cf2e2e;--wp--preset--color--luminous-vivid-orange:#ff6900;--wp--preset--color--luminous-vivid-amber:#fcb900;--wp--preset--color--light-green-cyan:#7bdcb5;--wp--preset--color--vivid-green-cyan:#00d084;--wp--preset--color--pale-cyan-blue:#8ed1fc;--wp--preset--color--vivid-cyan-blue:#0693e3;--wp--preset--color--vivid-purple:#9b51e0;--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple:linear-gradient(135deg,rgba(6,147,227,1) 0%,#9b51e0 100%);--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan:linear-gradient(135deg,#7adcb4 0%,#00d082 100%);--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange:linear-gradient(135deg,rgba(252,185,0,1) 0%,rgba(255,105,0,1) 100%);--wp--preset--gradient--luminous-vivid-orange-to-vivid-red:linear-gradient(135deg,rgba(255,105,0,1) 0%,#cf2e2e 100%);--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray:linear-gradient(135deg,#eee 0%,#a9b8c3 100%);--wp--preset--gradient--cool-to-warm-spectrum:linear-gradient(135deg,#4aeadc 0%,#9778d1 20%,#cf2aba 40%,#ee2c82 60%,#fb6962 80%,#fef84c 100%);--wp--preset--gradient--blush-light-purple:linear-gradient(135deg,#ffceec 0%,#9896f0 100%);--wp--preset--gradient--blush-bordeaux:linear-gradient(135deg,#fecda5 0%,#fe2d2d 50%,#6b003e 100%);--wp--preset--gradient--luminous-dusk:linear-gradient(135deg,#ffcb70 0%,#c751c0 50%,#4158d0 100%);--wp--preset--gradient--pale-ocean:linear-gradient(135deg,#fff5cb 0%,#b6e3d4 50%,#33a7b5 100%);--wp--preset--gradient--electric-grass:linear-gradient(135deg,#caf880 0%,#71ce7e 100%);--wp--preset--gradient--midnight:linear-gradient(135deg,#020381 0%,#2874fc 100%);--wp--preset--font-size--small:13px;--wp--preset--font-size--medium:20px;--wp--preset--font-size--large:36px;--wp--preset--font-size--x-large:42px;--wp--preset--font-family--inter:"Inter",sans-serif;--wp--preset--font-family--cardo:Cardo;--wp--preset--spacing--20:.44rem;--wp--preset--spacing--30:.67rem;--wp--preset--spacing--40:1rem;--wp--preset--spacing--50:1.5rem;--wp--preset--spacing--60:2.25rem;--wp--preset--spacing--70:3.38rem;--wp--preset--spacing--80:5.06rem;--wp--preset--shadow--natural:6px 6px 9px rgba(0,0,0,.2);--wp--preset--shadow--deep:12px 12px 50px rgba(0,0,0,.4);--wp--preset--shadow--sharp:6px 6px 0px rgba(0,0,0,.2);--wp--preset--shadow--outlined:6px 6px 0px -3px rgba(255,255,255,1),6px 6px rgba(0,0,0,1);--wp--preset--shadow--crisp:6px 6px 0px rgba(0,0,0,1);}:where(.is-layout-flex){gap:.5em;}:where(.is-layout-grid){gap:.5em;}body .is-layout-flex{display:flex;}.is-layout-flex{flex-wrap:wrap;align-items:center;}.is-layout-flex > :is(*,div){margin:0;}body .is-layout-grid{display:grid;}.is-layout-grid > :is(*,div){margin:0;}:where(.wp-block-columns.is-layout-flex){gap:2em;}:where(.wp-block-columns.is-layout-grid){gap:2em;}:where(.wp-block-post-template.is-layout-flex){gap:1.25em;}:where(.wp-block-post-template.is-layout-grid){gap:1.25em;}.has-black-color{color:var(--wp--preset--color--black) !important;}.has-cyan-bluish-gray-color{color:var(--wp--preset--color--cyan-bluish-gray) !important;}.has-white-color{color:var(--wp--preset--color--white) !important;}.has-pale-pink-color{color:var(--wp--preset--color--pale-pink) !important;}.has-vivid-red-color{color:var(--wp--preset--color--vivid-red) !important;}.has-luminous-vivid-orange-color{color:var(--wp--preset--color--luminous-vivid-orange) !important;}.has-luminous-vivid-amber-color{color:var(--wp--preset--color--luminous-vivid-amber) !important;}.has-light-green-cyan-color{color:var(--wp--preset--color--light-green-cyan) !important;}.has-vivid-green-cyan-color{color:var(--wp--preset--color--vivid-green-cyan) !important;}.has-pale-cyan-blue-color{color:var(--wp--preset--color--pale-cyan-blue) !important;}.has-vivid-cyan-blue-color{color:var(--wp--preset--color--vivid-cyan-blue) !important;}.has-vivid-purple-color{color:var(--wp--preset--color--vivid-purple) !important;}.has-black-background-color{background-color:var(--wp--preset--color--black) !important;}.has-cyan-bluish-gray-background-color{background-color:var(--wp--preset--color--cyan-bluish-gray) !important;}.has-white-background-color{background-color:var(--wp--preset--color--white) !important;}.has-pale-pink-background-color{background-color:var(--wp--preset--color--pale-pink) !important;}.has-vivid-red-background-color{background-color:var(--wp--preset--color--vivid-red) !important;}.has-luminous-vivid-orange-background-color{background-color:var(--wp--preset--color--luminous-vivid-orange) !important;}.has-luminous-vivid-amber-background-color{background-color:var(--wp--preset--color--luminous-vivid-amber) !important;}.has-light-green-cyan-background-color{background-color:var(--wp--preset--color--light-green-cyan) !important;}.has-vivid-green-cyan-background-color{background-color:var(--wp--preset--color--vivid-green-cyan) !important;}.has-pale-cyan-blue-background-color{background-color:var(--wp--preset--color--pale-cyan-blue) !important;}.has-vivid-cyan-blue-background-color{background-color:var(--wp--preset--color--vivid-cyan-blue) !important;}.has-vivid-purple-background-color{background-color:var(--wp--preset--color--vivid-purple) !important;}.has-black-border-color{border-color:var(--wp--preset--color--black) !important;}.has-cyan-bluish-gray-border-color{border-color:var(--wp--preset--color--cyan-bluish-gray) !important;}.has-white-border-color{border-color:var(--wp--preset--color--white) !important;}.has-pale-pink-border-color{border-color:var(--wp--preset--color--pale-pink) !important;}.has-vivid-red-border-color{border-color:var(--wp--preset--color--vivid-red) !important;}.has-luminous-vivid-orange-border-color{border-color:var(--wp--preset--color--luminous-vivid-orange) !important;}.has-luminous-vivid-amber-border-color{border-color:var(--wp--preset--color--luminous-vivid-amber) !important;}.has-light-green-cyan-border-color{border-color:var(--wp--preset--color--light-green-cyan) !important;}.has-vivid-green-cyan-border-color{border-color:var(--wp--preset--color--vivid-green-cyan) !important;}.has-pale-cyan-blue-border-color{border-color:var(--wp--preset--color--pale-cyan-blue) !important;}.has-vivid-cyan-blue-border-color{border-color:var(--wp--preset--color--vivid-cyan-blue) !important;}.has-vivid-purple-border-color{border-color:var(--wp--preset--color--vivid-purple) !important;}.has-vivid-cyan-blue-to-vivid-purple-gradient-background{background:var(--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple) !important;}.has-light-green-cyan-to-vivid-green-cyan-gradient-background{background:var(--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan) !important;}.has-luminous-vivid-amber-to-luminous-vivid-orange-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange) !important;}.has-luminous-vivid-orange-to-vivid-red-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-orange-to-vivid-red) !important;}.has-very-light-gray-to-cyan-bluish-gray-gradient-background{background:var(--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray) !important;}.has-cool-to-warm-spectrum-gradient-background{background:var(--wp--preset--gradient--cool-to-warm-spectrum) !important;}.has-blush-light-purple-gradient-background{background:var(--wp--preset--gradient--blush-light-purple) !important;}.has-blush-bordeaux-gradient-background{background:var(--wp--preset--gradient--blush-bordeaux) !important;}.has-luminous-dusk-gradient-background{background:var(--wp--preset--gradient--luminous-dusk) !important;}.has-pale-ocean-gradient-background{background:var(--wp--preset--gradient--pale-ocean) !important;}.has-electric-grass-gradient-background{background:var(--wp--preset--gradient--electric-grass) !important;}.has-midnight-gradient-background{background:var(--wp--preset--gradient--midnight) !important;}.has-small-font-size{font-size:var(--wp--preset--font-size--small) !important;}.has-medium-font-size{font-size:var(--wp--preset--font-size--medium) !important;}.has-large-font-size{font-size:var(--wp--preset--font-size--large) !important;}.has-x-large-font-size{font-size:var(--wp--preset--font-size--x-large) !important;}:where(.wp-block-post-template.is-layout-flex){gap:1.25em;}:where(.wp-block-post-template.is-layout-grid){gap:1.25em;}:where(.wp-block-columns.is-layout-flex){gap:2em;}:where(.wp-block-columns.is-layout-grid){gap:2em;}:root :where(.wp-block-pullquote){font-size:1.5em;line-height:1.6;}.woocommerce form .form-row .required{visibility:visible;}.bt-primary,a.bt-primary,button.bt-primary,.more-link,a.more-link,.wpcf7-submit,input.wpcf7-submit,div.tagcloud a,.widget .woocommerce-product-search input[type='search'],.widget .search-form input[type='search'],input[type='submit'],button[type='submit'],.woo-sidebar .woocommerce-mini-cart__buttons.buttons .button,footer .woocommerce-mini-cart__buttons.buttons .button,.woocommerce ul.products li.product .button,.woocommerce nav.woocommerce-pagination ul li a,.woocommerce nav.woocommerce-pagination ul li span,.top-scroll,.woocommerce-cart .wc-proceed-to-checkout a.checkout-button,.woocommerce table.cart td.actions .input-text,.woocommerce-page #content table.cart td.actions .input-text,.woocommerce-page table.cart td.actions .input-text,.wp-block-search .wp-block-search__input,.wp-block-loginout a,.woocommerce a.button,.woocommerce span.onsale{border-radius:100px !important;}li [class*=tool-]:hover:before,li [class*=tool-]:hover:after{opacity:0;}.dgwt-wcas-ico-magnifier,.dgwt-wcas-ico-magnifier-handler{max-width:20px;}.dgwt-wcas-search-wrapp{max-width:600px;}.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload),.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload) *{background-image:none !important;}@media screen and (max-height: 1024px){.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload),.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload) *{background-image:none !important;}.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload).nitro-lazy,.e-con.e-parent:nth-of-type(n+3):not(.e-lazyloaded):not(.e-no-lazyload) *.nitro-lazy{background-image:none !important;}}@media screen and (max-height: 640px){.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload),.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload) *{background-image:none !important;}.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload).nitro-lazy,.e-con.e-parent:nth-of-type(n+2):not(.e-lazyloaded):not(.e-no-lazyload) *.nitro-lazy{background-image:none !important;}}.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload).nitro-lazy,.e-con.e-parent:nth-of-type(n+4):not(.e-lazyloaded):not(.e-no-lazyload) *.nitro-lazy{background-image:none !important;}

Metric Banjo Fittings

700M Metric Banjo Bolts

Description

700M Metric Banjo Fittings Video

Hot Sales

50011 metric standpipe fitting

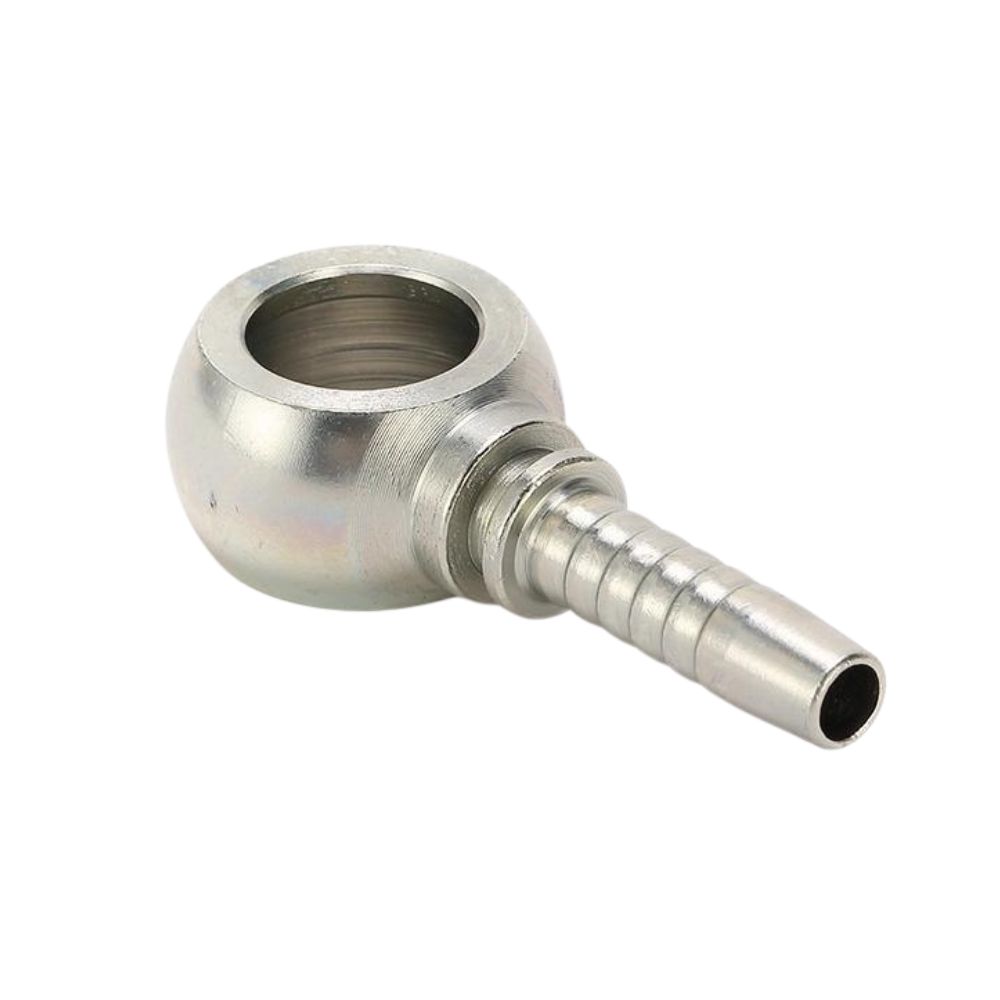

70011 Metric banjo fittings
