JIC Bulkhead Fittings

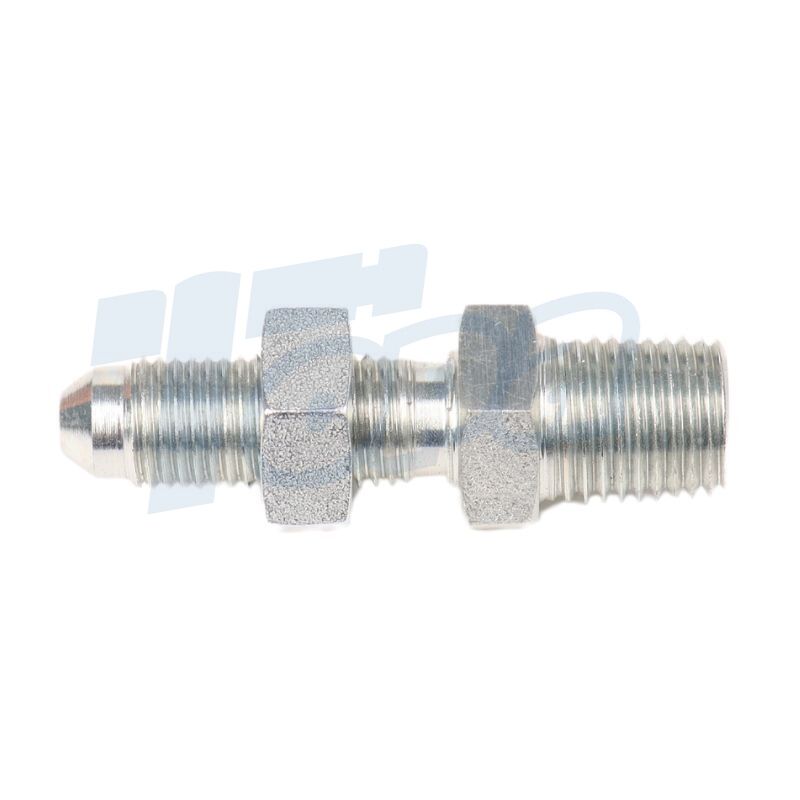

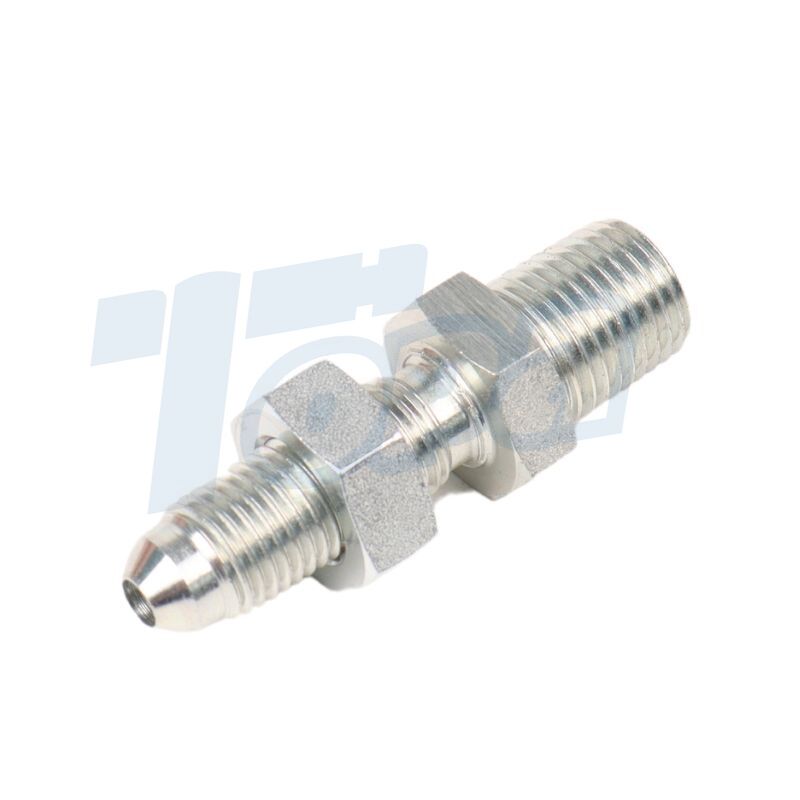

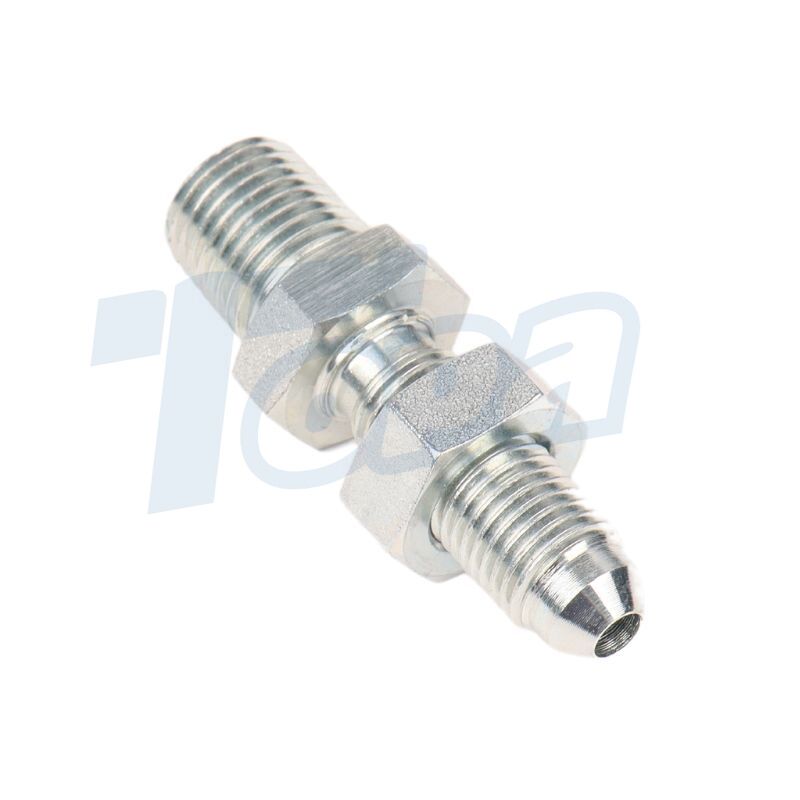

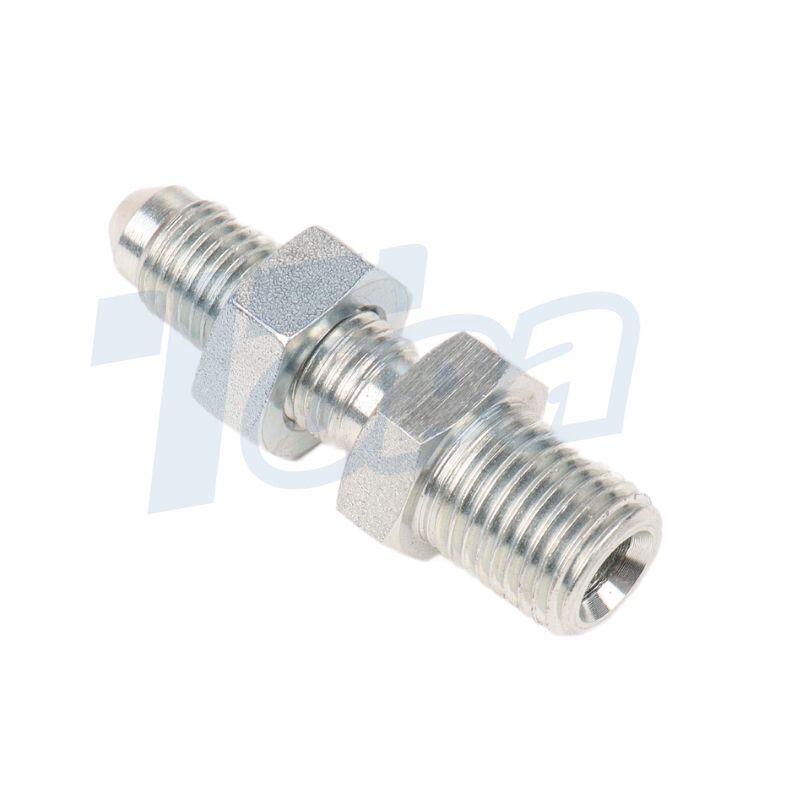

2706 JIC Bulkhead Fittings

Types: Straight Bulkhead

Part Number:2706

Material:Carbon Steel

Thread 1 Type: Male NPT

Thread 2 Type: Male JIC

Applications: Industry; Mining;Oil and Gas

Perfect quality JIC hydraulic adapter fittings, made of top-quality carbon steel and stainless steel material.

Description

Part#	TUBE O.D.	A1 NPTF	B2 SAE 37	L LGTH	M.M.	L1 LGTH	M.M.	C HEX	C HEX	M.M.	PLATE MAX
2706-02-04	1/4	1/8-27	7/16-20	1.840	46.74	1.200	30.48	11/16	0.687	17.45	27/64
2706-04-04	1/4	1/4-18	7/16-20	2.040	51.82	1.200	30.48	11/16	0.687	17.45	27/64
2706-04-06	3/8	1/4-18	9/16-18	2.190	55.63	1.280	32.51	13/16	0.812	20.62	27/64
2706-06-06	3/8	3/8-18	9/16-18	2.190	55.63	1.280	32.51	13/16	0.812	20.62	27/64
2706-06-08	1/2	3/8-18	3/4-16	2.350	59.69	1.440	36.58	1	1.000	25.40	31/64
2706-08-08	1/2	1/2-14	3/4-19	2.570	65.28	1.440	36.58	1	1.000	12.70	31/64
2706-08-10	5/8	1/2-14	7/8-14	2.720	69.09	1.580	40.13	1 1/8	1.125	28.58	29/64
2706-08-12	3/4	1/2-14	1 1/16-12	2.920	74.17	1.750	44.45	1 3/8	1.375	34.93	???
2706-12-12	3/4	3/4-14	1 1/16-12	2.920	74.17	1.750	44.45	1 3/8	1.375	34.93	33/64
2706-16-16	1	1-11 1/2	1 5/16-12	3.100	78.74	1.750	44.45	1 5/8	1.625	41.28	27/64
2706-20-20	1 1/4	1 1/4-11 1/2	1 5/8-12	3.230	82.04	1.800	45.72	1 7/8	1.875	47.63	27/64
2706-24-24	1 1/2	1 1/2-11 1/2	1 7/8-12	3.450	87.63	1.810	45.97	2 1/8	2.125	53.97	21/64
2706-32-32	2	2-11 1/2	2-11 1/2	3.890	98.81	2.090	53.09	2 3/4	2.750	69.85	9/16

2706 JIC Bulkhead Fittings Video

The 2706 JIC hydraulic fittings manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video unfolds, you will see the entire process of JIC hydraulic adapters from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.

Ready to experience quality service? Visit Topa today to learn more about our line of premium hydraulic adapters. Let Topa help you make a better choice.
