JIC Hydraulic Fitting

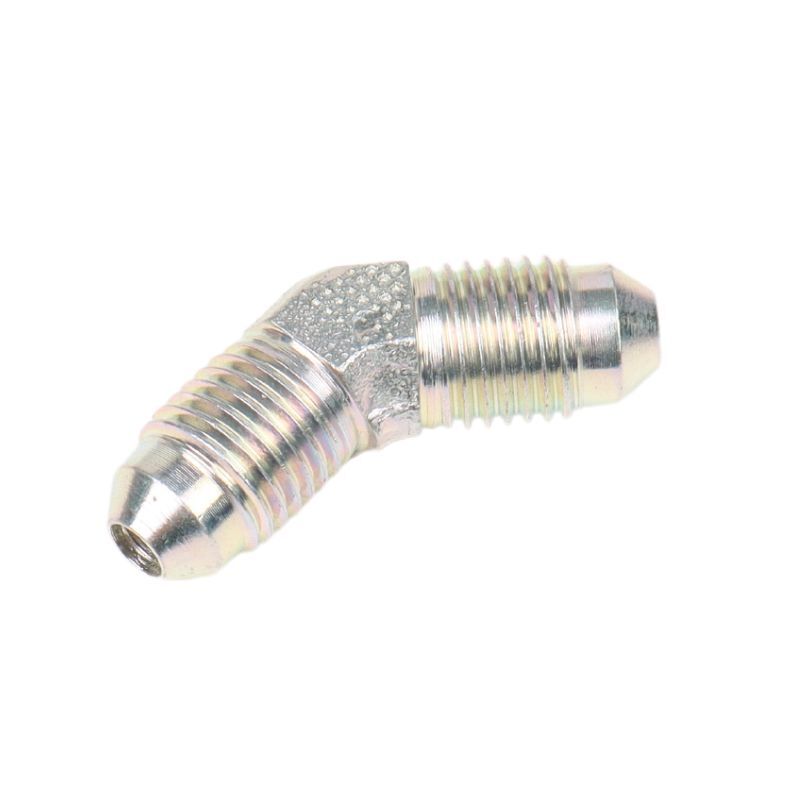

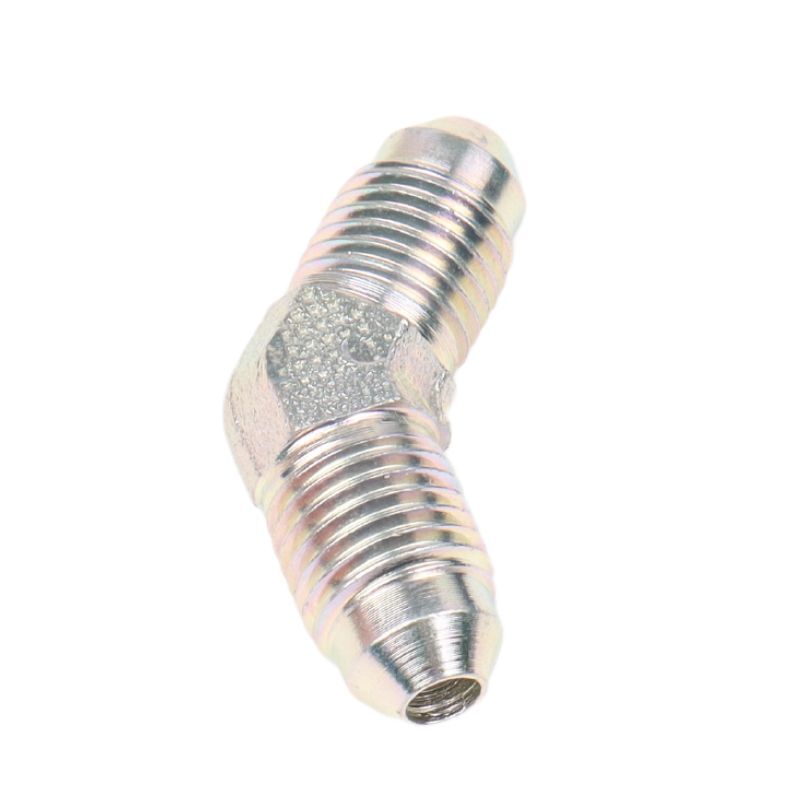

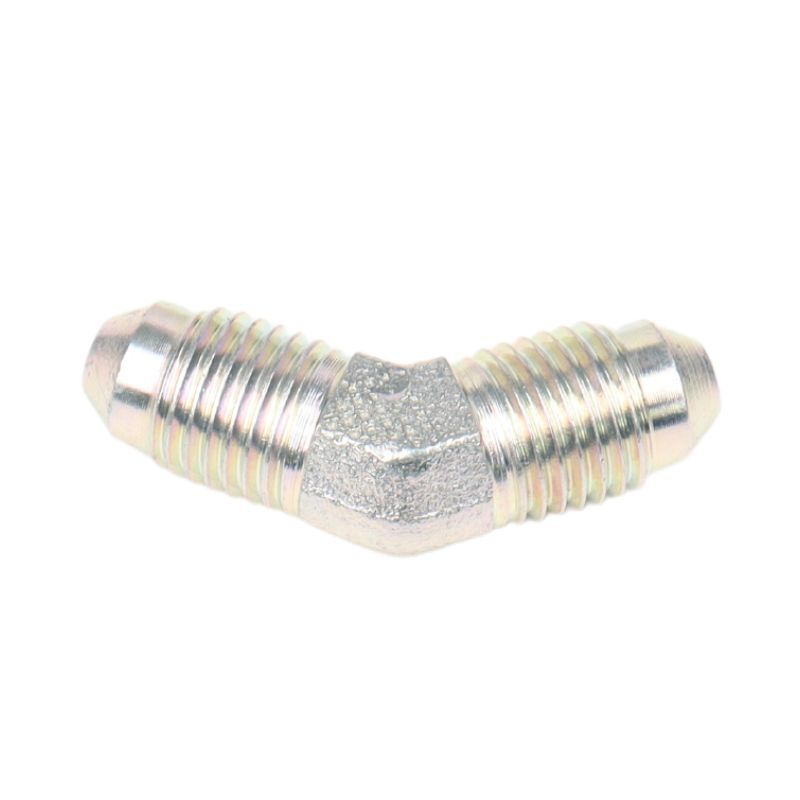

2504 JIC Hydraulic Fitting

Types: 45° Male Elbow

Part Number:2504

Material:Carbon Steel

Thread 1 Type: Flare tube end

Thread 2 Type: Flare tube end

Applications: Industry; Mining; Construction

Perfect quality JIC hydraulic adapter fittings, made of top-quality carbon steel and stainless steel material.

Category: Tags: , , ,

Description

2504 JIC Hydraulic Fitting Drawing Topa
PART
#
  TUBE
  O.D.
B1 SAE 37B2 SAE 37   M1
   LGTH
M.M.   M2
   LGT
M.M.    Y
FLATS
     Y
FLATS
  M.M.
2504-04-041/47/16-207/16-200.720 18.29 0.720 18.29 1/20.500 12.70
2504-06-043/89/16-187/16-200.820 20.83 0.830 21.08 5/80.625 15.88
2504-06-063/89/16-189/16-180.830 21.08 0.830 21.08 5/80.625 15.88
2504-08-081/23/4-163/4-160.980 24.89 0.980 24.89 13/160.812 20.62
2504-10-105/87/8-147/8-141.110 28.19 1.110 28.19 15/160.937 23.80
2504-12-12 3/41 1/16-121 1/16-121.280 32.51 1.280 32.51 1 1/81.125 28.58
2504-16-16 1/11 1/16-121 1/16-121.510 38.35 1.510 38.35 1 3/81.375 34.93

2504 JIC Hydraulic Fitting Video

The 2504 JIC hydraulic fittings manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video unfolds, you will see the entire process of JIC hydraulic adapters from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.
