JIC Fittings

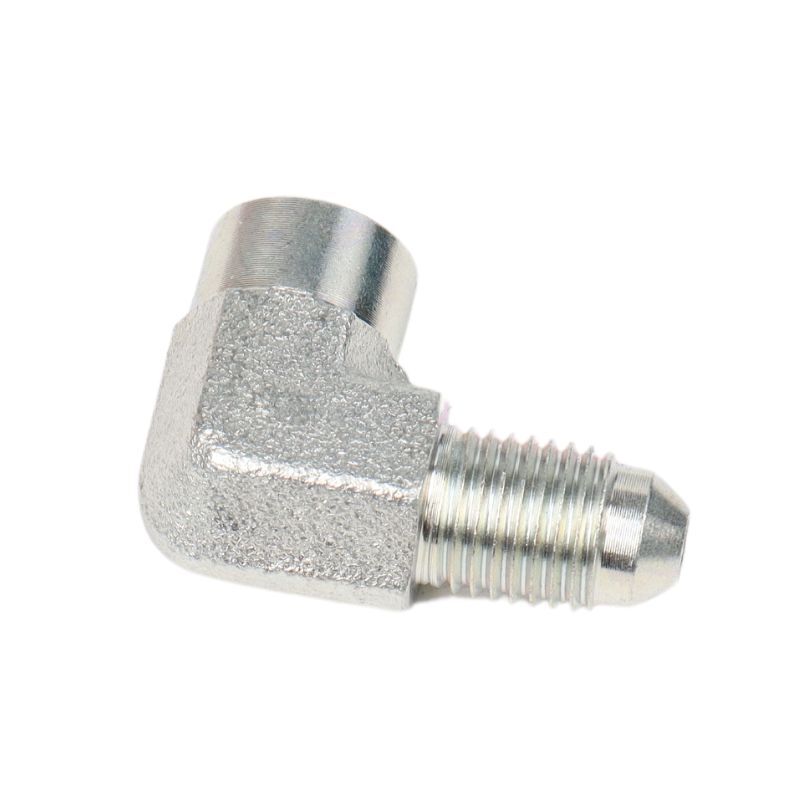

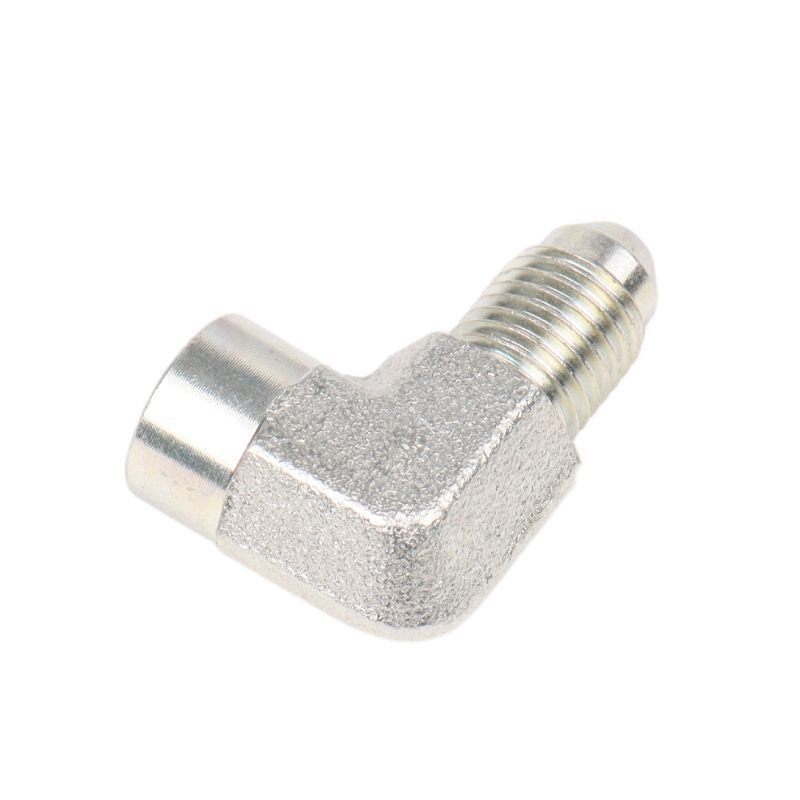

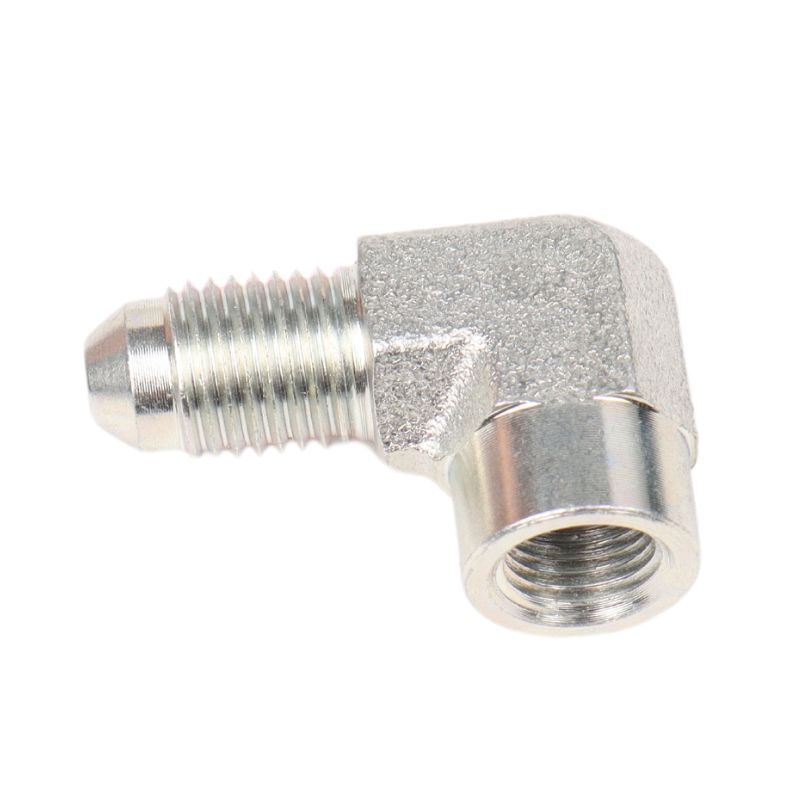

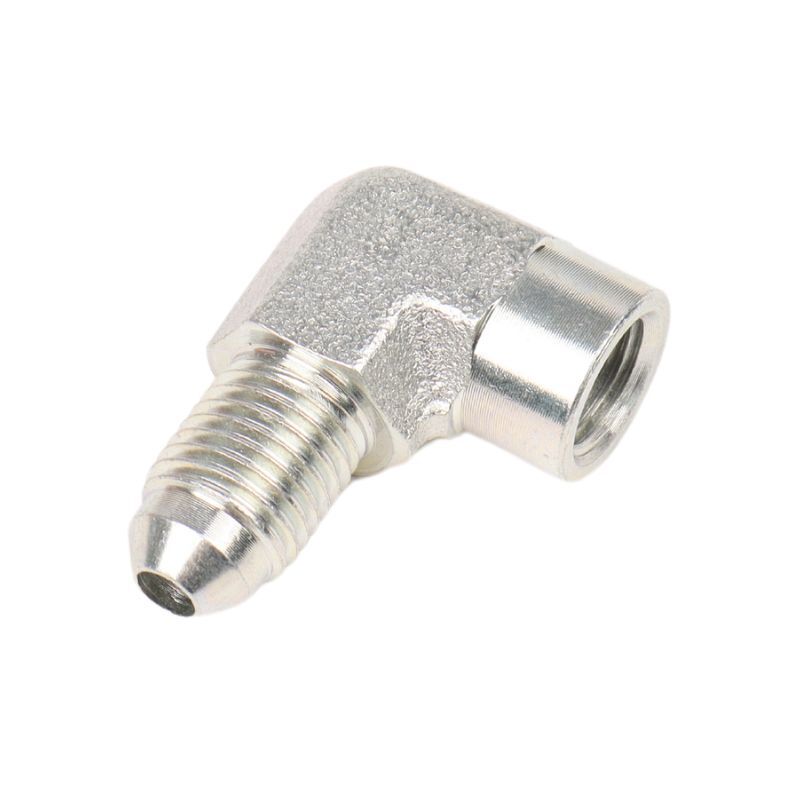

2502 JIC Fittings

Types: Female Elbow

Part Number:2502

Material:Carbon Steel

Thread 1 Type: Flare tube end

Thread 2 Type: Female pipe end

Standard:SAE 070203

Applications: Industry; Mining;Heavy Machine

Perfect quality JIC hydraulic adapter fittings, made of top-quality carbon steel and stainless steel material.

Category: Tags: , , ,

Description

2502 JIC Fittings Drawing Topa
TUBE
FITTING
PART #
   TUBE
   O.D.
   (inch)
   T
TUBE END
UN/UNF-2A
PT
PORT THD
NPTF
D
DRILL
(inch)
D1
DRILL REF
(inch)
      M1
      (inch)
     N1
     (inch)
Y1
     (inch)
2502-4-2   1/47/16-201/8-270.172 0.328       1.08      0.66 9/16
2502-4-4   1/47/16-201/4-180.172 0.422       1.22      0.88 3/4
2502-5-2   5/161/2-201/8-270.234 0.328       1.08      0.66 9/16
2502-5-4   5/161/2-201/4-180.234 0.422       1.13      0.88 3/4
2502-6-4   3/89/16-181/4-180.297 0.422       1.23      0.88 3/4
2502-6-2   3/89/16-181/8-270.297 0.328       1.23      0.67 9/16
2502-6-6   3/89/16-183/8-180.297 0.563       1.31      1.02 7/8
2502-8-6   1/23/4-163/8-180.391 0.563       1.42      1.02 7/8
2502-8-4   1/23/4-161/4-180.391 0.422       1.42      1.01 3/4
2502-8-8   1/23/4-161/2-140.391 0.688       1.52      1.23 1 1/16
2502-10-8   5/87/8-141/2-140.484 0.688       1.64      1.23 1 1/16
2502-12-12   3/41 1/16-123/4-140.609 0.891       1.89      1.36 1 5/16
2502-12-8   3/41 1/16-121/2-140.609 0.688       1.89      1.35 1 1/16
2502-14-12   7/81 3/16-123/4-140.718 0.891       1.86      1.42 1 5/16
2502-16-16   1 1 5/16-121-11 1/20.844 1.125       2.17      1.63 1 5/8
2502-20-20   1 1/4   1 5/8-121 1/4-11 1/21.078 1.469       2.33      1.70 1 7/8
2502-24-24   1 1/2   1 7/8-121 1/2-11 1/21.312 1.703       2.89      2.08 2 1/2

2502 JIC Fittings Video

The 2502 JIC hydraulic fittings manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video unfolds, you will see the entire process of JIC hydraulic adapters from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.

Ready to experience quality service? Visit Topa today to learn more about our line of premium hydraulic adapters. Let Topa help you make a better choice.
