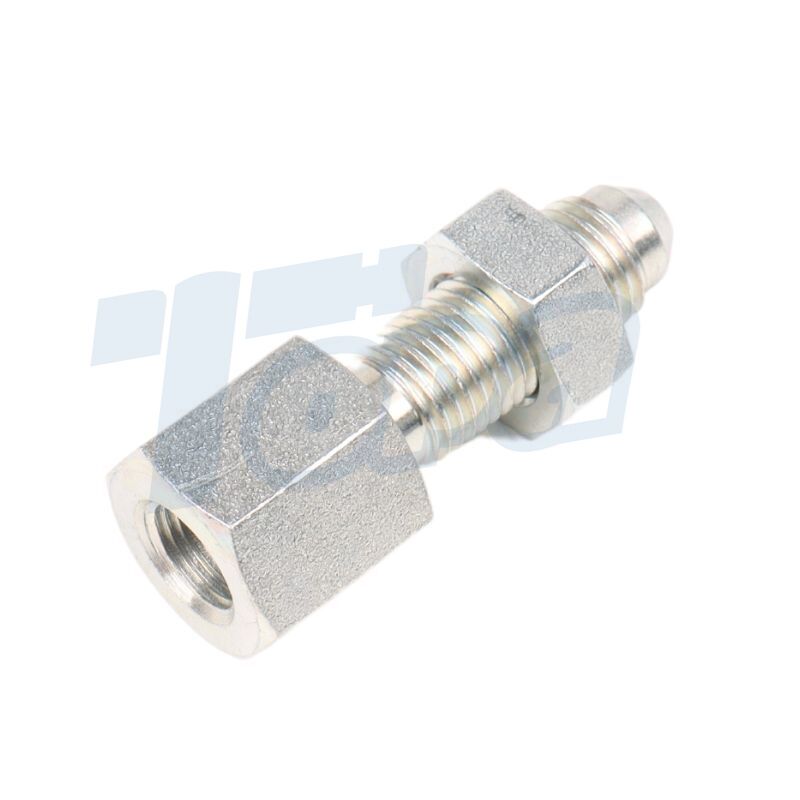

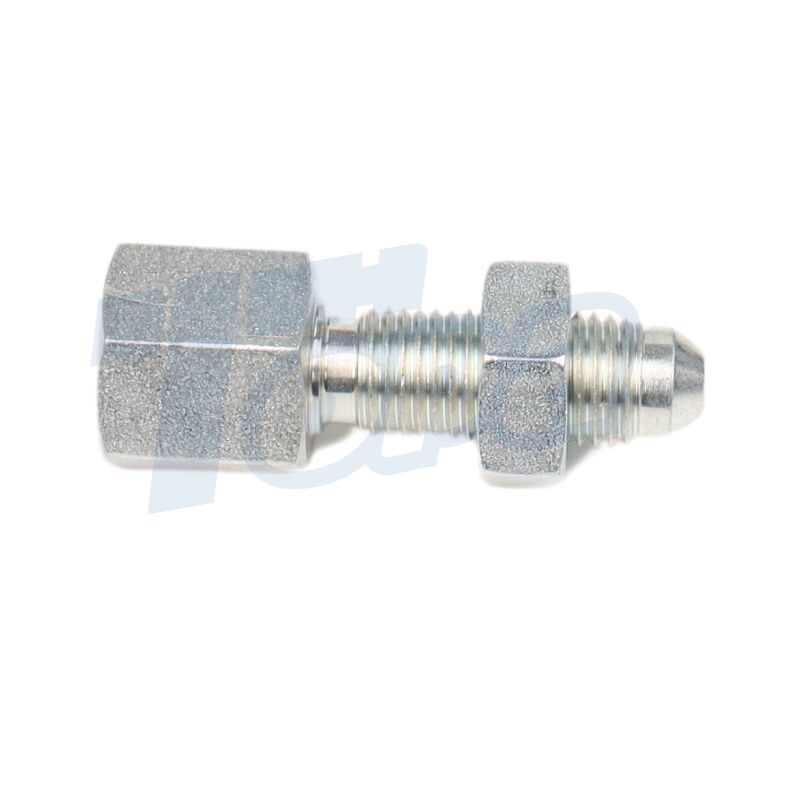

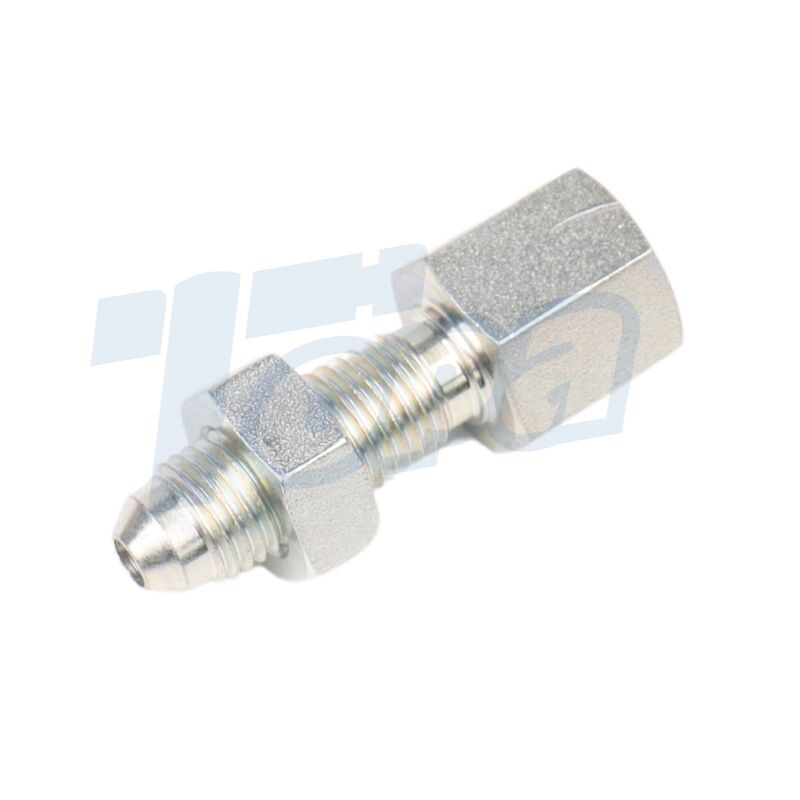

2705 JIC Bulkhead Fitting Supplier

Description

Part#	TUBE O.D.	A1 NPTF	B2 SAE 37	L LGTH	M.M.	L1 LGTH	M.M.	C HEX	C HEX	M.M.	PLATE MAX
2705-02-04	1/4	1/8-27	7/16-20	2.080	52.83	1.200	30.48	11/16	0.687	17.45	27/64
2705-02-05	5/16	1/8-27	1/2-20	1.785	45.34	1.200	30.48	3/4	0.750	19.05	27/64
2705-04-04	1/4	1/4-18	7/16-20	2.041	51.84	1.200	30.48	3/4	0.750	19.05	27/64
2705-04-06	3/8	1/4-18	9/16-18	2.124	53.95	1.280	32.51	11/16	0.687	17.45	27/64
2705-06-06	3/8	3/8-18	9/16-18	2.190	55.63	1.280	32.51	7/8	0.875	22.23	27/64
2705-06-08	1/2	3/8-18	3/4-16	2.480	62.99	1.440	36.58	7/8	0.875	22.23	31/64
2705-08-08	1/2	1/2-14	3/4-16	2.530	64.26	1.440	36.58	1 1/8	1.125	28.58	31/64
2705-08-10	5/8	1/2-14	7/8-14	2.840	72.14	1.580	40.13	1	1.000	25.40	29/64
2705-12-12	3/4	3/4-14	1 1/16-12	3.050	77.47	1.750	44.45	1 3/8	1.375	34.93	33/64
2705-12-14	7/8	1 1/16-12	1 3/16-12	2.890	73.41	1.750	44.45	1 1/2	1.500	38.10	27/64
2705-16-16	1/1	1-11 1/2	1 5/16-12	3.250	82.55	1.750	44.45	1 1/2	1.500	38.10	27/64
2705-20-20	1 1/4	1 1/4-11 1/2	1 5/8-12	3.218	81.74	1.800	45.72	2	2.000	50.80	27/64
2705-24-24	1 1/2	1 1/2-11 1/2	1 7/8-12	3.320	84.33	1.810	45.97	2 3/8	2.375	60.32	21/64

2705 JIC Bulkhead Fitting Video

The 2705 JIC hydraulic fittings manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video unfolds, you will see the entire process of JIC hydraulic adapters from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.

Ready to experience quality service? Visit Topa today to learn more about our line of premium hydraulic adapters. Let Topa help you make a better choice.
